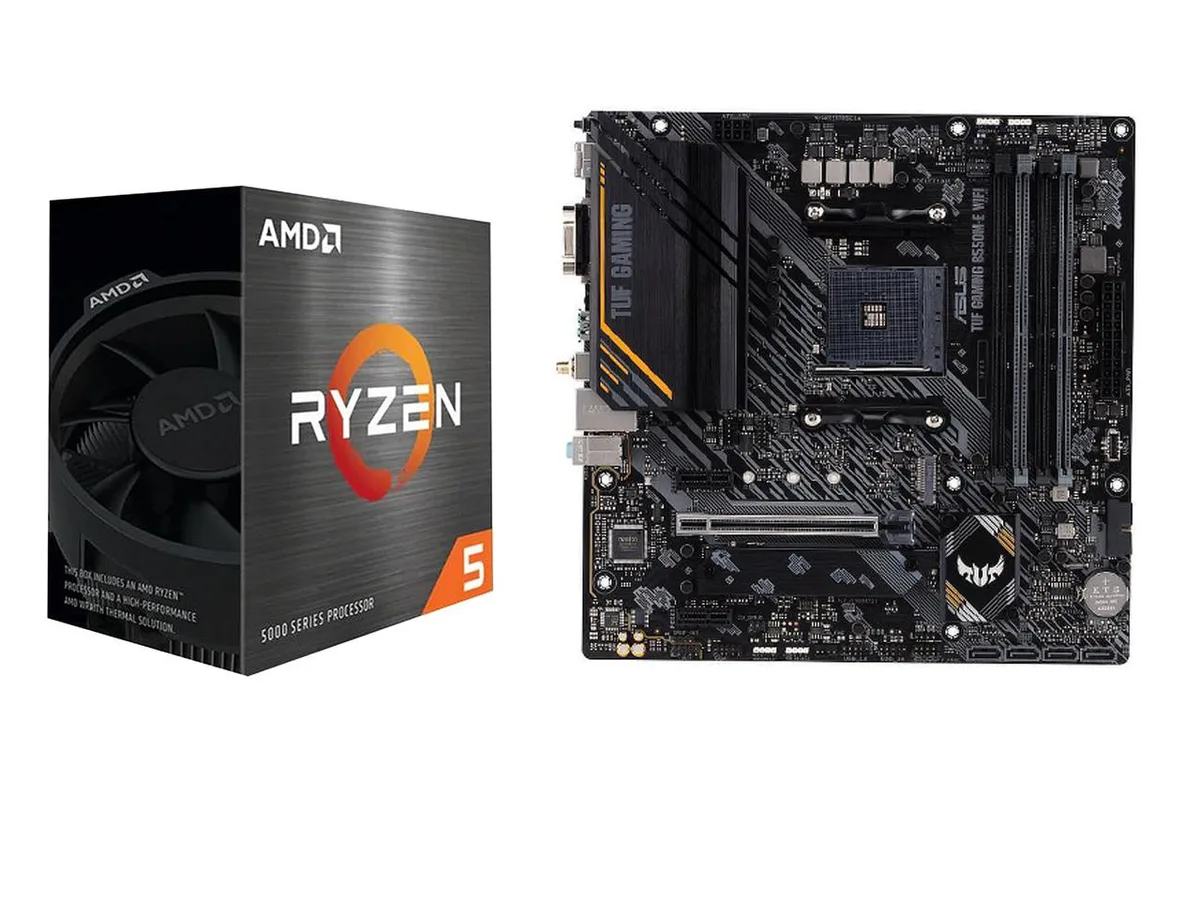

ASUS TUF GAMING B550M-E WIFI AMD motherboard with Ryzen 5 5600X
Micro ATX board with B550 chipset, four DDR4 slots up to 128 GB, dual M.2, HDMI 2.1 and bundled Ryzen 5 5600X six-core CPU
- CPU TypeRyzen 5000 Series
- ChipsetAMD B550
- Number of Memory Slots4x288pin (DDR4)
- Memory Standard4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4333(OC)/4266(O
- Maximum Memory Supported128GB
- Channel SupportedDual Channel

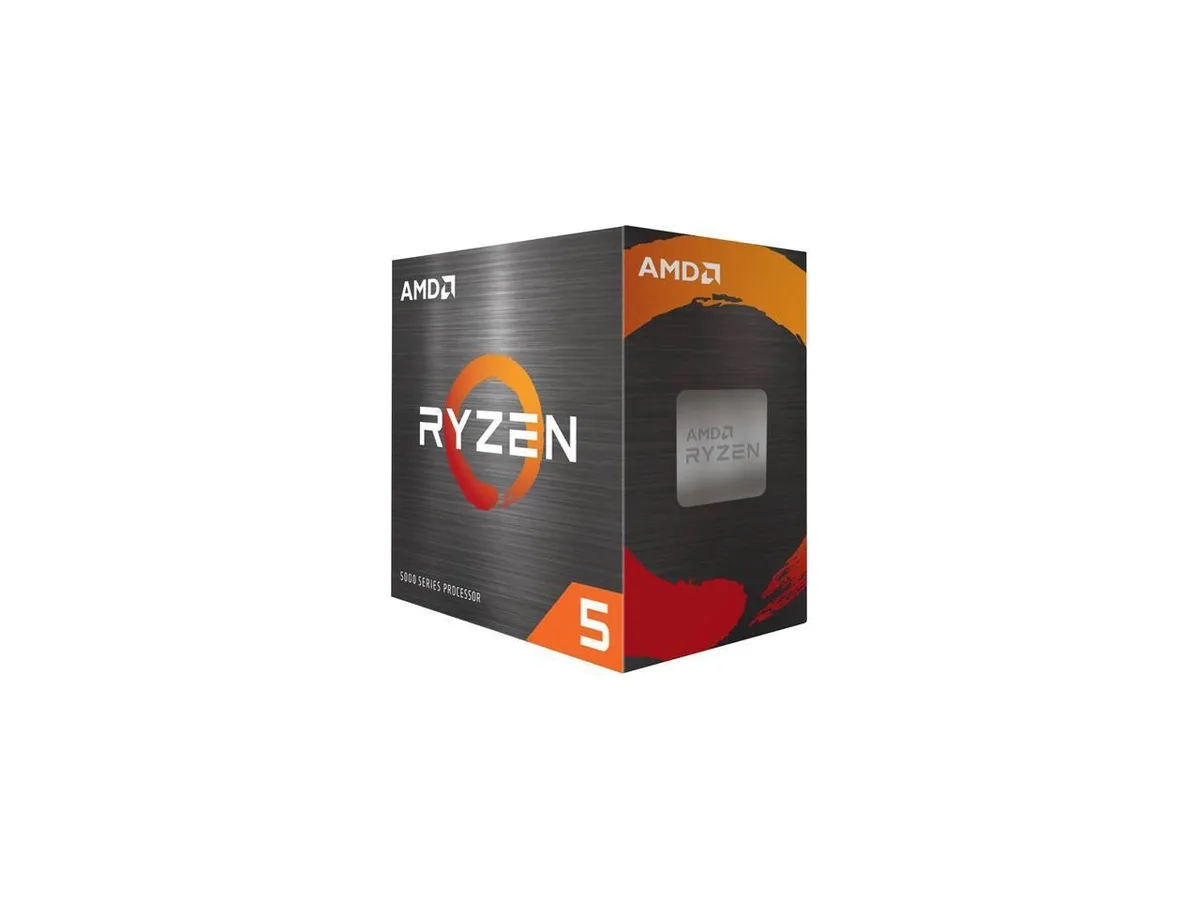

- 6-core Ryzen 5 5600X at 3.7 GHz handles multi-threaded workloads
- B550 chipset enables PCIe 4.0 x16 for modern graphics cards
- Four DDR4 slots support up to 128 GB dual-channel memory
- Micro ATX form factor fits compact cases while keeping four SATA ports
- HDMI 2.1 output drives 4K displays at high refresh rates
ASUS TUF B550 Micro ATX with Ryzen 5 5600X
This bundle pairs a Micro ATX B550 motherboard with a Ryzen 5 5600X processor. The board uses the AM4 socket and AMD B550 chipset. It provides four DDR4 memory slots supporting speeds up to 4866 MHz when overclocked and a maximum capacity of 128 GB. Integrated Wi‑Fi and HDMI 2.1 are included.
For AM4 builders needing compact Wi‑Fi
The combination suits builders who want a small‑form‑factor system with wireless networking and a 65 W six‑core CPU. It supports dual‑channel DDR4, four SATA 6 Gb/s ports and two M.2 slots for storage expansion. Users requiring full‑size ATX layouts, multi‑GPU support or newer socket platforms should consider other options.
PCIe 4.0 x16 slot for Ryzen 5000 series
The single PCIe 4.0 x16 slot operates at full speed only with Ryzen 5000 or 3000 series desktop processors. With Ryzen 5000 G‑Series or 4000 G‑Series CPUs the slot runs at PCIe 3.0 x16. This distinction determines graphics performance and is the key specification to verify before purchase.
Highlights
- 6-core Ryzen 5 5600X at 3.7 GHz handles multi-threaded workloads
- B550 chipset enables PCIe 4.0 x16 for modern graphics cards
- Four DDR4 slots support up to 128 GB dual-channel memory
- Micro ATX form factor fits compact cases while keeping four SATA ports
- HDMI 2.1 output drives 4K displays at high refresh rates
Specifications
| Brand | ASUS |
|---|---|
| Model | TUF GAMING B550M-E WIFI |
| CPU Type | Ryzen 5000 Series |
| Chipset | AMD B550 |
| Number of Memory Slots | 4x288pin (DDR4) |
| Memory Standard | 4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz, Un-buffered Memory* * ECC memory (ECC mode) support varies by CPU. |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| PCI Express 4.0 x16 | AMD Ryzen 5000 Series/ 3000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x16 mode) |
| PCI Express 3.0 x16 | AMD Ryzen 5000 G-Series/ 4000 G-Series Desktop Processors 1 x PCIe 3.0 x16 slot (supports x16 mode) |
| PCI Express x1 | AMD B550 Chipset 2 x PCIe 3.0 x1 slots |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
| Form Factor | Micro ATX |
Questions about this item
What size case and power connectors does this micro ATX board require?
The board uses micro ATX dimensions, a 24-pin ATX power connector and an 8-pin EPS connector.
Which CPU power phase and BIOS step are critical when installing the 65 W 6-core processor?
Connect the 8-pin EPS cable, seat the processor in the AM4 socket, then update the BIOS before first boot so the 3.7 GHz 65 W CPU is recognised.
Which memory type and maximum capacity should I plan for future upgrades?
Four 288-pin DDR4 slots support up to 128 GB in dual-channel mode.
