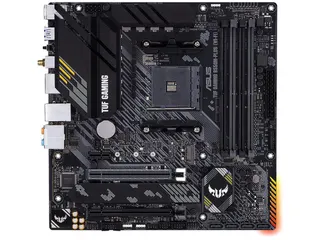

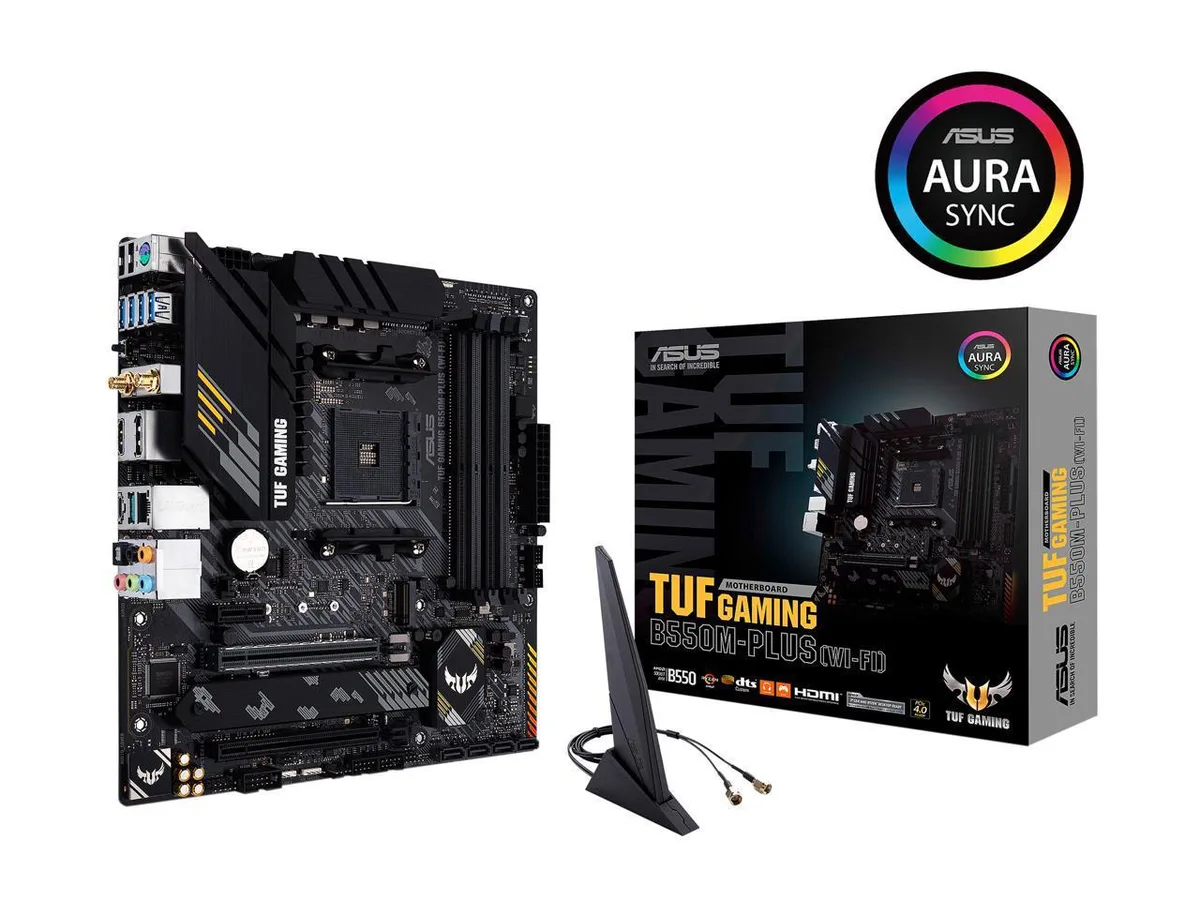

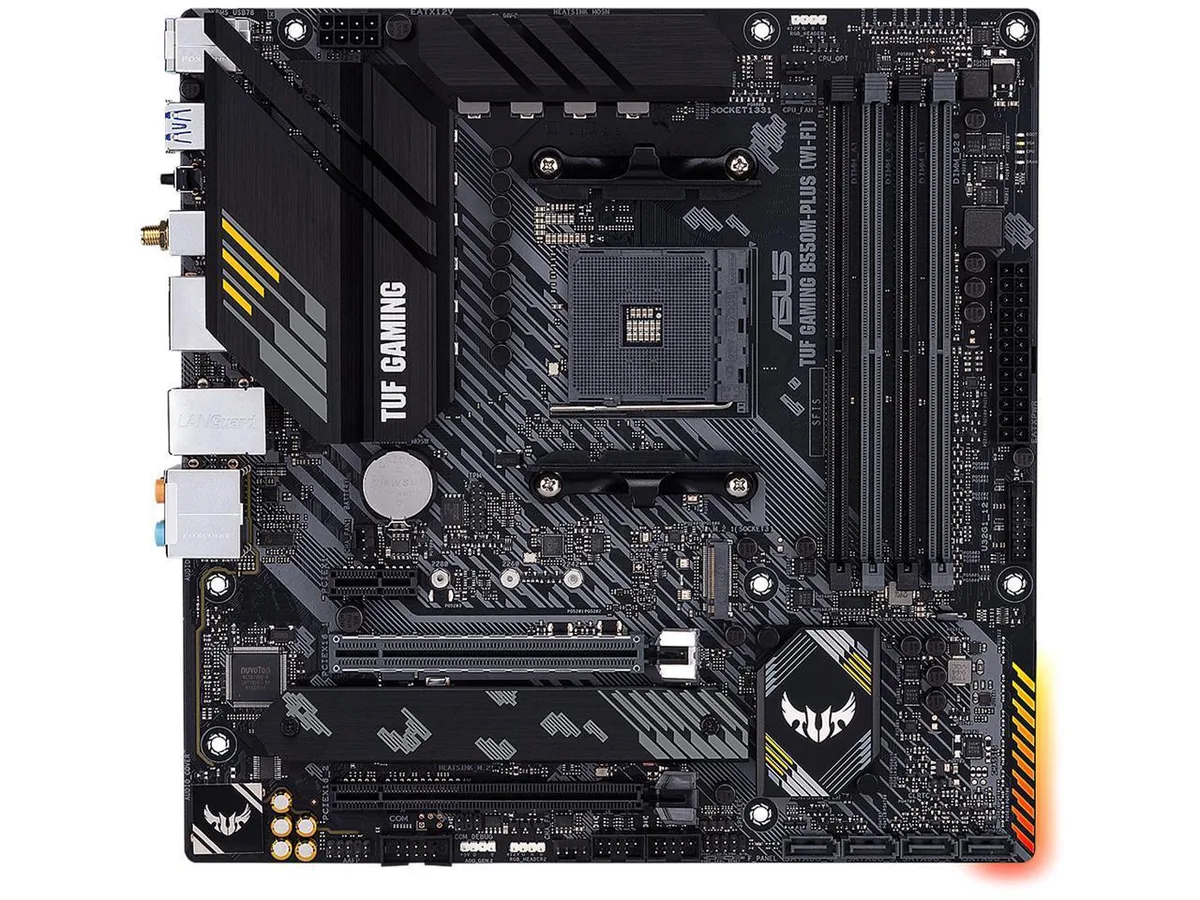

Dark green Micro-ATX board with black heatsinks and silver accents

ASUS

ASUS TUF GAMING B550M-PLUS (Wi-Fi) AMD AM4 3rd Gen Ryzen PCIe 4.0 2.5Gb LAN BIOS FlashBack AMD motherboard

SKU CH-CF4E-N4VNM

Micro-ATX AM4 board with PCIe 4.0, 2.5 Gb LAN, dual M.2 slots, HDMI 2.1 and DisplayPort 1.2, USB 3.2 Gen 2, and SupremeFX S1220A audio

  • CPU TypeRyzen 5000 Series
  • AM4 socket and PCIe 4.0 ready for 3rd Gen Ryzen CPUs

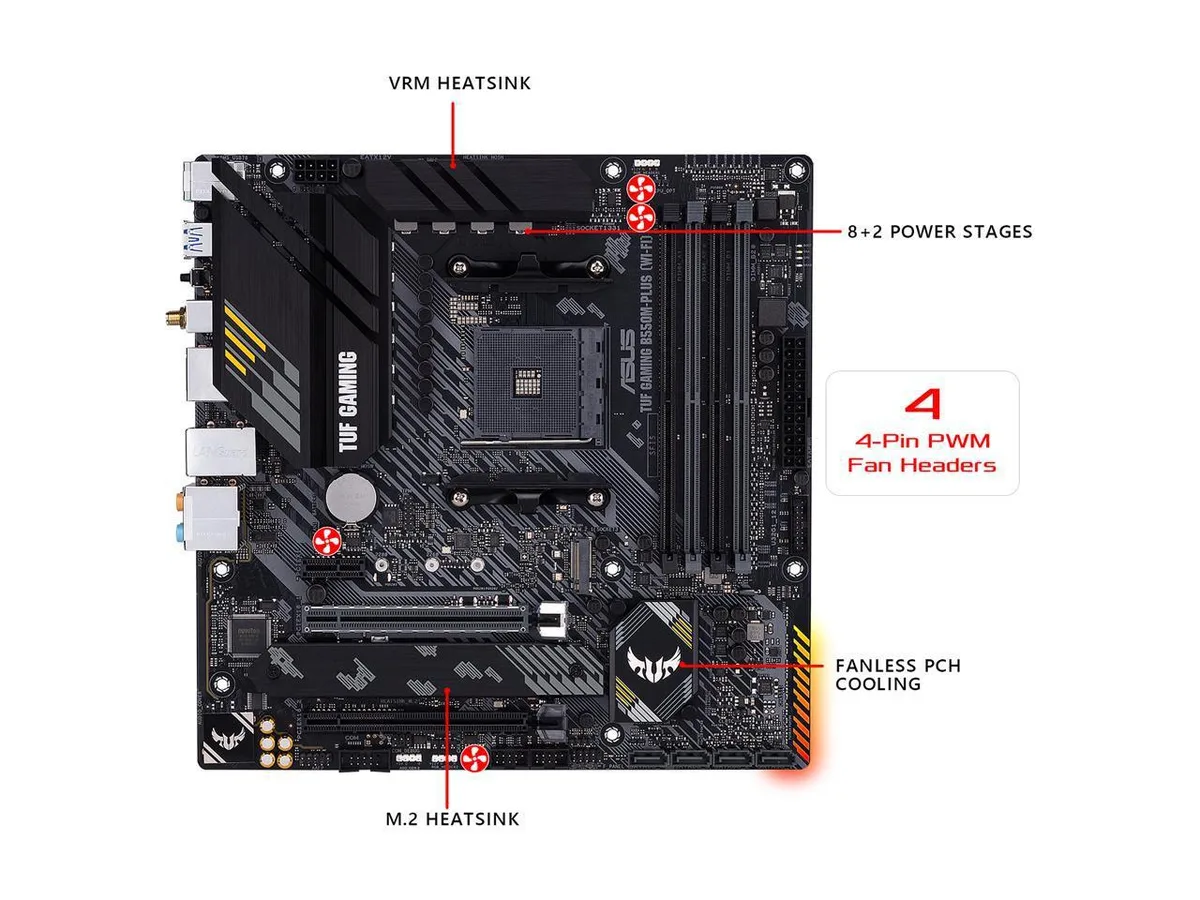

  • 8+2 DrMOS power stages deliver stable power to high-core-count processors
  • Fanless VRM and chipset heatsinks with hybrid fan headers keep thermals in check
  • 5 Gb LAN with LANGuard provides fast, protected wired networking
  • Dual M.2 slots including one PCIe 4.0 x4 plus USB 3.2 Gen 2 Type-C and Type-A ports

Micro ATX AM4 Motherboard for 3rd Gen Ryzen

This Micro ATX board fits the AMD AM4 socket and supports 3rd Gen Ryzen processors with PCIe 4.0. It targets gamers and builders who want a compact foundation with 2.5 Gb LAN, HDMI 2.1 video output and dual M.2 slots for NVMe storage. The design includes 8+2 DrMOS power stages, alloy chokes and durable capacitors for stable delivery to high-count-core CPUs.

BIOS FlashBack and Fan Xpert 4 Simplify Setup

A BIOS update may be required before a Ryzen 5000 series CPU will post, but the FlashBack button lets you update without a processor installed. Fan Xpert 4 and UEFI Q-Fan Control manage the hybrid fan headers from a single interface. The fanless VRM and chipset heatsinks remove moving parts that can fail, reducing the chance of thermal throttling during long sessions.

PCIe 4.0 x4 M.2 Slot Dictates Top Storage Speed

One M.2 slot runs at PCIe 4.0 x4 while the second operates at lower bandwidth, so the fastest NVMe drive must occupy the primary slot to reach full throughput. HDMI 2.1 supports 4K at 60 Hz and DisplayPort 1.2 provides a second display output. USB 3.2 Gen 2 Type-C and Type-A ports handle fast peripherals. SupremeFX S1220A audio with DTS Sound Unbound and Sonic Studio III handles sound.

Highlights

  • AM4 socket and PCIe 4.0 ready for 3rd Gen Ryzen CPUs
  • 8+2 DrMOS power stages deliver stable power to high-core-count processors
  • Fanless VRM and chipset heatsinks with hybrid fan headers keep thermals in check
  • 5 Gb LAN with LANGuard provides fast, protected wired networking
  • Dual M.2 slots including one PCIe 4.0 x4 plus USB 3.2 Gen 2 Type-C and Type-A ports

Specifications

CPU TypeRyzen 5000 Series

Questions about this item

Will a Ryzen 5000 series CPU work out of the box or is a BIOS update required first?

A BIOS update might be required for AMD Zen 3 Ryzen 5000 series CPUs; the board includes BIOS FlashBack so you can update without a supported processor installed

What video outputs are available if I use an APU with integrated graphics?

The board provides HDMI 2.1 supporting 4K at 60 Hz and DisplayPort 1.2 for integrated graphics output

How many M.2 slots does the board have and what speeds do they support?

There are dual M.2 slots for NVMe SSDs; one operates at PCIe 4.0 x4 speeds while the second runs at a lower bandwidth
