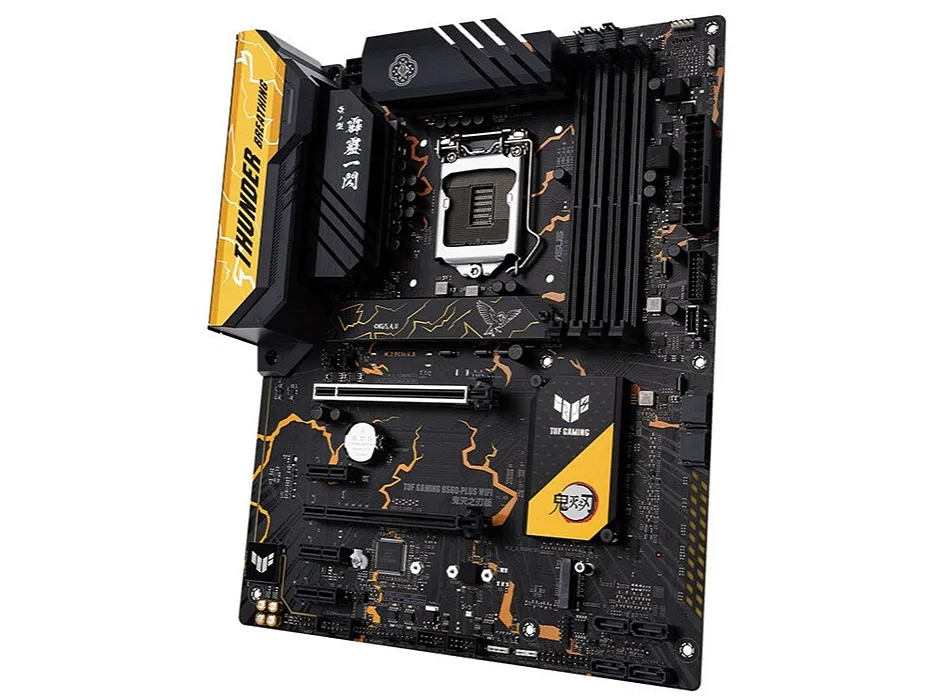

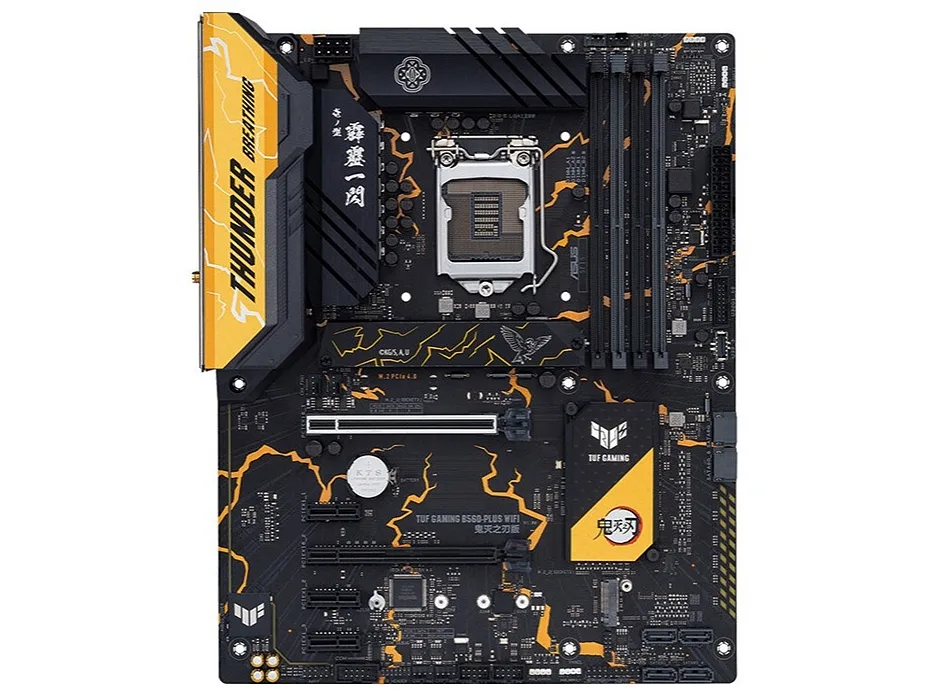

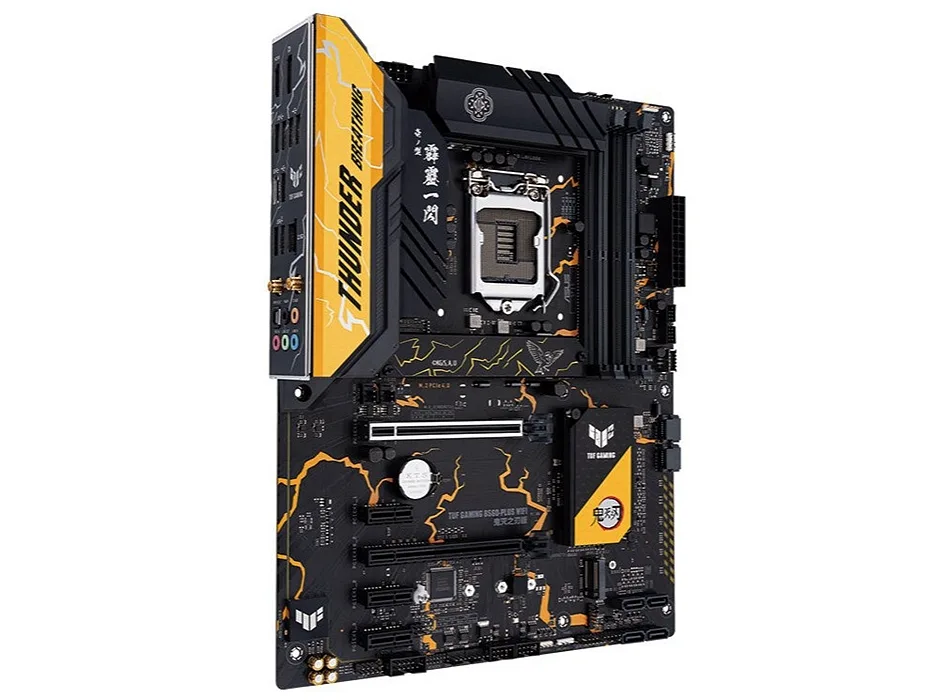

ATX motherboard with Demon Slayer graphics and TUF Gaming branding

ASUS

ASUS TUF Gaming B560-PLUS WIFI Demon Slayer Limited Edition Intel motherboard

SKU CH-4M7M-C5H7V

Supports 10th and 11th Gen Intel CPUs on LGA 1200 with DDR4 up to 128 GB, 2.5 GbE LAN, Wi-Fi 6, dual M.2 and six SATA ports on an ATX board

  • Memory Size12GB
  • Memory TypeDDR4
  • CoolerTriple Fans
  • Supports 10th and 11th Gen Intel Core CPUs on LGA 1200 socket
  • Intel B560 chipset with PCIe 4.0 and DDR4 up to 5000 MT/s OC
  • 5 Gb Ethernet plus Intel Wi-Fi 6 for fast networking
  • Two M.2 slots and six SATA ports for storage expansion
  • Realtek ALC897 7.1 channel audio with TUF Gaming durability

ASUS TUF Gaming B560-PLUS WIFI Demon Slayer Edition

This ATX motherboard pairs the Intel B560 chipset with an LGA 1200 socket for 10th and 11th generation Core, Pentium and Celeron processors. It delivers dual-channel DDR4 memory support up to 128 GB and includes integrated Wi-Fi 6 and 2.5 GbE networking. The limited-edition Demon Slayer theme adds distinctive styling to a TUF Gaming platform built for durability.

Ideal for mid-range gaming builds

Builders who want PCIe 4.0 support, two M.2 slots and six SATA ports on a board with robust 8+1 phase power will find a solid foundation here. The extensive rear I/O includes USB 3.2 Gen 2, USB 3.2 Gen 1 Type-C, HDMI and DisplayPort outputs. Users needing a smaller form factor or a chipset with more native PCIe lanes should consider other options.

B560 chipset with PCIe 4.0 and dual M.2

The Intel B560 Express chipset enables PCIe 4.0 on the primary x16 slot and both M.2 connectors when an 11th generation CPU is installed. This single spec decides whether the board can run modern GPUs and SSDs at their full rated speed. With a 10th generation processor the links operate at PCIe 3.0 instead.

Highlights

  • Supports 10th and 11th Gen Intel Core CPUs on LGA 1200 socket
  • Intel B560 chipset with PCIe 4.0 and DDR4 up to 5000 MT/s OC
  • 5 Gb Ethernet plus Intel Wi-Fi 6 for fast networking
  • Two M.2 slots and six SATA ports for storage expansion
  • Realtek ALC897 7.1 channel audio with TUF Gaming durability

Specifications

BrandASUS
SeriesTUF Gaming
ModelTUF Gaming B560-PLUS WIFI
Memory Size12GB
Memory TypeDDR4
CoolerTriple Fans

Questions about this item

How do I install the board in an ATX case and which standoffs often get missed?

Mount the 30.5 × 24.4 cm ATX board using all nine standard standoffs; the lower-right corner hole near the front-panel headers is the one builders most often skip.

What maintenance will the Intel Wi-Fi 6 module and Realtek 2.5G LAN need over time?

No user-serviceable parts on either controller; keep rear I/O vents clear of dust and update drivers from ASUS when new Windows builds arrive.

Which limit appears first when the 8+1 phase VRM runs an 11700 or 11400 at full load for long periods?

The VRM thermal throttle point is reached before the 8-pin EPS connector or PCB current rating becomes a bottleneck.
