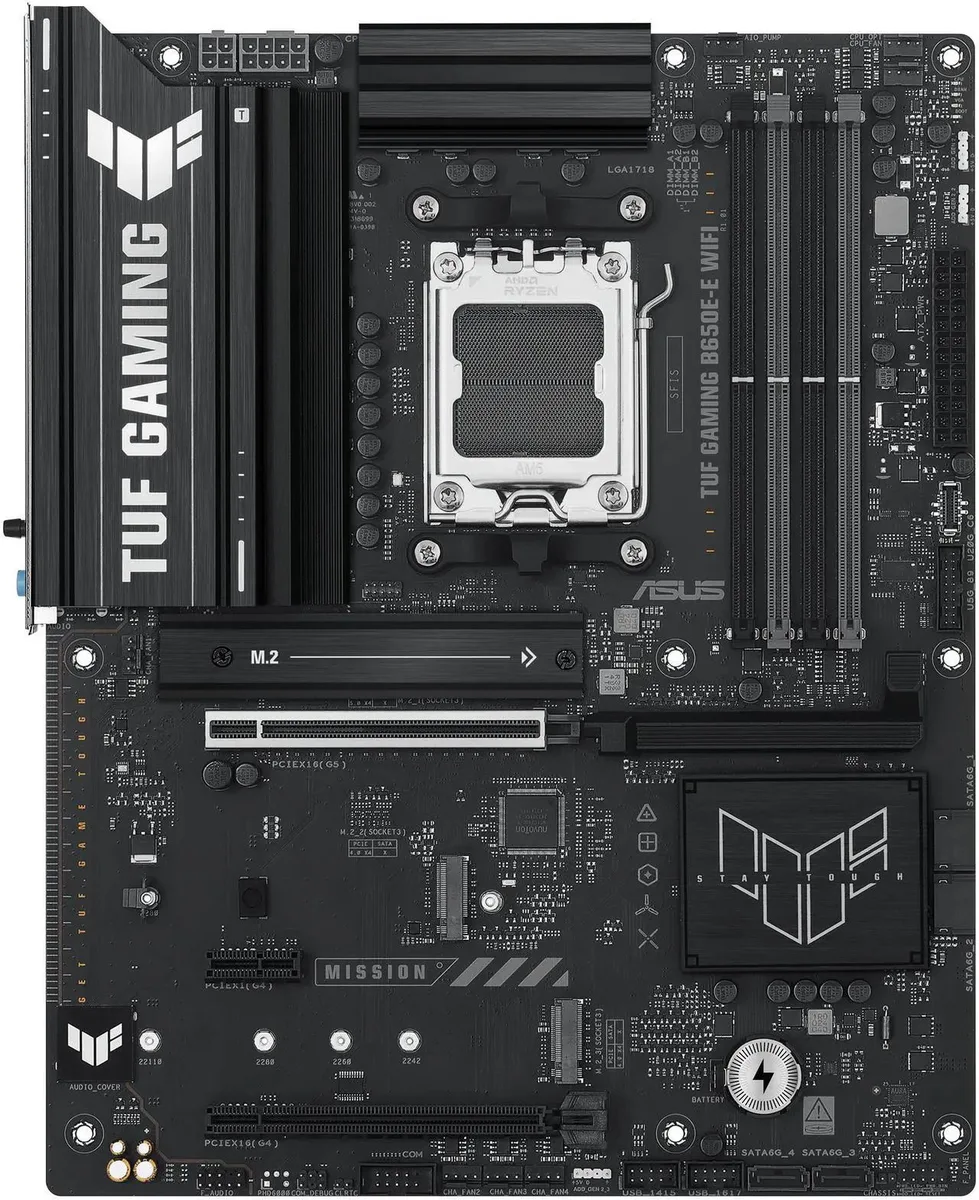

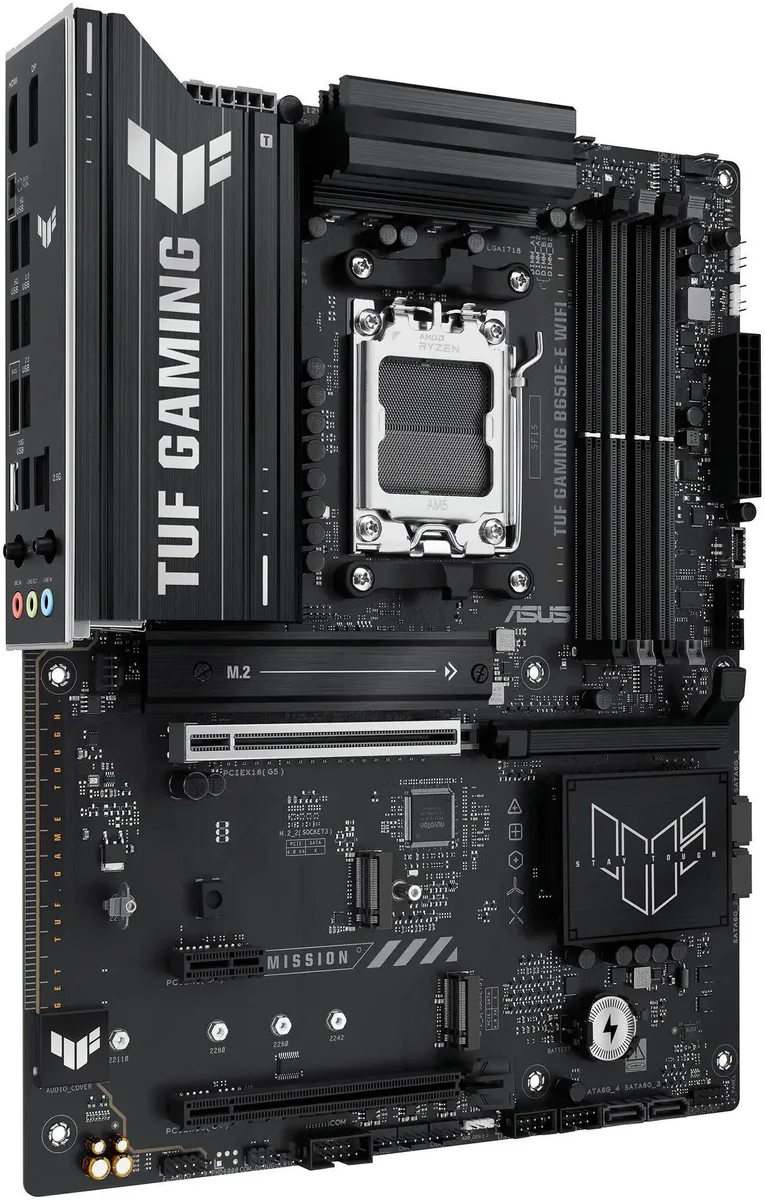

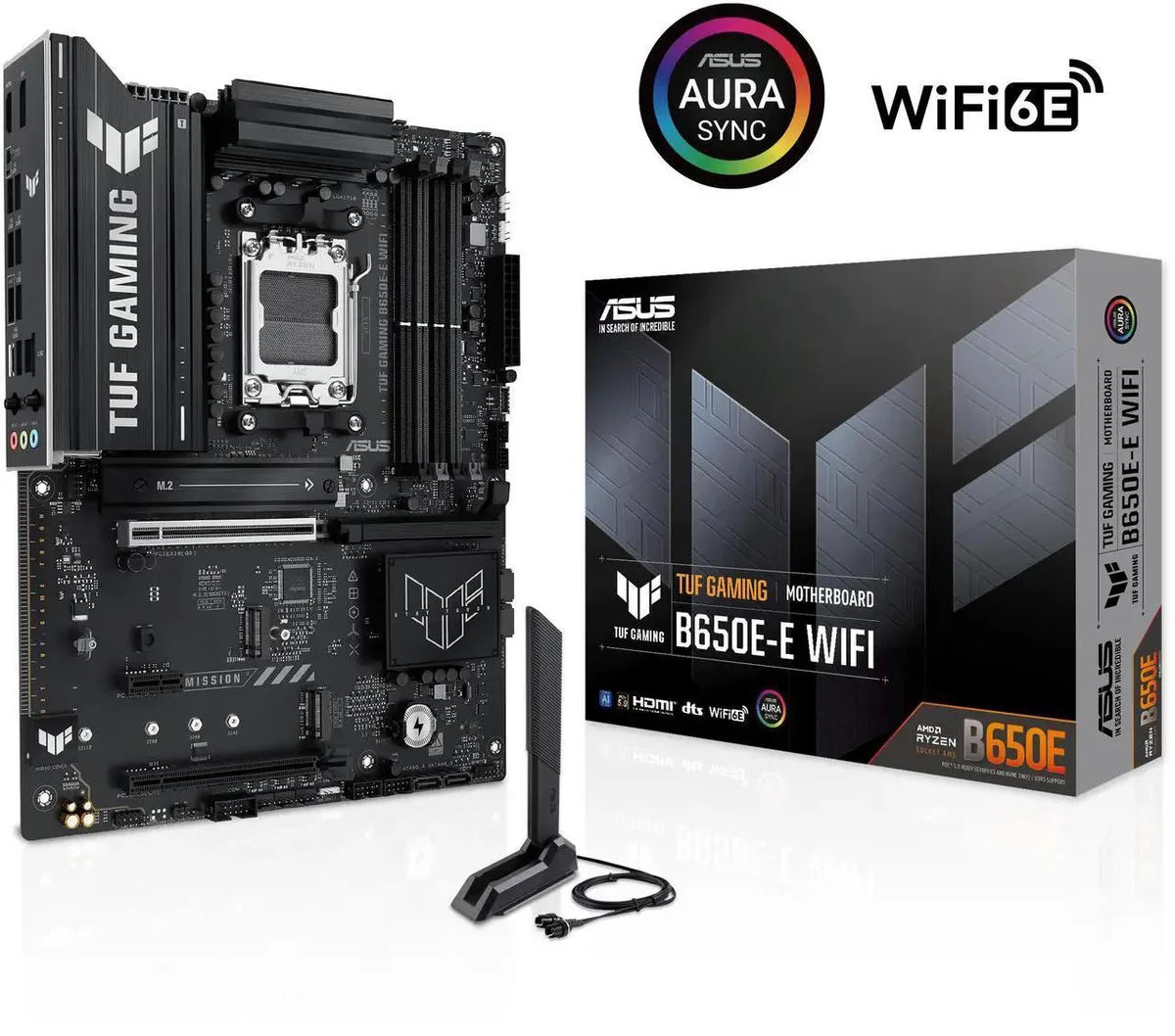

ATX motherboard with large silver VRM heatsinks and black PCB

ASUS

ASUS TUF GAMING B650E-E WIFI AMD AM5 B650 ATX motherboard

SKU CH-VPBJ-CGRVD

ATX board for AMD AM5 Ryzen 7000, 8000 and 9000 CPUs with 8+2+1 80A DrMOS power stages, DDR5 up to 8000 MT/s, one PCIe 5.0 M.2 slot, two PCIe 4.0 M.2 slots, Wi-Fi 6E, 2.5 Gb LAN and USB 20 Gbps Type-C

  • CPU Socket TypeAM5
  • ChipsetAMD B650
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardUp to 8000+MT/s(OC)
  • Maximum Memory Supported256GB
  • Channel SupportedDual Channel
  • Stable power for heavy workloads with 8+2+1 80A DrMOS stages
  • Future-proof storage speed via one PCIe 5.0 and two PCIe 4.0 M.2 slots
  • Fast networking and front I/O with Wi-Fi 6E, 2.5Gb LAN and USB 20Gbps Type-C
  • Easy builds and updates using Q-Release, Q-Latch, Q-Antenna and BIOS FlashBack
  • Personalised lighting control through three addressable RGB Gen 2 headers and Aura Sync

AM5 Platform for Ryzen 7000, 8000 and 9000

The ASUS TUF GAMING B650E-E WIFI is an ATX motherboard built around the AMD B650 chipset and AM5 socket. It supports Ryzen 7000, 8000 and 9000 series desktop processors for gaming and productivity workloads. Four DDR5 slots accept up to 256 GB of un-buffered memory with EXPO and AEMP profiles. The board targets builders who want a durable foundation for high-performance systems.

PCIe 5.0 x16 and M.2 slot for flagship GPUs

The primary expansion slot runs at PCIe 5.0 x16 with Ryzen 7000 and 9000 CPUs, delivering maximum bandwidth for current graphics cards. A PCIe 5.0 M.2 socket (key M, type 2280) sits alongside two PCIe 4.0 M.2 sockets for fast storage arrays. Four SATA 6 Gb/s ports and a PCIe 4.0 x1 slot complete the I/O map for additional drives and add-in cards.

Wi-Fi 6E, 2.5 Gb LAN and front USB 20 Gbps Type-C

Realtek 2.5 Gb Ethernet and Wi-Fi 6E (802.11 ax) provide low-latency wired and wireless networking. The rear I/O includes HDMI, DisplayPort and USB 10 Gbps Type-C, while a front-panel header adds USB 20 Gbps Type-C connectivity. BIOS FlashBack, Q-LED diagnostics, pre-mounted I/O shield, M.2 Q-Latch and PCIe Slot Q-Release simplify assembly and troubleshooting. Three addressable RGB Gen 2 headers sync with Aura Sync lighting.

Highlights

  • Stable power for heavy workloads with 8+2+1 80A DrMOS stages
  • Future-proof storage speed via one PCIe 5.0 and two PCIe 4.0 M.2 slots
  • Fast networking and front I/O with Wi-Fi 6E, 2.5Gb LAN and USB 20Gbps Type-C
  • Easy builds and updates using Q-Release, Q-Latch, Q-Antenna and BIOS FlashBack
  • Personalised lighting control through three addressable RGB Gen 2 headers and Aura Sync

Specifications

BrandASUS
ModelTUF GAMING B650E-E WIFI
CPU Socket TypeAM5
ChipsetAMD B650
Number of Memory Slots4x288pin (DDR5)
Memory StandardUp to 8000+MT/s(OC)
Maximum Memory Supported256GB
Channel SupportedDual Channel
ECC SupportedYes
Buffer SupportedUn-buffered
Memory FeatureDual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
ASUS Enhanced Memory Profile (AEMP)
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
PCI Express 5.0 x16AMD Ryzen 9000 & 7000 Series Desktop Processors*
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
PCI Express 4.0 x16AMD B650 Chipset
1 x PCIe 4.0 x16 slot (supports x1 mode)
PCI Express x11 x PCIe 4.0 x1 slot
Serial ATA (SATA)4 x SATA 6Gb/s
M.2AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)*
AMD B650 Chipset
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
SATA RAIDAMD RAIDXpert2 Technology
Ryzen 9000 Series Processors: RAID 0/1/5/10
Ryzen 8000 Series Processors: RAID 0/1
Ryzen 7000 Series Processors: RAID 0/1/10
Audio ChannelsRealtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 ax
BluetoothBluetooth 5.3
Back I/O Ports2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C)
3 x USB 5Gbps ports (3 x Type-A)
3 x USB 2.0 ports (3 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack button
Onboard USB1 x USB 20Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable RGB Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin Front Panel System header
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
1 x 4-pin +12V CPU Power connector
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
SoftwareASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4
- Power Saving
-Two-Way Al Noise cancelation
Al Suite 3
-TurboV EVO
-DIGI+ VRM
-PC Cleaner
ASUS DriverHub
TUF GAMING CPU-Z
DTS Audio Processing
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
FeaturesASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- TUF LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Antenna
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- Flexible M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
Aura Sync
- Addressable RGB Gen 2 headers
Package ContentsCables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x TUF Gaming sticker
1 x M.2 rubber package
2 x Screw packages for M.2 SSD
Documentation
1 x Quick start guide

Questions about this item

How does the 80 A DrMOS power stage rating translate to real-world CPU stability?

The 8+2+1 phase design with 80 A DrMOS stages delivers clean current to AM5 Ryzen 9000, 8000 and 7000 processors, supported by an 8-layer PCB and ProCool 8+4 pin connectors for reliable heavy-load operation.

What practical throughput does the PCIe 5.0 x16 slot provide for a graphics card?

With a Ryzen 9000 or 7000 CPU the slot runs at full x16 PCIe 5.0 speed; with a Ryzen 8000 CPU it operates at x8 or x4 PCIe 4.0, so peak bandwidth depends on the installed processor.

What clearance and mounting hardware are required for the M.2_1 PCIe 5.0 slot?

The slot accepts 2280 Key M modules and uses a tool-free Q-Latch; a flexible M.2 heatsink is included, so only standard 2280-length drive height clearance is needed.
