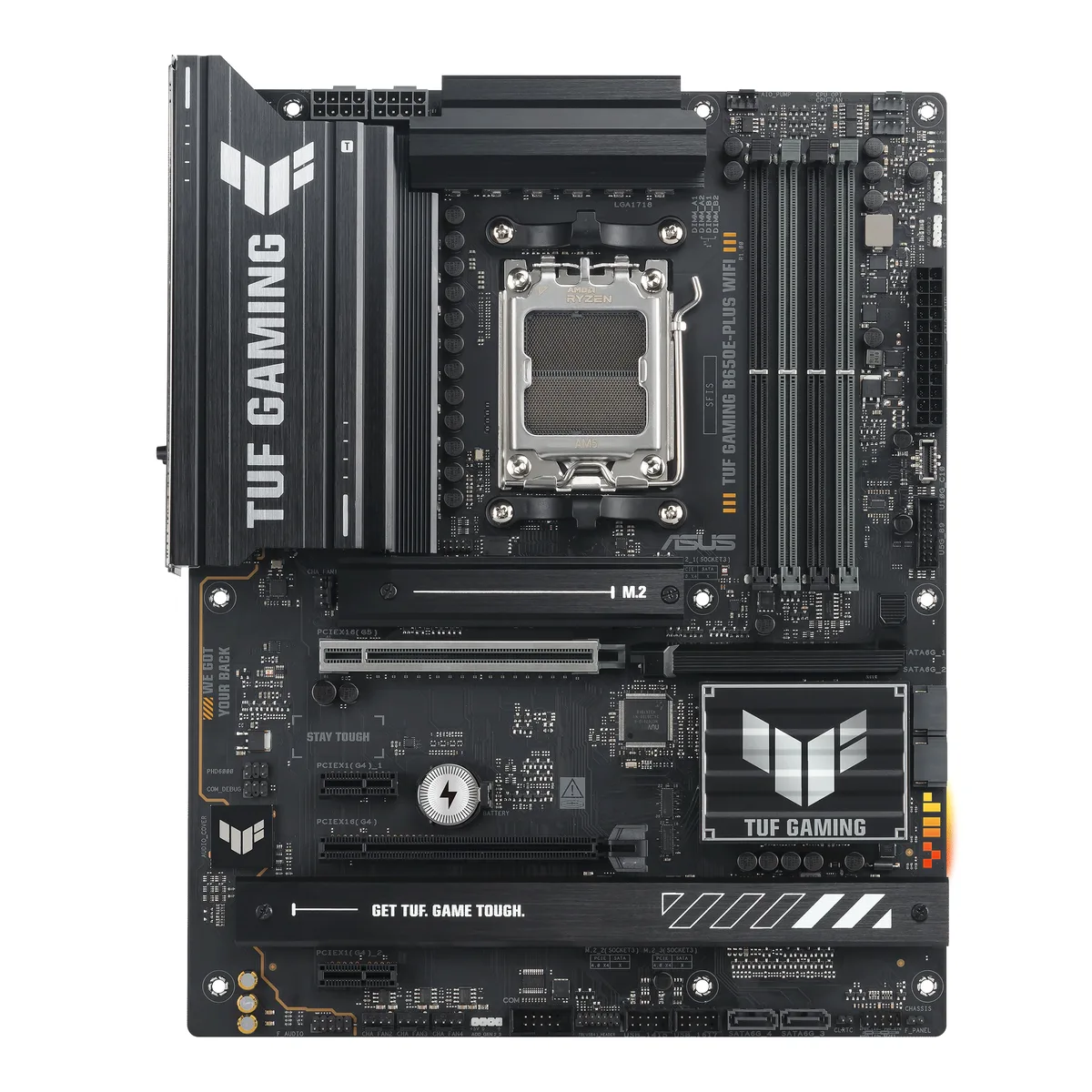

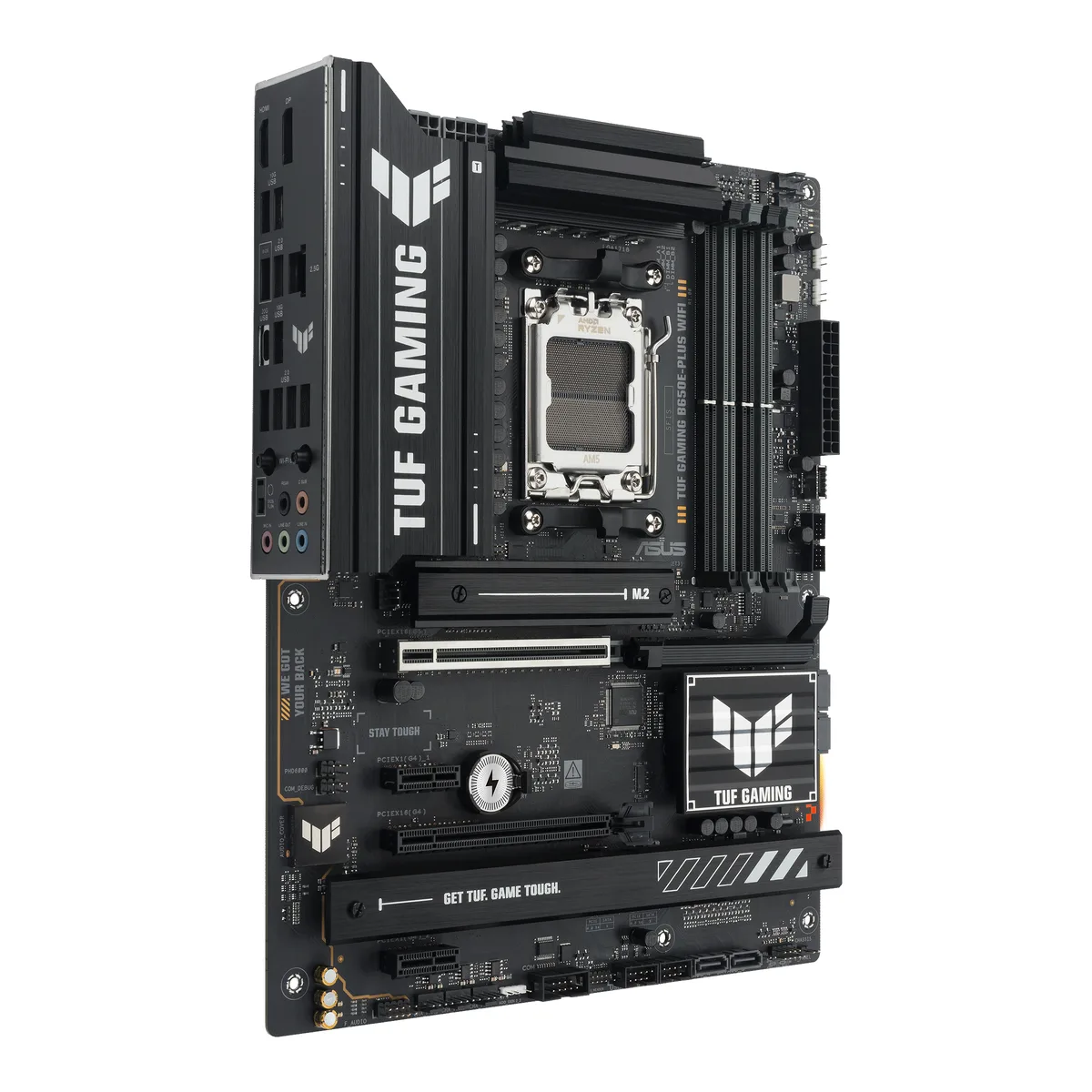

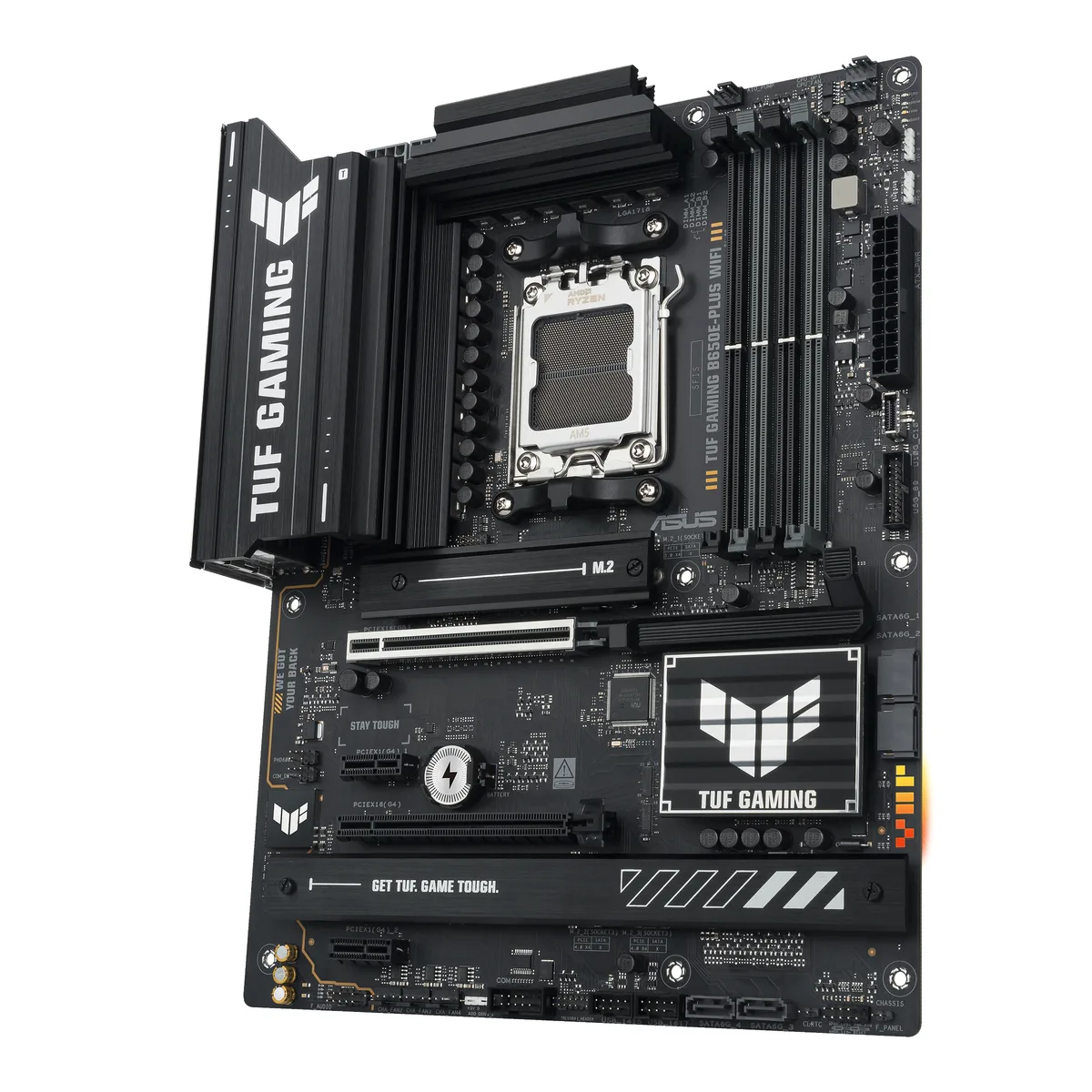

Rectangular ATX board in dark grey and yellow, large CPU socket, four memory slots, three covered M.2 heatsinks

ASUS

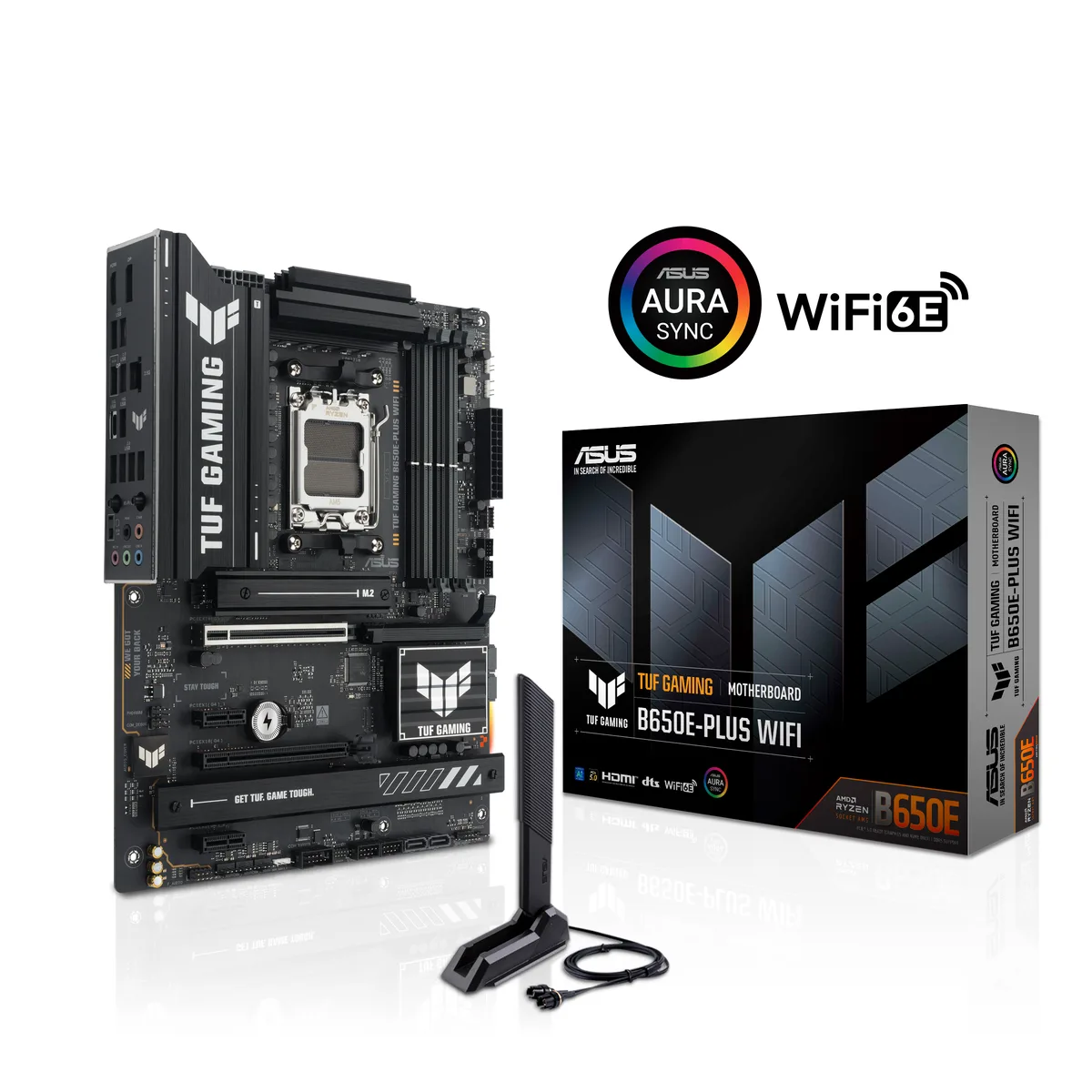

ASUS TUF GAMING B650E-PLUS WIFI AMD motherboard

SKU CH-F7RB-TXNRN MPN TUF GAMING B650E-PLUS WIFI

ATX board for AM5 Ryzen CPUs with 12+2+1 80A DrMOS power, DDR5 up to 8000 MT/s, PCIe 5.0 M.2, Wi-Fi 6E, 2.5Gb LAN and BIOS FlashBack

  • CPU Socket TypeAM5
  • CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
  • ChipsetAMD B650
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardSupports up to DDR5 8000+MT/s (OC)
  • Maximum Memory Supported256GB

Option TUF GAMING B650E-PLUS

Struck-through versions exist but are not stocked here.

  • Ready for AMD Ryzen 9000 8000 7000 series processors with AM5 socket
  • Stable power delivery via 12+2+1 80A DrMOS power stages and 8-layer PCB
  • Ultrafast storage with one PCIe 5.0 M.2 slot and two PCIe 4.0 M.2 slots
  • High-speed connectivity through Wi-Fi 6E and 2.5Gb Ethernet
  • DIY-friendly design with PCIe Slot Q-Release and M.2 Q-Latch

AM5 DDR5 Motherboard

The ASUS TUF GAMING B650E-PLUS WIFI is an ATX motherboard built for AMD Ryzen 7000, 8000 and 9000 series processors. It uses the AMD B650 chipset and provides four DDR5 slots supporting up to 256 GB of memory. A 12+2+1 80 A DrMOS power stage array and an eight-layer PCB deliver stable power for extended workloads.

Builders needing PCIe 5.0 and Wi-Fi 6E

This board suits users who want a PCIe 5.0 x16 slot and a PCIe 5.0 M.2 slot driven by the CPU, plus integrated Wi-Fi 6E and 2.5 Gb Ethernet. Builders using Ryzen 8000 series CPUs should note the primary x16 slot runs at PCIe 4.0 x8/x4 and the third M.2 slot disables the chipset x16 slot when populated.

Memory and storage headroom

Four DDR5 slots allow up to 256 GB with EXPO profiles reaching 8000+ MT/s on supported CPUs. One CPU-linked PCIe 5.0 M.2 slot and two PCIe 4.0 M.2 slots provide fast storage, though the third M.2 shares bandwidth with the chipset x16 slot. Four SATA 6 Gb/s ports remain available for additional drives.

Highlights

  • Ready for AMD Ryzen 9000 8000 7000 series processors with AM5 socket
  • Stable power delivery via 12+2+1 80A DrMOS power stages and 8-layer PCB
  • Ultrafast storage with one PCIe 5.0 M.2 slot and two PCIe 4.0 M.2 slots
  • High-speed connectivity through Wi-Fi 6E and 2.5Gb Ethernet
  • DIY-friendly design with PCIe Slot Q-Release and M.2 Q-Latch

Specifications

BrandASUS
ModelTUF GAMING B650E-PLUS WIFI
Part Number90MB1M20-MVAAY0
CPU Socket TypeAM5
CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
ChipsetAMD B650
Number of Memory Slots4x288pin (DDR5)
Memory StandardSupports up to DDR5 8000+MT/s (OC)
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileAMD EXPO
ECC SupportedYes
Buffer SupportedUn-buffered
Memory FeatureSupports up to 8000+MT/s (OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM*
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
ASUS Enhanced Memory Profile (AEMP)
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
PCI Express 5.0 x16AMD Ryzen 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
PCI Express 4.0 x16AMD B650 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)***
*** The M.2_3 shares bandwidth with PCIEX16(G4). The PCIEX16(G4) will be disabled when M.2_3 runs.
PCI Express x12 x PCIe 4.0 x1 slots
Serial ATA (SATA)4 x SATA 6Gb/s
M.2AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4/x2 mode)**
AMD B650 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)***
** The PCIEX16(G4) shares bandwidth with M.2_3. The PCIEX16(G4) will be disabled when M.2_3 runs.
SATA RAIDRyzen 9000 series processors: RAID 0/1/5/10
Ryzen 8000 series processors: RAID 0/1
Ryzen 7000 series processors: RAID 0/1/10
Audio ChannelsRealtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
- Unique de-pop circuit
* Due to limitations in HDA bandwidth, 32-Bit/192
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 ax
BluetoothBluetooth 5.3
Back I/O Ports1 x Antenna Bracket / 1 x DisplayPort / 1 x Flash BIOS Button / 1 x HDMI / 1 x LAN (RJ45) / 1 x USB 3.2 Gen 2x2 Type-C / 3 x USB 3.2 Gen 2 Type-A / 5 x Audio Jacks / 6 x USB 2.0/1.1
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin Front System Panel header
1 x Thunderbolt (USB4) header
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
SoftwareASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4
- Two-Way AI Noise Cancelation
AI Suite 3
- TurboV EVO
- DIGI+ VRM
- PC Cleaner
ASUS DriverHub
TUF GAMING CPU-Z
DTS Audio Processing
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
FeaturesASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- TUF LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Antenna
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
Aura Sync
- Addressable Gen 2 headers

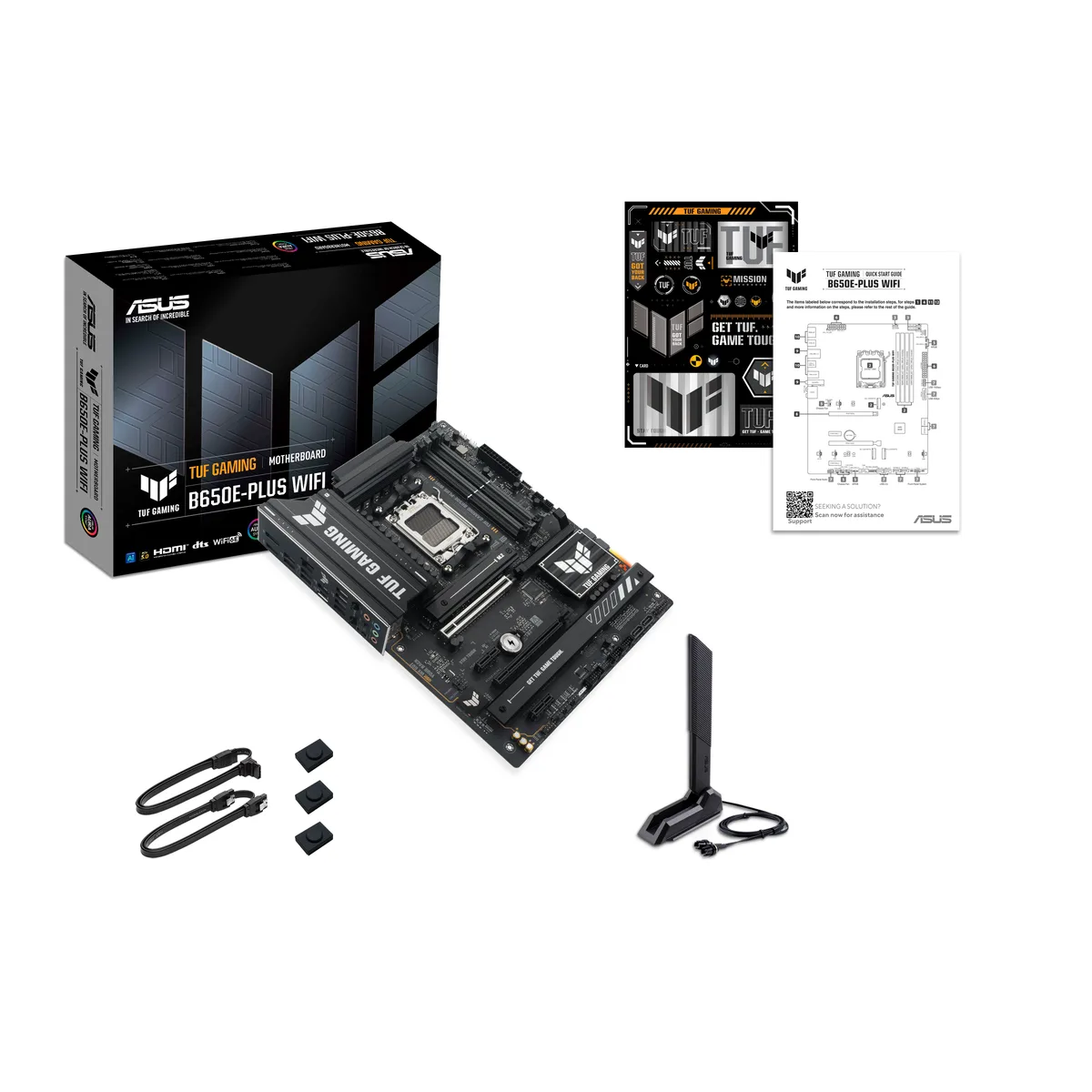

Package ContentsCables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x TUF GAMING sticker
2 x M.2 rubber packages
Documentation
1 x Quick start guide
Shipping weight1.91 kg
Package size349 × 273 × 70 mm

Other versions of this model

4 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Do I need a Ryzen 7000, 8000 or 9000 series CPU for the AM5 socket?

Yes, the AM5 socket only accepts AMD Ryzen 7000, 8000 and 9000 series desktop processors.

Will a PCIe 4.0 graphics card run in the primary x16 slot?

The primary slot is PCIe 5.0 x16 with Ryzen 9000 and 7000 CPUs, and PCIe 4.0 x16 with Ryzen 8000 CPUs; a PCIe 4.0 card works in either mode.

How can I confirm the board posts after assembly?

The on-board Q-LED indicators show CPU, memory, graphics and boot status so you can verify each stage is passing.
