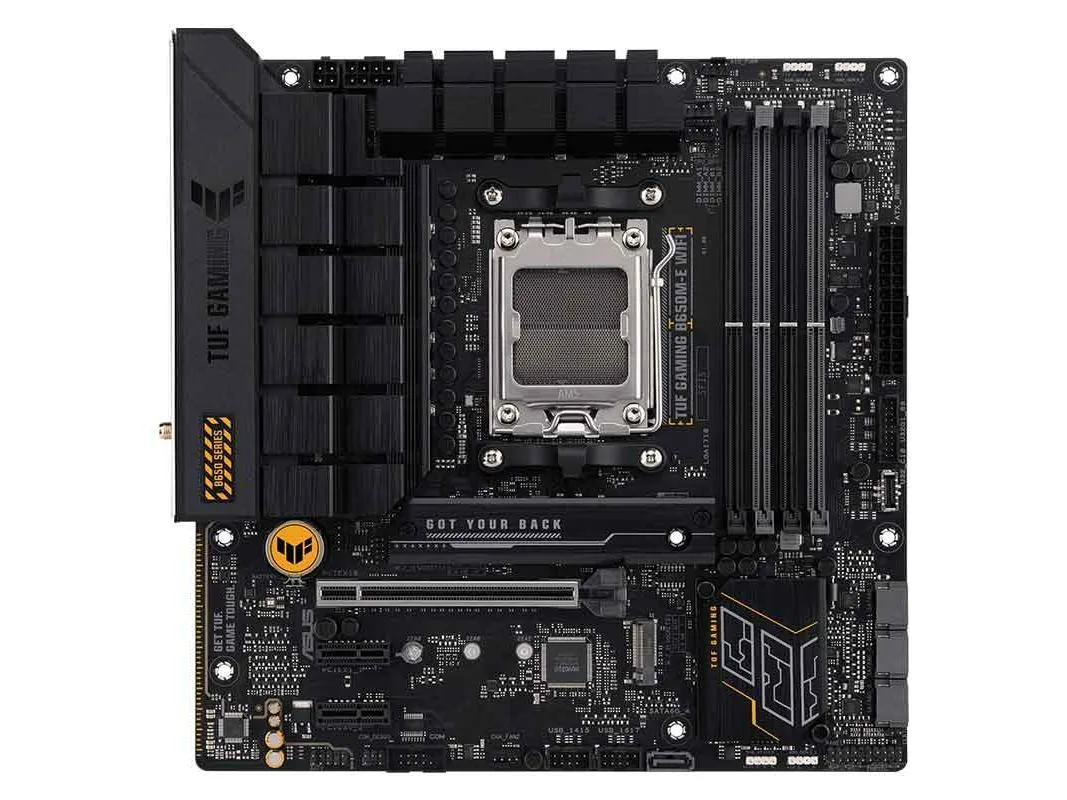

Micro ATX motherboard in dark finish with AM5 socket and DDR5 slots

ASUS

ASUS TUF GAMING B650M-E WIFI AMD motherboard

SKU CH-9W4J-YPSFM

Micro-ATX AM5 board with DDR5 up to 192GB, PCIe 4.0 x16, four SATA ports and rear USB 3.2 Gen 2

  • CPU Socket TypeAM5
  • CPU TypeAMD Socket AM5 supports AMD Ryzen 7000 series/8000 series de
  • ChipsetAMD B650
  • Memory StandardSupport dual-channel DDR5 7600 + (OC)/7200 (OC)/7000 (OC)/68
  • Maximum Memory Supported192GB
  • PCI SlotsAMD Ryzen 7000 series desktop processors * 1 x PCIe 4.0 x16
  • Supports up to 192GB DDR5 memory
  • AM5 socket for Ryzen 7000 and 8000 series CPUs
  • AMD B650 chipset with PCIe 4.0 slots
  • Micro ATX form factor at 24.4cm square
  • Rear USB includes 3.2 Gen 2 Type-C and Type-A

Socket AM5 DDR5 motherboard

The ASUS TUF GAMING B650M-E WIFI is a Micro ATX board built around the AMD B650 chipset for Socket AM5 processors. It targets builders who want a compact foundation for Ryzen 7000 series and 8000 series desktop CPUs with integrated Wi-Fi. The board delivers a focused feature set for gaming and general-purpose systems without the footprint of full-size ATX.

192 GB memory ceiling with broad DDR5 speed range

Four DDR5 slots support up to 192 GB in dual-channel mode, covering speeds from 4800 up to 7600 MT/s through overclock profiles. That headroom handles heavy multitasking and content workloads, while the wide frequency ladder lets you match kits to budget. The limit is the four-slot topology; populating all slots at the highest frequencies may require manual tuning.

Micro ATX layout with one PCIe 4.0 x16 slot

The 24.4 cm square form factor fits smaller cases while keeping a single PCIe 4.0 x16 slot wired from the CPU for graphics. Two additional PCIe 4.0 x1 slots from the chipset handle add-in cards. Rear I/O supplies ten USB ports including one USB 3.2 Gen 2 Type-C and one Type-A at 10 Gbps. Two M.2 interfaces and four SATA 6 Gbps ports cover primary and bulk storage.

Highlights

  • Supports up to 192GB DDR5 memory
  • AM5 socket for Ryzen 7000 and 8000 series CPUs
  • AMD B650 chipset with PCIe 4.0 slots
  • Micro ATX form factor at 24.4cm square
  • Rear USB includes 3.2 Gen 2 Type-C and Type-A

Specifications

BrandASUS
SeriesASUS TUF GAMING B650M-E WIFI
ModelASUS TUF GAMING B650M-E WIFI
CPU Socket TypeAM5
CPU TypeAMD Socket AM5 supports AMD Ryzen 7000 series/8000 series desktop processors *
ChipsetAMD B650
Memory StandardSupport dual-channel DDR5 7600 + (OC)/7200 (OC)/7000 (OC)/6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400 (OC)/5200/5000/4800MHz memory
Maximum Memory Supported192GB
PCI SlotsAMD Ryzen 7000 series desktop processors * 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD Ryzen 8000 series desktop processors
1 x PCIe 4.0 x16 slot (supports x8/x4 modes) **
AMD B650 chipset
2 x PCIe 4.0 x1 slots
SATA RAID2XM.2 interface, 4xSATA III interface
Onboard USBRear USB (8 ports in total)
2 USB 3.2 Gen 2 (10G) ports (1 x Type-A + 1 x USB Type-C)
2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (7 ports in total)
1 x USB 3.2 Gen 1 (5G) interface (supports USB Type-C)
1 x USB 3.2 Gen 1 (5G) connector supports 2 additional USB 3.2 Gen 1 interfaces
2 x USB 2.0 connectors support 4 additional USB 2.0 ports

Questions about this item

Will my existing DDR5 modules run at their rated speed on this board?

The board supports dual-channel DDR5 from 4800 up to 7600 MHz with overclocking and a maximum capacity of 192 GB across four slots.

How can I confirm the motherboard is functioning correctly after installation?

Power on the system, enter the BIOS to verify CPU detection and memory speed, then boot into the OS and check Device Manager for all onboard controllers.

What accessories are included and what must I source separately?

The box contains the motherboard, one SATA cable and the rear I/O shield; CPU cooler, memory, storage, graphics card and power supply are not included.
