Grey mATX board with yellow accents, metal heatsinks and RGB edge lighting

ASUS

ASUS TUF GAMING B650M-PLUS WIFI AMD motherboard

SKU CH-9KHN-RP6DT

Socket AM5 board for Ryzen 7000 CPUs with DDR5 memory, PCIe 5.0 M.2, 2.5 Gb Ethernet and WiFi 6

  • CPU Socket TypeAM5
  • CPU TypeSupports AMD Ryzen 7000 Series Desktop Processors* * Refer t
  • ChipsetAMD B650
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 6400+(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600 / 540
  • Maximum Memory Supported256GB
  • Ready for AMD Ryzen 7000 Series processors via AM5 socket

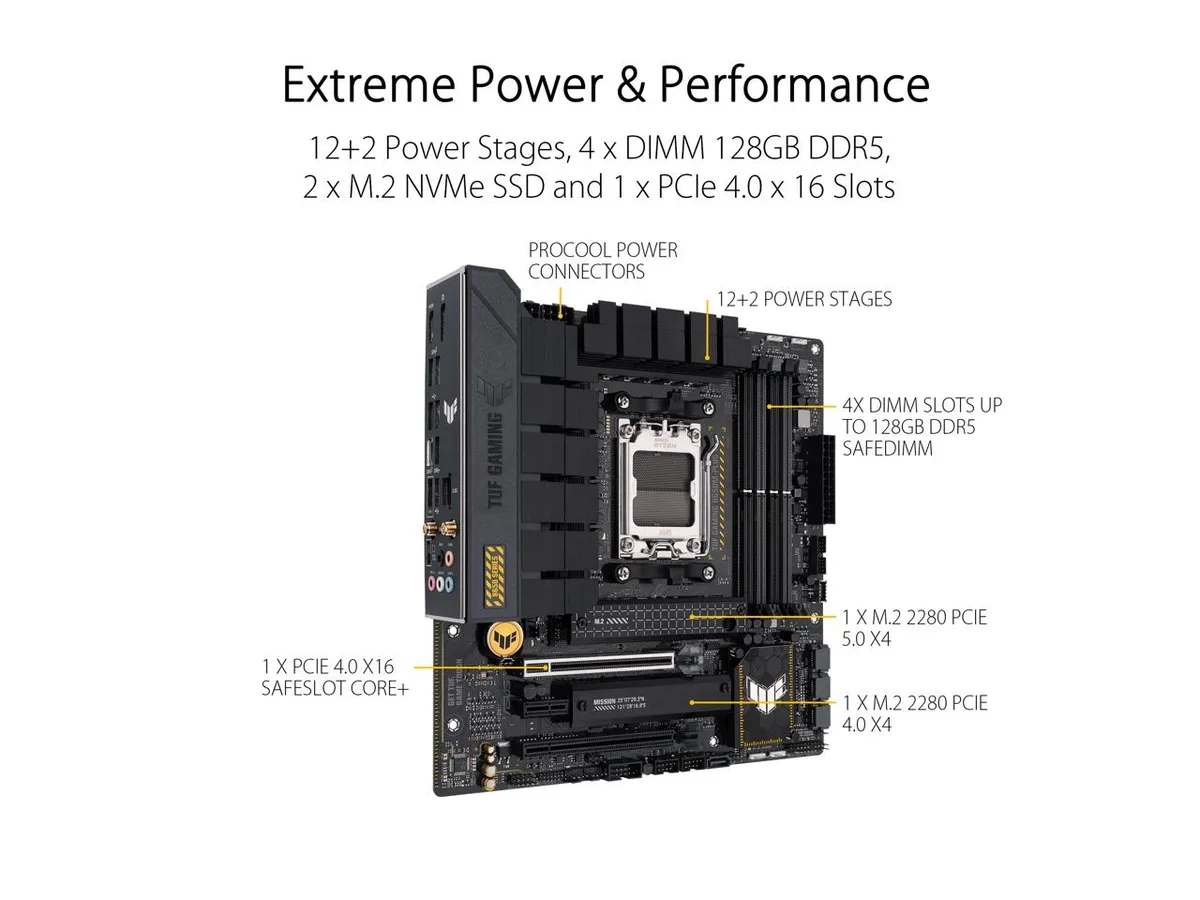

  • Stable power delivery from 12+2 teamed power stages with ProCool sockets
  • Fast storage access through PCIe 5.0 M.2 slot and PCIe 4.0 M.2 slot
  • Low-latency online gaming with Realtek 2.5 Gb Ethernet and TUF LANGuard
  • Clear communication using two-way AI noise cancellation for microphone and audio output

Ready for Ryzen 7000 on AM5

The ASUS TUF GAMING B650M-PLUS WIFI is a micro-ATX motherboard built around the AMD B650 chipset and AM5 socket. It supports Ryzen 7000 series desktop processors with a 12+2 teamed power stage design, 8+4 ProCool sockets, alloy chokes and durable capacitors. Four DDR5 slots accept up to 256GB of non-ECC un-buffered memory at speeds up to 6400+(OC). Onboard WiFi 6 and 2.5 Gb Ethernet handle networking.

Suits compact gaming builds; not for multi-GPU

This board fits builders who want a smaller chassis with strong VRM cooling, PCIe 5.0 M.2 speed, USB4 support and Aura Sync RGB lighting. The single PCIe 4.0 x16 slot and one x1 slot limit multi-GPU configurations, so users planning SLI or CrossFire should look at full-size ATX alternatives. The 7.1 Realtek audio with two-way AI noise cancellation benefits streamers and competitive players alike.

Verify CPU cooler clearance and PSU cables

Check that your AM5 cooler mounting hardware matches the 1718 socket layout and that the VRM heatsink height clears your chosen air cooler. Ensure the power supply provides both 8-pin and 4-pin EPS connectors for the ProCool sockets. Confirm your DDR5 kit appears on the ASUS QVL for EXPO profiles. M.2_1 supports 2242/2260/2280 drives at PCIe 5.0 x4; M.2_2 runs at PCIe 4.0 x4.

Highlights

  • Ready for AMD Ryzen 7000 Series processors via AM5 socket
  • Stable power delivery from 12+2 teamed power stages with ProCool sockets
  • Fast storage access through PCIe 5.0 M.2 slot and PCIe 4.0 M.2 slot
  • Low-latency online gaming with Realtek 2.5 Gb Ethernet and TUF LANGuard
  • Clear communication using two-way AI noise cancellation for microphone and audio output

Specifications

BrandASUS
SeriesTUF
ModelTUF GAMING B650M-PLUS WIFI
Part Number90MB1BF0-M0AAY0
CPU Socket TypeAM5
CPU TypeSupports AMD Ryzen 7000 Series Desktop Processors*
* Refer to www.asus.com for CPU support list.
ChipsetAMD B650
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 6400+(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600 / 5400 / 5200 / 5000 / 4800
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
Maximum Memory Supported256GB
Channel SupportedDual Channel
ECC SupportedNon-ECC
Buffer SupportedUn-buffered
Memory FeatureSupports AMD EXTended Profiles for Overclocking (EXPO™)
OptiMem II
PCI Express 4.0 x16AMD Ryzen 7000 Series Desktop Processors*
1 x PCIe 4.0/3.0 x16 slot(s)
AMD B650 Chipset
1 x PCIe 4.0/3.0 x16 slot (supports x4 mode)
* Please check PCIe bifurcation table in ASUS support site
PCI Express x11 x PCIe 4.0/3.0 x1
Serial ATA (SATA)4 x SATA 6Gb/s
M.2AMD Ryzen 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
SATA RAIDAMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
Audio ChannelsRealtek 7.1 Surround Sound High-Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
Max LAN Speed1 x Realtek 2.5Gb Ethernet
TUF LANGuard
Wireless LANWi-Fi 6
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
BluetoothBluetooth v5.2

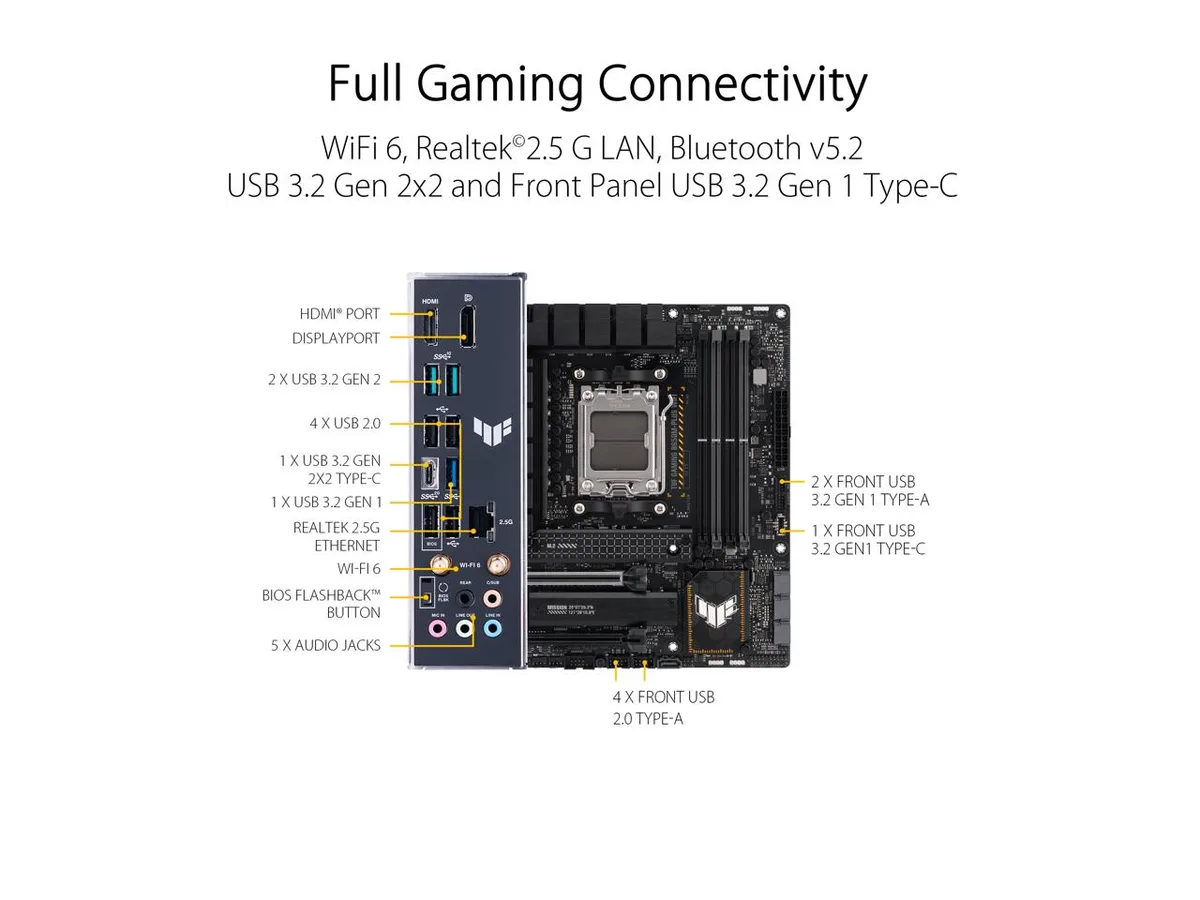

Back I/O Ports1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
1 x USB 3.2 Gen 1 port (1 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMIport
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x BIOS FlashBack button
Onboard USB1 x USB Gen 1 connector (supports USB Type-C )
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Other ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt header
Form FactorMicro ATX
Dimensions (W x L)9.6" x 9.6"
Power Pin1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Windows 11Supported
FeaturesASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS)
- Enhanced DRAM Overcurrent Protection
- ESD Guards
- TUF LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers
Package ContentsCables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Rubber Package for M.2
1 x Screw package for M.2 SSD
Documentation
1 x TUF Certification card
1 x User guide

Questions about this item

Which CPU and memory must I already have for this board to work?

You need an AMD Ryzen 7000 series processor for the AM5 socket and DDR5 modules; the board accepts up to 256 GB across four 288-pin slots at speeds from 4800 to 6400+(OC) MT/s.

Will my existing SATA drives and PCIe 4.0 graphics card work alongside the new M.2_1 slot?

Yes, four SATA 6 Gb/s ports and one PCIe 4.0 x16 slot remain active, while the M.2_1 slot adds a PCIe 5.0 x4 path for a newer NVMe drive without disabling the older devices.

How can I confirm the 2.5 Gb Ethernet and WiFi 6 are running at full speed after setup?

In Windows Device Manager check the Realtek 2.5 GbE adapter link speed and the WiFi 6 adapter connection rate, then run a local network throughput test to verify both interfaces hit their rated bandwidth.
