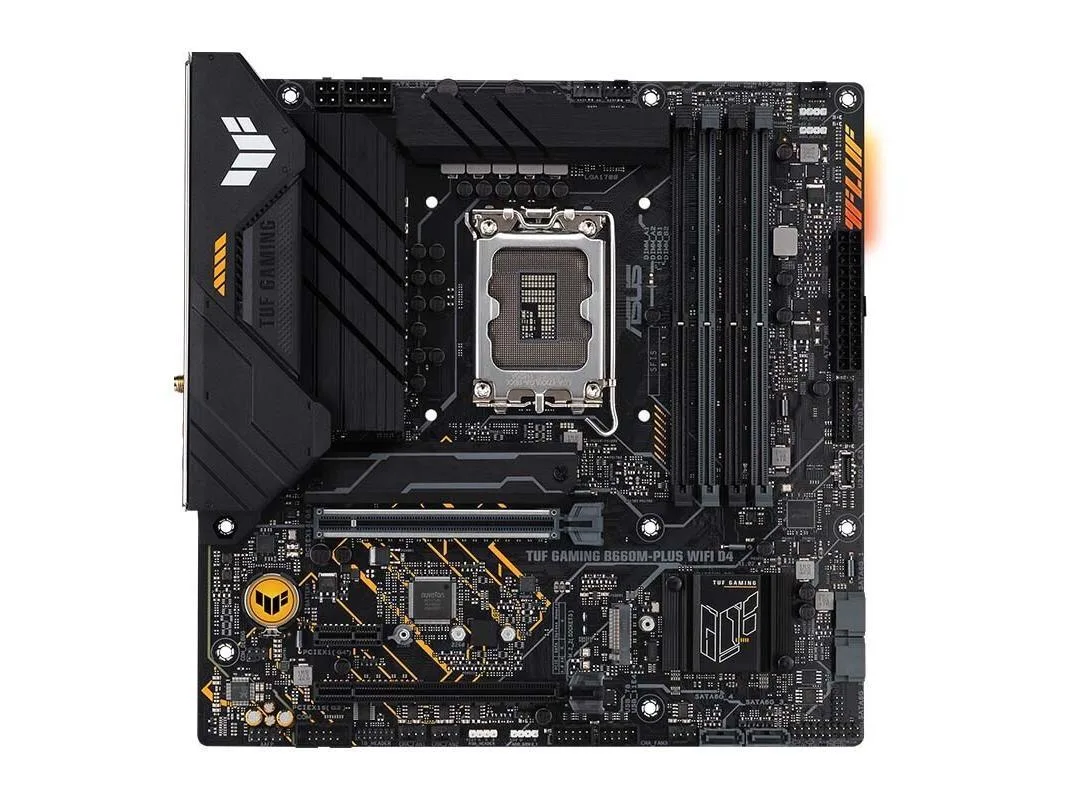

Micro ATX board dark grey heatsinks LGA 1700 socket four DDR4 slots

ASUS

ASUS TUF Gaming B660M-PLUS WIFI D4 Intel motherboard 128GB DDR4 LGA 1700

SKU CH-XQN1-7PD2W

Micro-ATX Intel B660 board with LGA 1700 socket, 128 GB DDR4 support, 2.5 Gb LAN, Wi-Fi, and USB 3.2 Gen 2x2 Type-C

  • CPU Socket TypeLGA 1700
  • CPU TypeIntel slot LGA1700 for 13th generation Intel Core processors
  • ChipsetIntel B660
  • Memory StandardSupport dual-channel DDR4 5333 (OC)/5000 (OC)/4800 (OC)/4600
  • Maximum Memory Supported128GB
  • PCI Slots1 x PCIe 5.0/4 0/3.0 x16 + 1 x PCIe 3.0 x16 (max x4) Intel 1
  • Supports 12th 13th 14th gen Intel Core processors via LGA 1700 socket
  • Dual-channel DDR4 up to 5333 OC with 128 GB maximum capacity
  • PCIe 5.0 x16 plus PCIe 3.0 x4 and PCIe 4.0 x1 expansion slots
  • Realtek 2.5 Gb Ethernet protected by TUF LANGuard
  • Realtek 7.1 audio codec with 24-bit 192 kHz playback

Socket and generation fit

This Micro ATX board uses the LGA 1700 socket and the Intel B660 chipset. It supports 12th, 13th and 14th generation Intel Core, Pentium Gold and Celeron processors. Dual-channel DDR4 memory runs up to 5333 MT/s overclocked with a maximum capacity of 128 GB.

Memory and expansion check

Verify that your memory kit is DDR4 and that the total capacity does not exceed 128 GB across four slots. The primary graphics slot is PCIe 5.0 x16; a second PCIe 3.0 x16 slot operates at x4 and a PCIe 4.0 x1 slot is also present. Storage includes four SATA III ports and two M.2 interfaces.

Build integration

Rear I/O provides eight USB ports: one USB 3.2 Gen 2x2 Type-C, four USB 3.2 Gen 2 Type-A, one USB 3.2 Gen 1 Type-A and two USB 2.0 Type-A. Networking uses a Realtek 2.5 Gb Ethernet controller with TUF LANGuard. Audio is handled by a Realtek 7.1 surround codec supporting 24-bit/192 kHz playback. The package includes the motherboard, I/O shield and one SATA cable.

Highlights

  • Supports 12th 13th 14th gen Intel Core processors via LGA 1700 socket
  • Dual-channel DDR4 up to 5333 OC with 128 GB maximum capacity
  • PCIe 5.0 x16 plus PCIe 3.0 x4 and PCIe 4.0 x1 expansion slots
  • Realtek 2.5 Gb Ethernet protected by TUF LANGuard
  • Realtek 7.1 audio codec with 24-bit 192 kHz playback

Specifications

BrandASUS
SeriesASUS TUF GAMING B660M-PLUS WIFI D4
ModelASUS TUF GAMING B660M-PLUS WIFI D4
CPU Socket TypeLGA 1700
CPU TypeIntel slot LGA1700 for 13th generation Intel Core processors and 12th generation Intel Core, Pentium, Gold and Celeron processors
Intel slot LGA1700 * for Intel, Core, 14th and 13th generation processors, Intel, Core, 12th generation, Pentium Gold and Celeron processors
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
ChipsetIntel B660
Memory StandardSupport dual-channel DDR4 5333 (OC)/5000 (OC)/4800 (OC)/4600 (OC)/4400 (OC)/4266 (OC)/4000 (OC)/3733 (OC)/3600 (OC)/3466 (OC)/3333 (OC)/3200/2933/2800/2666/2400/2133 memory
Maximum Memory Supported128GB
PCI Slots1 x PCIe 5.0/4 0/3.0 x16 + 1 x PCIe 3.0 x16 (max x4)
Intel 13th & 12th generation processors
1 x PCIe 5.0 x16 slot
Intel B660 chipset *
1 x PCIe 3.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x1 slot
The PCIe slot for PCH connection supports Intel Optane memory H series.
SATA RAID2XM.2 interface, 4xSATA III interface
Audio ChipsetRealtek Audio Transcoder
Realtek 7.1 surround high fidelity audio codec
- Support: jack detection, multi-stream, front panel jack reassignment
- Supports playback up to 24-bit/192 kHz
- Audio function
- Audio masking
The power pre-regulator can reduce power input noise and ensure stable performance
- Rear fiber S/PDIF output port
- Advanced Audio Capacitors
- Dedicated audio PCB layer
LAN ChipsetTUF LANGuard
1 x Realtek 2.5Gb Ethernet
TUF LANGuard
Onboard USBRear USB: 8 ports in total
Rear USB (8 ports in total)
1 x USB 3.2 Gen 2x2 interface (1 x USB Type-C)
4 x USB 3.2 Gen 2 ports (4 x Type-A)
1 x USB 3.2 Gen 1 interface (1 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB: 7 ports in total
Front USB (7 ports in total)
1 x USB 3.2 Gen 1 interface (supports USB Type-C)
1 x USB 3.2 Gen 1 connector supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 connectors support an additional 4 USB 2.0 ports

Questions about this item

Does the box include everything needed to install the board, or do I need to buy extra cables or brackets?

The package supplies the motherboard, one SATA cable and the rear I/O shield. No other cables, brackets or mounting hardware are included.

Which DDR4 speed should I pick to match the 5333 OC ceiling shown in the specifications?

Any DDR4 kit rated up to 5333 MT/s will work; the board also runs at every lower OC step down to 2133 MT/s, so you can choose the speed that fits your budget.

What does the 2.5 Gb Ethernet figure mean for everyday network use?

It provides up to two and a half gigabits per second of wired throughput, which is more than twice the speed of standard gigabit LAN for large file transfers.
