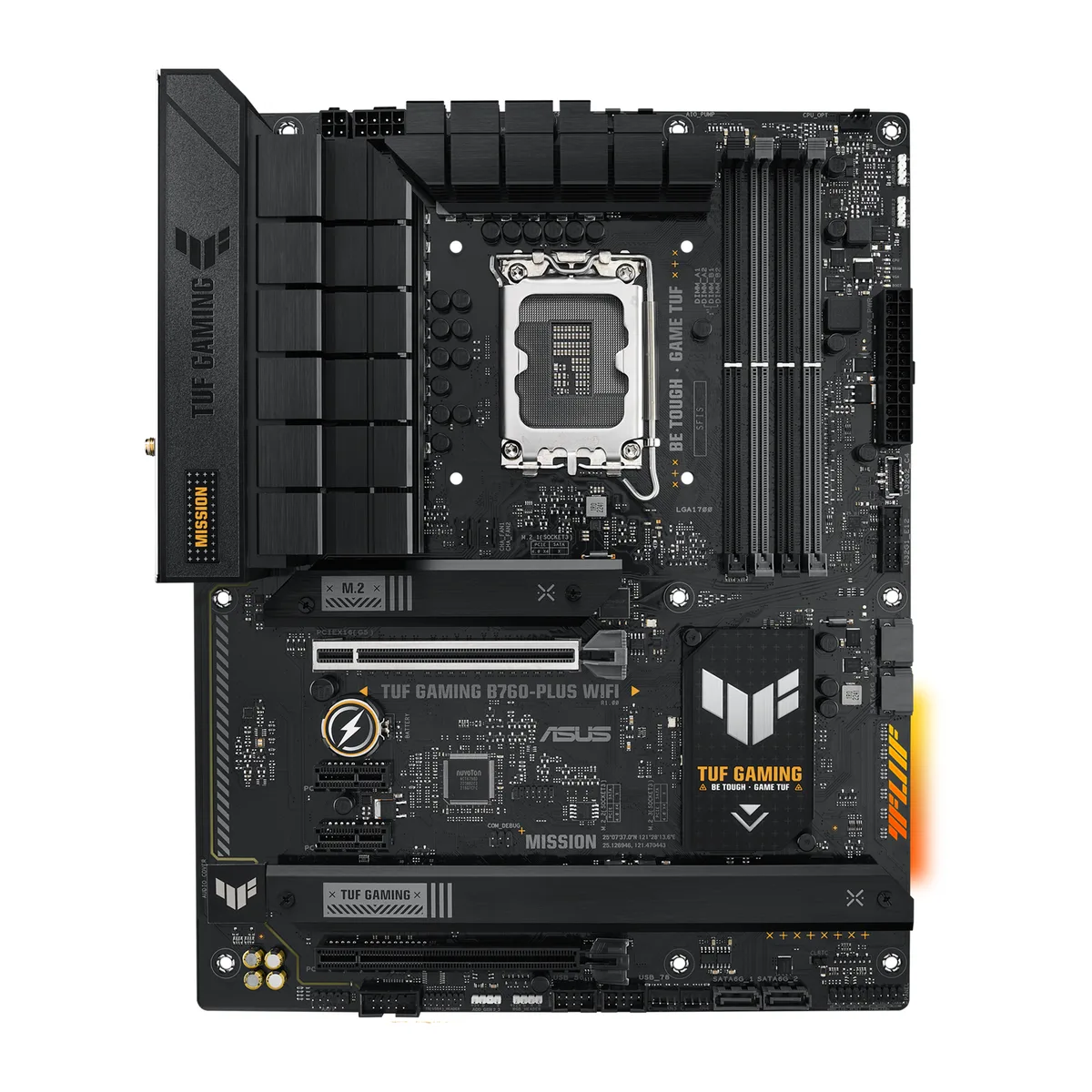

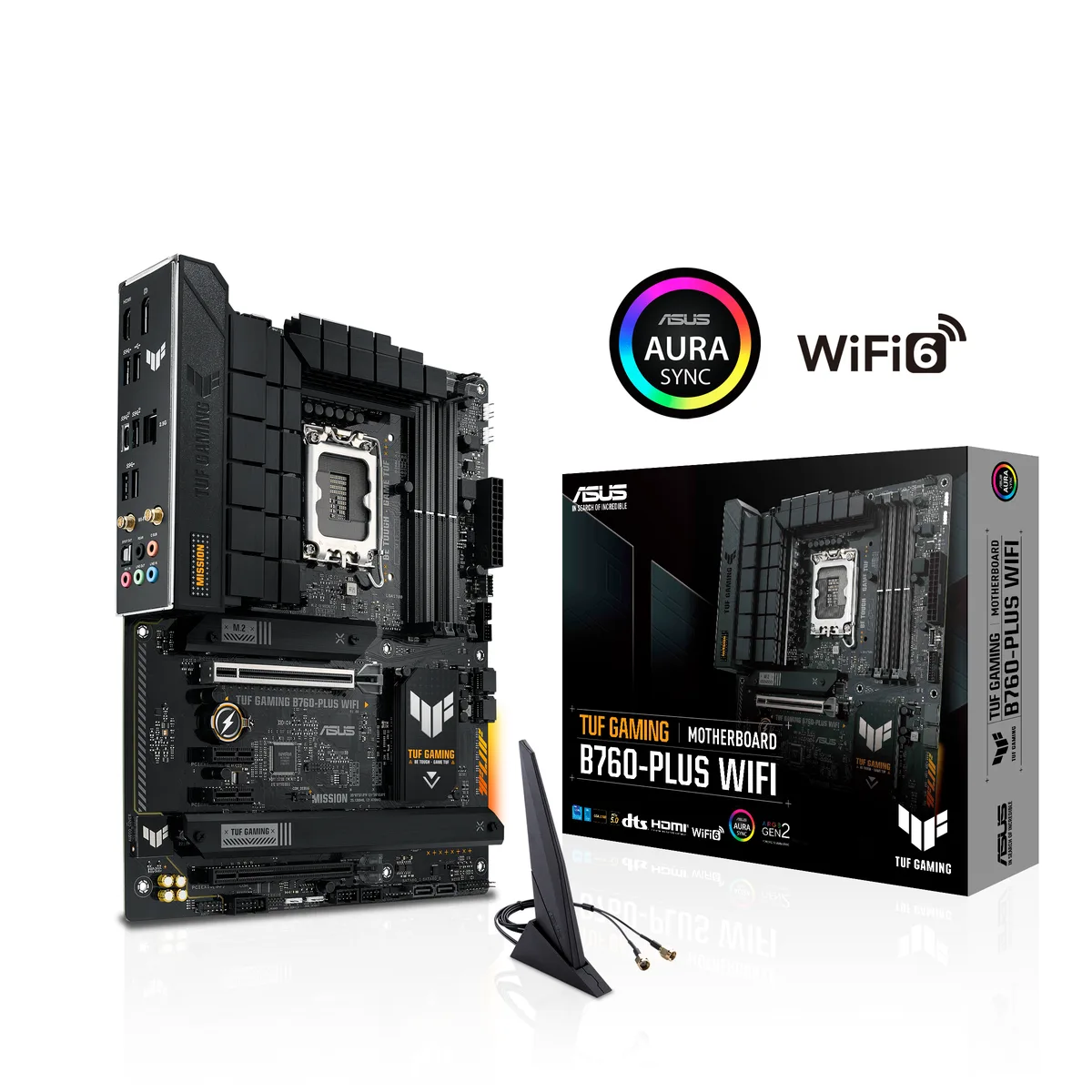

ATX motherboard in grey and yellow with large VRM heatsinks and M.2 covers

ASUS

ASUS TUF GAMING B760-PLUS WIFI Intel B760 (14th 13th 12th Gen) LGA 1700 ATX motherboard

SKU CH-WXTJ-NEXSG MPN TUF GAMING B760-PLUS WIFI

ATX board for 12th, 13th and 14th Gen Intel CPUs with DDR5 to 7200 OC, PCIe 5.0 slot, three PCIe 4.0 M.2 sockets, 2.5Gb Ethernet and WiFi 6

  • CPU Socket TypeLGA 1700
  • CPU TypeIntel Socket LGA1700 for 13th Gen Intel Core & 12th Gen Inte
  • ChipsetIntel B760
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/
  • Maximum Memory Supported192GB
  • Ready for 14th, 13th and 12th Gen Intel Core processors on LGA 1700 socket
  • Stable power delivery with 12+1 DrMOS stages, six-layer PCB and 8+4 ProCool connectors
  • Comprehensive cooling via enlarged VRM heatsinks, M.2 heatsinks, PCH heatsink and Fan Xpert 4
  • Fast connectivity from PCIe 5.0 x16 slot, three PCIe 4.0 M.2 slots and USB 3.2 Gen 2x2 Type-C
  • Clear online gaming with Intel WiFi 6, Realtek 2.5Gb Ethernet and two-way AI noise cancellation

Ready for 14th 13th 12th Gen Intel Core

This ATX motherboard uses the Intel B760 chipset and an LGA 1700 socket. It supports 14th 13th and 12th Gen Intel Core Pentium Gold and Celeron processors. Four 288 pin DDR5 slots accept up to 192 GB in dual channel mode with Intel XMP 3.0 profiles.

Thermals noise and power draw

A 12 plus 1 DrMOS power stage design works with a six layer PCB and 8 plus 4 ProCool sockets. Enlarged VRM heatsinks M.2 heatsinks and a PCH heatsink provide comprehensive cooling. Hybrid fan headers and Fan Xpert 4 allow precise fan control for quieter operation.

Bundled accessories and software

Realtek 2.5 Gb Ethernet and Intel WiFi 6 deliver wired and wireless networking. Two way AI Noise Cancelation reduces background noise from microphone and audio output. Rear USB 3.2 Gen 2x2 Type C front panel USB 3.2 Gen 2 Type C header and Thunderbolt USB4 header support expand connectivity options.

Highlights

  • Ready for 14th, 13th and 12th Gen Intel Core processors on LGA 1700 socket
  • Stable power delivery with 12+1 DrMOS stages, six-layer PCB and 8+4 ProCool connectors
  • Comprehensive cooling via enlarged VRM heatsinks, M.2 heatsinks, PCH heatsink and Fan Xpert 4
  • Fast connectivity from PCIe 5.0 x16 slot, three PCIe 4.0 M.2 slots and USB 3.2 Gen 2x2 Type-C
  • Clear online gaming with Intel WiFi 6, Realtek 2.5Gb Ethernet and two-way AI noise cancellation

Specifications

BrandASUS
ModelTUF GAMING B760-PLUS WIFI
Part Number90MB1ER0-M0AAY0
CPU Socket TypeLGA 1700
CPU TypeIntel Socket LGA1700 for 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
ChipsetIntel B760
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Maximum Memory Supported192GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP 3.0
Memory FeatureSupports Intel Extreme Memory Profile (XMP)
OptiMem II
PCI Express 5.0 x16Intel 13th & 12th Gen Processors
1 x PCIe 5.0 x16 slot
PCI Express 3.0 x16Intel B760 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)*
* PCIEX16(G3) shares bandwidth with PCIEX1(G3)_1 and PCIEX1(G3)_2 . When PCIEX1(G3)_1 or PCIEX1(G3)_2 runs at PCIe x1 mode, PCIEX16(G3) will only run at PCIe x2 mode.
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
PCI Express x12 x PCIe 3.0 x1 slots*
Serial ATA (SATA)4 x SATA 6Gb/s
M.2Intel 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
SATA RAIDIntel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Audio ChipsetRealtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Rear optical S/PDIF out port
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
Audio Channels7.1 Channels
LAN Chipset1 x Realtek 2.5Gb Ethernet
TUF LANGuard
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 6
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
BluetoothBluetooth v5.2*
*The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

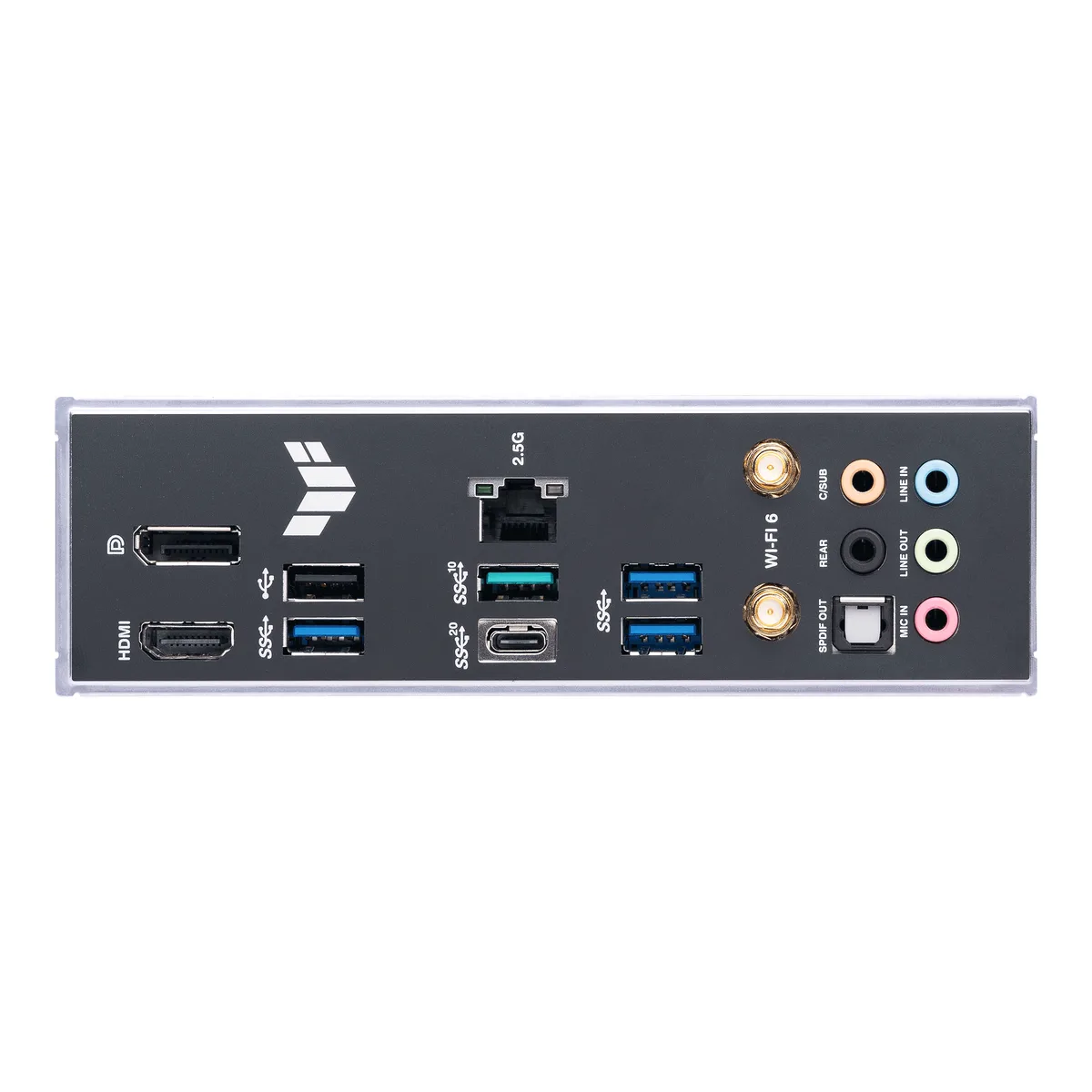

Back I/O Ports1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
1 x USB 3.2 Gen 2 port (1 x Type-A)
3 x USB 3.2 Gen 1 ports (3 x Type-A)
1 x USB 2.0 port (1 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
Onboard USB1 x USB 3.2 Gen 2 connector (supports USB Type-C )
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt (USB4) header
Windows 11Supported
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
FeaturesASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- TUF LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- CPU Socket lever protector
- ProCool
- Pre-mounted I/O shield
- SafeSlot Core+
- SafeDIMM
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers

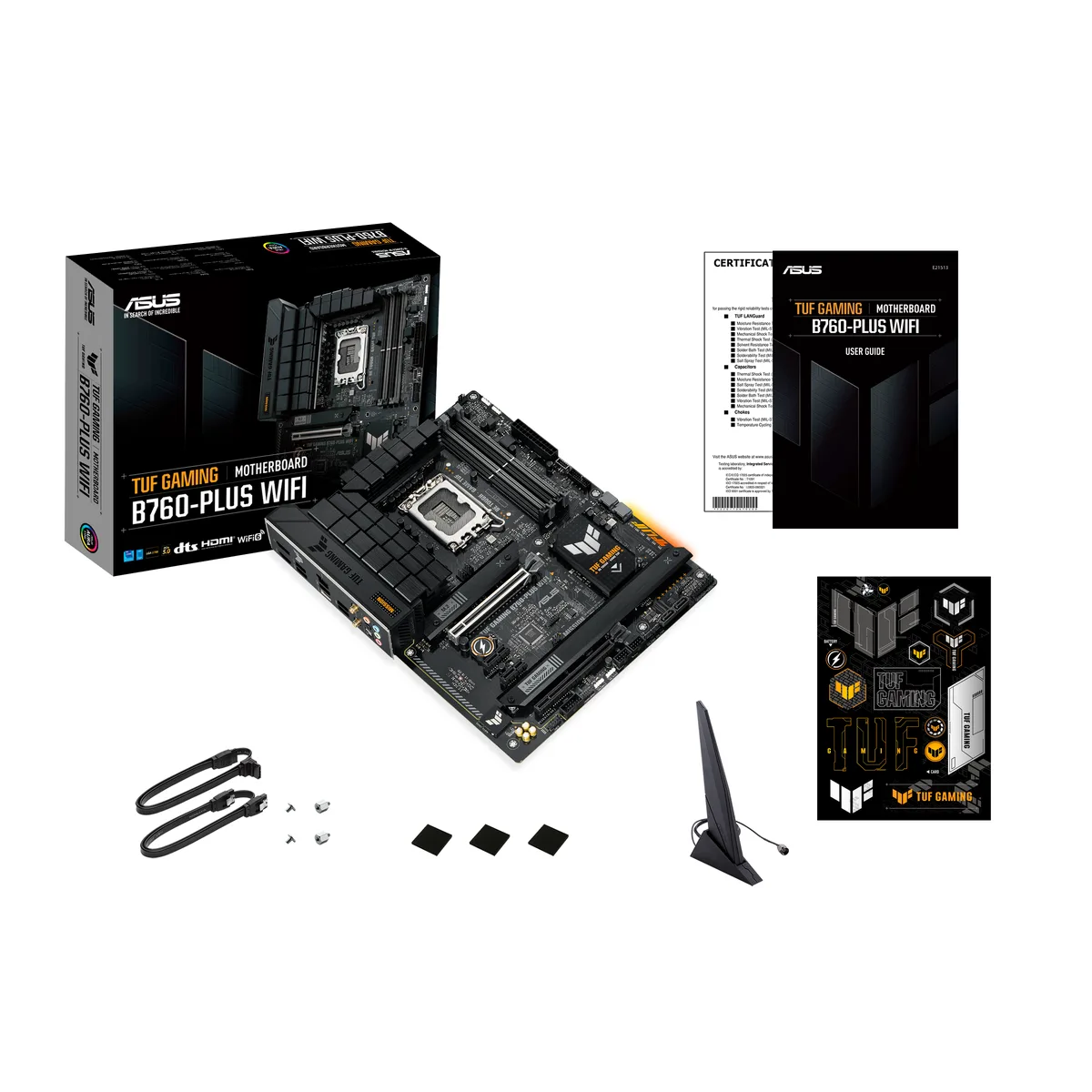

Package ContentsCables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antenna
1 x TUF Gaming sticker
2 x M.2 Rubber Packages
1 x Screw package for M.2 SSD
Documentation
1 x TUF Certification card
1 x User guide
Shipping weight1.98 kg
Package size355 × 275 × 70 mm

Questions about this item

How do I install the CPU on the LGA 1700 socket and which power connectors often get missed?

Align the triangle on the processor with the socket marker, lower the retention lever gently, then connect both the 8-pin and 4-pin ProCool power cables so the 12+1 DrMOS stages receive full current.

Which components on this board will need replacement first under long-term use?

The VRM heatsinks, PCH heatsink and three M.2 heatsinks are passive; only the chassis fans plugged into the hybrid headers wear out and should be swapped when noise or airflow drops.

What thermal limit appears first when the VRM runs at sustained load?

The 12+1 DrMOS power stages hit their temperature ceiling before the six-layer PCB or the enlarged VRM heatsinks saturate, so case airflow must keep the heatsink fins moving air.
