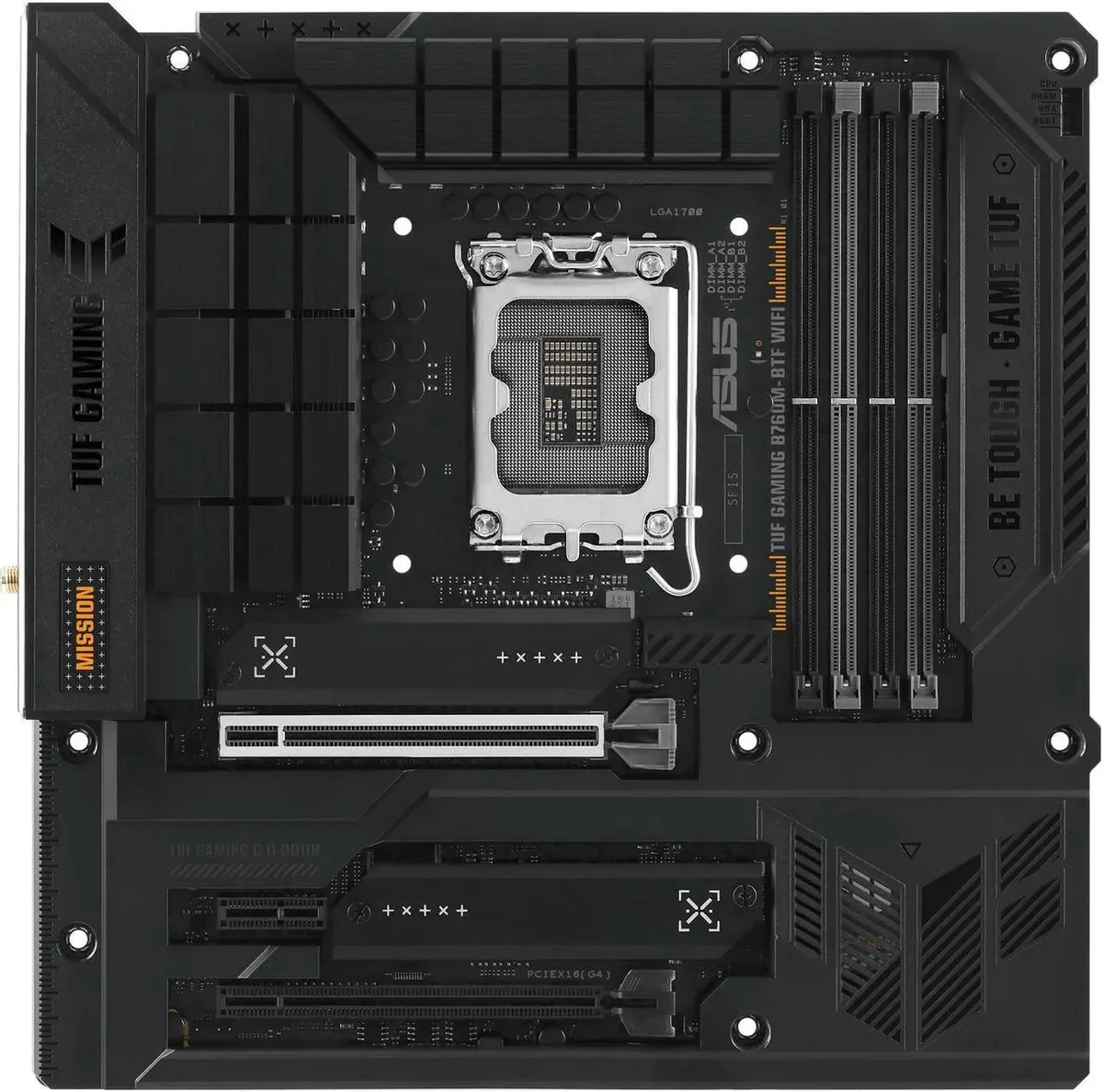

ASUS TUF Gaming B760M-BTF WIFI mATX motherboard with grey heatsinks and yellow accents

ASUS

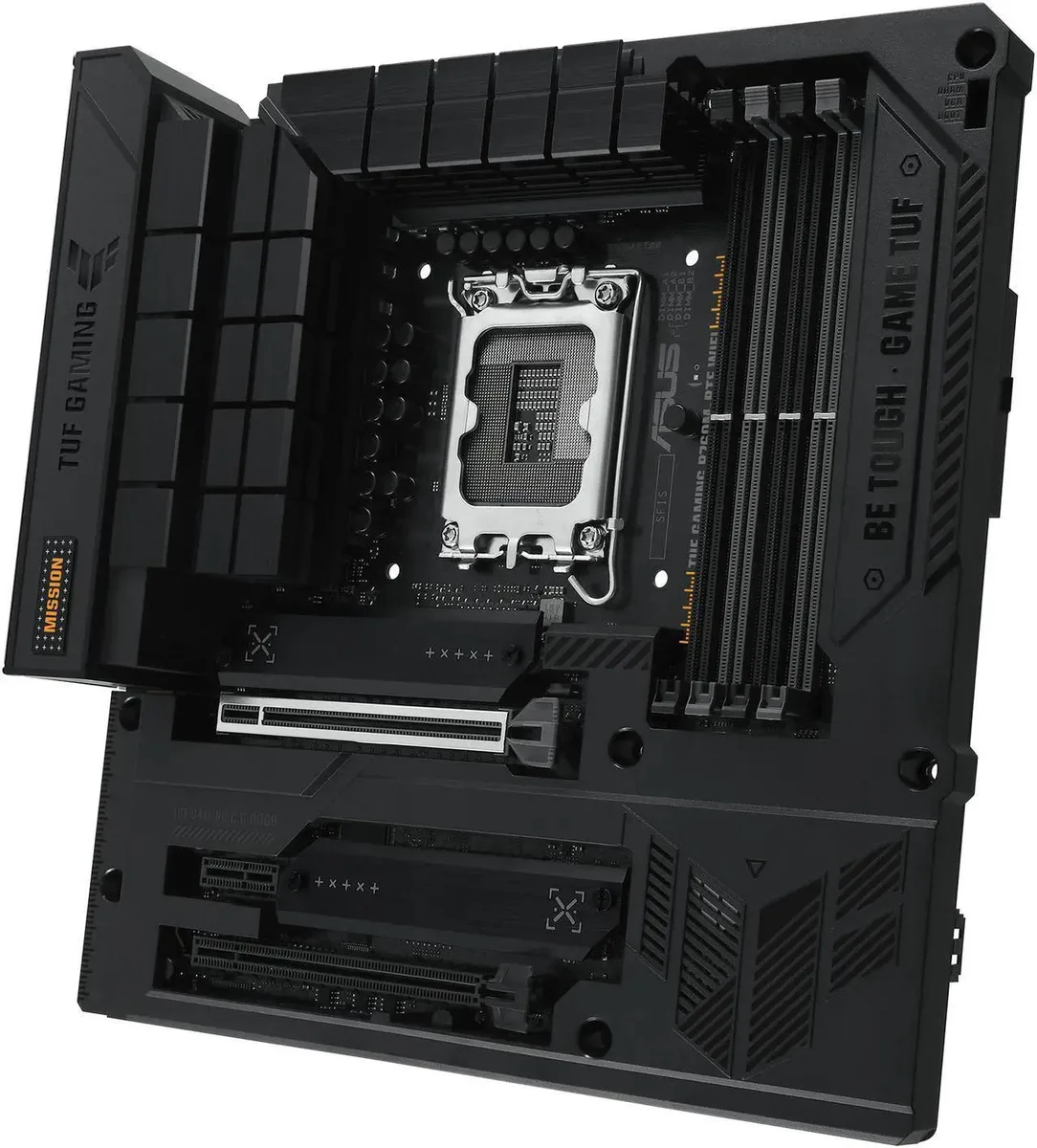

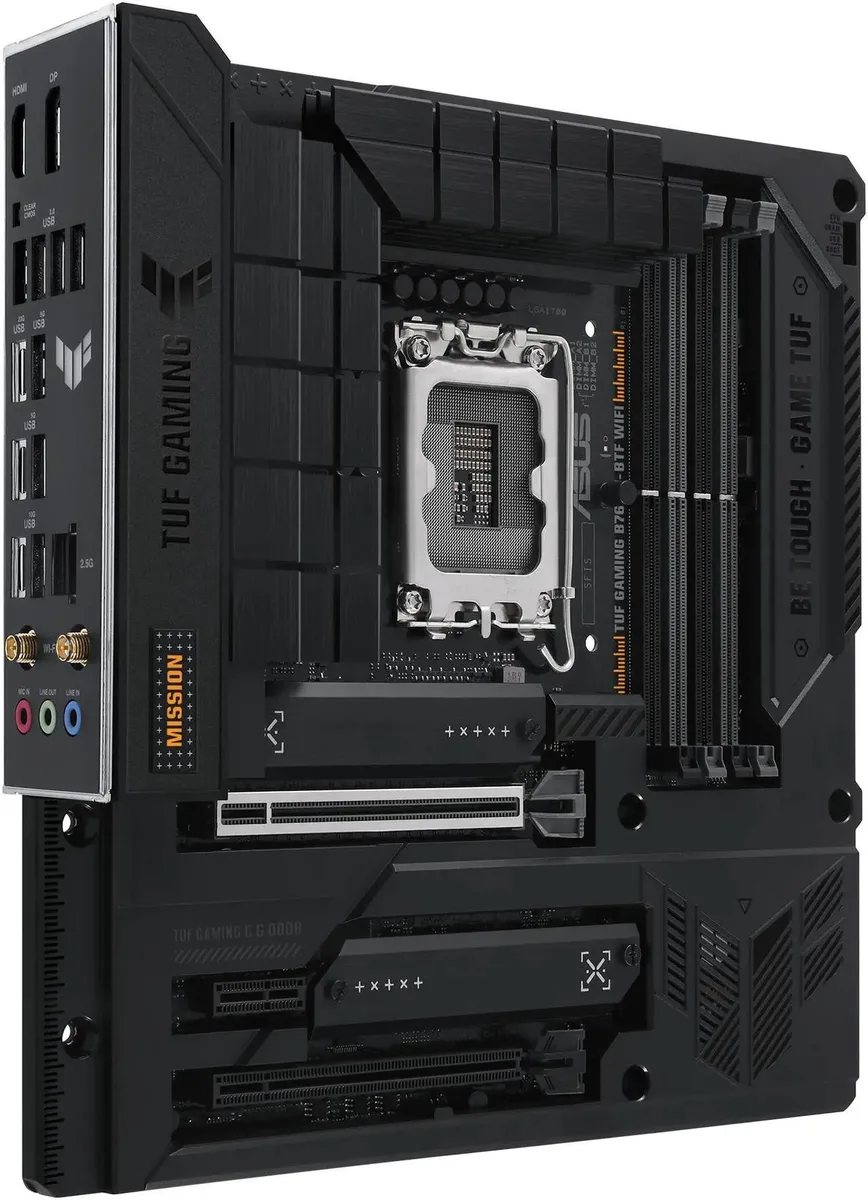

ASUS TUF GAMING B760M-BTF WIFI Intel motherboard

SKU CH-C1PF-G8S8M

mATX board for Intel LGA 1700 CPUs with DDR5, PCIe 5.0, three PCIe 4.0 M.2 slots, 12+1 DrMOS, Wi-Fi 6 and 2.5Gb Ethernet

  • CPU Socket TypeLGA 1700
  • CPU TypeLGA 1700
  • Memory StandardDDR5
  • Form FactormATX
  • Ready for 12th and 13th Gen Intel processors with LGA 1700 socket
  • Stable power delivery from 12+1 DrMOS stages and six-layer PCB
  • Enlarged VRM and M.2 heatsinks plus Fan Xpert 2+ keep temperatures low
  • PCIe 5.0 slot and three PCIe 4.0 M.2 slots for fast storage and graphics
  • Intel Wi-Fi 6 and Realtek 2.5Gb Ethernet with TUF LANGuard for reliable online play

Built for Intel LGA 1700 builds

This mATX motherboard uses the Intel B760 chipset and an LGA 1700 socket. It supports 12th and 13th generation Intel processors and runs DDR5 memory. The compact form factor suits gaming and workstation systems that need strong connectivity in a smaller chassis.

Thermals, noise and power draw

Enlarged VRM heatsinks, M.2 heatsinks and a PCH heatsink handle heat from the 12+1 DrMOS power stages and six-layer PCB. Hybrid fan headers and the Fan Xpert 2+ utility let you tune fan curves for quieter operation. ProCool 8+4 power sockets deliver stable current to the CPU under load.

Build integration

A PCIe 5.0 slot and three PCIe 4.0 M.2 slots provide high-speed expansion for graphics and storage. Rear USB 3.2 Gen 2x2 Type-C, front USB 3.2 Gen 2 Type-C and a Thunderbolt header cover modern peripherals. Intel Wi-Fi 6 and Realtek 2.5Gb Ethernet with TUF LANGuard give reliable wired and wireless networking.

Highlights

  • Ready for 12th and 13th Gen Intel processors with LGA 1700 socket
  • Stable power delivery from 12+1 DrMOS stages and six-layer PCB
  • Enlarged VRM and M.2 heatsinks plus Fan Xpert 2+ keep temperatures low
  • PCIe 5.0 slot and three PCIe 4.0 M.2 slots for fast storage and graphics
  • Intel Wi-Fi 6 and Realtek 2.5Gb Ethernet with TUF LANGuard for reliable online play

Specifications

BrandASUS
CPU Socket TypeLGA 1700
CPU TypeLGA 1700
Memory StandardDDR5
Form FactormATX

Questions about this item

How do I install the CPU into the LGA 1700 socket without bending pins?

Align the triangle markers on the processor and socket, lower the CPU gently without forcing it, then close the retention lever fully; the 12+1 DrMOS power stages and 8+4 ProCool sockets require the CPU to sit flat for proper contact.

Which parts of the board will need thermal paste or pad replacement after a few years?

The enlarged VRM heatsinks, M.2 heatsinks and PCH heatsink use thermal pads that can dry out; plan to replace those pads when temperatures rise noticeably.

What limits sustained heavy loads first — VRM heat or M.2 throttling?

The VRM heatsinks and six-layer PCB handle the 12+1 DrMOS stages, so M.2 drives on the PCIe 4.0 slots typically hit thermal limits before the power delivery does.
