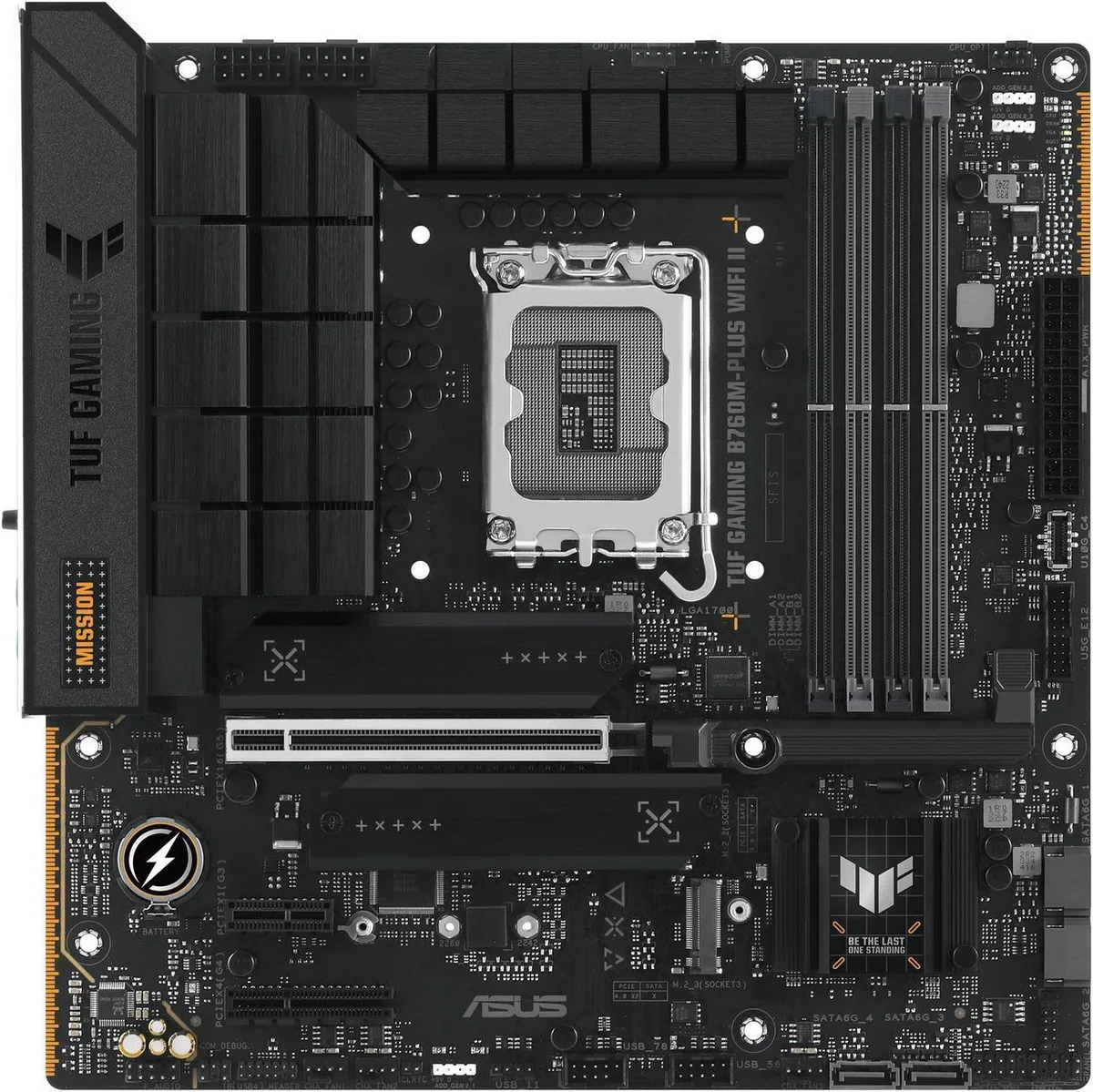

ASUS TUF Gaming B760M-PLUS WIFI II motherboard, matte black mATX board with grey VRM heatsinks and M.2 covers, silver PCIe slots

ASUS

ASUS TUF GAMING B760M-PLUS WIFI II Intel motherboard

SKU CH-82RN-5G9F8

An LGA 1700 micro-ATX board with a 12+1 DrMOS power stage design, three PCIe 4.0 M.2 slots, a PCIe 5.0 x16 slot, DDR5 support to 7800 MT/s, WiFi 6E, 2.5 Gb Ethernet and rear USB 20 Gbps Type-C

  • CPU Socket TypeLGA 1700
  • CPU TypeLGA 1700
  • ChipsetIntel B760
  • Number of Memory Slots4x288pin (DDR4)
  • Memory StandardDDR5 5600
  • Maximum Memory Supported256GB
  • Supports 12th, 13th and 14th Gen Intel CPUs via LGA 1700 socket
  • Stable power delivery from 12+1 DrMOS stages and six-layer PCB with 8+8 ProCool connectors
  • Three PCIe 4.0 M.2 slots with heatsinks plus PCIe 5.0 x16 graphics slot
  • WiFi 6E and Realtek 2.5Gb Ethernet with TUF LANGuard for low-latency online play
  • Two-way AI Noise-Cancelation clears microphone and output audio for calls and games

Socket LGA 1700 DDR5 mATX board

This ASUS TUF GAMING B760M-PLUS WIFI II motherboard fits Intel 12th, 13th and 14th Gen processors on the LGA 1700 socket. Four DDR5 slots support up to 256 GB in dual-channel mode with XMP profiles up to 7800+(OC). The mATX form factor suits compact builds that still need full feature sets.

PCIe 5.0 and three M.2 4.0 slots

A single PCIe 5.0 x16 slot handles modern graphics cards while three M.2 slots (Key M, 2242/2260/2280) each run at PCIe 4.0 x4 for fast storage. Rear USB 20Gbps Type-C, front USB 10Gbps Type-C header and Thunderbolt (USB4) header add high-speed peripheral options. WiFi 6E, Bluetooth 5.3 and Realtek 2.5Gb Ethernet cover wireless and wired networking.

Check CPU cooler clearance and PSU cables

Verify that your CPU cooler fits the enlarged VRM heatsinks and that your power supply provides the 8+8 ProCool connectors required by the 12+1 DrMOS power stages. Ensure the case has headers for the front USB 10Gbps Type-C and that your OS supports Wi-Fi 6E (802.11ax) and Bluetooth 5.3 for full wireless functionality.

Highlights

  • Supports 12th, 13th and 14th Gen Intel CPUs via LGA 1700 socket
  • Stable power delivery from 12+1 DrMOS stages and six-layer PCB with 8+8 ProCool connectors
  • Three PCIe 4.0 M.2 slots with heatsinks plus PCIe 5.0 x16 graphics slot
  • WiFi 6E and Realtek 2.5Gb Ethernet with TUF LANGuard for low-latency online play
  • Two-way AI Noise-Cancelation clears microphone and output audio for calls and games

Specifications

BrandASUS
ModelTUF GAMING B760M-PLUS WIFI II
CPU Socket TypeLGA 1700
CPU TypeLGA 1700
ChipsetIntel B760
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR5 5600
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory FeatureDDR5 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
Supports Intel Extreme Memory Profile (XMP)
ASUS Enhanced Memory Profile II (AEMP II)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC functio
PCI Express 5.0 x161 x PCI Express 5.0 x16
PCI Express x41 x PCI Express 4.0 x4
PCI Express x11 x PCI Express 3.0 x1
Serial ATA (SATA)4 x SATA 6Gb/s
M.2Intel Core Processors (14th & 13th & 12th Gen)
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
SATA RAID0/1/5/10
Audio Channels7.1 Channels
Max LAN Speed2.5Gbps
Wireless LAN2x2 Wi-Fi 6E (802.11ax)
BluetoothBluetooth 5.3
Back I/O Ports1 x USB 20Gbps port (1 x USB Type-C)
1 x USB 10Gbps port (1 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
Onboard USB1 x USB 20Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
3 x USB 2.0 headers support 5 additional USB 2.0 ports
Other ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x Front panel audio header (F_AUDIO)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt (USB4) header
Windows 11Supported
Form FactorMicro ATX
Dimensions (W x L)9.6" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V Power connectors
FeaturesSpecial Features:
ASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- TUF LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Antenna
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsinks
- VRM heatsink design
ASUS EZ DIY
- CPU Socket lever protector
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
AURA Sync
- Addressable Gen 2 headers
Software Features:
ASUS Exclusive Software
Armoury Crate
- AURA Cr
Package ContentsCables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x M.2 Rubber Package
1 x TUF Gaming sticker
B148
2 x Screw packages for M.2 SSD
Documentation
1 x TUF Certification card
1 x Quick start guide

Questions about this item

What cooler clearance and mounting holes does the TUF GAMING B760M-PLUS WIFI II provide for a CPU cooler?

The board uses the Intel LGA 1700 socket pattern, so any cooler rated for LGA 1700 will align with the four mounting holes around the socket.

Which step is often missed when installing DDR5 memory into the four 288-pin slots on this board?

After placing each module, press down firmly until both side clips click audibly; a single unlatched clip will prevent the system from posting.

Which onboard components may need driver updates or firmware flashes after the initial build?

The WiFi 6E module, Realtek 2.5Gb Ethernet controller, 7.1-channel audio codec and Bluetooth 5.3 radio all rely on OS or vendor drivers that should be updated once the operating system is installed.
