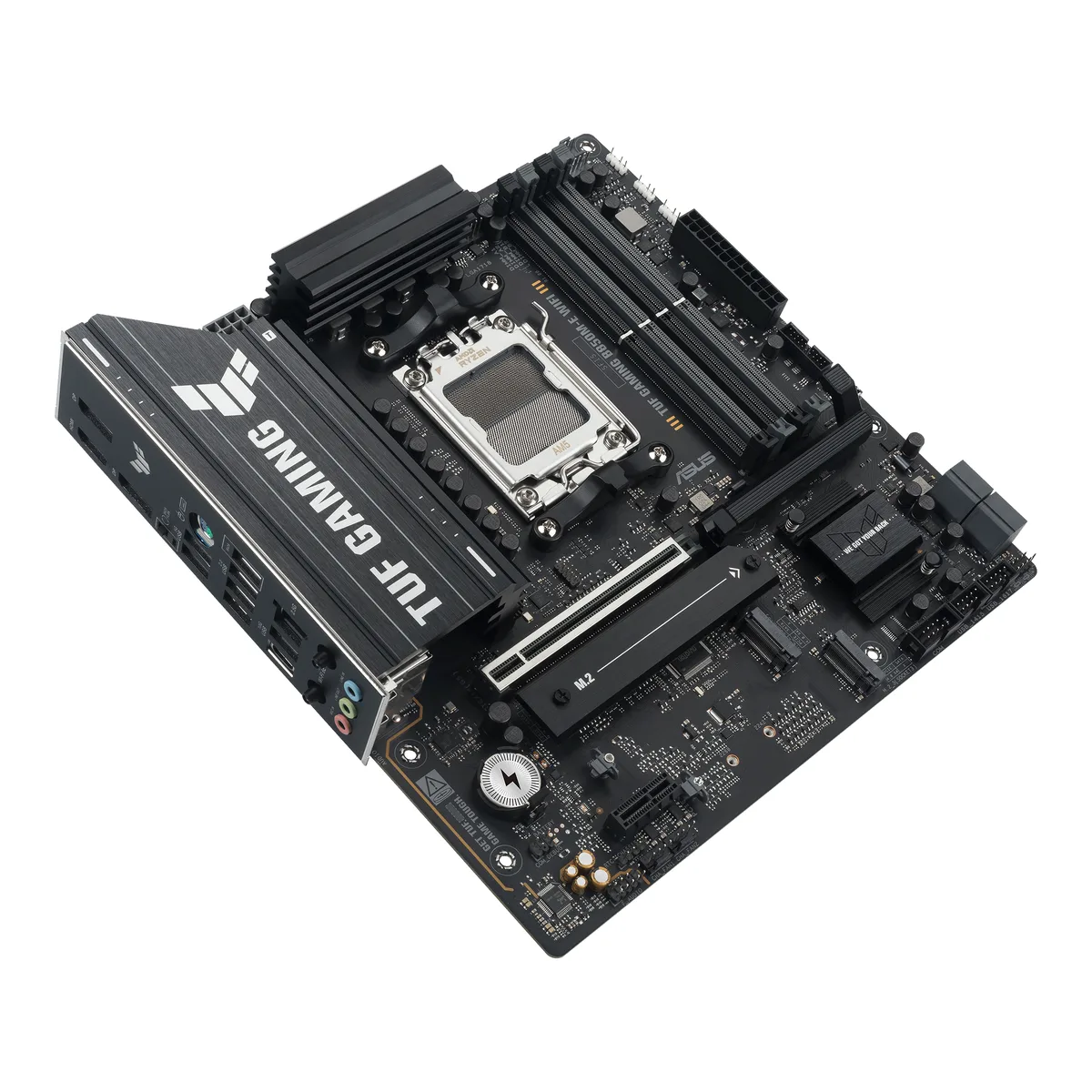

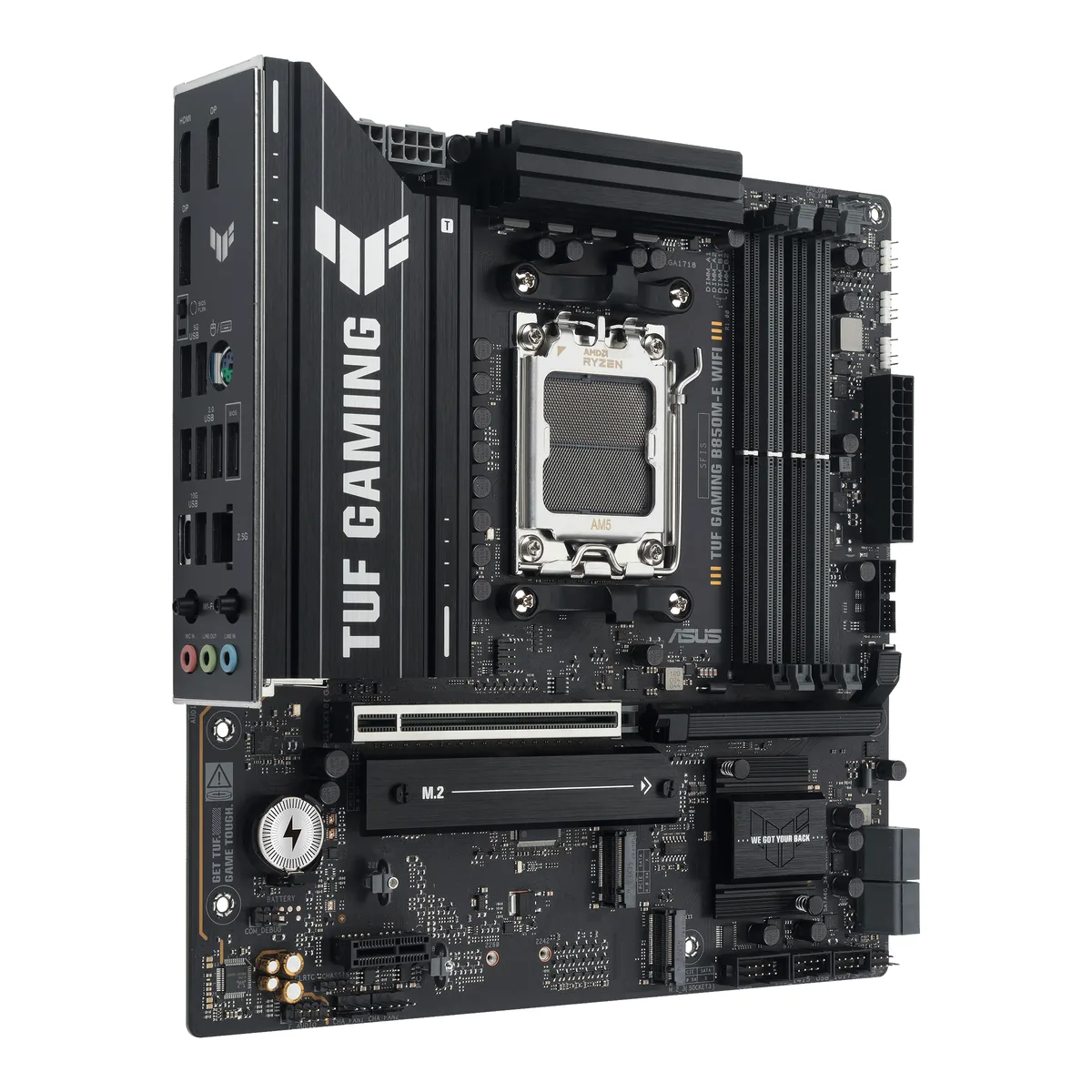

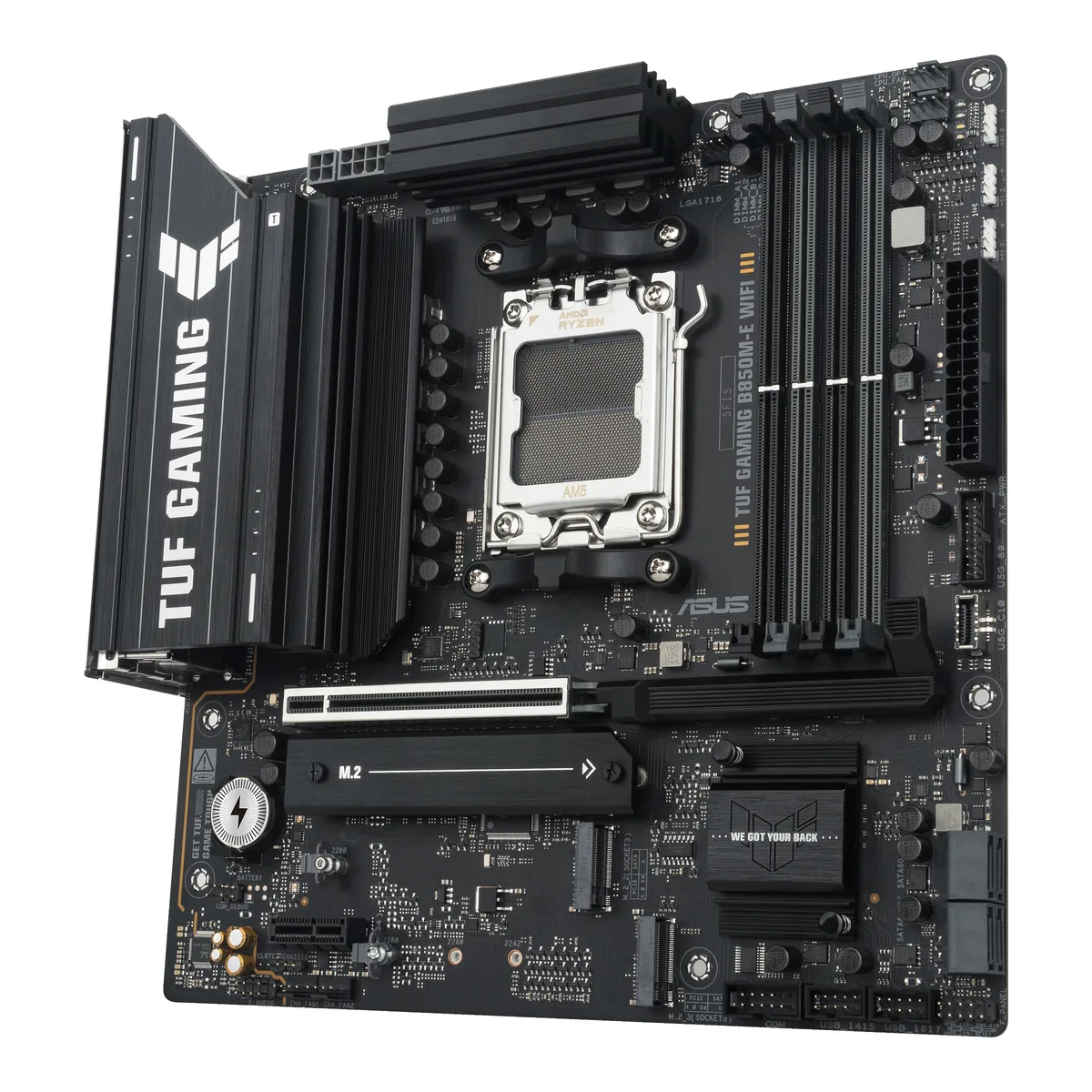

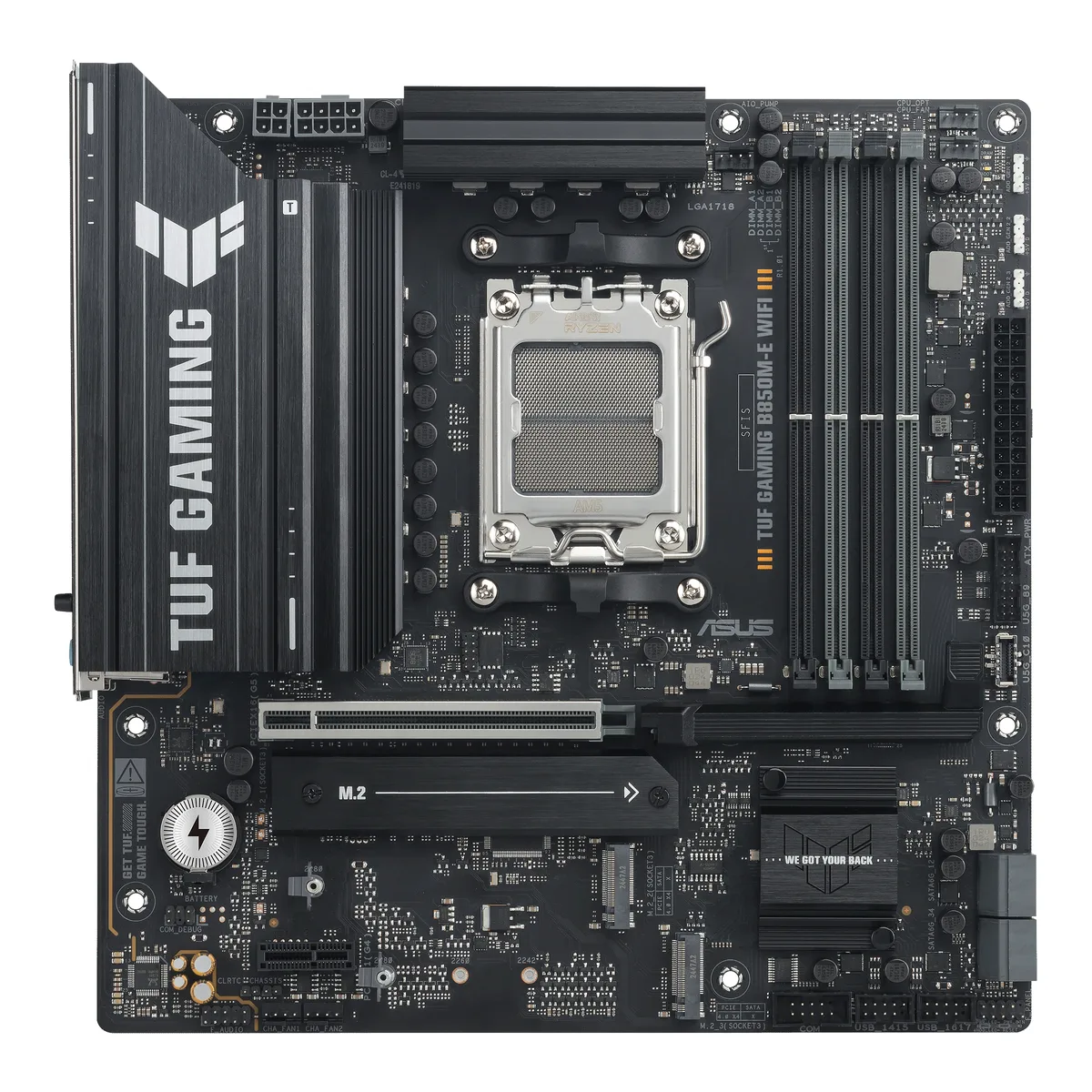

mATX motherboard with black PCB, large VRM heatsinks, M.2 shields, rear I/O cover, four DDR5 slots, PCIe x16 slot, multiple M.2 slots

ASUS

ASUS TUF GAMING B850M-E WIFI AMD motherboard

SKU CH-QR6T-2F1W1 MPN TUF GAMING B850M-E WIFI

mATX AM5 board with 8+2+1 80A DrMOS power, DDR5 to 8000 MT/s, PCIe 5.0 x16, three M.2 slots, Wi-Fi 6E and 2.5Gb Ethernet

  • CPU Socket TypeAM5
  • CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
  • ChipsetAMD B850
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardUp to 8000+MT/s(OC)
  • Maximum Memory Supported256GB

Option TUF GAMING B850M-E WIFI

Struck-through versions exist but are not stocked here.

  • Ready for AMD Ryzen 7000, 8000 and 9000 series processors via AM5 socket
  • Stable power delivery from 8+2+1 80A DrMOS stages with ProCool connectors
  • One PCIe 5.0 M.2 slot plus two PCIe 4.0 M.2 slots for fast storage
  • Wi-Fi 6E, 2.5Gb Ethernet and rear USB-C 10Gbps for high-speed connectivity
  • DDR5 support up to 8000+ MT/s with AMD EXPO and AEMP profiles

Socket AM5 DDR5 platform

This ASUS TUF GAMING B850M-E WIFI motherboard fits AMD Ryzen 7000, 8000 and 9000 series processors in a micro-ATX form factor. It targets builders who want a compact board with current connectivity for gaming or AI workloads. The AM5 socket supports future CPU upgrades without a board change.

8+2+1 80A DrMOS power stages

The 8+2+1 phase design uses 80A DrMOS stages on an 8-layer PCB with alloy chokes and durable capacitors. ProCool 8+4 pin connectors feed the VRM while an enlarged heatsink, M.2 heatsink and PCH heatsink dissipate heat under sustained loads. Hybrid fan headers and Fan Xpert 2+ keep airflow matched to temperature.

PCIe 5.0 x16 and M.2_1 slot

One full-length PCIe 5.0 x16 slot and one M.2_1 slot running PCIe 5.0 x4 are wired directly to Ryzen 9000 and 7000 CPUs. Ryzen 8000 CPUs drop the graphics slot to PCIe 4.0 x16 and the M.2_1 slot to PCIe 4.0 x4. This CPU-dependent lane allocation decides whether the board delivers peak bandwidth for your chosen processor.

Highlights

  • Ready for AMD Ryzen 7000, 8000 and 9000 series processors via AM5 socket
  • Stable power delivery from 8+2+1 80A DrMOS stages with ProCool connectors
  • One PCIe 5.0 M.2 slot plus two PCIe 4.0 M.2 slots for fast storage
  • Wi-Fi 6E, 2.5Gb Ethernet and rear USB-C 10Gbps for high-speed connectivity
  • DDR5 support up to 8000+ MT/s with AMD EXPO and AEMP profiles

Specifications

BrandASUS
ModelTUF GAMING B850M-E WIFI
Part Number90MB1LS0-MVAAY0
CPU Socket TypeAM5
CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
ChipsetAMD B850
Number of Memory Slots4x288pin (DDR5)
Memory StandardUp to 8000+MT/s(OC)
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileAMD EXPO
ECC SupportedYes
Buffer SupportedUn-buffered
Memory FeatureASUS Enhanced Memory Profile (AEMP)
PCI Express 5.0 x16AMD Ryzen 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot
AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
PCI Express x1AMD B650 Chipset
1 x PCIe 4.0 x1 slot
Serial ATA (SATA)4 x SATA 6Gb/s
M.2AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)
AMD B650 Chipset
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
SATA RAIDAMD RAIDXpert2 Technology
Ryzen 9000 Series Processors: RAID 0/1/5/10
Ryzen 8000 Series Processors: RAID 0/1
Ryzen 7000 Series Processors: RAID 0/1/10
Audio ChannelsRealtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 ax
BluetoothBluetooth 5.3

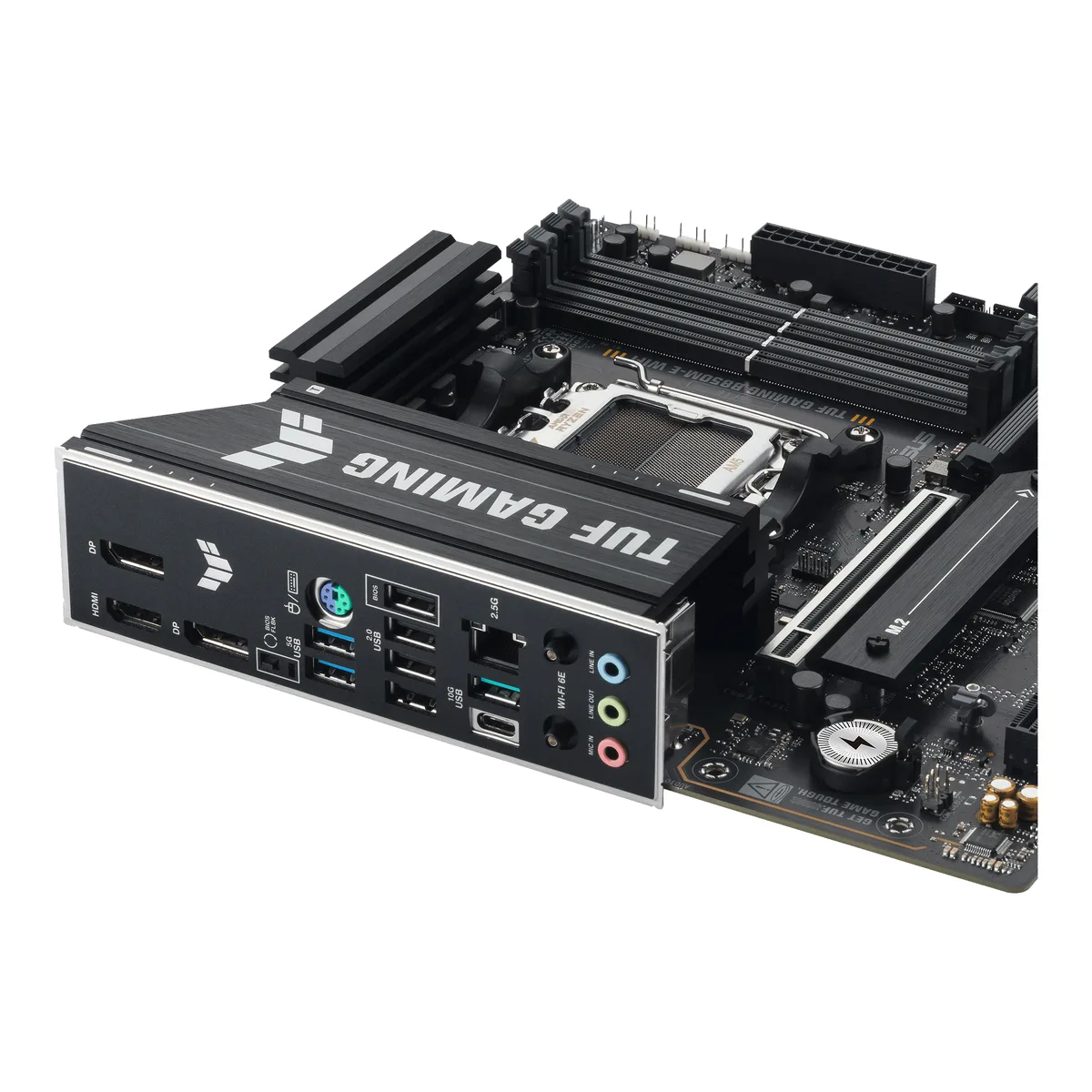

Back I/O Ports2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
2 x DisplayPort
1 x HDMI port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack button
1 x PS/2 keyboard/mouse combo port
Onboard USB1 x USB 5Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
2 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable RGB Gen 2 headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin Front Panel System header
1 x Chassis Intrusion header
Form FactorMicro ATX
Dimensions (W x L)9.6" x 9.6"
Power Pin1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
1 x 4-pin +12V CPU Power connector
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
SoftwareASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- DIGI+ VRM
ASUS AI Advisor
ASUS DriverHub
ASUS GlideX
TurboV Core
TUF GAMING CPU-Z
DTS Audio Processing
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
FeaturesASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- TUF LANGuard
- Overvoltage Protection
- SafeSlot
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- ProCool
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Addressable RGB Gen 2 headers
Package ContentsCables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x TUF Gaming sticker
1 x M.2 Rubber Package
1 x Screw package for M.2 SSD
Documentation
1 x Quick start guide
Shipping weight1.57 kg
Package size279 × 274 × 58 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will a Ryzen 9000 series CPU run the primary PCIe slot at full 5.0 x16 speed?

Yes. With a Ryzen 9000 or 7000 series processor the board provides one PCIe 5.0 x16 slot. Ryzen 8000 series CPUs limit that slot to PCIe 4.0 x8 or x4.

How many M.2 drives can I install and which one supports PCIe 5.0?

Three M.2 2280 slots are available. M.2_1 runs at PCIe 5.0 x4 with Ryzen 9000 or 7000 CPUs, while M.2_2 and M.2_3 operate at PCIe 4.0 x4.

Does the rear I/O include a 10 Gbps USB-C port for fast external storage?

The rear panel has one USB 10 Gbps Type-C port. A front-panel header for USB 5 Gbps Type-C is also present on the board.
