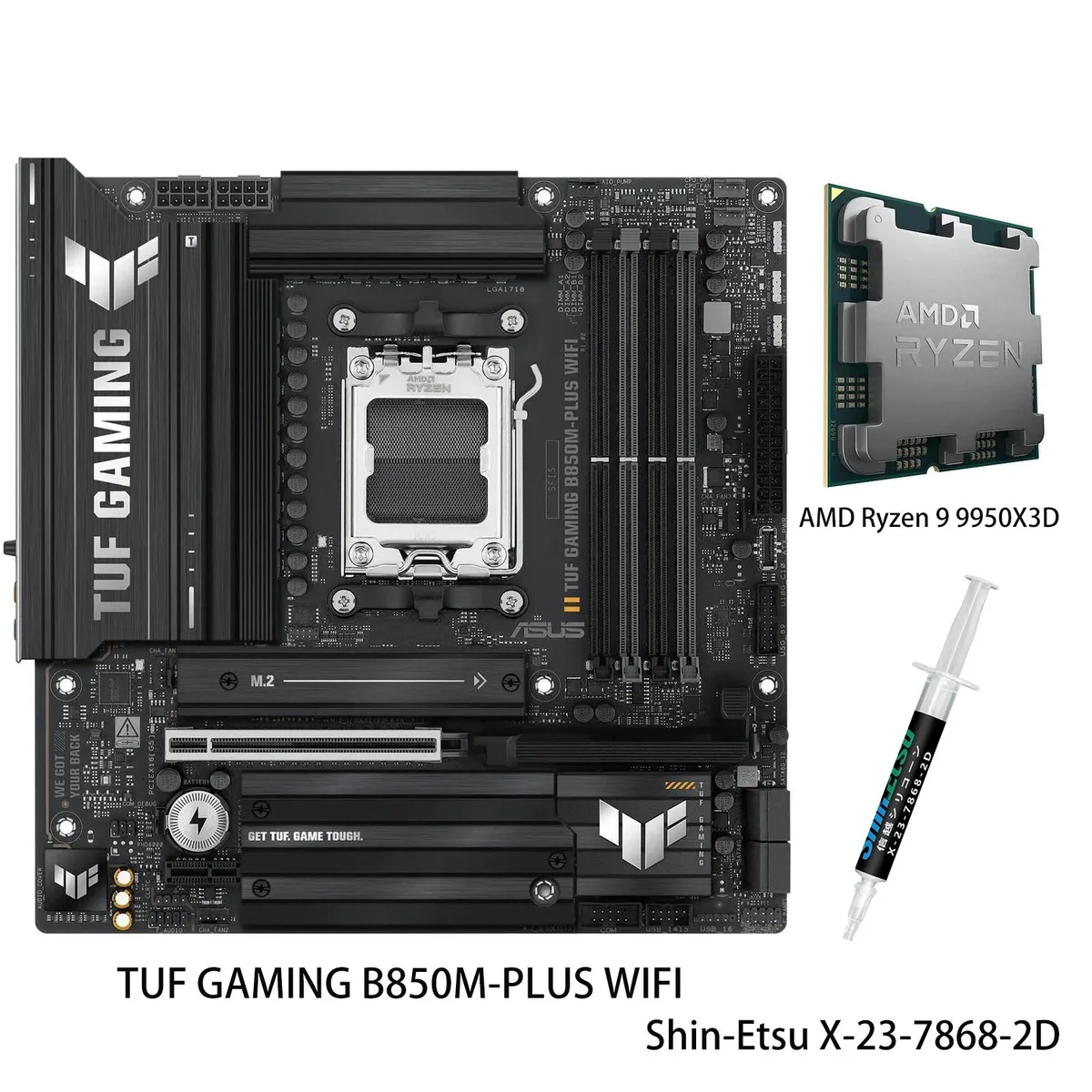

ASUS TUF Gaming B850M-Plus motherboard with Ryzen 9 9950X3D CPU installed, matte black mATX board with grey heatsinks

ASUS

ASUS TUF Gaming B850M-Plus WiFi + Ryzen 9 9950X3D AMD Motherboard & CPU Combo

SKU CH-WKQA-YG0SR

A motherboard and CPU combo pairing a B850 mATX board with 14+2+1 80A DrMOS power, PCIe 5.0 x16, Wi-Fi 6E, 2.5Gb LAN, USB 20Gbps Type-C and three M.2 slots with a 16-core Ryzen 9 9950X3D featuring

  • CPU Socket TypeAM5
  • ChipsetAMD B850
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardUp to 8000+MT/s (OC)
  • Maximum Memory Supported192GB
  • Channel SupportedDual Channel

Motherboard TUF GAMING B850M-PLUS WIFI

Struck-through versions exist but are not stocked here.

CPU + Ryzen 9 9950X3D

  • Stable power for heavy workloads
  • 14+2+1 80A DrMOS stages with 8-layer PCB
  • One PCIe 5.0 M.2 plus two PCIe 4.0 M.2 slots with large heatsink
  • Wi-Fi 6E and 2.5Gb LAN plus rear USB 20Gbps Type-C and front USB 10Gbps Type-C
  • 16-core Ryzen 9 9950X3D with 128MB L3 cache and Radeon graphics

AM5 Motherboard and Ryzen 9 9950X3D Combo

This bundle pairs an ASUS TUF Gaming B850M-Plus WiFi motherboard with an AMD Ryzen 9 9950X3D processor. The board uses the AMD B850 chipset on an AM5 socket in a micro-ATX layout. It delivers a 14+2+1 80A DrMOS power design, four DDR5 slots supporting up to 192GB, and a 170W CPU ready for advanced AI workloads.

Best for High-End Gaming and AI Builds

The combination suits builders who want a compact board with strong VRM cooling, PCIe 5.0 graphics and storage, Wi-Fi 6E, and 2.5Gb LAN. The 128MB L3 cache on the CPU benefits cache-sensitive titles. Users needing more than four memory slots, a full-size ATX form factor, or a lower-power processor should consider other options.

PCIe 5.0 M.2 and x16 Slots Decide Fit

The motherboard provides one PCIe 5.0 x16 slot for graphics and one PCIe 5.0 M.2 2280 slot for the fastest SSDs. Two additional M.2 sockets run at PCIe 4.0 speeds. If your GPU or primary drive requires PCIe 5.0 bandwidth in a micro-ATX chassis, this board meets that requirement; otherwise a B850 board without 5.0 M.2 may suffice.

Highlights

  • Stable power for heavy workloads
  • 14+2+1 80A DrMOS stages with 8-layer PCB
  • One PCIe 5.0 M.2 plus two PCIe 4.0 M.2 slots with large heatsink
  • Wi-Fi 6E and 2.5Gb LAN plus rear USB 20Gbps Type-C and front USB 10Gbps Type-C
  • 16-core Ryzen 9 9950X3D with 128MB L3 cache and Radeon graphics

Specifications

BrandASUS
ModelTUF GAMING B850M-PLUS WIFI+R9 9950X3D
CPU Socket TypeAM5
ChipsetAMD B850
Number of Memory Slots4x288pin (DDR5)
Memory StandardUp to 8000+MT/s (OC)
Maximum Memory Supported192GB
Channel SupportedDual Channel
ECC SupportedYes
Buffer SupportedUn-buffered
Memory FeatureDual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
ASUS Enhanced Memory Profile (AEMP)
PCI Express 5.0 x16AMD Ryzen 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot (supports x16 mode)
PCI Express 4.0 x16AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
PCI Express x1AMD B850 Chipset
1 x PCIe 4.0 x1 slot
Serial ATA (SATA)4 x SATA 6Gb/s
M.2AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)**
AMD B850 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
SATA RAIDAMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10.
*RAID 5 Function is only supported by AMD Ryzen 9000 series CPU.
Audio ChipsetRealtek ALC1220P
Audio ChannelsRealtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
- Unique de-pop circuit
* Due to limitations in HDA bandwidth, 32-Bit/192
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 ax
BluetoothBluetooth 5.3
Back I/O Ports1 x USB 20Gbps port (1 x USB Type-C)
3 x USB 10Gbps ports (3 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x BIOS FlashBack button
Onboard USB1 x USB 10Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 3 additional USB 2.0 ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin Front System Panel header
Form FactorMicro ATX
Dimensions (W x L)9.6" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
SoftwareASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4
- Power Saving
ASUS DriverHub
ASUS GlideX
TurboV Core
TUF GAMING CPU-Z
DTS Audio Processing
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
Windows 11Supported
FeaturesASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- TUF LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
Aura Sync
- Addressable Gen 2 headers
Package Contents1 x AMD Ryzen 9 9950X3D CPU
1 x Shin-Etsu X-23-7868-2D (1.8g)
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x TUF GAMING sticker
2 x M.2 rubber packages
1 x Screw package for M.2 SSD
Documentation
1 x Quick start guide

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the Ryzen 9 9950X3D fit in a standard AM5 cooler mounting pattern?

Yes, the CPU uses the AM5 socket which retains the same cooler mounting holes as previous AM5 and AM4 designs, so existing compatible coolers will fit.

Does the motherboard provide enough power phases for the 170W CPU without throttling?

The 14+2+1 80A DrMOS stages and 8+8 pin ProCool connectors are designed to deliver stable current for high-wattage processors like the 9950X3D.

Can I run four DDR5 modules at the rated 8000 MT/s speed?

The board supports up to 192 GB across four slots with EXPO and AEMP profiles, but maximum stable frequency with all slots populated depends on the memory kit and CPU memory controller.
