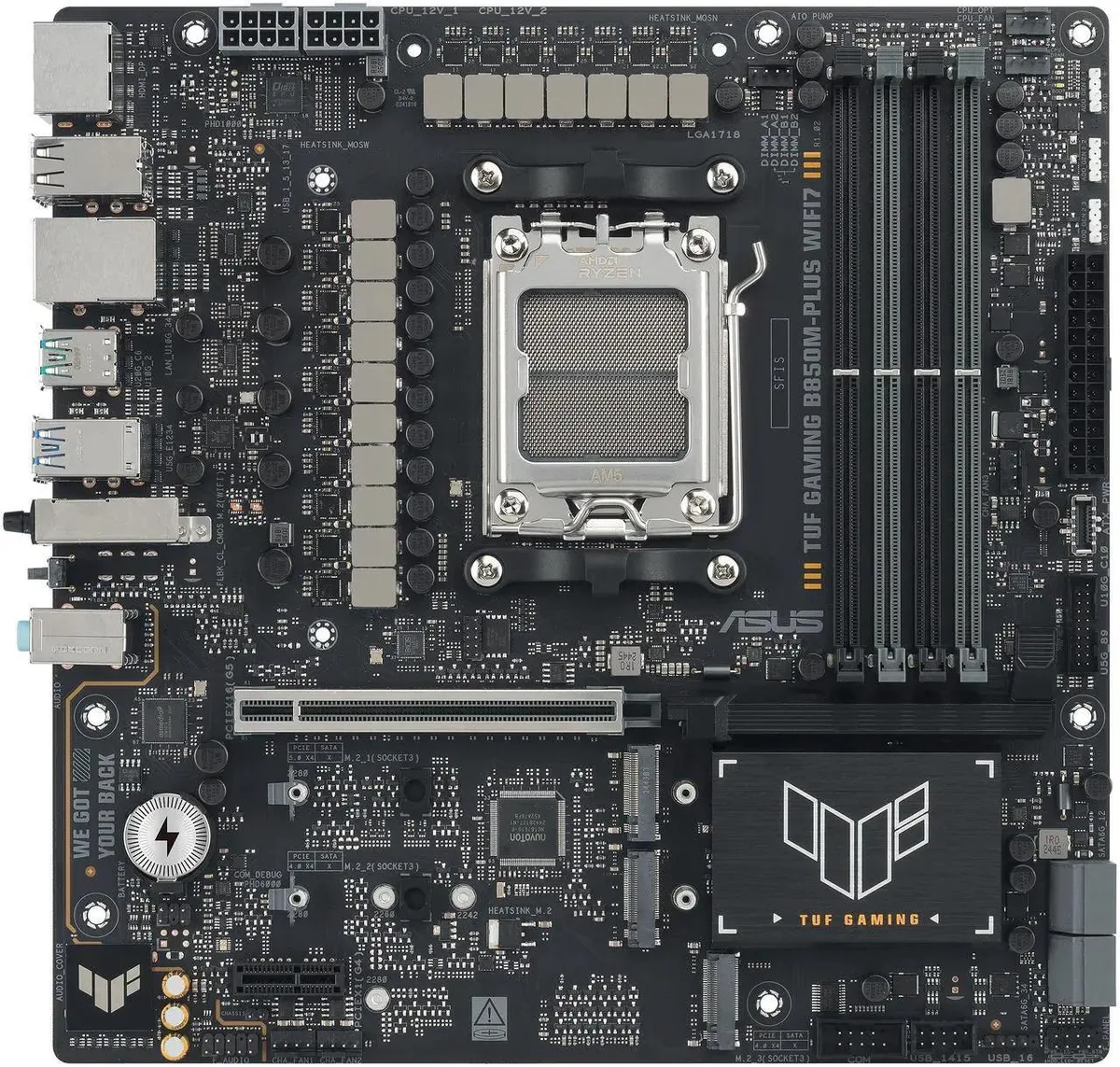

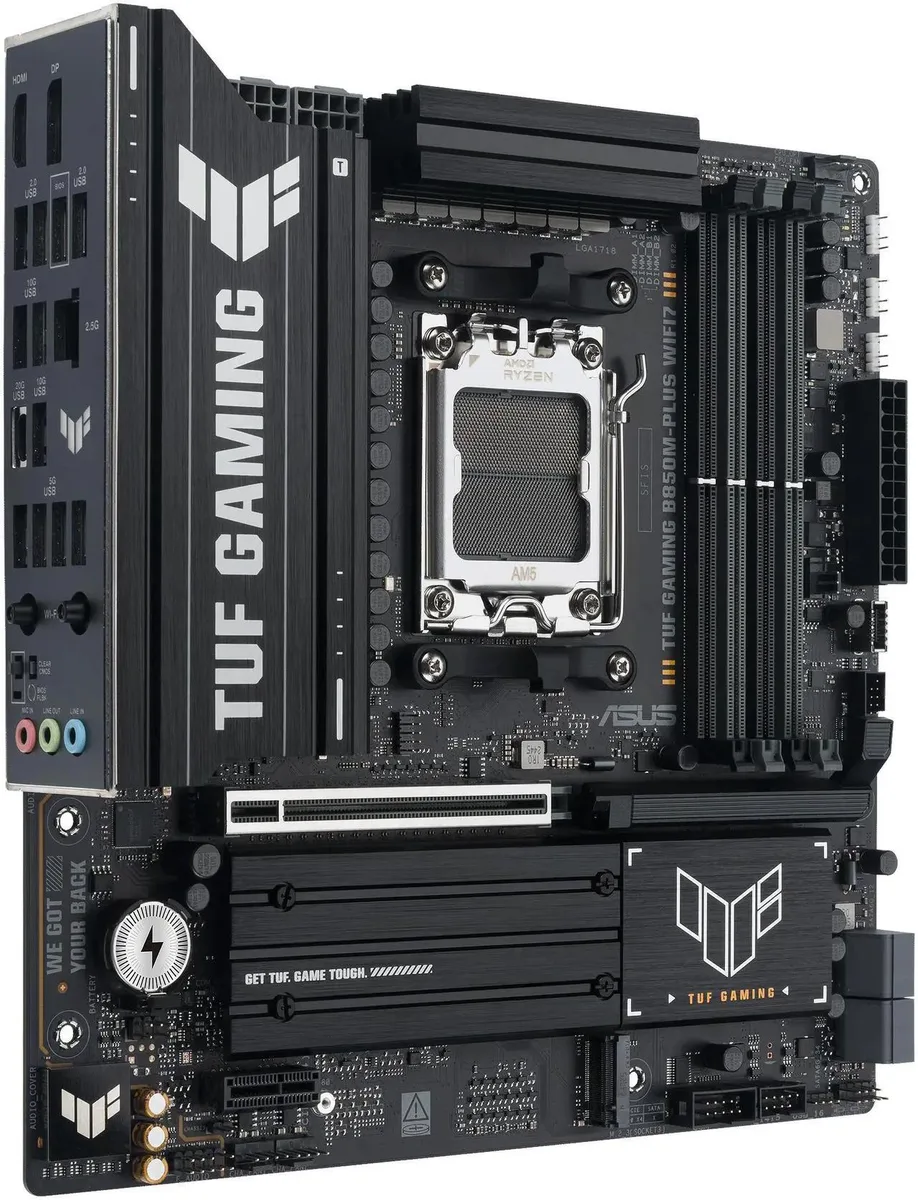

ASUS TUF Gaming B850M-PLUS WIFI7 mATX board with black and yellow heatsinks, four DDR5 slots, three M.2 covers

ASUS

ASUS TUF GAMING B850M-PLUS WIFI7 AMD motherboard 14+2+1 80A DrMOS

SKU CH-J676-P8RVN

AM5 micro-ATX board with 14+2+1 80A DrMOS, DDR5 to 8000 MHz, PCIe 5.0 x16, three M.2 slots, WiFi 7, 2.5GbE and rear USB-C 20Gbps

  • CPU Socket TypeAM5
  • CPU TypeRyzen 9000 Series, Ryzen 8000 Series, Ryzen 7000 Series
  • ChipsetAMD B850
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardMemory Speed Supported: 8000 MHz
  • Maximum Memory Supported256GB
  • Stable power for heavy workloads with 14+2+1 80A DrMOS stages
  • DDR5 memory up to 8000 MHz and 256 GB capacity for fast multitasking
  • PCIe 5.0 x16 slot and one PCIe 5.0 M.2 for next-gen GPU and storage speed
  • WiFi 7 and 2.5GbE give low-latency wired and wireless networking
  • Rear USB-C 20Gbps and front USB-C 10Gbps for quick peripheral transfers

Socket AM5 DDR5 motherboard for Ryzen 7000 8000 9000

This ASUS TUF GAMING B850M-PLUS WIFI7 board fits the AM5 socket and supports Ryzen 7000 8000 9000 series processors. Four DDR5 slots accept up to 256GB at 8000 MHz with EXPO and AEMP profiles. The 14+2+1 80A DrMOS design and eight-layer PCB deliver stable power for multi-core workloads and AI-ready builds.

Enlarged VRM heatsink M.2 heatsinks PCH heatsink

An enlarged VRM heatsink covers the 14+2+1 80A DrMOS stages while dedicated M.2 heatsinks and a PCH heatsink spread heat across the board. Hybrid fan headers and Fan Xpert 2+ adjust speeds to keep noise low during everyday tasks. The 2.5GbE LAN and WiFi 7 controllers run cool under typical network traffic.

PCIe 5.0 x16 slot PCIe 5.0 M.2 slot sustained

The single PCIe 5.0 x16 slot and one PCIe 5.0 M.2 slot maintain full bandwidth during extended gaming or compute sessions. Two additional PCIe 4.0 M.2 slots and a PCIe 4.0 x16 slot provide extra throughput without throttling. Rear USB-C 20Gbps and front USB-C 10Gbps ports sustain high transfer rates over long copies.

Highlights

  • Stable power for heavy workloads with 14+2+1 80A DrMOS stages
  • DDR5 memory up to 8000 MHz and 256 GB capacity for fast multitasking
  • PCIe 5.0 x16 slot and one PCIe 5.0 M.2 for next-gen GPU and storage speed
  • WiFi 7 and 2.5GbE give low-latency wired and wireless networking
  • Rear USB-C 20Gbps and front USB-C 10Gbps for quick peripheral transfers

Specifications

BrandASUS
ModelTUF GAMING B850M-PLUS WIF
Part NumberTUF GAMING B850M-PLUS WIF
CPU Socket TypeAM5
CPU TypeRyzen 9000 Series, Ryzen 8000 Series, Ryzen 7000 Series
ChipsetAMD B850
Number of Memory Slots4x288pin (DDR5)
Memory StandardMemory Speed Supported:
8000 MHz
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileAMD EXPO / ASUS Enhanced Memory Profile (AEMP)
ECC SupportedYes
Buffer SupportedUn-buffered
PCI Express 5.0 x161 x PCI Express 5.0 x16
PCI Express 4.0 x161 x PCI Express 4.0 x16
PCI SlotsTotal Number of Expansion Slots:
3
PCI Express Standard:
PCI Express 4.0
PCI Express 5.0
Total Number of PCI Express Slots:
3
Number of PCI Express x1 Slots:
1
Number of PCI Express x16 Slots:
2
M.23 x M.2 (Support PCIe 5.0 x4 & PCIe 4.0 x4)
SATA RAID0/1/5/10
Audio ChipsetRealtek ALC1220P
Audio Channels7.1 Channels
LAN ChipsetRealtek 2.5Gb Ethernet
Max LAN Speed2.5Gigabit Ethernet
Wireless LANWi-Fi 802.11 be
BluetoothYes
Back I/O PortsTotal Number of USB Ports:
12
VGA:
Yes
HDMI:
Yes
HDMI Version:
HDMI 2.1
DisplayPort:
Yes
Number of Network (RJ-45) Ports:
1
COM1
HDMI1 x HDMI
DisplayPort1 x DisplayPort
Audio Ports3 Ports
Onboard USB1 x USB Type-C® header, with USB 3.2 Gen 2x1 + 2 x USB 3.2 + 3 x USB 2.0
Form FactorMicro ATX
LED LightingRGB
Dimensions (W x L)9.6" x 9.6"
Package ContentsB850M-PLUS WIFI7 Gaming Desktop Motherboard
2 x SATA 6Gb/s cables
1 x ASUS WiFi Q-Antenna
1 x TUF GAMING sticker
1 x M.2 rubber package
1 x Screw package for M.2 SSD
1 x Quick start guide

Questions about this item

How do I install a Ryzen 9000 series CPU into the AM5 socket and what step do people often miss?

Align the triangle on the CPU with the socket corner, lower the retention arm fully, then attach the cooler; many forget to remove the plastic socket cover before seating the processor.

Which components on this board will need replacement or maintenance over time?

The CMOS battery on the motherboard will eventually need replacement to keep BIOS settings and the system clock accurate.

What is the first limit reached when running the 14+2+1 80A DrMOS power stages under sustained heavy load?

The VRM temperature rises until the enlarged heatsink and fan headers managed by Fan Xpert 2+ become the limiting factor for continuous power delivery.
