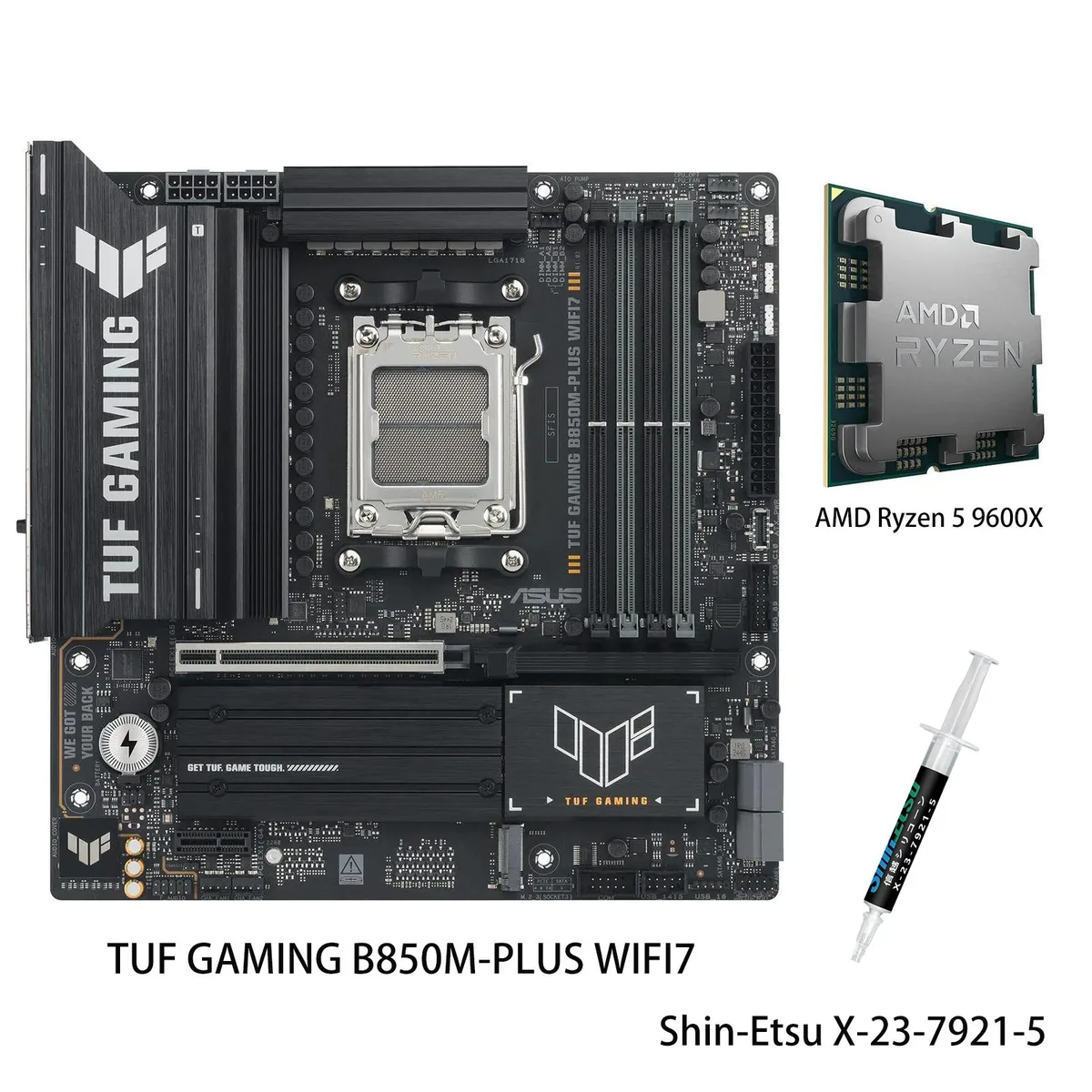

ASUS TUF Gaming B850M-PLUS WIFI7 motherboard with Ryzen 5 9600X CPU installed

ASUS

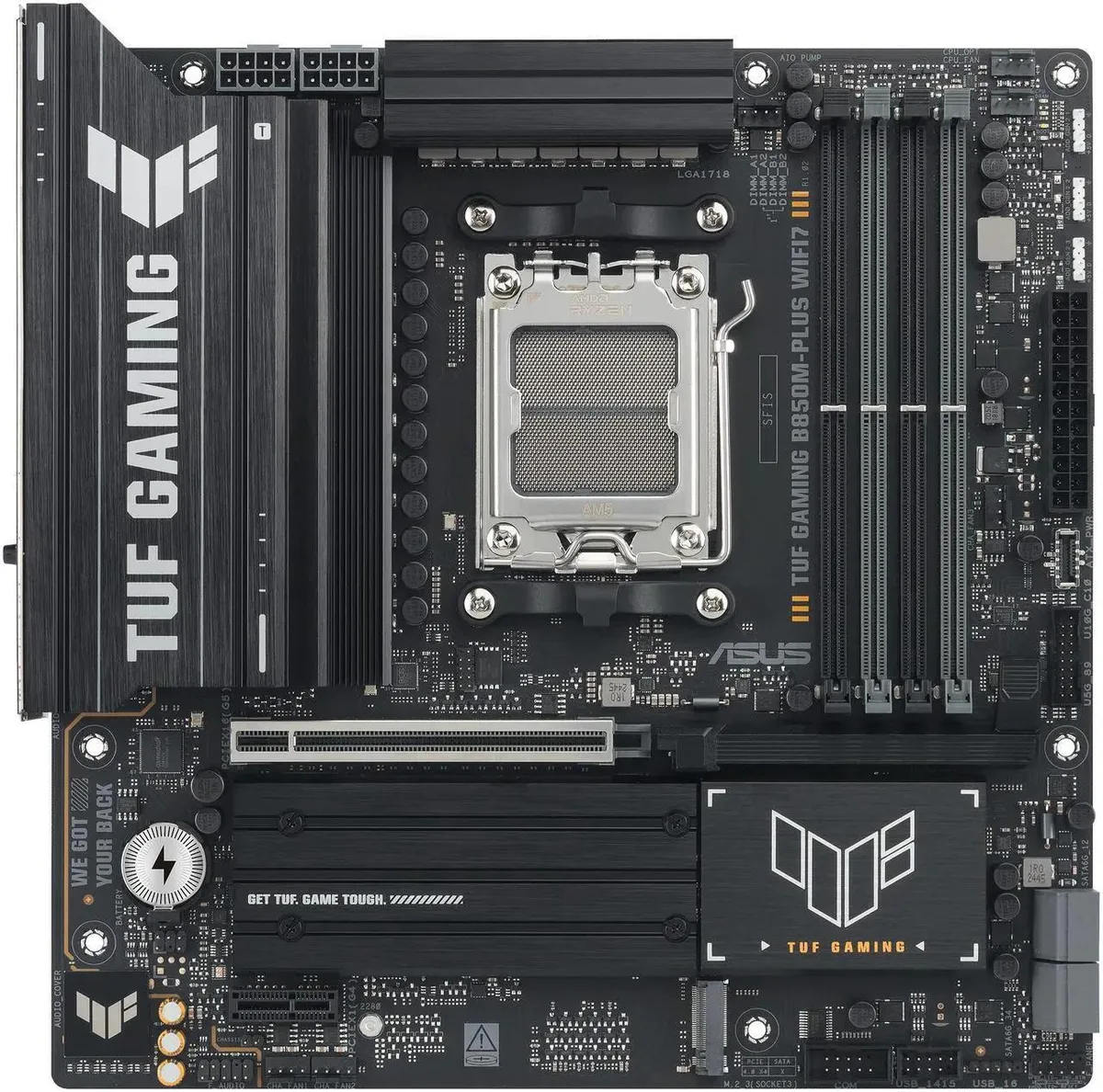

ASUS TUF GAMING B850M-PLUS WIFI7 + Ryzen 5 9600X AMD motherboard combo

SKU CH-X1DD-978AM

A micro-ATX AM5 board and Ryzen 5 9600X combo with 14+2+1 80A DrMOS power, DDR5 to 256GB, one PCIe 5.0 and two PCIe 4.0 M.2 slots, WiFi 7, 2.5GbE and rear USB 20Gbps Type-C

  • CPU Socket TypeAM5
  • CPU TypeRyzen 9000 Series, Ryzen 8000 Series, Ryzen 7000 Series
  • ChipsetAMD B850
  • Number of Memory Slots4x288pin (DDR5)
  • Maximum Memory Supported256GB
  • Channel SupportedDual Channel
  • Ready for AI workloads with AM5 socket supporting Ryzen 7000, 8000 and 9000 series CPUs
  • Stable power delivery via 14+2+1 80A DrMOS stages and 8-layer PCB
  • Fast storage options with one PCIe 5.0 M.2 slot plus two PCIe 4.0 M.2 slots
  • High-speed connectivity through WiFi 7, 2.5Gb Ethernet and rear USB 20Gbps Type-C
  • Comprehensive cooling with enlarged VRM heatsink, M.2 heatsinks and Fan Xpert 2+

Combo Purpose

This bundle pairs an ASUS TUF GAMING B850M-PLUS WIFI7 motherboard with an AMD Ryzen 5 9600X processor. The combination targets builders who want a ready-to-run AM5 platform for gaming and productivity workloads. It supports Ryzen 9000, 8000 and 7000 series CPUs and dual-channel DDR5 memory up to 256 GB.

Power Delivery

The board uses a 14+2+1 phase design with 80 A DrMOS power stages, an 8-layer PCB and dual 8-pin ProCool connectors. This VRM layout is the specification that determines whether the motherboard can sustain the CPU at high current without throttling.

Sustained Load Behaviour

Enlarged VRM heatsinks, dedicated M.2 heatsinks and a PCH heatsink work with hybrid fan headers and Fan Xpert 2+ to dissipate heat during extended sessions. The cooling array keeps power stages and storage temperatures stable when the system runs at full load for long periods.

Highlights

  • Ready for AI workloads with AM5 socket supporting Ryzen 7000, 8000 and 9000 series CPUs
  • Stable power delivery via 14+2+1 80A DrMOS stages and 8-layer PCB
  • Fast storage options with one PCIe 5.0 M.2 slot plus two PCIe 4.0 M.2 slots
  • High-speed connectivity through WiFi 7, 2.5Gb Ethernet and rear USB 20Gbps Type-C
  • Comprehensive cooling with enlarged VRM heatsink, M.2 heatsinks and Fan Xpert 2+

Specifications

BrandASUS
SeriesTUF
ModelTUF GAMING B850M-PLUS WIFI7+R5 9600X
Part NumberTUF GAMING B850M-PLUS WIFI7+R5 9600X
CPU Socket TypeAM5
CPU TypeRyzen 9000 Series, Ryzen 8000 Series, Ryzen 7000 Series
ChipsetAMD B850
Number of Memory Slots4x288pin (DDR5)
Maximum Memory Supported256GB
Channel SupportedDual Channel
ECC SupportedYes
Buffer SupportedUn-buffered
PCI Express 5.0 x161 x PCI Express 5.0 x16
PCI Express 4.0 x161 x PCI Express 4.0 x16
M.23 x M.2 (Support PCIe 5.0 x4 & PCle 4.0 x4)
SATA RAID0/1/5/10
BluetoothYes
COM1
HDMI1 x HDMI
DisplayPort1 x DisplayPort
Audio Ports3 Ports
LED LightingRGB
Dimensions (W x L)9.6" x 9.6"

Questions about this item

How does the 14+2+1 80A DrMOS power design benefit the Ryzen 5 9600X in daily use?

The 16 power stages rated at 80A each give the Ryzen 5 9600X clean, stable current for sustained boost clocks during gaming or rendering, while the 8-layer PCB and ProCool connectors reduce voltage droop under heavy loads.

What does the rear USB-C 20Gbps port actually deliver for external drives?

The rear USB-C port runs at USB 20Gbps (USB 3.2 Gen 2x2), so compatible external SSDs can reach their rated sequential speeds; the front-panel header provides USB 10Gbps for case front ports.

What clearance does the enlarged VRM heatsink need for CPU coolers or memory?

The enlarged VRM heatsink sits close to the socket, so tall air coolers or memory modules with large heatspreaders should be checked against the board layout; the board uses standard AM5 mounting holes for any compatible cooler.
