ASUS TUF Gaming F16 FX608JMR 16" FHD+ 165Hz i7-14650HX RTX 5060 64GB 16TB gaming laptop
A 16-inch 165 Hz gaming laptop with a 16-core i7-14650HX, RTX 5060 graphics, 64 GB DDR5 memory and 16 TB NVMe storage
- ColorJaeger Gray
- Operating SystemWindows 11 Pro
- CPUIntel® 14th Generation i7-14650HX
- Screen16" FHD+
- Memory64GB
- Storage16 TB M.2 PCIe 4.0 x4 NVMe SSD
- 16-core i7-14650HX reaches 5.7 GHz turbo for heavy workloads
- RTX 5060 with 8 GB GDDR7 drives high frame rates
- 16-inch FHD+ 165 Hz panel gives smooth motion
- 64 GB DDR5 5600 MHz runs memory-hungry apps
- 16 TB PCIe 4.0 x4 NVMe SSD loads games fast

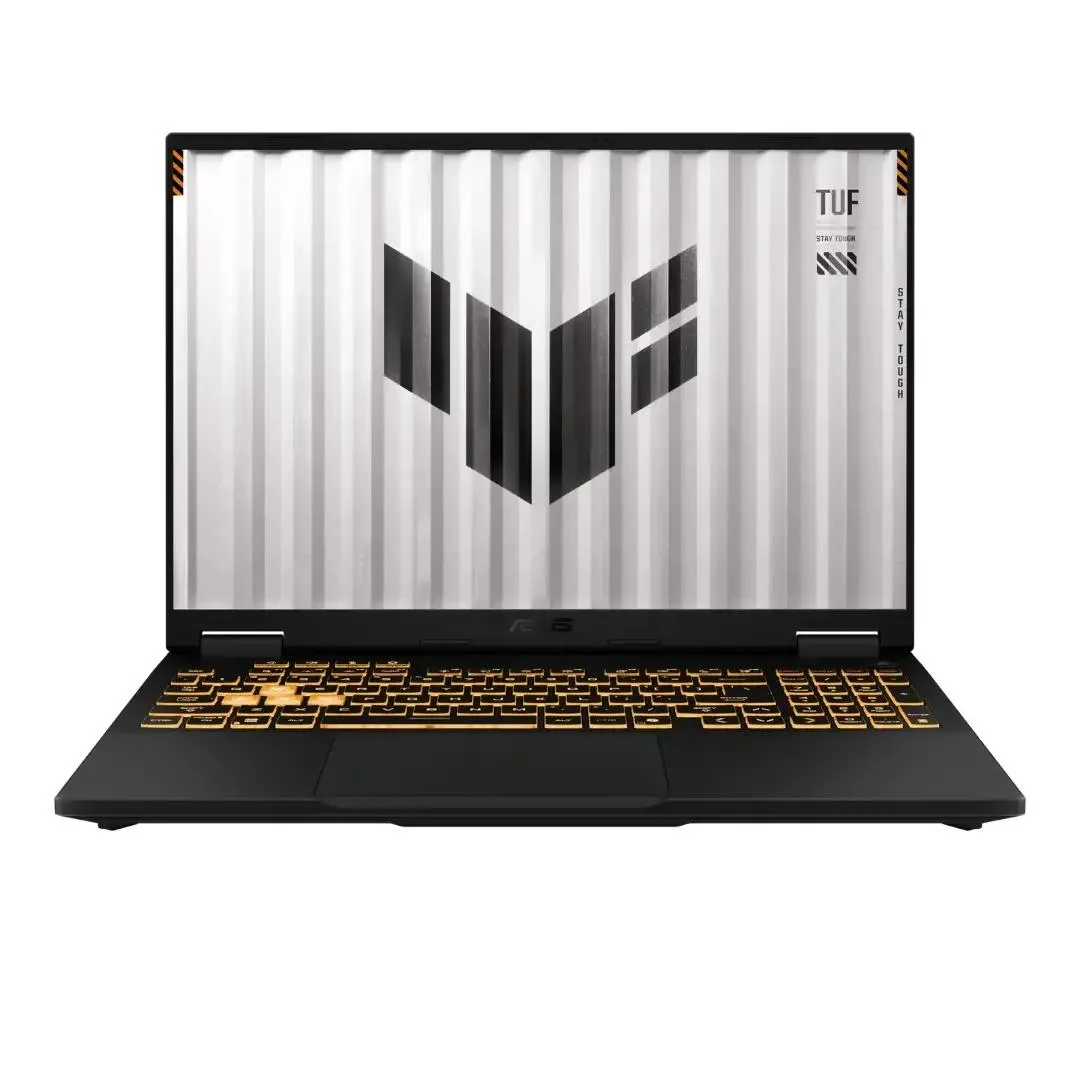

TUF Gaming F16 FX608JMR 16-inch laptop
The ASUS TUF Gaming F16 FX608JMR is a 16-inch Windows 11 Pro laptop built for gaming and heavy multitasking. It pairs a 14th Generation Intel Core i7-14650HX processor with an NVIDIA GeForce RTX 5060 graphics card. The system includes 64 GB of DDR5 memory and 16 TB of PCIe 4.0 NVMe storage across two M.2 drives.
PCIe 4.0 x4 NVMe interface limits
The storage subsystem uses a PCIe 4.0 x4 NVMe interface, which sets the practical ceiling for sequential read and write throughput. Real-world speeds depend on the specific SSD controllers, the thermal solution and the workload mix. Sustained transfers may throttle if the drive temperature rises under continuous load.
16 TB dual-drive capacity
The laptop ships with 16 TB of total capacity configured as two 8 TB M.2 PCIe 4.0 x4 NVMe SSDs. This single figure determines whether the machine can hold your active game library, media projects and virtual machines without external drives.
Highlights
- 16-core i7-14650HX reaches 5.7 GHz turbo for heavy workloads
- RTX 5060 with 8 GB GDDR7 drives high frame rates
- 16-inch FHD+ 165 Hz panel gives smooth motion
- 64 GB DDR5 5600 MHz runs memory-hungry apps
- 16 TB PCIe 4.0 x4 NVMe SSD loads games fast
Specifications
| Brand | ASUS |
|---|---|
| Series | TUF Gaming F16 |
| Model | FX608JMR-F16.I75060 |
| Part Number | FX608JMR-F16.I75060-HID10P |
| Color | Jaeger Gray |
| Operating System | Windows 11 Pro |
| CPU | Intel® 14th Generation i7-14650HX |
| Screen | 16" FHD+ |
| Memory | 64GB |
| Storage | 16 TB M.2 PCIe 4.0 x4 NVMe SSD |
| Graphics Card | NVIDIA® GeForce® RTX™ 5060 |
| Video Memory | 8GB |
| Dimensions (W x D x H) | 13.94" x 10.59" x 0.70" ~ 1.07" |
| Weight | 4.85 lbs |
| CPU Type | Intel Core i7 14th Gen |
| Processor Name | Intel Core i7-14650HX |
| Number of Cores | 16-core (8P+8E) Processor |
| Core Name | Raptor Lake Refresh |
| Turbo Frequency | Max Turbo Frequency 5.7 GHz |
| CPU L3 Cache | 30 MB |
| Screen Size | 16.0" |
| Touchscreen | Non-Touch Screen |
| Display Type | FHD+ |
| Resolution | 1920 x 1200 |
| Refresh Rate | 165Hz |
| Display Features | FHD+ 165Hz IPS-Level |
| GPU/VPU | GeForce RTX 5060 Laptop GPU |
| Graphic Type | Dedicated Card |
| SSD | 16TB |
| HDD | No |
| Storage Spec | 16 TB (2 x 8 TB) M.2 PCIe 4.0 x4 NVMe SSD |
| Memory Speed | DDR5 5600MHz |
| Memory Spec | 2 x 32 GB |
| Memory Slot (Total) | 2 |
| Memory Slot (Available) | 0 |
| Max Memory Supported | 128GB |
| WLAN | Wi-Fi 6E(802.11ax) (Triple band) 2*2 |
| WiFi Generation | Wi-Fi 6E |
| Bluetooth | Bluetooth® 5.3 |
| USB | 3x USB 3.2 Gen 2 Type-A (data speed up to 10Gbps), 1x USB 3.2 Gen 2 Type-C with support for DisplayPort™ / power delivery (data speed up to 10Gbps) |
| Thunderbolt | 1x Thunderbolt™ 4 with support for DisplayPort™ / G-SYNC (data speed up to 40Gbps) |
| HDMI | 1x HDMI 2.1 FRL |
| Audio Ports | 3.5mm Combo Audio Jack |
| Audio | Dolby Atmos, AI noise-canceling technology, Hi-Res certification (for headphone), Support Microsoft Cortana near field/far field, Built-in array microphone |
| Speaker | 2-speaker system |
| Touchpad | Yes |
| Keyboard | Backlit Chiclet Keyboard 1-Zone RGB |
| Backlit Keyboard | Backlit |
| Webcam | 1080P FHD IR Camera for Windows Hello |
| Card Reader | None |
| Style | Thin and Light |
| Type | Gaming & Entertainment |
| Usage | Consumer |
| AC Adapter/Charger | Rectangle Conn, 280W AC Adapter, Output: 20V DC, 12A, 240W, Input: 100~240C AC 50/60Hz universal |
| Battery | 90WHrs, 4S1P, 4-cell Li-ion |
Questions about this item
Should I pick the 64 GB DDR5 5600 MHz dual-channel kit or the 16 TB PCIe 4.0 x4 NVMe SSD pair for this FX608JMR?
The FX608JMR ships with both: 64 GB (2 × 32 GB) DDR5 5600 MHz dual-channel memory and 16 TB (2 × 8 TB) M.2 PCIe 4.0 x4 NVMe SSD, so no choice is required.
What does the i7-14650HX 5.7 GHz turbo mean once the laptop is running games?
The 16-core (8P+8E) Raptor Lake Refresh processor can boost to 5.7 GHz on demanding threads, while the 30 MB L3 cache keeps data close for high frame rates in the 165 Hz FHD+ panel.
Does the RTX 5060 8 GB GDDR7 use PCIe 4.0 x4 and what does that cap?
The RTX 5060 connects through the CPU's PCIe 4.0 lanes; the 8 GB GDDR7 frame buffer limits texture resolution, while the x4 link caps GPU-to-CPU bandwidth at PCIe 4.0 x4 speeds.
