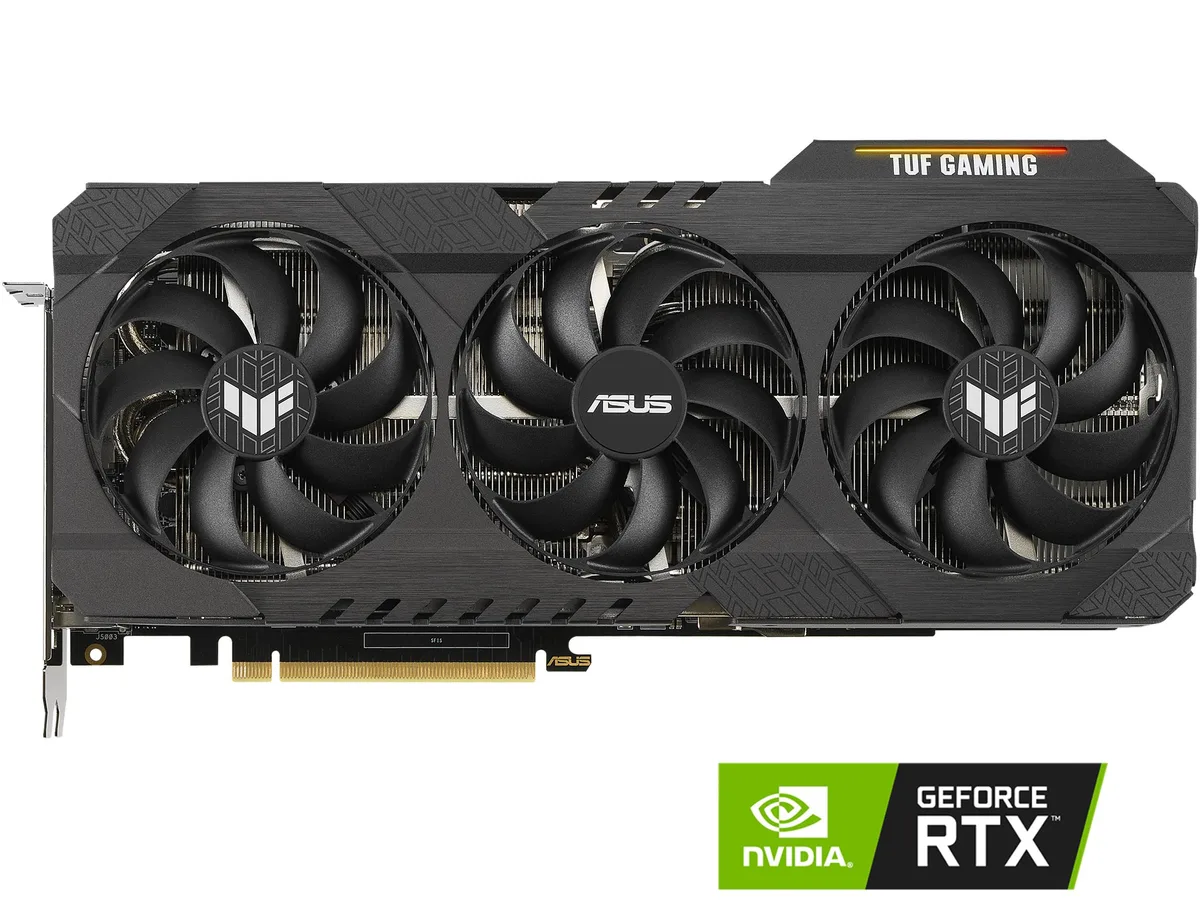

ASUS TUF Gaming RTX 3080 10GB triple-fan card in dark gunmetal finish

ASUS

ASUS TUF Gaming GeForce RTX 3080 10GB OC V2 graphics card

SKU CH-PZDN-EQPRG

A GeForce RTX 3080 graphics card with 10 GB GDDR6X on a 320-bit bus, 8704 CUDA cores, boost clocks up to 1815 MHz, PCIe 4.0 x16, two HDMI 2.1 and three DisplayPort 1.4a outputs supporting 7680 x

  • InterfacePCI Express 4.0 x16
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce RTX 30 Series
  • GPUGeForce RTX 3080
  • Core Clock1440 MHz
  • Boost ClockOC Mode: 1815 MHz /Gaming Mode (Default): 1785 MHz
  • 10 GB GDDR6X on a 320-bit bus feeds 8704 CUDA cores for high-frame 4K gaming
  • OC boost clock reaches 1815 MHz for extra headroom in heavy workloads
  • PCI Express 4.0 x16 doubles link bandwidth over the previous standard
  • 2× HDMI 2.1 plus 3× DisplayPort 1.4a drive up to four 7680×4320 displays
  • 7-slot cooler fits a 11.81-inch board while keeping thermals in check

TUF Gaming RTX 3080 10GB graphics card

This ASUS TUF Gaming GeForce RTX 3080 card carries 10GB of GDDR6X memory on a 320-bit bus and 8704 CUDA cores. It connects through a PCI Express 4.0 x16 slot and drives up to four displays via two HDMI 2.1 and three DisplayPort 1.4a outputs. The board targets gamers and creators who need 7680 x 4320 resolution headroom. DirectX 12 Ultimate and OpenGL 4.6 support cover modern titles and professional workloads.

2.7-slot dual-fan cooler installation

The card occupies a 2.7-slot profile and measures 11.81 inches long by 5.00 inches high, so verify case clearance and power-supply cables before fitting it. A standard PCIe 4.0 x16 slot accepts the board without adapters, and the dual-fan shroud aligns with typical ATX mounting points. The main issue builders encounter is insufficient length clearance in compact chassis or tight cable routing near the power connectors.

Sustained-load thermal behaviour

Under continuous load the OC mode boost clock runs at 1815 MHz while the default gaming mode holds 1785 MHz, both fed by a 19 Gbps effective memory clock. The 2.7-slot heatsink and dual fans are sized to dissipate the 320-bit memory subsystem and 8704 cores over long sessions without throttling. Expect stable clocks during extended rendering or gaming runs rather than short-burst peaks.

Highlights

  • 10 GB GDDR6X on a 320-bit bus feeds 8704 CUDA cores for high-frame 4K gaming
  • OC boost clock reaches 1815 MHz for extra headroom in heavy workloads
  • PCI Express 4.0 x16 doubles link bandwidth over the previous standard
  • 2× HDMI 2.1 plus 3× DisplayPort 1.4a drive up to four 7680×4320 displays
  • 7-slot cooler fits a 11.81-inch board while keeping thermals in check

Specifications

BrandASUS
SeriesTUF Gaming
ModelTUF-RTX3080-O10G-V2-GAMING
InterfacePCI Express 4.0 x16
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce RTX 30 Series
GPUGeForce RTX 3080
Core Clock1440 MHz
Boost ClockOC Mode: 1815 MHz /Gaming Mode (Default): 1785 MHz
CUDA Cores8704
Effective Memory Clock19 Gbps
Memory Size10GB
Memory Interface320-Bit
Memory TypeGDDR6X
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI2 x HDMI 2.1
DisplayPort3 x DisplayPort 1.4a
Max Resolution7680 x 4320
SLI SupportNo
Virtual Reality ReadyYes
Recommended PSU Wattage850W
Power Connector2 x 8-Pin
HDCP Ready2.3
FeaturesNVIDIA Ampere Streaming Multiprocessors: The building blocks for the world's fastest, most efficient GPU, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency.//2nd Generation RT Cores: Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance.//3rd Generation Tensor Cores: Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. Now with support for up to 8K resolution, these cores deliver a massive boost in game performance and all-new AI capabil
Max GPU Length300 mm
Card Dimensions (L x H)11.81" x 5.00"
Slot Width2.7-slot
Package ContentsAccessories:/1 x Collection card/1 x Speedsetup manual/1 x TUF certificate of Reliability

Questions about this item

How do I confirm the GPU is running at the 1785 MHz Gaming Mode boost clock after installation?

Open GPU-Z or the ASUS GPU Tweak II utility and observe the core clock under load; it should read 1785 MHz in the default Gaming Mode profile.

What comes in the box and which power cables must I supply myself?

The box contains the graphics card and documentation; you must provide three 8-pin PCIe power connectors from your PSU.

Should I pick the OC Mode or stay with the default Gaming Mode for my RTX 3080 10GB?

Gaming Mode runs at 1785 MHz boost; OC Mode raises it to 1815 MHz if your cooling and power headroom allow.
