ASUS

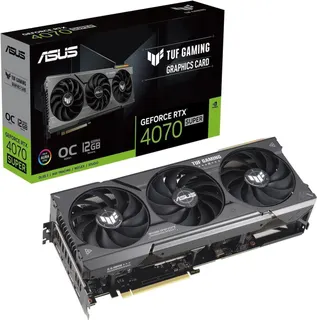

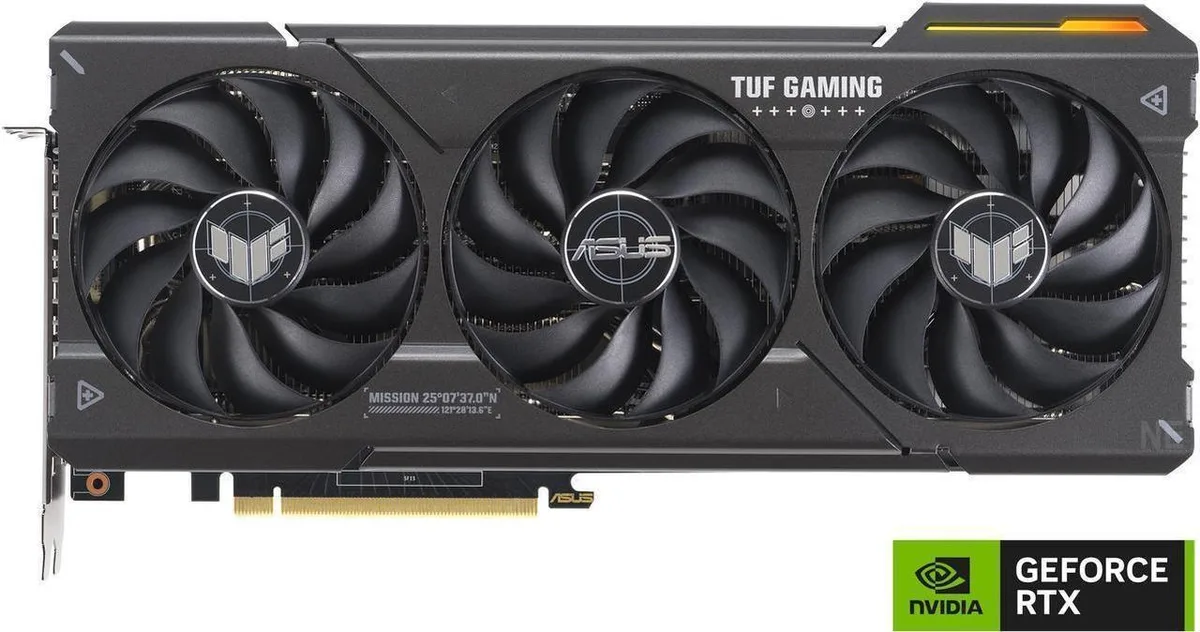

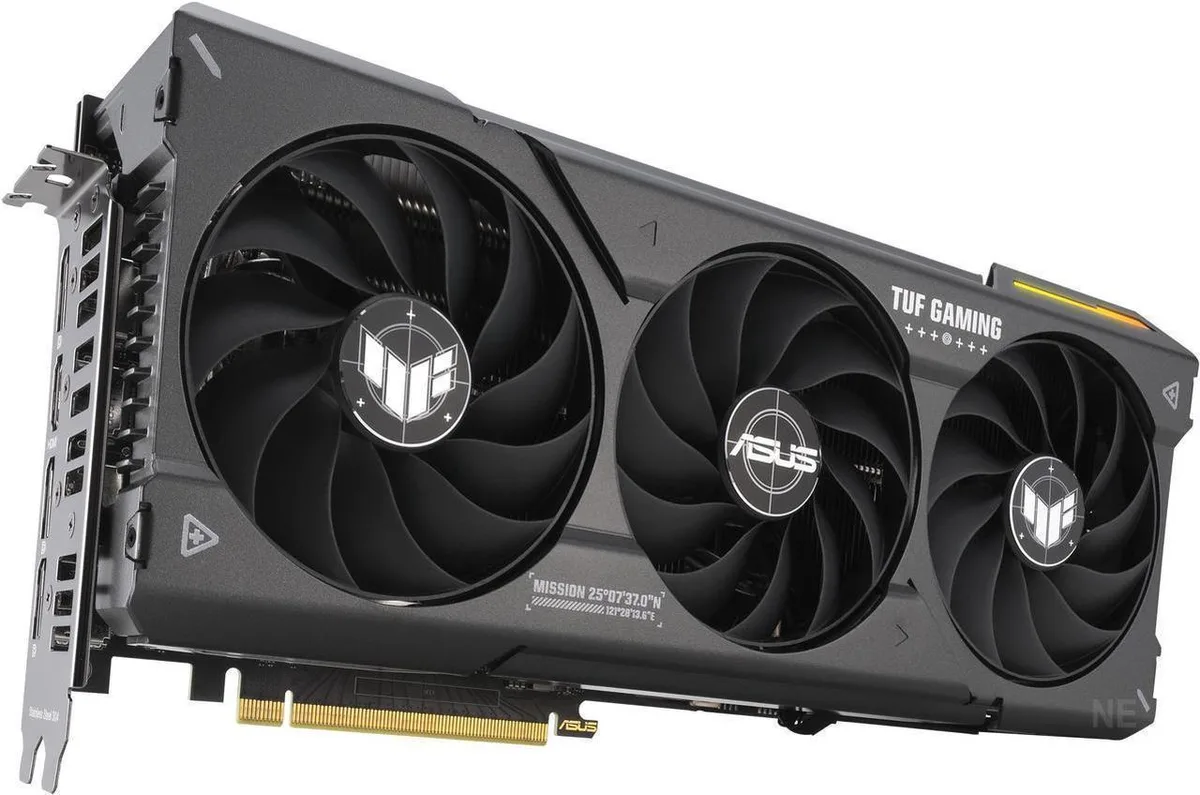

ASUS TUF Gaming GeForce RTX 4070 SUPER OC Edition graphics card
NVIDIA GeForce RTX 4070 SUPER graphics card with 12GB GDDR6X, 7168 CUDA cores, 2595 MHz boost clock, PCIe 4.0, and triple-fan cooling
- InterfacePCI Express 4.0
- Chipset ManufacturerNVIDIA
- GPU SeriesNVIDIA GeForce RTX 40 Series
- GPUGeForce RTX 4070 SUPER
- Core Clock2565 MHz
- Boost Clock2595 MHz
- DLSS 3 boosts frame rates with 4th Gen Tensor Cores
- Ray tracing accelerated by 3rd Gen RT Cores
- 21 % more airflow from scaled Axial-tech fans
- Dual ball bearings extend fan life up to twice as long
- Military-grade capacitors rated 20K hours at 105 °C
12 GB GDDR6X graphics card
The ASUS TUF Gaming GeForce RTX 4070 SUPER OC Edition delivers 12 GB of GDDR6X memory on a 192-bit bus with a 21000 MHz effective clock. It connects via PCI Express 4.0 and drives up to four displays through one HDMI 2.1 and three DisplayPort 1.4a outputs. The Ada Lovelace GPU provides 7168 CUDA cores with boost clocks up to 2595 MHz in OC mode.
Built for 1440p gaming and DLSS 3 workflows
This card suits players targeting high-refresh 1440p gaming with ray tracing and DLSS 3 frame generation. Content creators gain hardware-accelerated AV1 encode and 4th generation Tensor Core throughput for AI tasks. Buyers needing 4K raster performance without upscaling or workloads demanding more than 12 GB VRAM should consider higher-tier models.
12 GB VRAM capacity decides fit
The 12 GB GDDR6X frame buffer is the single specification that determines whether this GPU matches your workload. It covers modern 1440p titles with high texture settings and enables DLSS 3 frame generation headroom. If your applications allocate more than 12 GB of video memory, you will need a card with a larger buffer.
Highlights
- DLSS 3 boosts frame rates with 4th Gen Tensor Cores
- Ray tracing accelerated by 3rd Gen RT Cores
- 21 % more airflow from scaled Axial-tech fans
- Dual ball bearings extend fan life up to twice as long
- Military-grade capacitors rated 20K hours at 105 °C
Specifications
| Brand | ASUS |
|---|---|
| Series | TUF Gaming |
| Model | TUF-RTX4070S-O12G-GAMING |
| Part Number | 90YV0K80-M0AA00 |
| Interface | PCI Express 4.0 |
| Chipset Manufacturer | NVIDIA |
| GPU Series | NVIDIA GeForce RTX 40 Series |
| GPU | GeForce RTX 4070 SUPER |
| Core Clock | 2565 MHz |
| Boost Clock | 2595 MHz |
| CUDA Cores | 7168 |
| Effective Memory Clock | 21000 MHz (21 Gbps) |
| Memory Size | 12GB |
| Memory Interface | 192-Bit |
| Memory Type | GDDR6X |
| DirectX | DirectX 12 |
| OpenGL | OpenGL 4.6 |
| Multi-Monitor Support | 4 |
| HDMI | 1 x HDMI 2.1 |
| DisplayPort | 3 x DisplayPort 1.4a |
| Max Resolution | 7680 x 4320 |
| Cooler | Triple Fans |
| Thermal Design Power | 250W |
| Recommended PSU Wattage | 750W |
| Power Connector | 1 x 16-Pin |
| HDCP Ready | Yes |
| Form Factor | ATX |
| Max GPU Length | 301 mm |
| Slot Width | 3.15 Slots |
Questions about this item
What clearance and power connectors does the 12GB card need to fit in a case?
The card uses a PCI Express 4.0 slot and a 192-Bit memory interface; ensure the case has enough length and height for a triple-fan design and that the power supply provides the required 12VHPWR or dual 8-pin connectors for the 2595 MHz boost clock.
Which driver step is often missed when installing the GeForce RTX 4070 SUPER for DLSS 3 support?
After seating the card in the PCIe 4.0 slot and connecting power, install the latest NVIDIA Game Ready driver before enabling DLSS 3 in games; skipping the driver update leaves the 4th Generation Tensor Cores inactive.
When should the dual ball fan bearings be inspected or replaced on this model?
The dual ball bearings are rated for extended life, but check fan spin and noise during GPU Tweak III monitoring after several years of heavy load; replace fans if bearing noise appears or airflow drops below the 21% design target.
