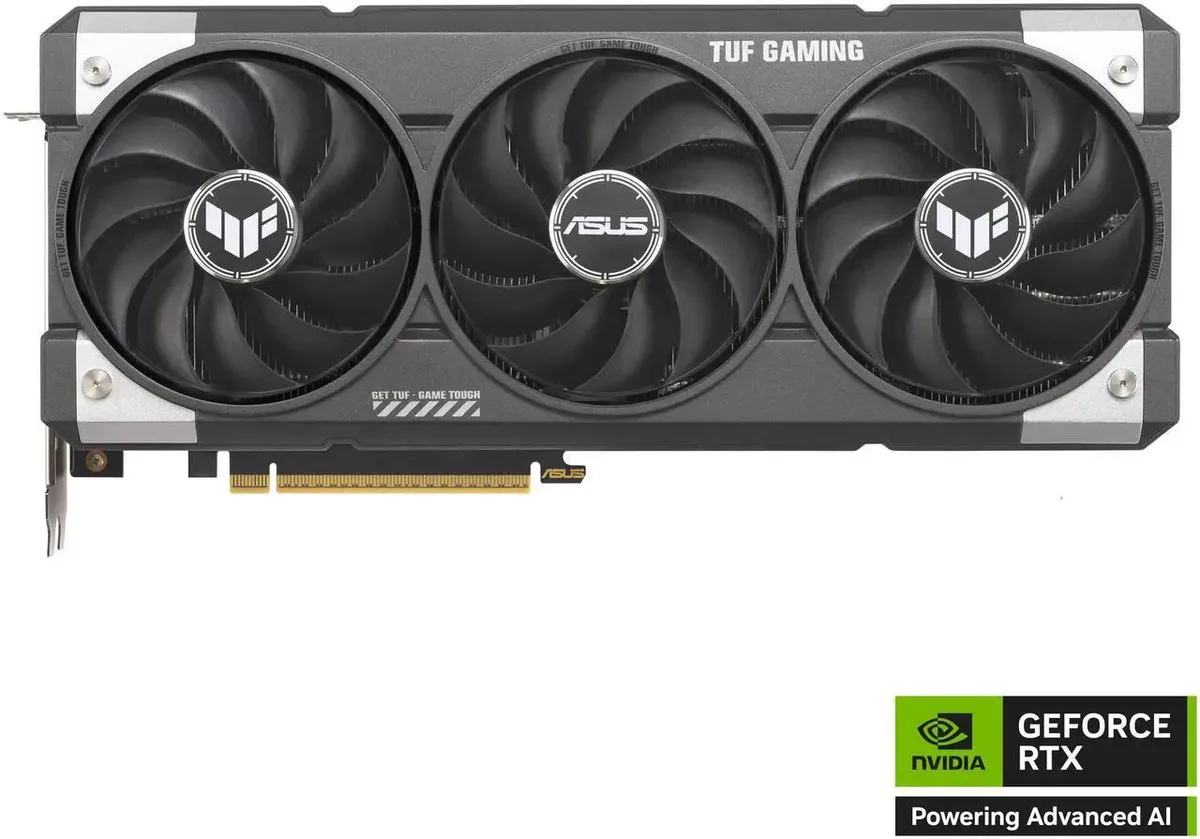

Gray triple-fan graphics card with industrial shroud and metal backplate

ASUS

ASUS TUF Gaming GeForce RTX 5060 Ti 16GB graphics card

SKU CH-XYK1-5R19E

16 GB GDDR7 graphics card with 4608 CUDA cores, PCIe 5.0 x8, DLSS 4.0 and 128-bit memory at 28 Gbps

  • InterfacePCI Express 5.0 x8
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce RTX 50 Series
  • GPUGeForce RTX 5060 Ti
  • ArchitectureBlackwell
  • CUDA Cores4608
  • 16 GB GDDR7 memory drives high-resolution textures
  • 4608 CUDA cores accelerate compute and ray-tracing workloads
  • DLSS 4.0 upscaling boosts frame rates with AI
  • PCI Express 5.0 x8 interface doubles host bandwidth
  • HDMI 2.1b and three DisplayPort 2.1b outputs support 7680 × 4320 resolution

ASUS TUF Gaming RTX 5060 Ti 16GB

The ASUS TUF Gaming GeForce RTX 5060 Ti is a mid-range graphics card built for 1440p gaming and content creation. It uses the NVIDIA Blackwell architecture with 4608 CUDA cores and 16GB of GDDR7 memory. The card connects via a PCI Express 5.0 x8 slot and fits standard ATX builds.

128-Bit GDDR7 memory interface

The 128-bit memory bus paired with 28 Gbps GDDR7 determines usable bandwidth for texture-heavy workloads. This configuration feeds the 4608 CUDA cores at speeds suited for 1440p high-refresh gaming. Wider buses exist on higher-tier models, so check resolution targets before buying.

16GB frame buffer for 4K textures

Sixteen gigabytes of VRAM handles 4K texture packs and heavy creative projects without paging to system memory. At 4K ultra settings in modern titles the 128-bit bus becomes the limiting factor before capacity runs out. For pure 1080p or 1440p rasterisation the buffer provides comfortable headroom.

Highlights

  • 16 GB GDDR7 memory drives high-resolution textures
  • 4608 CUDA cores accelerate compute and ray-tracing workloads
  • DLSS 4.0 upscaling boosts frame rates with AI
  • PCI Express 5.0 x8 interface doubles host bandwidth
  • HDMI 2.1b and three DisplayPort 2.1b outputs support 7680 × 4320 resolution

Specifications

BrandASUS
SeriesTUF Gaming
ModelTUF-RTX5060TI-16G-GAMING
InterfacePCI Express 5.0 x8
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce RTX 50 Series
GPUGeForce RTX 5060 Ti
ArchitectureBlackwell
CUDA Cores4608
Effective Memory Clock28 Gbps
Memory Size16GB
Memory Interface128-Bit
Memory TypeGDDR7
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.1b
DisplayPort3 x DisplayPort 2.1b
ColorGray
Max Resolution7680 x 4320
CrossFireX SupportNo
SLI SupportNo
Virtual Reality ReadyYes
CoolerTriple Fans
Recommended PSU Wattage550W
Power Connector1 x 16-Pin
HDCP ReadyYes
Features• AI Performance: 785 AI TOPS
• OC mode boosts clock 2692 MHz (OC mode)/ 2662 MHz (Default mode)
• Powered by the NVIDIA Blackwell architecture and DLSS 4
• Military-grade components deliver rock-solid power and longer lifespan for ultimate durability
• Protective PCB coating helps protect against short circuits caused by moisture, dust, or debris

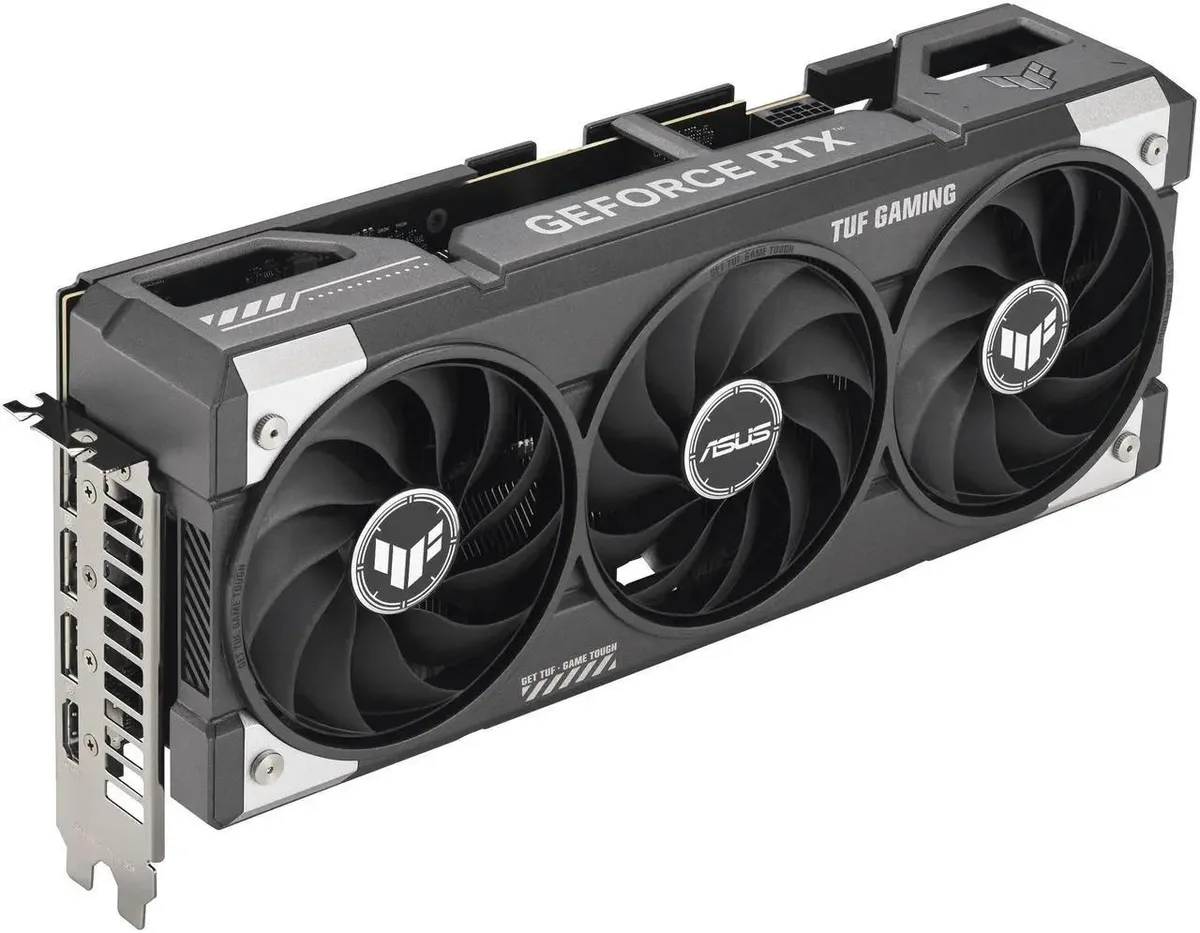

• 3.1-slot design with massive fin array optimized for airflow from three Axial-tech fans
• ASUS GPU Guard secure the GPU, reducing the risk of cracks
• Auto-Extreme precision automated manufacturing helps ensure higher reliability
• GPU Tw
Form FactorATX
Max GPU Length302 mm
Card Dimensions (L x H)302 x 133 x 62 mm
11.89 x 5.26 x 2.44 inch
Slot Width3.1 Slots

Questions about this item

What does the 4608 CUDA core count mean for real workloads?

The 4608 CUDA cores handle parallel graphics and compute tasks, giving strong performance in modern games and creative apps that scale with core count.

How does the PCI Express 5.0 x8 interface affect bandwidth in practice?

The PCI Express 5.0 x8 slot delivers up to 16 GT/s per lane, providing ample bandwidth for the 16GB GDDR7 frame buffer at 28 Gbps without saturating the link.

What physical space and power connectors does this card need to fit and mount?

The TUF Gaming design uses a standard dual-slot bracket with three DisplayPort 2.1b and one HDMI 2.1b outputs; it fits typical ATX cases and draws power through a single 12VHPWR connector.
