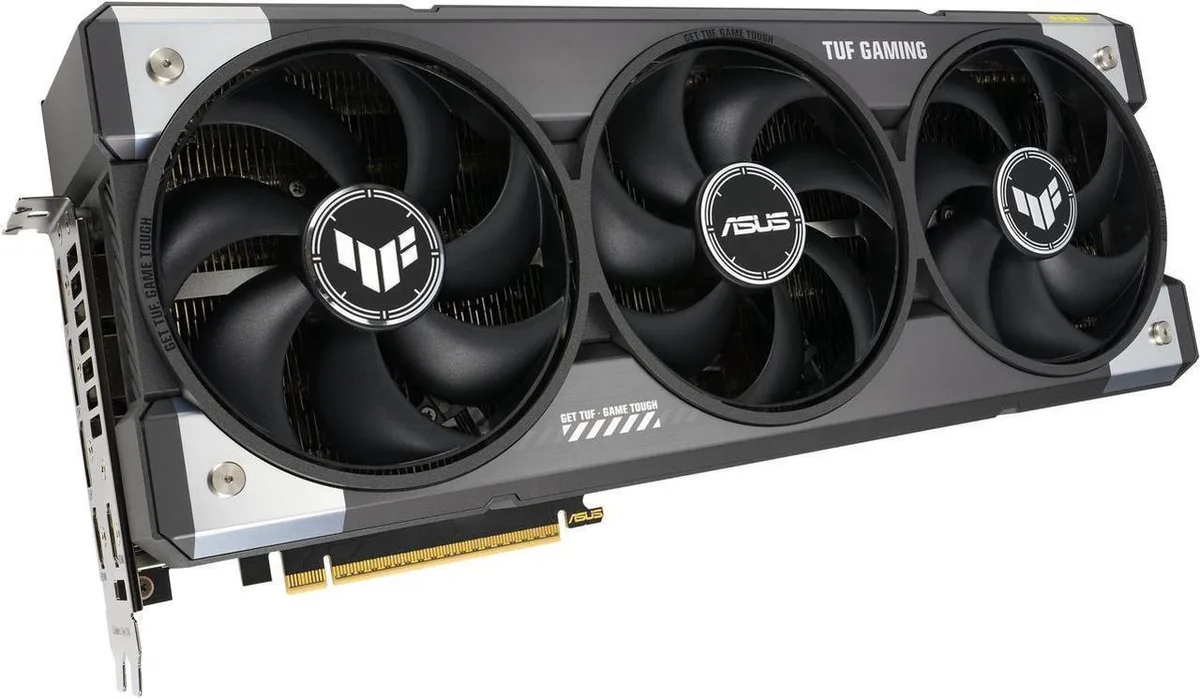

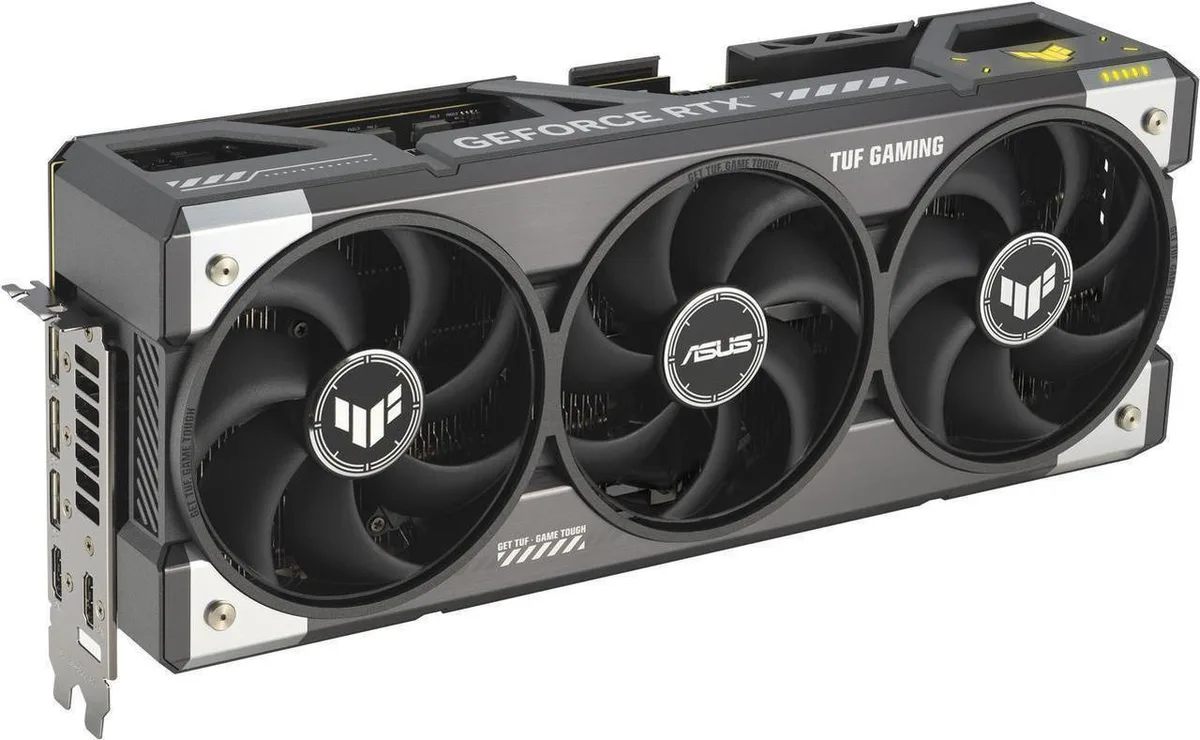

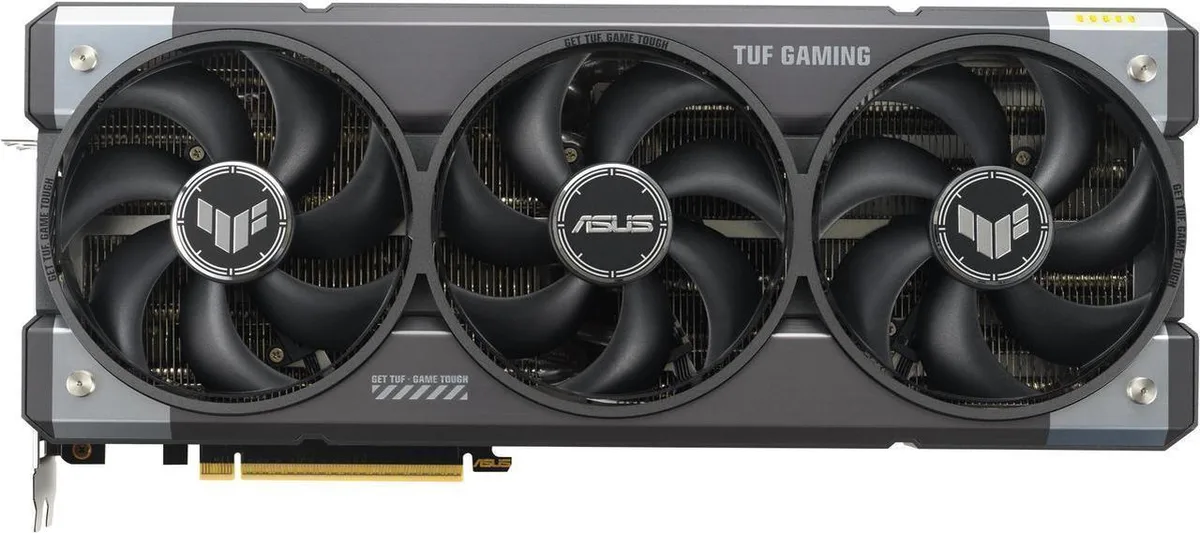

ASUS TUF Gaming GeForce RTX 5070 Ti graphics card, three fans, dark metal shroud and backplate

ASUS

ASUS TUF Gaming GeForce RTX 5070 Ti OC Edition 16GB GDDR7 graphics card

SKU CH-WMH1-EWCBH

Delivers 16 GB of 28 Gbps GDDR7 memory on a 256-bit bus with 8960 CUDA cores for 4K gaming at 7680 x 4320 via HDMI 2.1b and DisplayPort 2.1b

  • InterfacePCI Express 5.0 x16
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce RTX 50 Series
  • GPUGeForce RTX 5070 Ti
  • ArchitectureBlackwell
  • CUDA Cores8960
  • 16 GB GDDR7 memory at 28 Gbps drives high-resolution textures
  • 8960 CUDA cores accelerate raster and compute workloads
  • PCI Express 5.0 x16 doubles host bandwidth versus 4.0
  • DLSS 4.0 upscaling raises frame rates with AI generation
  • HDMI 2.1b and DisplayPort 2.1b enable 7680 × 4320 output

TUF Gaming RTX 5070 Ti 16GB GDDR7

The ASUS TUF Gaming GeForce RTX 5070 Ti OC Edition is a PCI Express 5.0 graphics card built on the Blackwell architecture with 8960 CUDA cores and 16GB of 256-bit GDDR7 memory running at 28 Gbps. It targets gamers and creators who need high frame rates at 4K and want DLSS 4.0 support for upscaling and frame generation. The card delivers three DisplayPort 2.1b and two HDMI 2.1b outputs for up to four displays at 7680 x 4320 resolution.

Sustained load behaviour

Under continuous workloads the 16GB GDDR7 buffer and 256-bit bus keep data flowing to the 8960 CUDA cores without throttling memory bandwidth. The Blackwell architecture and PCI Express 5.0 x16 link maintain consistent throughput for extended rendering or gaming sessions. DirectX 12 Ultimate and OpenGL 4.6 support ensure modern API features remain available throughout long runs.

Installation and common issues

The card fits a standard PCI Express 5.0 x16 slot and uses the usual 12VHPWR power connection; no proprietary brackets or adapters are required. Builders should verify case length and power supply headroom before fitting the board. Driver installation follows the standard NVIDIA package and enables DLSS 4.0 features automatically.

Highlights

  • 16 GB GDDR7 memory at 28 Gbps drives high-resolution textures
  • 8960 CUDA cores accelerate raster and compute workloads
  • PCI Express 5.0 x16 doubles host bandwidth versus 4.0
  • DLSS 4.0 upscaling raises frame rates with AI generation
  • HDMI 2.1b and DisplayPort 2.1b enable 7680 × 4320 output

Specifications

BrandASUS
SeriesTUF Gaming
ModelTUF-RTX5070TI-O16G-GAMING
Part NumberTUF-RTX5070TI-O16G-GAMING
InterfacePCI Express 5.0 x16
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce RTX 50 Series
GPUGeForce RTX 5070 Ti
ArchitectureBlackwell
CUDA Cores8960
Effective Memory Clock28 Gbps
Memory Size16GB
Memory Interface256-Bit
Memory TypeGDDR7
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI2 x HDMI 2.1b
DisplayPort3 x DisplayPort 2.1b
Max Resolution7680 x 4320
CrossFireX SupportNo
SLI SupportNo
CoolerTriple Fans
Thermal Design Power300W
Recommended PSU Wattage850W
HDCP ReadyYes
Form FactorATX
Max GPU Length330 mm
Card Dimensions (L x H)12.95 x 5.51 x 2.46 inch
Slot Width3.125 Slot
Package Contents1 x Speedsetup Manual
1 x TUF Graphics Card Holder
1 x TUF Velcro Hook & Loop
1 x TUF Magnet
1 x TUF Gaming Certificate
1 x Thank You Card
1 x Adpater Cable (1 to 3)

Questions about this item

How much power does the RTX 5070 Ti draw under sustained load?

The card connects through a single PCI Express 5.0 x16 slot and relies on its triple-fan TUF cooler to manage heat during extended sessions.

Which power connectors does the TUF-RTX5070TI-O16G-GAMING require from the PSU?

It needs the standard 12VHPWR connector that modern ATX 3.0 power supplies provide; older units will need an adapter.

Will the PCI Express 5.0 x16 interface work on my current PCIe 4.0 motherboard?

Yes, the card is backward compatible and will run at PCIe 4.0 speeds on a 4.0 board without any configuration.
