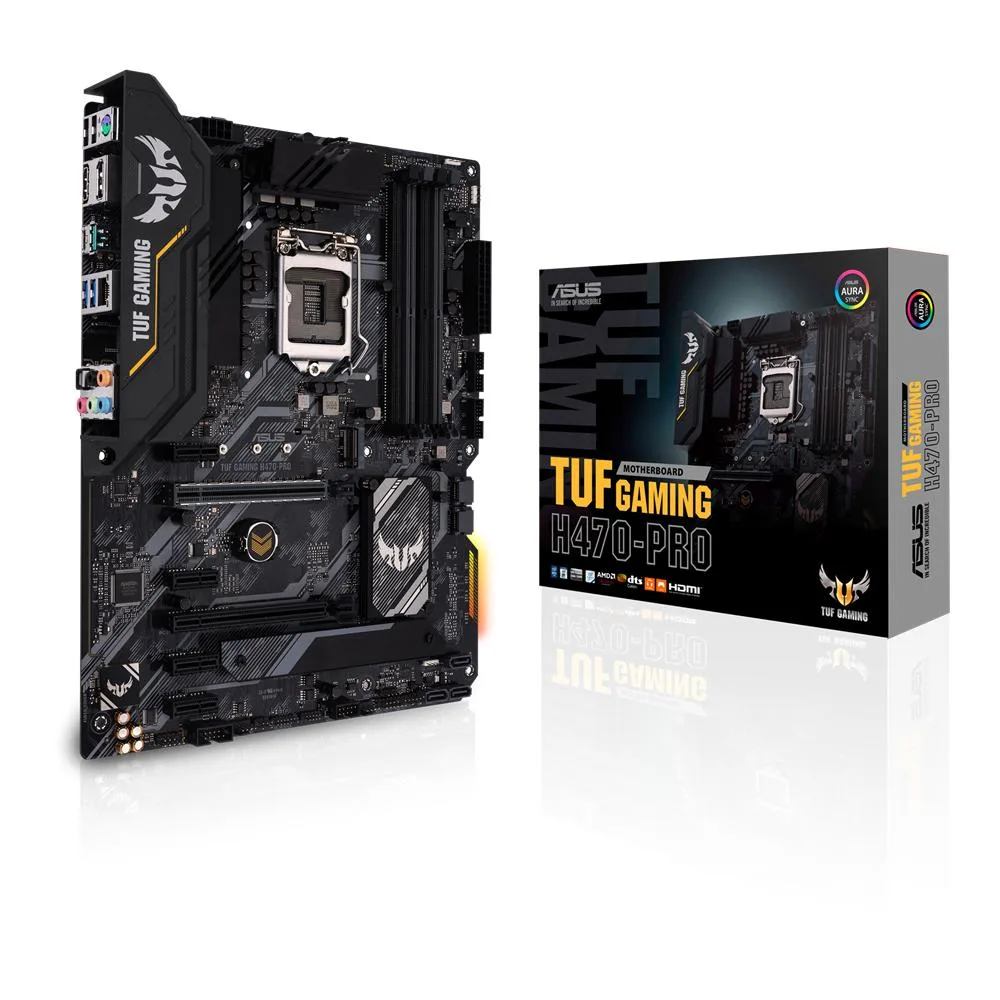

ATX motherboard in matte black with grey heatsinks and yellow TUF accents

ASUS

ASUS TUF GAMING H470-PRO Intel motherboard

SKU CH-RRBZ-HYHVZ

ATX board for 10th and 11th Gen Intel CPUs with 10 power stages, 128 GB DDR4, dual M.2 and five SATA ports, Intel I219-V Ethernet, Realtek S1200A audio and Aura Sync RGB

  • CPU Socket TypeLGA 1200
  • CPU TypeIntel Core 10th/11th Gen (LGA 1200)
  • Supported CPU TechnologiesTurbo Boost Technology 3.0
  • ChipsetIntel H470
  • Number of Memory Slots4x288pin (DDR4)
  • Memory StandardDDR4
  • Supports 10th and 11th Gen Intel Core processors on LGA 1200 socket
  • 10 power stages with ProCool sockets and military-grade TUF components for durable power delivery
  • VRM heatsink, M.2 heatsink, PCH fanless heatsink and FAN Xpert 4 utility for comprehensive cooling
  • Dual M.2 slots with PCIe 3.0 x4 bandwidth up to 32 Gb/s and five SATA 6Gb/s ports
  • Intel I219-V Gigabit LAN with TUF LANGuard and Realtek S1200A codec delivering 108 dB SNR stereo output

Socket LGA 1200 ATX motherboard for 10th

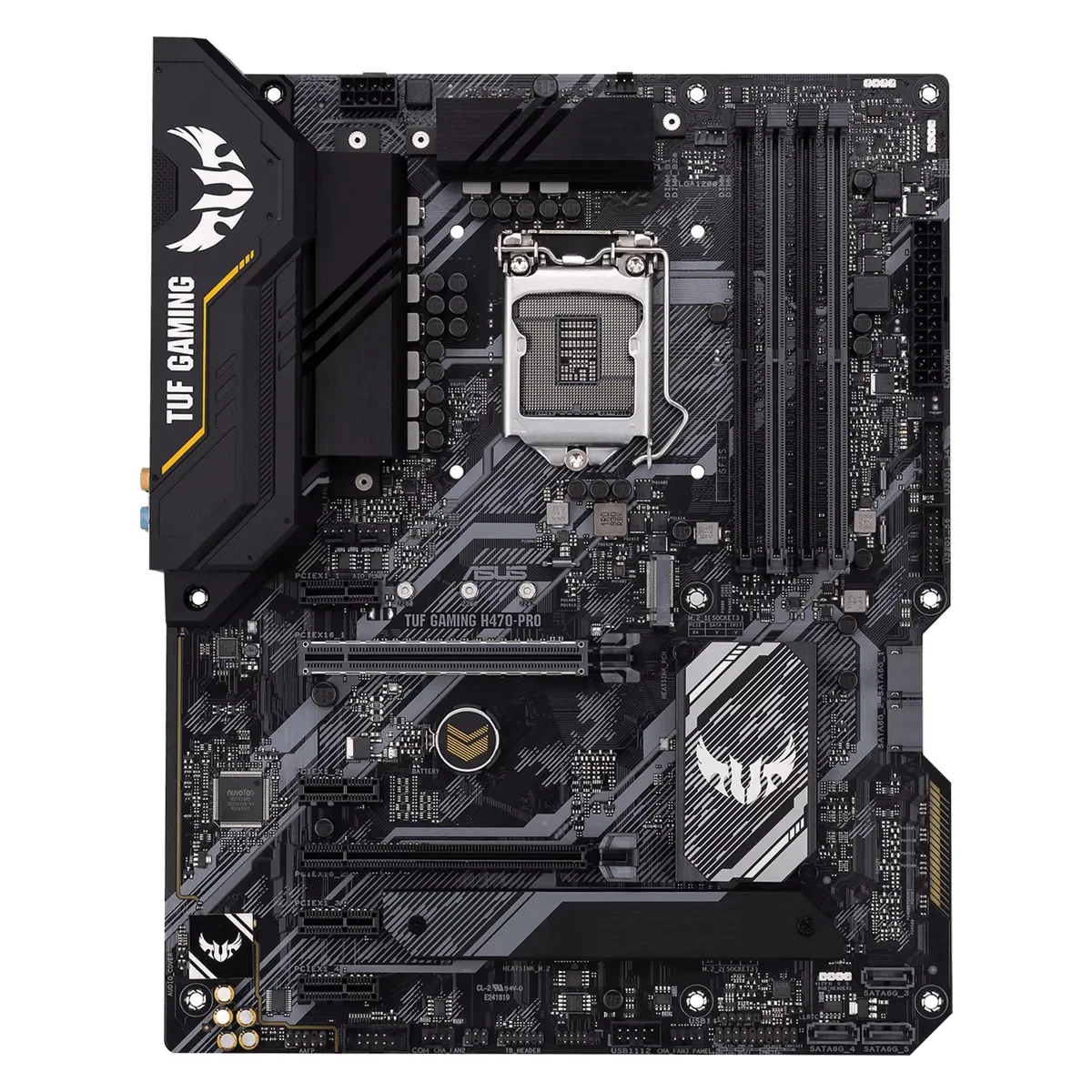

The ASUS TUF GAMING H470-PRO is an ATX board built on the Intel H470 chipset for LGA 1200 processors. It delivers 10 teamed power stages, ProCool sockets, military-grade TUF components and Digi+ VRM for stable delivery. Comprehensive cooling covers VRM heatsinks, an M.2 heatsink, a PCH fanless heatsink and hybrid fan headers controlled by FAN Xpert 4 utility. Aura Sync RGB lighting adds synchronised effects across compatible gear.

Gamers and builders wanting durable power

This board suits users who need a robust 10-phase VRM, dual M.2 slots with 32 Gb/s bandwidth, five SATA 6Gb/s ports and Intel I219-V 1Gbps Ethernet with TUF LANGuard. Realtek S1200A audio provides 108 dB SNR for stereo output and 103 dB SNR for line in. It is not for compact chassis requiring smaller form factors, systems needing integrated Wi-Fi, or platforms targeting the latest CPU generations beyond 11th Gen.

Dual M.2 slots with 32 Gb/s PCIe 3.0 x4 bandwidth

Two M.2 sockets each run at PCIe 3.0 x4 for fast SSD performance up to 32 Gb/s. Four DDR4 DIMM slots support up to 128GB dual-channel memory at speeds up to 2933 MHz depending on the CPU. A single PCIe 3.0 x16 slot handles graphics, while a second x16 slot operates in x4 mode and four x1 slots provide expansion. USB 3.2 Gen 2 Type-C and Thunderbolt 3 support complete the I/O.

Highlights

  • Supports 10th and 11th Gen Intel Core processors on LGA 1200 socket
  • 10 power stages with ProCool sockets and military-grade TUF components for durable power delivery
  • VRM heatsink, M.2 heatsink, PCH fanless heatsink and FAN Xpert 4 utility for comprehensive cooling
  • Dual M.2 slots with PCIe 3.0 x4 bandwidth up to 32 Gb/s and five SATA 6Gb/s ports
  • Intel I219-V Gigabit LAN with TUF LANGuard and Realtek S1200A codec delivering 108 dB SNR stereo output

Specifications

BrandASUS
SeriesTUF GAMING
ModelH470-PRO
CPU Socket TypeLGA 1200
CPU TypeIntel Core 10th/11th Gen (LGA 1200)
Supported CPU TechnologiesTurbo Boost Technology 3.0
ChipsetIntel H470
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4
Maximum Memory Supported128GB
Channel SupportedDual Channel
PCI Express 3.0 x161 x PCI Express 3.0 x16
PCI Express x41 x PCIe 3.0 x16 (x4 mode)
PCI Express x14 x PCI Express x1
Serial ATA (SATA)5 x SATA 6Gb/s
M.22 x M.2
SATA RAID0/1/0+1/5/10
Audio ChipsetRealtek® ALC S1200A7
LAN ChipsetIntel® I219-V
Max LAN Speed1Gbps
PS/21 x PS/2 keyboard/mouse port
HDMI1 x HDMI
USB 1.1/2.04 x USB 3.0 + 2 x USB 2.0
USB Type-C2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C®)
2 x USB 3.2 Gen 1 (blue) Type-A
S/PDIF Out1 x Optical
Onboard USB2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)
Form FactorATX
Power Pin24 Pin
Package ContentsOpen Box Condition including all Original Components

Questions about this item

What case clearance does the 288-pin DDR4 DIMM layout on this H470-PRO require?

The four 288-pin DDR4 slots follow standard ATX spacing, so any case that fits an ATX board with 128 GB maximum memory will clear the modules.

Which step do builders miss when seating the CPU into the LGA 1200 socket?

Align the notches, lower the processor without force, then close the retention lever fully before attaching the cooler — skipping the lever lock bends pins.

When should the Realtek S1200A codec’s 108 dB line-out path be rechecked?

Recheck after any BIOS update that resets audio settings, or if front-panel headers are moved, to confirm the 108 dB signal-to-noise ratio remains active.
