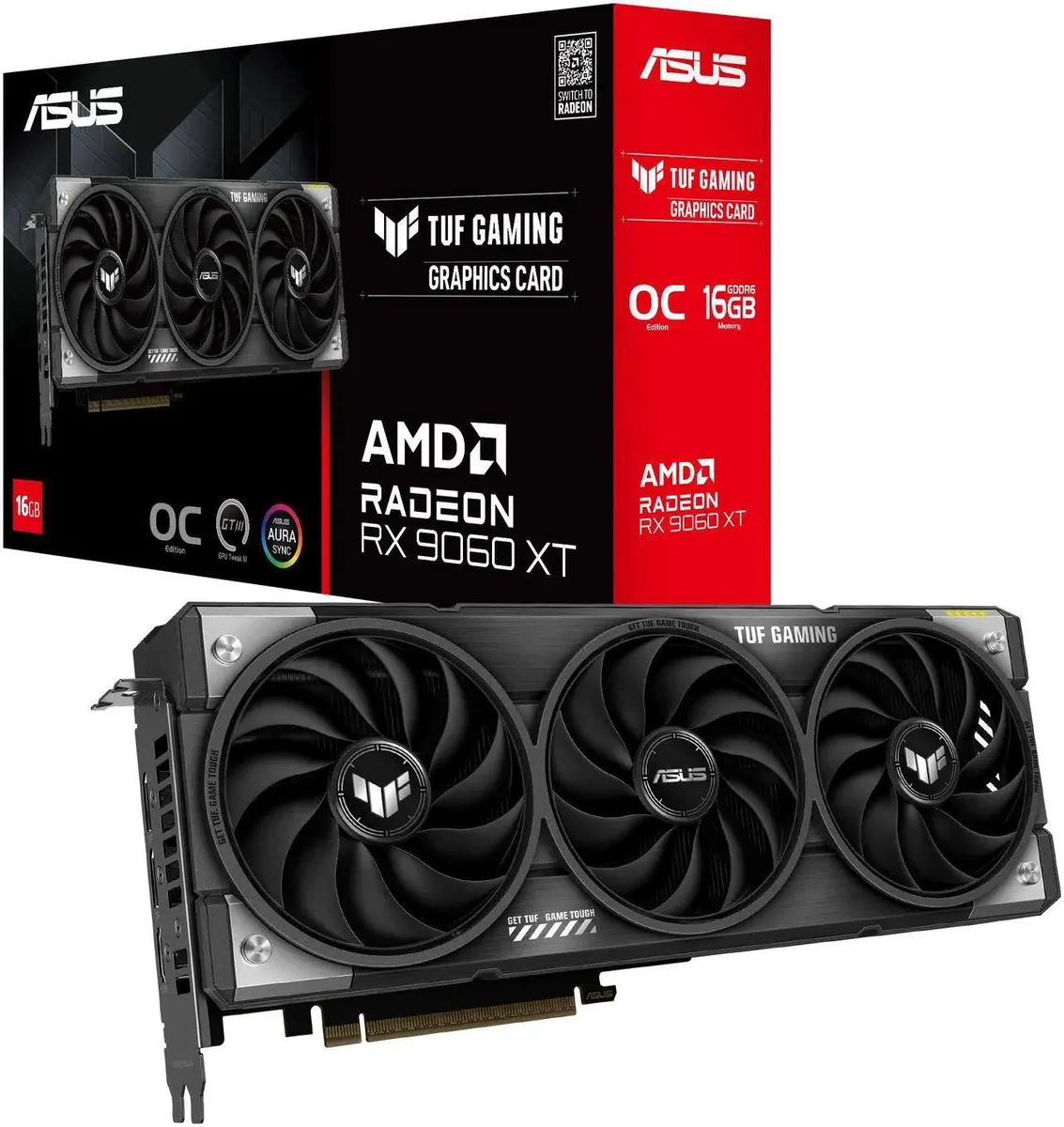

ASUS TUF Gaming Radeon RX 9060 XT graphics card with dark shroud and triple axial fans

ASUS

ASUS TUF Gaming Radeon RX 9060 XT 16GB GDDR6 graphics card

SKU CH-9D6F-KQQ5E

16 GB GDDR6 on a 128-bit bus with 2048 stream processors, PCIe 5.0 x16, HDMI 2.1b and two DisplayPort 2.1a outputs

  • InterfacePCI Express 5.0 x16
  • Chipset ManufacturerAMD
  • GPU SeriesAMD Radeon RX 9000 Series
  • GPURadeon RX 9060 XT
  • ArchitectureRDNA 4
  • Stream Processors2048
  • 16GB GDDR6 memory handles high-resolution textures smoothly
  • 128-bit bus at 20 Gbps feeds the GPU with fast bandwidth
  • 2048 stream processors on RDNA 4 architecture deliver strong compute performance
  • PCI Express 5.0 x16 interface provides high-throughput system connectivity
  • HDMI 2.1b plus two DisplayPort 2.1a outputs drive up to 7680 x 4320 resolution

ASUS TUF Gaming RX 9060 XT 16GB

The ASUS TUF Gaming Radeon RX 9060 XT 16GB is a graphics card built on the AMD RDNA 4 architecture for 1440p gaming. It uses a PCI Express 5.0 x16 interface and delivers 2048 stream processors with 16GB of GDDR6 memory on a 128-bit bus running at 20 Gbps. It suits builders who want high frame rates in modern titles.

Sustained load behaviour with 16GB GDDR6

The 16GB frame buffer and 20 Gbps memory speed help maintain consistent throughput during extended sessions. The 128-bit interface and RDNA 4 efficiency keep power draw steady under continuous compute or raster workloads. DirectX 12 Ultimate and OpenGL 4.6 support ensure broad API compatibility for long renders.

Installation steps and common issues

The card fits a standard ATX slot and connects via one HDMI 2.1b and two DisplayPort 2.1a outputs for up to three monitors. Ensure the power supply meets the board's connector requirements and that case length accommodates the cooler. Driver crashes often come from stale chipset software or an undersized PSU.

Highlights

  • 16GB GDDR6 memory handles high-resolution textures smoothly
  • 128-bit bus at 20 Gbps feeds the GPU with fast bandwidth
  • 2048 stream processors on RDNA 4 architecture deliver strong compute performance
  • PCI Express 5.0 x16 interface provides high-throughput system connectivity
  • HDMI 2.1b plus two DisplayPort 2.1a outputs drive up to 7680 x 4320 resolution

Specifications

BrandASUS
SeriesTUF Gaming
ModelTUF-RX9060XT-O16G-GAMING
Part Number90YV0LF0-M0AA00
InterfacePCI Express 5.0 x16
Chipset ManufacturerAMD
GPU SeriesAMD Radeon RX 9000 Series
GPURadeon RX 9060 XT
ArchitectureRDNA 4
Stream Processors2048
Effective Memory Clock20 Gbps
Memory Size16GB
Memory Interface128-Bit
Memory TypeGDDR6
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support3
HDMI1 x HDMI 2.1b
DisplayPort2 x DisplayPort 2.1a
Max Resolution7680 x 4320
CrossFireX SupportNo
SLI SupportNo
Virtual Reality ReadyYes
CoolerTriple Fans
Recommended PSU Wattage550W
Power Connector8-Pin
HDCP ReadyYes
Form FactorATX
Max GPU Length304 mm
Card Dimensions (L x H)304 x 126 x 50mm
Slot Width2.5 Slots
Package Contents1 x TUF certificate of Reliability
1 x TUF Velcro Hook & Loop
1 x TUF Fridge Magnet
1 x Thank you card
1 x Speedsetup Manual

Questions about this item

How much heat and noise should I expect from the TUF-RX9060XT-O16G-GAMING when it runs all day at 20 Gbps memory speed?

The 16GB GDDR6 memory operates at 20 Gbps across a 128-bit interface while the GPU uses 2048 stream processors on the RDNA 4 architecture, so sustained load will produce noticeable fan noise and case heat.

What power connectors and PSU headroom does the TUF-RX9060XT-O16G-GAMING need to work?

It plugs into a PCI Express 5.0 x16 slot and requires dual 8-pin PCIe power cables from your supply; check the unit’s own sticker for the exact wattage it demands.

Will the RX 9060 XT run beside my older PCIe 4.0 motherboard and 1080p monitor without bottlenecks?

The card is backward compatible with PCIe 4.0 and 3.0 slots and drives displays up to 7680 x 4320 through its HDMI 2.1b and two DisplayPort 2.1a outputs, so your current screen will work fine.
