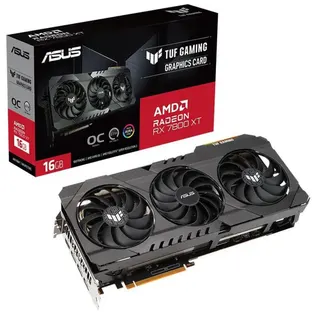

ASUS TUF Gaming RX 7800 XT graphics card with triple axial fans and metal exoskeleton backplate

ASUS

ASUS TUF Gaming RX 7800 XT OG Edition 16GB GDDR6 Triple Fan

SKU CH-TH72-4QPJQ MPN 7800XT

A 16GB GDDR6 graphics card with a 256-bit interface and triple-fan cooler delivers 24% more airflow, dual ball bearings, military-grade capacitors rated for 20K hours at 105C, a metal exoskeleton

  • InterfacePCI Express 4.0 x16
  • Chipset ManufacturerAMD
  • GPU SeriesAMD Radeon RX 7000 Series
  • GPURadeon RX 7800 XT
  • Core ClockTBD
  • Boost ClockTBD

Model 7800XT TUF OG

  • 24% more airflow from scaled axial-tech fan upgrades
  • Dual ball bearings last up to twice as long as conventional designs
  • Military-grade capacitors rated 20K hours at 105C for durable power delivery
  • Metal exoskeleton adds rigidity and vents for better heat dissipation
  • Auto-Extreme automated manufacturing boosts reliability

16GB GDDR6 for 1440p gaming

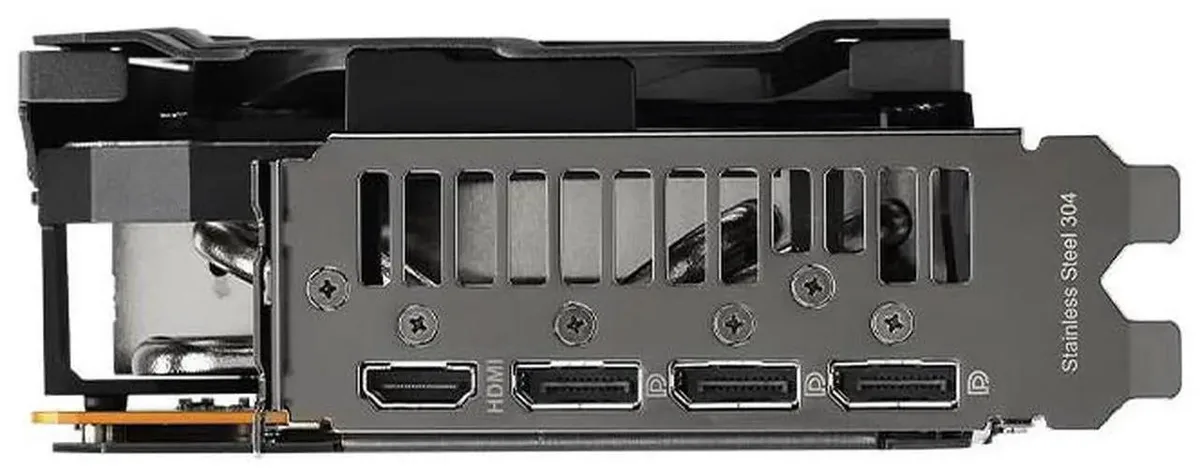

The ASUS TUF Gaming RX 7800 XT OG Edition targets gamers and creators who want strong 1440p frame rates with 16GB of GDDR6 memory. The Radeon RX 7800 XT chip provides 3840 stream processors and a 256-bit memory interface. HDMI 2.1 and three DisplayPort 2.1 outputs drive up to four displays at 7680 x 4320 resolution. DirectX 12 Ultimate and OpenGL 4.6 support cover modern APIs.

PCIe 4.0 slot and power cables

Your motherboard must provide a full-length PCI Express 4.0 x16 slot and enough physical clearance for a triple-fan card. The power supply needs the required 8-pin connectors and sufficient wattage for the GPU plus the rest of the system. A case with good front-to-rear airflow helps the axial-tech fans move the 24% extra air they are designed for. Verify that your OS and drivers support the AMD Radeon RX 7000 series.

Axial-tech fans and military-grade capacitors

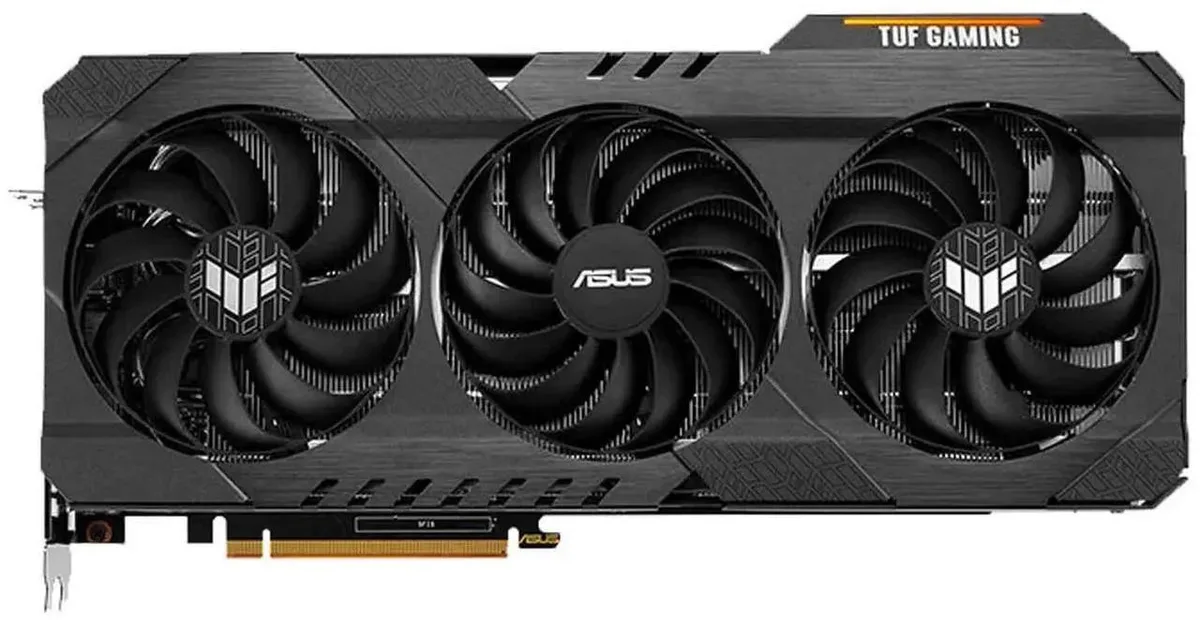

Three axial-tech fans with dual ball bearings push 24% more airflow than the previous design while lasting up to twice as long. A metal exoskeleton adds rigidity and vents to help dissipate heat from the GPU and memory. Military-grade capacitors rated for 20K hours at 105C keep the power rail stable under load. Auto-extreme automated manufacturing improves consistency, and GPU Tweak III lets you balance thermals, noise and power draw.

Highlights

  • 24% more airflow from scaled axial-tech fan upgrades
  • Dual ball bearings last up to twice as long as conventional designs
  • Military-grade capacitors rated 20K hours at 105C for durable power delivery
  • Metal exoskeleton adds rigidity and vents for better heat dissipation
  • Auto-Extreme automated manufacturing boosts reliability

Specifications

BrandASUS
SeriesTUF Gaming
ModelTUF-RX7800XT-O16G-OG-GAMING
InterfacePCI Express 4.0 x16
Chipset ManufacturerAMD
GPU SeriesAMD Radeon RX 7000 Series
GPURadeon RX 7800 XT
Core ClockTBD
Boost ClockTBD
Stream Processors3840 Stream Processors
Memory Size16GB
Memory Interface256-Bit
Memory TypeGDDR6
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.1
DisplayPort3 x DisplayPort 2.1
Max Resolution7680 x 4320
CoolerTriple Fans
Thermal Design Power263W
Recommended PSU Wattage750W
Form FactorATX
Max GPU Length320 mm
Slot Width2.96 Slots

Other versions of this model

4 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What comes in the box with the ASUS TUF Gaming RX 7800 XT OG Edition and do I need to buy power cables separately?

The card includes the GPU with its triple-fan cooler, metal exoskeleton and pre-applied thermal interface. Power cables are not included; your power supply must provide the required PCIe connectors.

Should I choose the 16GB GDDR6 version or is there another capacity for this model?

This OG Edition is only offered with 16GB of GDDR6 on a 256-bit bus. No other memory capacity exists for this specific SKU.

What does the 3840 stream processor count mean for actual 1440p gaming performance?

The 3840 stream processors handle the heavy lifting in modern titles. Paired with 16GB GDDR6 and PCIe 4.0 x16 bandwidth, the card delivers high frame rates at 1440p ultra settings in most current games.
