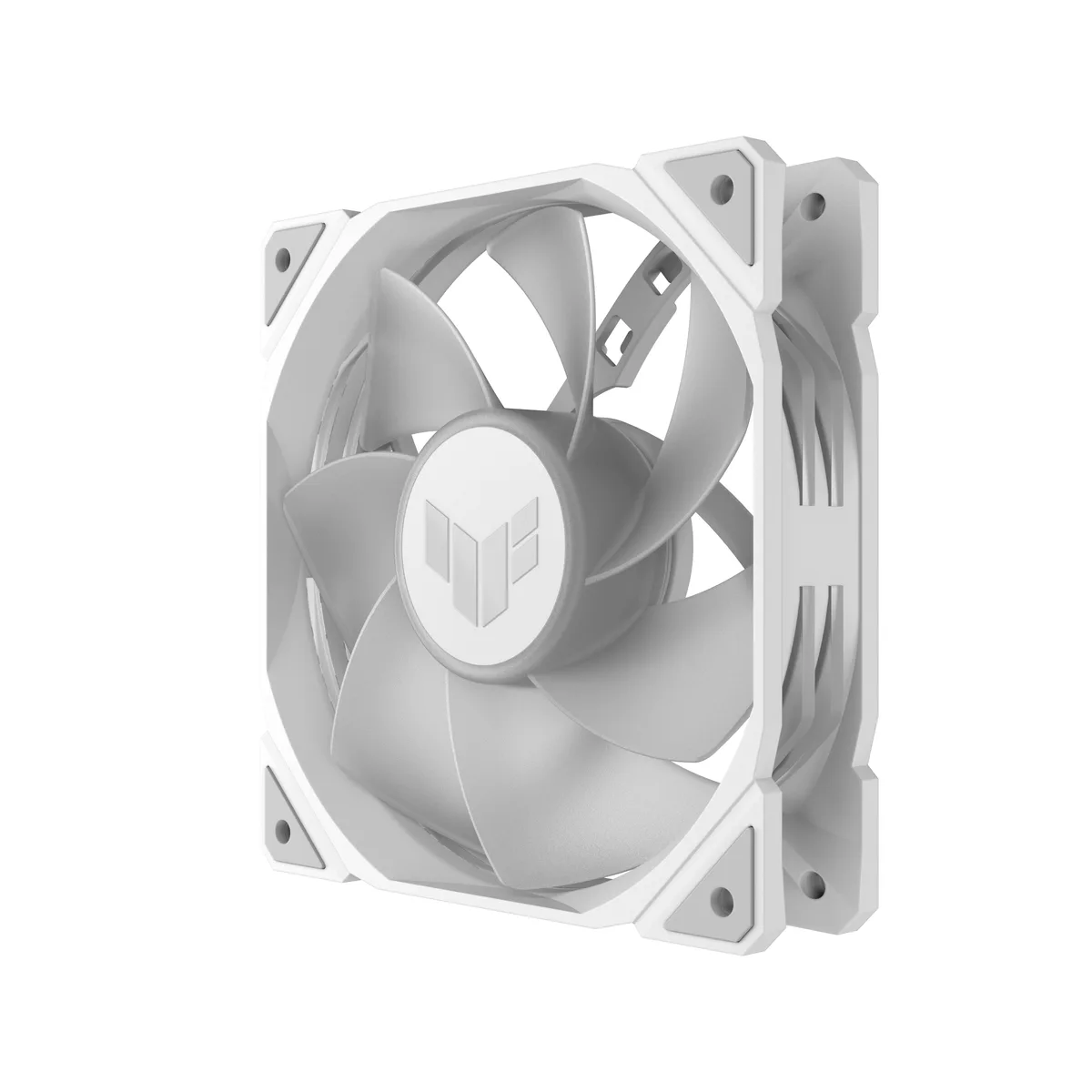

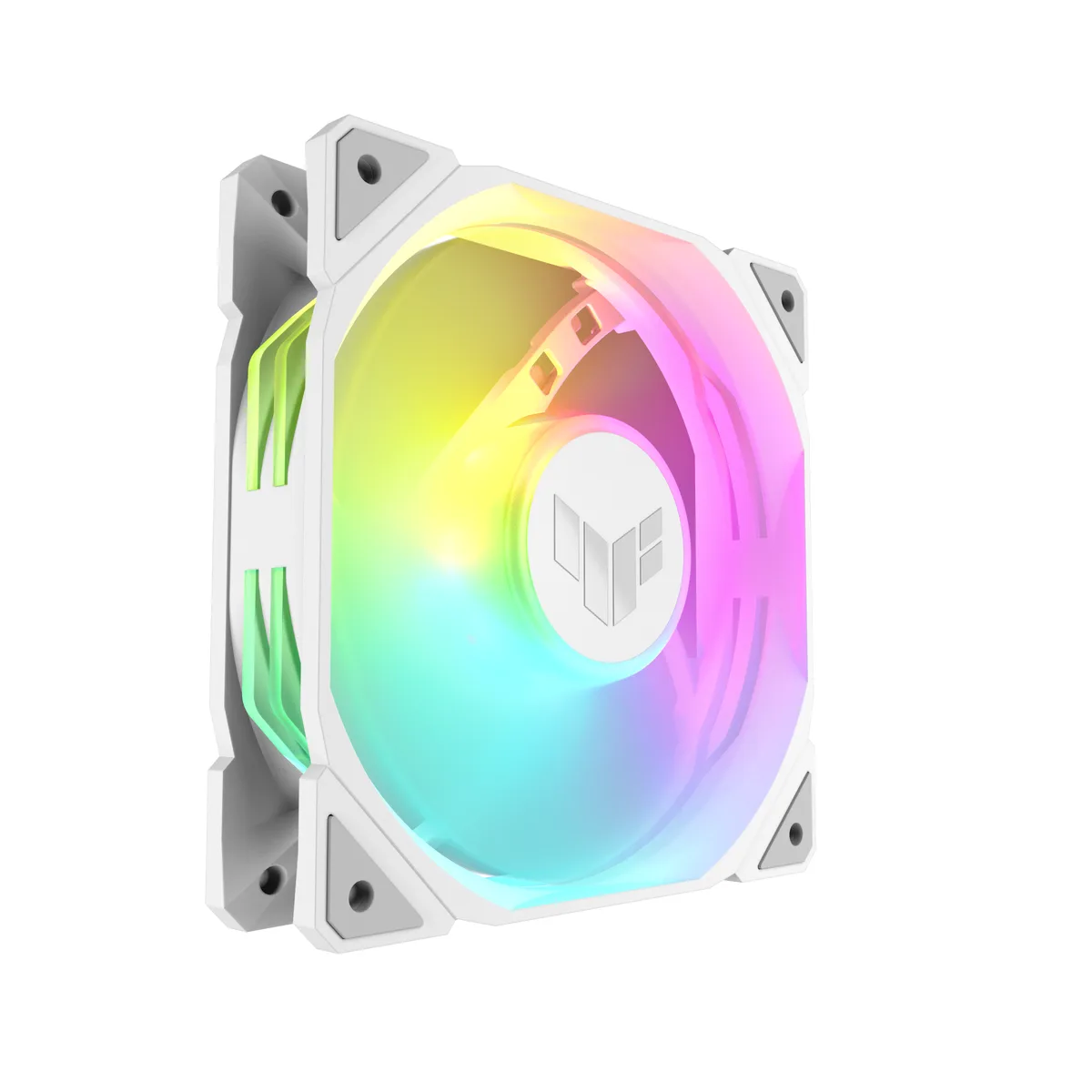

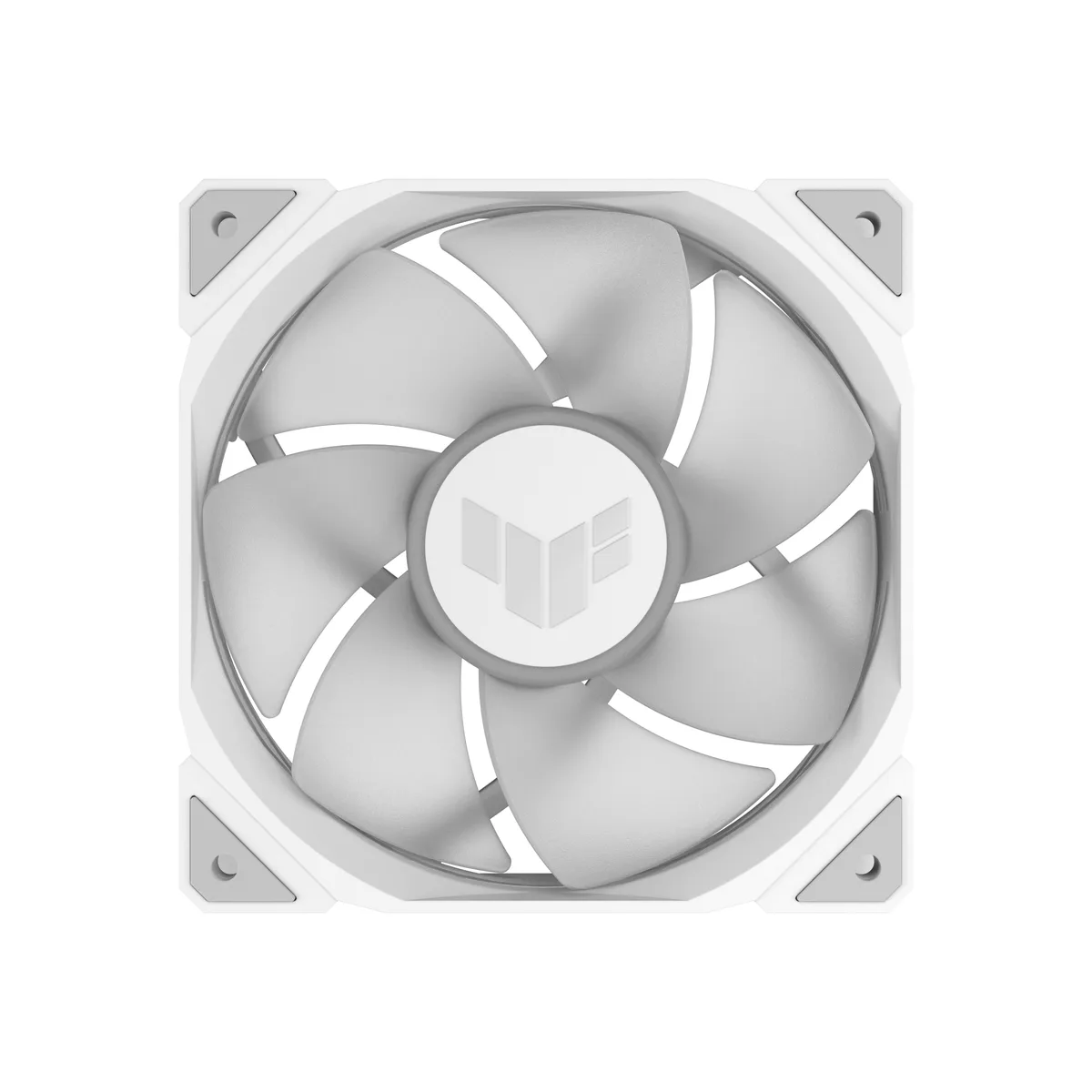

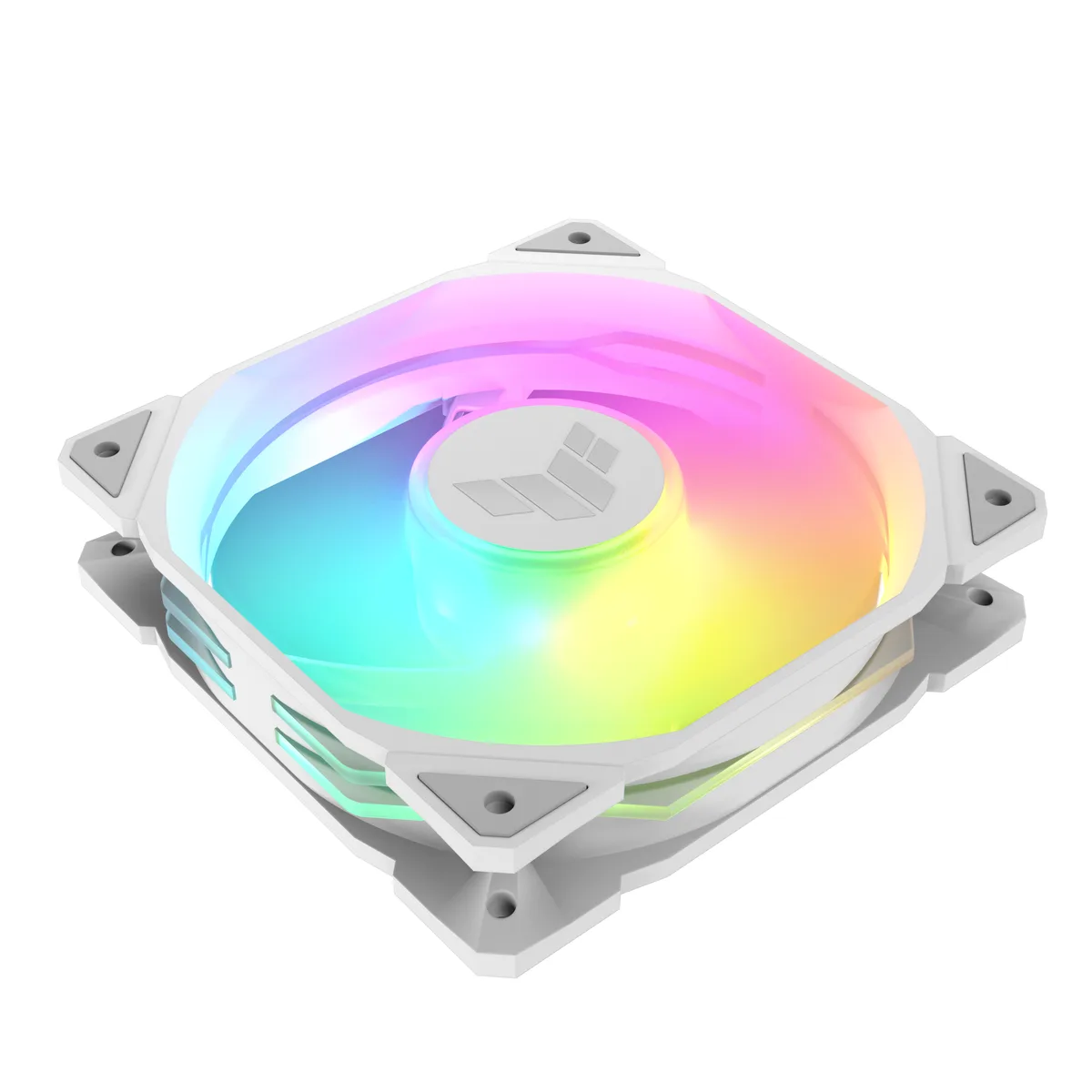

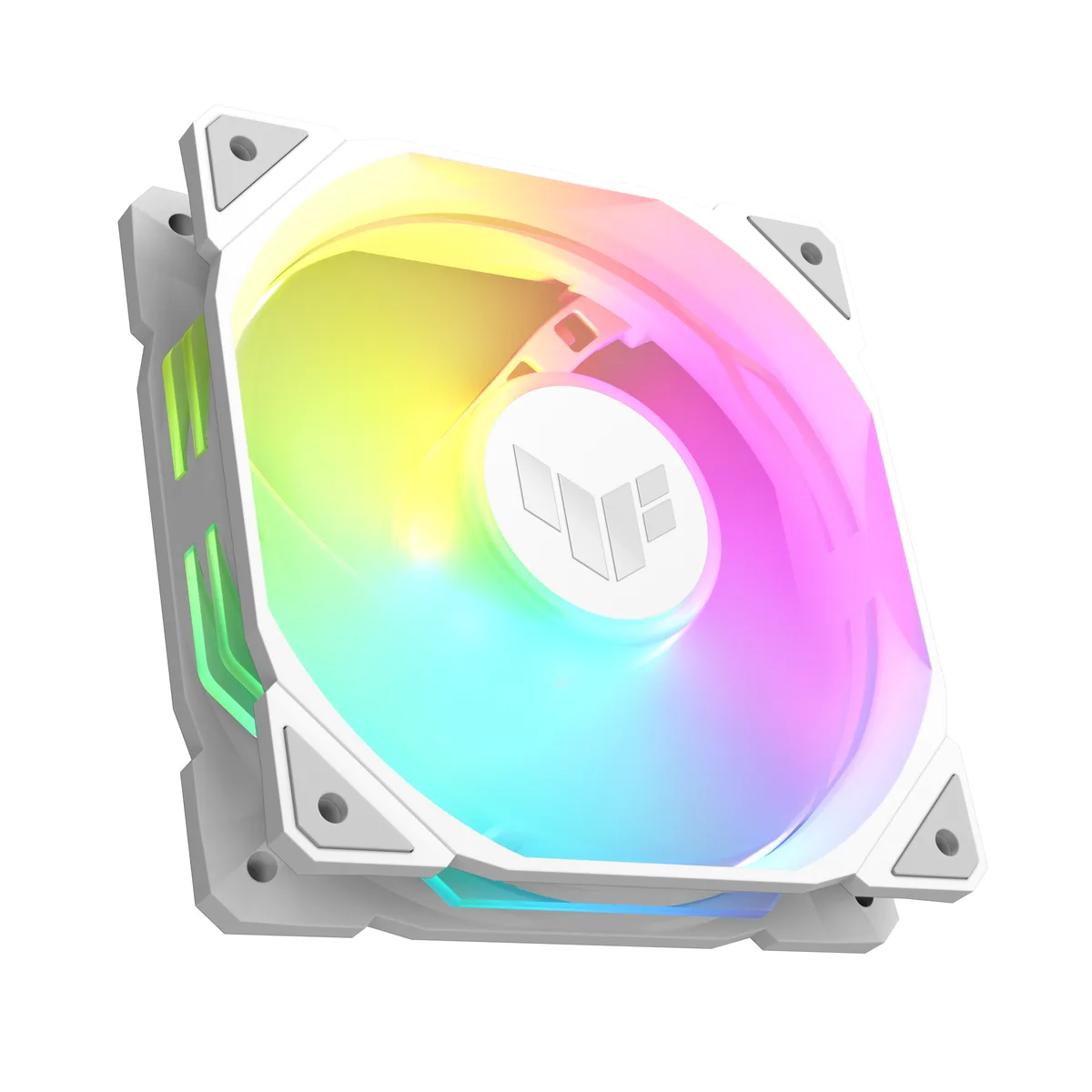

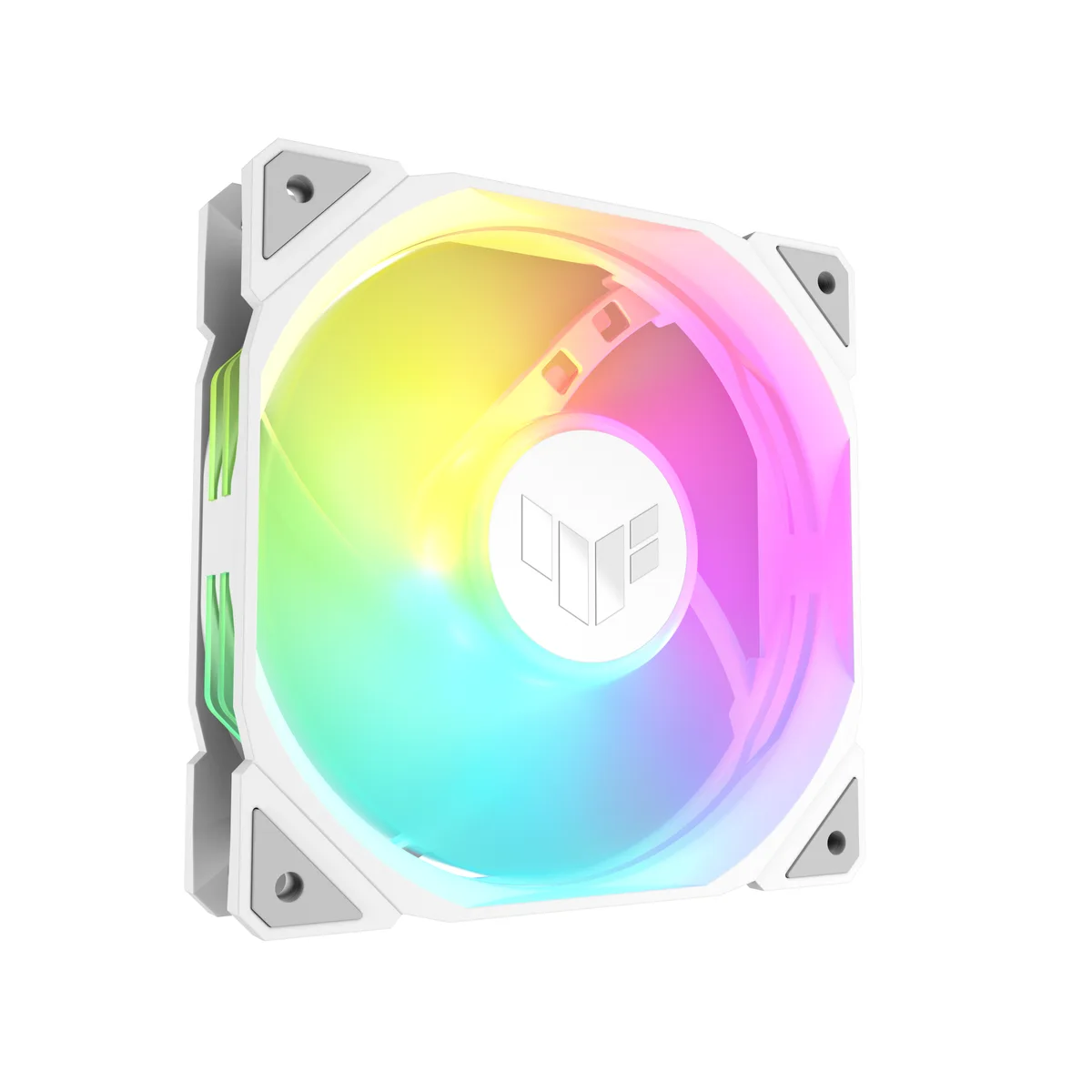

Three white 120mm ARGB case fans with reverse blades, thick 28mm frames and double-layer LED rings

ASUS

ASUS TUF Gaming TR120 120mm ARGB White Reverse Blade Triple Pack 28mm

SKU CH-36T4-04HY7 MPN TUF GAMING TR120 FAN ARGB REVERSE WHITE 3IN1

Three 120 mm ARGB fans with a 28 mm frame, reverse blades, 76.3 CFM airflow and 2.75 mm H2O static pressure for high-performance case cooling

  • Fan Counts3 Fans
  • TypeCase Fan
  • Fan Size120mm
  • Fan Thickness28mm
  • Bearing TypeHydraulic
  • RPM2000 rpm(+/- 10%)
  • Extra-thick 28mm frame delivers higher cooling performance
  • Class-leading 2.75mm H2O static pressure with 76.3 CFM airflow
  • Double-layer LED matrix with 16 addressable RGB LEDs per fan
  • Flexible side pattern on the frame enables personalised aesthetics
  • PWM control up to 2000 rpm with Aura Sync compatibility

Triple pack for white themed builds

This triple pack supplies three 120mm ARGB fans in a white finish for builders who want coordinated cooling and lighting. The reverse blade design and extra thick frame target radiators and restrictive meshes where static pressure matters. They suit anyone assembling a fresh system or upgrading an existing chassis with matching fans.

Hydraulic bearing runs at 29 dB(A)

Each fan spins up to 2000 rpm and delivers 76.3 CFM airflow with 2.75 mm H2O static pressure while the hydraulic bearing keeps noise at 29 dB(A). PWM control provides an ultra wide speed range so the fans stay quiet at idle and ramp up only when the workload demands it.

Aura Sync lighting with flexible side pattern

The double layer LED matrix uses 16 addressable LEDs per fan and connects through a 1 to 3 PWM cable for synchronised Aura Sync effects. Mounting hardware includes 12 screws for the triple pack. The 28mm frame depth requires clearance behind the mounting surface, so buyers with slim radiators or tight side panels should verify fitment first.

Highlights

  • Extra-thick 28mm frame delivers higher cooling performance
  • Class-leading 2.75mm H2O static pressure with 76.3 CFM airflow
  • Double-layer LED matrix with 16 addressable RGB LEDs per fan
  • Flexible side pattern on the frame enables personalised aesthetics
  • PWM control up to 2000 rpm with Aura Sync compatibility

Specifications

BrandASUS
ModelTUF GAMING TR120 FAN ARGB REVERSE WHITE 3IN1
Part Number90DA00D3-B08020
Fan Counts3 Fans
TypeCase Fan
Fan Size120mm
Fan Thickness28mm
Bearing TypeHydraulic
RPM2000 rpm(+/- 10%)
Air Flow76.3 CFM
Air Pressure2.75 mm H2O
Noise Level29 dB(A)
ColorWhite
LEDARGB
Package Contents12 x screws (triple pack)
1 x 1 to 3 PWM cable (triple pack)
1 pack: 4 x screws (single pack)
Shipping weight0.68 kg
Package size165 × 127 × 102 mm

Questions about this item

How do I mount the 28mm thick fans and connect the 1-to-3 PWM cable without reversing the airflow direction?

Use the 12 included screws to secure each 28mm fan to the case, orienting the reverse blades so air moves toward the frame center, then plug the single 1-to-3 PWM cable into the motherboard fan header and attach all three fan connectors to the splitter.

When should I expect the hydraulic bearings to need replacement under continuous 2000 RPM operation?

Hydraulic bearings in these fans are rated for long life at 2000 RPM; audible noise rising above the specified 29 dB(A) or a drop in the 76.3 CFM airflow typically signals bearing wear and the need for fan replacement.

At what static pressure does the 2.75 mm H2O limit appear when pushing air through a dense radiator?

The fans deliver a maximum of 2.75 mm H2O static pressure; when radiator or filter resistance reaches that figure the airflow will fall below the rated 76.3 CFM and cooling performance plateaus.
