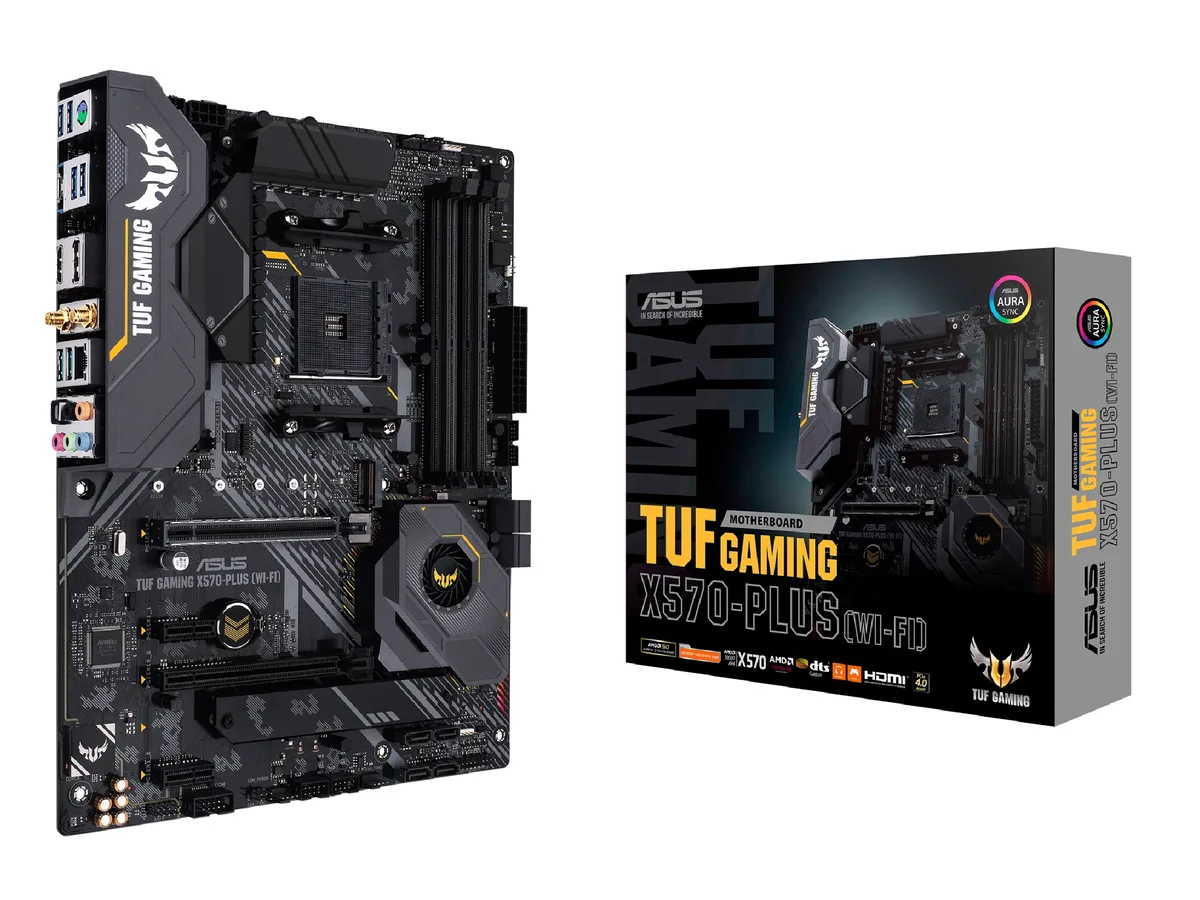

ATX motherboard in dark grey with metal heatsinks and RGB lighting

ASUS

ASUS TUF GAMING X570-P Wi AMD motherboard

SKU CH-SJ4A-ED1Y3 MPN TUF GAMING X570-P Wi

ATX board for AM4 Ryzen CPUs with X570 chipset, dual M.2, USB 3.2 Gen 2, 1 Gbps LAN, Wi-Fi and Bluetooth 5.0

  • CPU Socket TypeAM4
  • CPU TypeAMD AM4 Socket 3rd and 2nd Gen AMD Ryzen / 3rd, 2nd and 1st
  • ChipsetAMD X570
  • Number of Memory Slots4x288pin (DDR4)
  • Memory Standard3rd Gen AMD Ryzen Processors DDR4 4400(O.C.)/ 3466(O.C.)/ 34
  • Maximum Memory Supported128GB

Option TUF GAMING X570-PLUS (Wi-Fi)

  • PRIME X570-P
  • PRIME X570-PRO
  • Pro WS X570-ACE
  • ROG CROSSHAIR VIII FORMULA
  • ROG CROSSHAIR VIII HERO
  • ROG CROSSHAIR VIII HERO (WI-FI)
  • ROG STRIX X570-E GAMING
  • ROG STRIX X570-E GAMING WIFI II
  • ROG STRIX X570-F GAMING
  • TUF GAMING X570-PLUS
  • TUF GAMING X570-PLUS (Wi-Fi)

Struck-through versions exist but are not stocked here.

  • Ready for 2nd and 3rd Gen Ryzen processors with AM4 socket
  • 12+2 Dr.MOS power stages with military-grade TUF components for durability
  • Active PCH heatsink plus VRM and M.2 heatsinks with Fan Xpert 4 cooling
  • Dual PCIe 4.0 M.2 slots plus USB 3.2 Gen 2 Type-A and Type-C connectivity
  • Realtek S1200A codec delivers 108 dB stereo line-out SNR with 8-channel audio

AM4 socket for Ryzen 2nd and 3rd Gen

This ATX motherboard uses the AM4 socket and X570 chipset for Ryzen 2nd and 3rd Gen processors. It supports up to 128GB of DDR4 memory across four slots. Integrated Wi-Fi and Bluetooth 5.0 handle wireless connectivity. Aura Sync RGB lighting allows colour coordination with compatible components.

Standard ATX layout with clear manual

Installation follows the standard ATX form factor with a pre-mounted I/O shield for convenience. The ProCool socket and clearly labelled headers simplify cable routing. A common issue is that a BIOS update may be required before installing a Ryzen 5000 series CPU, so check the support list first.

PCIe 4.0 x16 slot for 3rd Gen Ryzen

The single PCIe 4.0 x16 slot runs at full speed only with 3rd Gen Ryzen CPUs; with 2nd Gen it operates at PCIe 3.0 speeds. This distinction determines the graphics bandwidth available for your build. Verify your processor generation to match expected performance.

Highlights

  • Ready for 2nd and 3rd Gen Ryzen processors with AM4 socket
  • 12+2 Dr.MOS power stages with military-grade TUF components for durability
  • Active PCH heatsink plus VRM and M.2 heatsinks with Fan Xpert 4 cooling
  • Dual PCIe 4.0 M.2 slots plus USB 3.2 Gen 2 Type-A and Type-C connectivity
  • Realtek S1200A codec delivers 108 dB stereo line-out SNR with 8-channel audio

Specifications

BrandASUS
ModelTUF GAMING X570-PLUS (Wi-Fi)
CPU Socket TypeAM4
CPU TypeAMD AM4 Socket 3rd and 2nd Gen AMD Ryzen / 3rd, 2nd and 1st Gen AMD Ryzen with Radeon Graphics Processors
* BIOS update might require for AMD Zen 3 Ryzen 5000 series CPU. Refer to ASUS website for CPU support list.
ChipsetAMD X570
Number of Memory Slots4x288pin (DDR4)
Memory Standard3rd Gen AMD Ryzen Processors
DDR4 4400(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Un-buffered Memory
2nd Gen AMD Ryzen Processors
DDR4 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Un-buffered Memory
2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
DDR4 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Un-buffered Memory
Maximum Memory Supported128GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP 2.0
PCI Express 4.0 x163rd Gen AMD Ryzen Processors
1 x PCIe 4.0 x16 (x16 mode)
2nd Gen AMD Ryzen and 3rd Gen AMD Ryzen with Radeon Graphics Processors
1 x PCIe 3.0 x16 (x16 mode)
2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
1 x PCIe 3.0/2.0 x16 (x8 mode)
AMD X570 chipset
1 x PCIe 4.0 x16 (max at x4 mode)
PCI Express x12 x PCIe 4.0 x1
Serial ATA (SATA)8 x SATA 6Gb/s
M.23rd Gen AMD Ryzen Processors:
1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 4.0 x4 and SATA modes) storage devices support
2nd Gen AMD Ryzen / 3rd, 2nd and 1st Gen AMD Ryzen with Radeon Graphics Processors:
1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 3.0 x4 and SATA modes) storage devices support
AMD X570 chipset:
1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 4.0 x4 and SATA modes) storage devices support
SATA RAID0/1/10
Onboard Video ChipsetIntegrated Graphics in the 3rd, 2nd and 1st Gen AMD Ryzen with Radeon Graphics Processors
Multi-VGA output support: HDMI/DisplayPort ports
- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz
- Supports DisplayPort with max. resolution 4096 x 2160 @ 60 Hz
Audio ChipsetRealtek ALC S1200A High Definition Audio CODEC
Audio Channels8 Channels
LAN ChipsetRealtek L8200A
Max LAN Speed1Gbps
Wireless LANIntel Wireless-AC 9260
Wi-Fi 802.11 a/b/g/n/ac
Supports dual band frequency 2.4/5 GHz
Supports MU-MIMO
Supports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transfer speed
BluetoothBluetooth 5.0

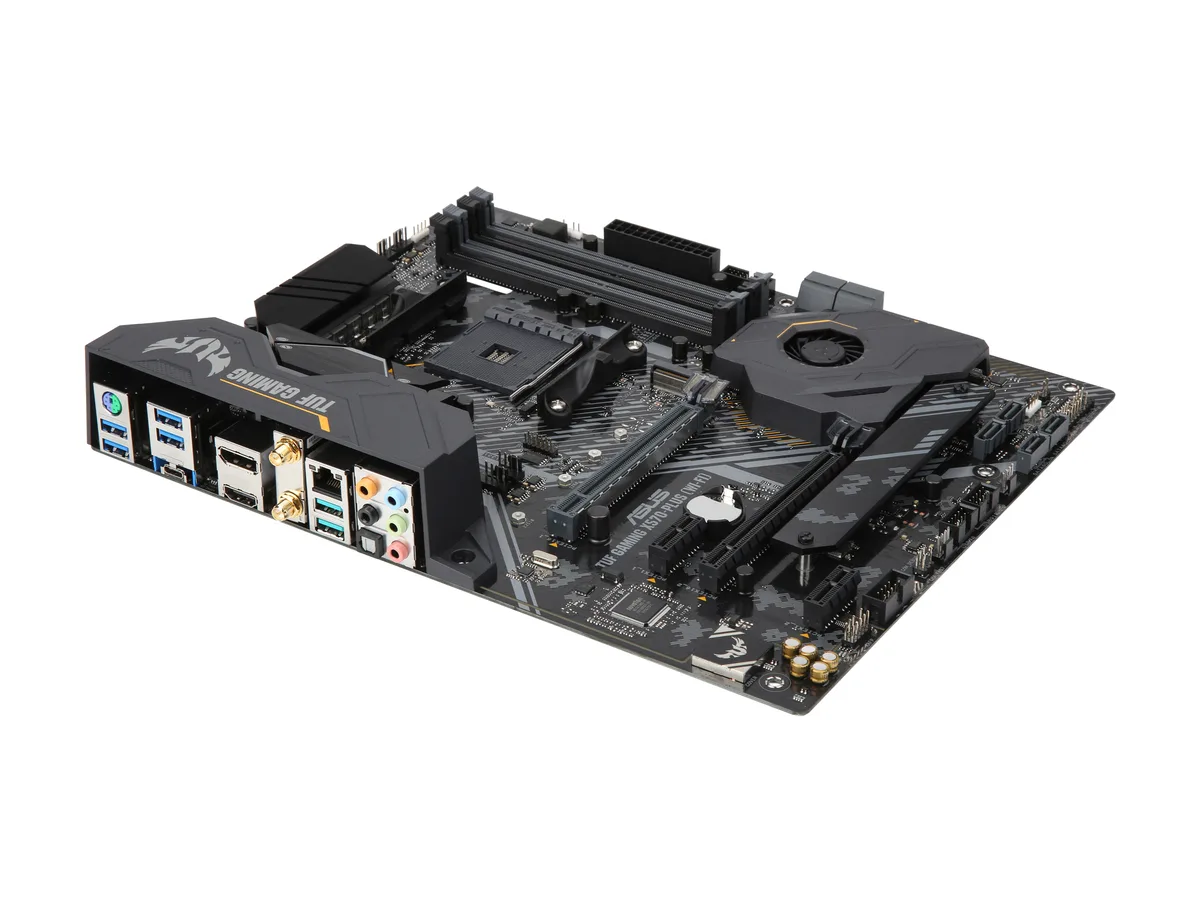

Back I/O Ports1 x PS/2 keyboard/mouse combo port(s)
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
1 x Optical S/PDIF out
5 x Audio jack(s)
4 x USB 3.2 Gen 1 (up to 5Gbps) ports
3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A + USB Type-C)
ASUS Wi-Fi module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0)
Onboard USB1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
Other Connectors2 x Aura RGB Strip Header(s)
1 x Addressable Gen 2 header(s)
1 x SPI TPM header
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x COM port header
Form FactorATX
LED LightingRGB
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
Windows 11Supported
FeaturesMulti-GPU Support:
3rd and 2nd Gen AMD Ryzen / 3rd, 2nd and 1st Gen AMD Ryzen with Radeon Graphics Processors
Supports AMD CrossFireX Technology
Special Features:
ASUS TUF PROTECTION
- ASUS SafeSlot: Protect your graphics card Investment
- ASUS ESD Guard: Enhanced ESD protection
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: Precision control for stable power
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
AU
Package ContentsAccessories:
User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11 a/b/g/n/ac compliant)
1 x TUF GAMING Sticker
1 x TUF Certification card(s)
Shipping weight1.54 kg
Package size338 × 277 × 71 mm

Questions about this item

How can I confirm the motherboard is operating correctly after installation?

Power on the system and verify the POST screen appears, then enter the BIOS to confirm the CPU, DDR4 memory and any M.2 drives are detected at their rated speeds.

What items are included in the box and what must I purchase separately?

The board ships with the ATX motherboard, I/O shield, SATA cables, M.2 screws, Wi-Fi antennas, driver disc and documentation; you must buy a compatible AM4 Ryzen processor, DDR4 memory modules, storage drives and a power supply separately.

Which M.2 slot should I use for a PCIe 4.0 x4 drive?

With a 3rd Gen Ryzen CPU the primary M.2 socket supports PCIe 4.0 x4 and SATA modes for 2242, 2260, 2280 and 22110 form factors; 2nd Gen CPUs limit that slot to PCIe 3.0 x4.
