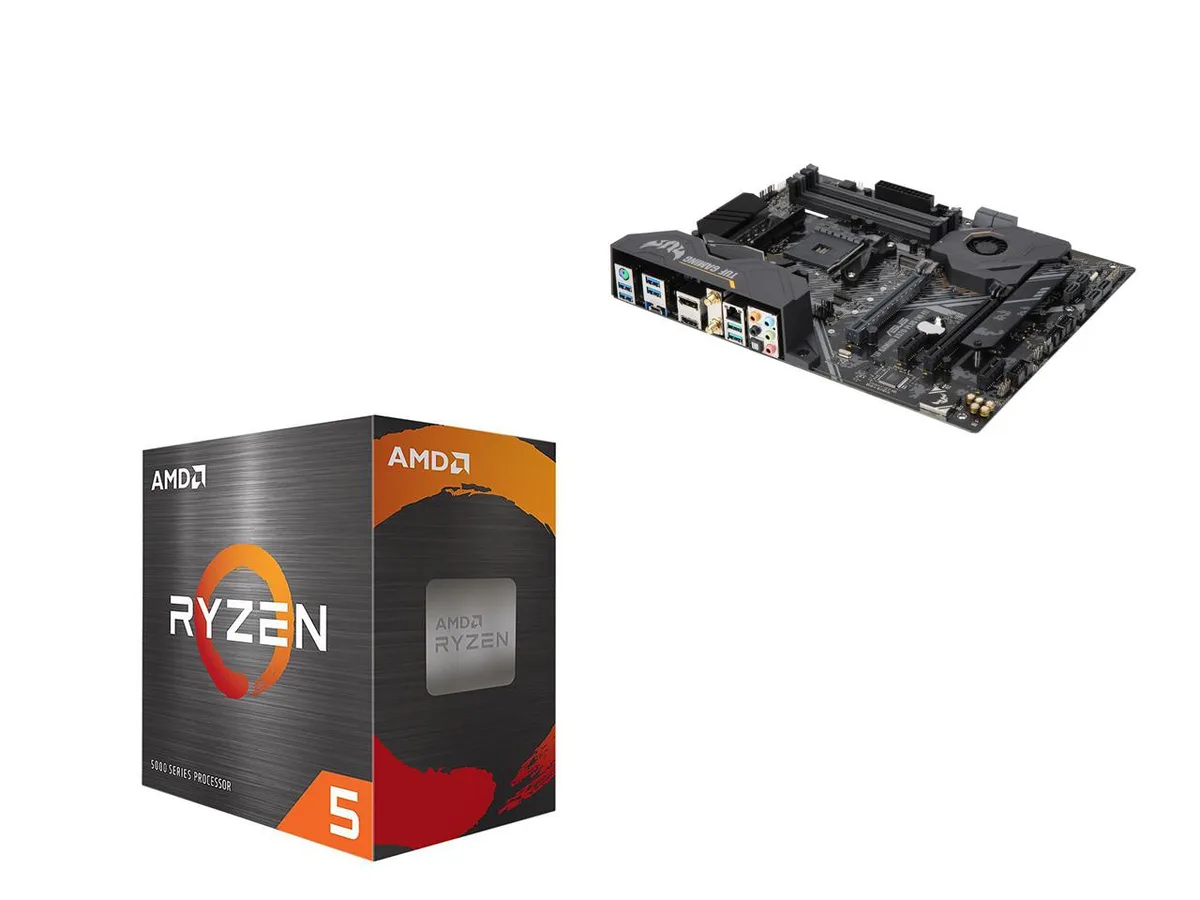

ATX motherboard in black and yellow with large heatsinks and bundled Ryzen 5 5500 CPU

ASUS

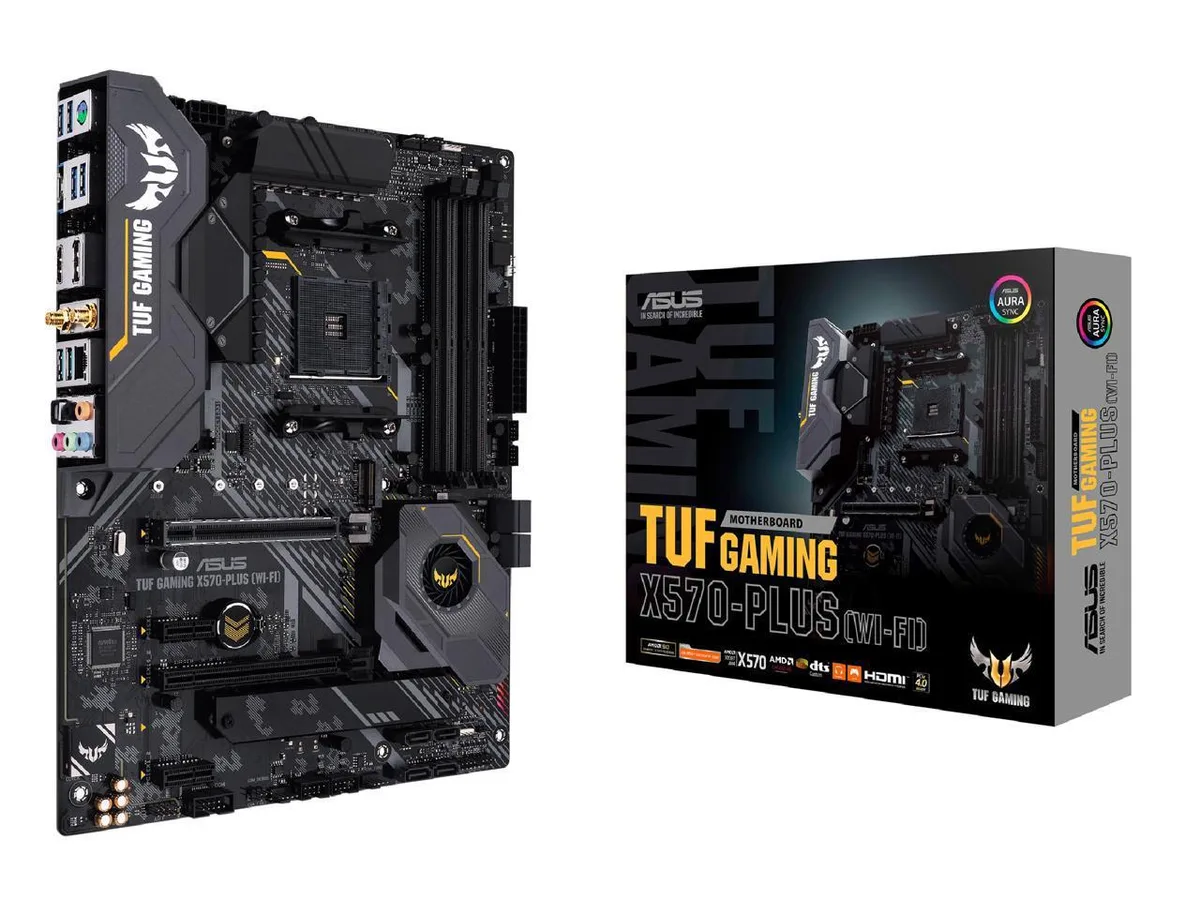

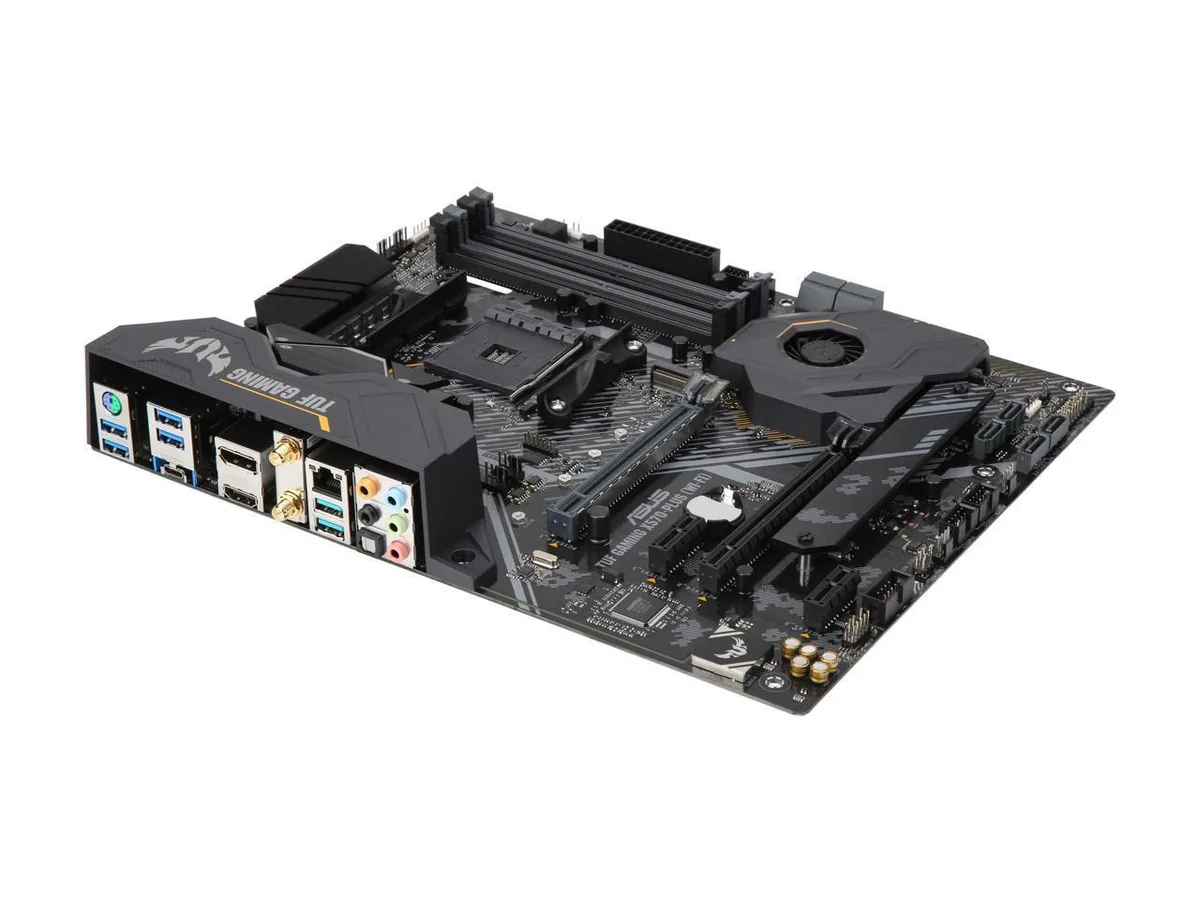

ASUS TUF Gaming X570-Plus (Wi-Fi) ATX AMD motherboard with Ryzen 5 5500

SKU CH-ANE1-N38DA

ATX board for AM4 CPUs with X570 chipset, dual M.2 slots, 128 GB DDR4 support, 1 GbE LAN, Wi-Fi 802.11 ac and Bluetooth 5.0

  • CPU TypeRyzen 5000 Series
  • ChipsetAMD X570
  • Number of Memory Slots4x288pin (DDR4)
  • Memory Standard3rd Gen AMD Ryzen Processors DDR4 4400(O.C.)/ 3466(O.C.)/ 34
  • Maximum Memory Supported128GB
  • Channel SupportedDual Channel
  • Ready for Ryzen 5000 series CPUs with AM4 socket and X570 chipset
  • 128 GB DDR4 memory capacity across four dual-channel slots
  • Dual M.2 sockets with PCIe 4.0 x4 and SATA support for fast storage
  • Realtek L8200A Gigabit LAN plus Intel Wireless-AC 9260 Wi-Fi and Bluetooth 5.0
  • Realtek S1200A codec delivers 108 dB stereo line-out and 103 dB line-in SNR

Socket AM4 Platform

The ASUS TUF Gaming X570-Plus (Wi-Fi) ATX motherboard arrives paired with a Ryzen 5 5500 processor for a ready-to-run AM4 foundation. It targets builders who want PCIe 4.0 bandwidth and dual M.2 slots without stepping up to a newer socket. The 65 W CPU keeps thermal headroom comfortable for everyday workloads.

Sustained Load Behaviour

Enhanced power delivery uses 12+2 Dr. MOS stages with ProCool socket and Digi+ VRM to maintain stable voltage during long sessions. Active PCH heatsink, VRM heatsink and M.2 heatsink combine with hybrid fan headers and Fan Xpert 4 to dissipate heat steadily. Realtek L8200A Gigabit Ethernet and Intel Wireless-AC 9260 with MU-MIMO keep network throughput consistent under load.

Build Quality and Daily Connectivity

Military-grade TUF components reinforce durability across the board. Rear I/O supplies 108 dB SNR stereo line-out via Realtek S1200A codec, optical S/PDIF, HDMI 1.4b, DisplayPort, three USB 3.2 Gen 2 and four USB 3.2 Gen 1 ports. Internal headers add two USB 2.0 and one USB 3.2 Gen 1 connectors for front-panel expansion. Bluetooth 5.0 and Aura Sync RGB round out daily usability.

Highlights

  • Ready for Ryzen 5000 series CPUs with AM4 socket and X570 chipset
  • 128 GB DDR4 memory capacity across four dual-channel slots
  • Dual M.2 sockets with PCIe 4.0 x4 and SATA support for fast storage
  • Realtek L8200A Gigabit LAN plus Intel Wireless-AC 9260 Wi-Fi and Bluetooth 5.0
  • Realtek S1200A codec delivers 108 dB stereo line-out and 103 dB line-in SNR

Specifications

BrandASUS
CPU TypeRyzen 5000 Series
ChipsetAMD X570
Number of Memory Slots4x288pin (DDR4)
Memory Standard3rd Gen AMD Ryzen Processors
DDR4 4400(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Un-buffered Memory
2nd Gen AMD Ryzen Processors
DDR4 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Un-buffered Memory
2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
DDR4 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Un-buffered Memory
Maximum Memory Supported128GB
Channel SupportedDual Channel
PCI Express 4.0 x163rd Gen AMD Ryzen Processors
1 x PCIe 4.0 x16 (x16 mode)
2nd Gen AMD Ryzen and 3rd Gen AMD Ryzen with Radeon Graphics Processors
1 x PCIe 3.0 x16 (x16 mode)
2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
1 x PCIe 3.0/2.0 x16 (x8 mode)
AMD X570 chipset
1 x PCIe 4.0 x16 (max at x4 mode)
PCI Express x12 x PCIe 4.0 x1
Serial ATA (SATA)8 x SATA 6Gb/s
M.23rd Gen AMD Ryzen Processors:
1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 4.0 x4 and SATA modes) storage devices support
2nd Gen AMD Ryzen / 3rd, 2nd and 1st Gen AMD Ryzen with Radeon Graphics Processors:
1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 3.0 x4 and SATA modes) storage devices support
AMD X570 chipset:
1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 4.0 x4 and SATA modes) storage devices support
SATA RAID0/1/10
Onboard Video ChipsetIntegrated Graphics in the 3rd, 2nd and 1st Gen AMD Ryzen with Radeon Graphics Processors
Multi-VGA output support: HDMI/DisplayPort ports
- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz
- Supports DisplayPort with max. resolution 4096 x 2160 @ 60 Hz
Audio Channels8 Channels
LAN ChipsetRealtek L8200A
Max LAN Speed1Gbps
Wireless LANIntel Wireless-AC 9260
Wi-Fi 802.11 a/b/g/n/ac
Supports dual band frequency 2.4/5 GHz
Supports MU-MIMO
Supports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transfer speed
BluetoothBluetooth 5.0
Back I/O Ports1 x PS/2 keyboard/mouse combo port(s)
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
1 x Optical S/PDIF out
5 x Audio jack(s)
4 x USB 3.2 Gen 1 (up to 5Gbps) ports
3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A + USB Type-C)
ASUS Wi-Fi module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0)
Onboard USB1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
Form FactorATX
LED LightingRGB
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
Windows 11Supported

Questions about this item

How loud and hot does the 65W Ryzen 5 5500 run with the VRM heatsink and active PCH heatsink under all-day load?

The 65W CPU pairs with military-grade TUF components, ProCool socket and Digi+ VRM plus a VRM heatsink, active PCH heatsink and M.2 heatsink; hybrid fan headers and Fan Xpert 4 let you tune airflow for sustained operation.

Which DDR4 memory kit and cooler mounting hardware must I already own to install this board and the included Ryzen 5 5500?

You need DDR4 DIMMs (up to 128GB across four 288-pin slots) and an AM4-compatible CPU cooler; the board supplies the I/O shield, M.2 screws and SATA cables in the box.

Will my existing SATA SSDs, PCIe 3.0 graphics card and USB 3.0 peripherals work without bottlenecks on the X570 chipset?

Eight SATA 6Gb/s ports, one PCIe 3.0 x16 slot for 2nd/1st Gen Ryzen or PCIe 4.0 x16 for 3rd Gen, plus four USB 3.2 Gen 1 and three USB 3.2 Gen 2 ports keep legacy drives, GPUs and peripherals at full speed.
