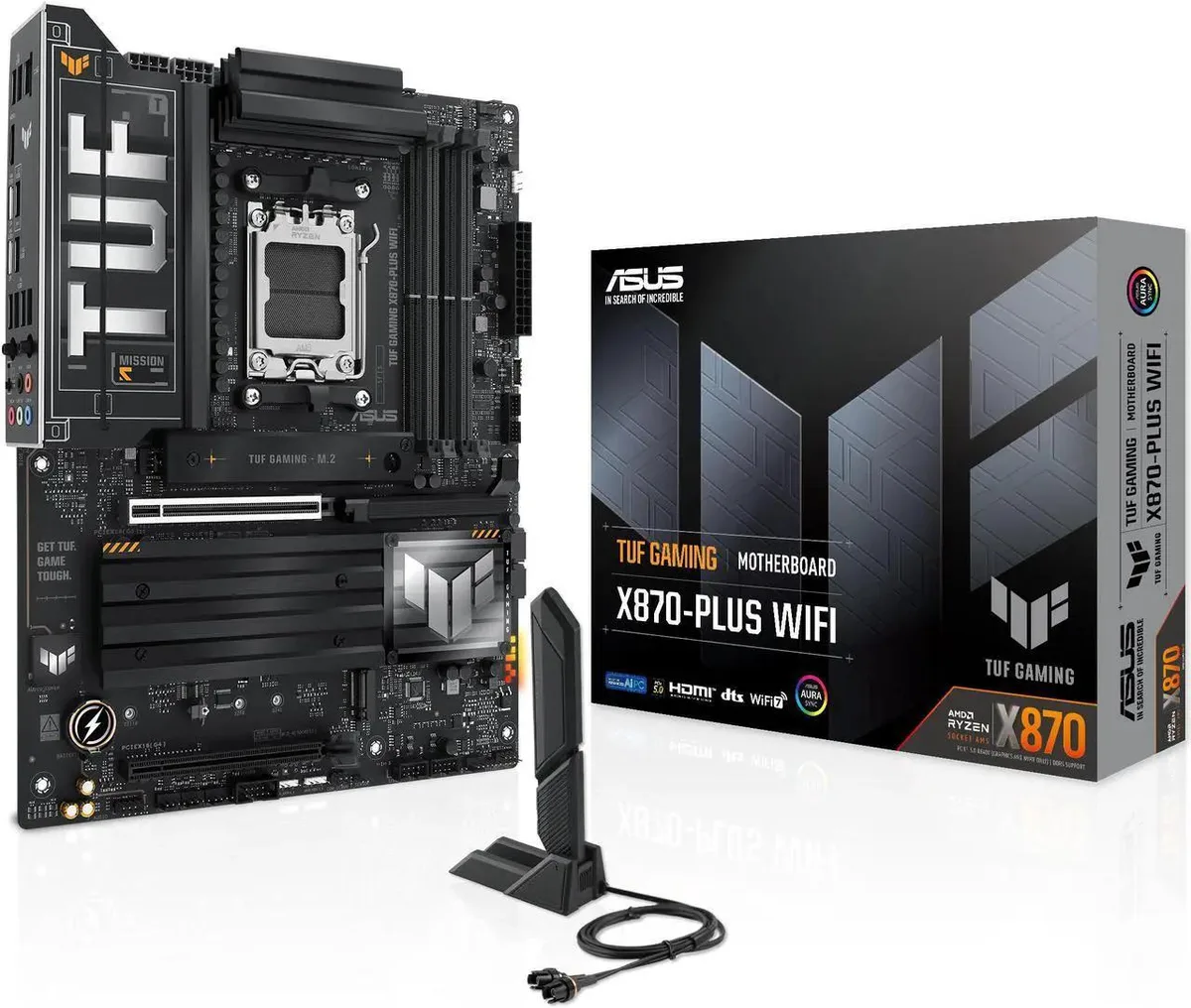

Rectangular ATX board with dark grey heatsinks, yellow TUF branding, metal-shielded I/O panel, four DDR5 slots, large M.2 covers

ASUS

ASUS TUF GAMING X870-PLUS WIFI AMD AM5 X870 ATX motherboard

SKU CH-DYCY-EHN9C

ATX board for AMD Ryzen 7000, 8000 and 9000 CPUs with 16+2+1 80A power stages, four DDR5 slots up to 256GB, two PCIe 5.0 and two PCIe 4.0 M.2 slots, Wi-Fi 7.

  • CPU Socket TypeAM5
  • ChipsetAMD X870
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 4400
  • Maximum Memory Supported256GB
  • Channel SupportedDual Channel
  • Stable power for heavy workloads with 16+2+1 80A SPS power stages
  • Two PCIe 5.0 M.2 slots plus two PCIe 4.0 slots with large heatsinks
  • Wi-Fi 7 and 2.5Gb Ethernet plus dual USB4 40Gbps Type-C ports
  • AI Overclocking AI Cooling II and AEMP simplify tuning and memory setup
  • Supports Ryzen 9000 8000 7000 series on AM5 socket with DDR5 up to 256GB

AMD AM5 Platform Ready

This ATX motherboard uses the AMD X870 chipset and AM5 socket to support Ryzen 9000, 8000 and 7000 series processors. It provides four DDR5 slots with a native 4400 speed rating and a maximum capacity of 256 GB. Dual-channel architecture, EXPO and AEMP profiles are available for memory tuning. A 16+2+1 power design with 80 A SPS stages on an 8-layer PCB delivers stable current to the CPU.

Check CPU Generation For Lane Allocation

PCIe 5.0 x16 graphics and two PCIe 5.0 M.2 slots operate at full speed only with Ryzen 9000 or 7000 series CPUs. Ryzen 8000 series processors limit the primary slot to PCIe 4.0 x8 or x4 and the M.2 slots to PCIe 4.0. Verify your processor generation before ordering to match expected bandwidth. Two SATA 6 Gbps ports and two additional PCIe 4.0 M.2 slots remain unaffected by the CPU choice.

Sustained Load Power And Thermal Design

The 80 A SPS power stages, alloy chokes and durable capacitors are built for continuous high-current delivery during long rendering or compute sessions. Massive heatsinks cover the VRM and all four M.2 slots to dissipate heat without relying on extreme airflow. AI Cooling II manages fan curves dynamically to keep temperatures stable over extended workloads rather than short bursts.

Highlights

  • Stable power for heavy workloads with 16+2+1 80A SPS power stages
  • Two PCIe 5.0 M.2 slots plus two PCIe 4.0 slots with large heatsinks
  • Wi-Fi 7 and 2.5Gb Ethernet plus dual USB4 40Gbps Type-C ports
  • AI Overclocking AI Cooling II and AEMP simplify tuning and memory setup
  • Supports Ryzen 9000 8000 7000 series on AM5 socket with DDR5 up to 256GB

Specifications

BrandASUS
ModelTUF GAMING X870-PLUS WIFI
Part Number90MB1IU0-M0AAY0
CPU Socket TypeAM5
ChipsetAMD X870
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 4400
Maximum Memory Supported256GB
Channel SupportedDual Channel
ECC SupportedYes
Buffer SupportedUn-buffered
Memory FeatureDual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
ASUS Enhanced Memory Profile (AEMP)
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
PCI Express 5.0 x16AMD Ryzen 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot (supports x16 mode)
PCI Express 4.0 x16AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
Serial ATA (SATA)2 x SATA 6Gb/s
M.2AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)**
AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot not support
AMD X870 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)***
** The PCIEX16(G5) shares bandwidth with M.2_2. The PCIEX16(G5) will run to x8 mode when M.2_2 runs.
*** The PCIEX16(G4) shares bandwidth with M.2_4.
SATA RAID* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Funciton is only supportted by AMD Ryzen 9000 series CPU.
Audio ChipsetRealtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
- Unique de-pop circuit
* Due to limitations in HDA bandwidth, 32-Bit/192
Audio Channels7.1 Channels
Back I/O Ports2 x USB4 (40Gbps) (2 x USB Type-C)
3 x USB 10Gbps ports (3 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)
1 x USB 2.0 port (1 x Type-A)
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x BIOS FlashBack button
Onboard USB1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD Fast-charge )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
1 x W_PUMP+ header
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
Windows 11Supported
FeaturesASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with SPS)
- ESD Guards
- TUF LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
Aura Sync
- Addressable Gen 2 headers
Front Panel USB 20Gbps with PD Fast Charge Support
- Support: u
Package ContentsCables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
2 x M.2 rubber packages
1 x Screw package for M.2 SSD
1 x TUF GAMING sticker
Documentation
1 x TUF certification card
1 x Quick start guide

Questions about this item

Does the motherboard include all four M.2 heatsinks or must any be bought separately?

The board ships with massive heatsinks covering the two PCIe 5.0 M.2 slots and the two PCIe 4.0 M.2 slots, so no extra heatsinks are required for any of the four M.2_1 through M.2_4 positions.

Should I pick the two PCIe 5.0 M.2 slots or the two PCIe 4.0 M.2 slots for my primary OS drive?

Use either of the two PCIe 5.0 x4 M.2 slots (M.2_1 or M.2_2) for the OS drive to get the highest sequential throughput; the PCIe 4.0 slots remain available for secondary storage.

What does the 80A SPS power-stage rating mean when I install a Ryzen 9000 series CPU?

Each of the 16 main Vcore phases can deliver up to 80 amps, giving the 16+2+1 VRM enough current headroom for high-core-count Ryzen 9000 processors under sustained heavy loads.
