ASUS

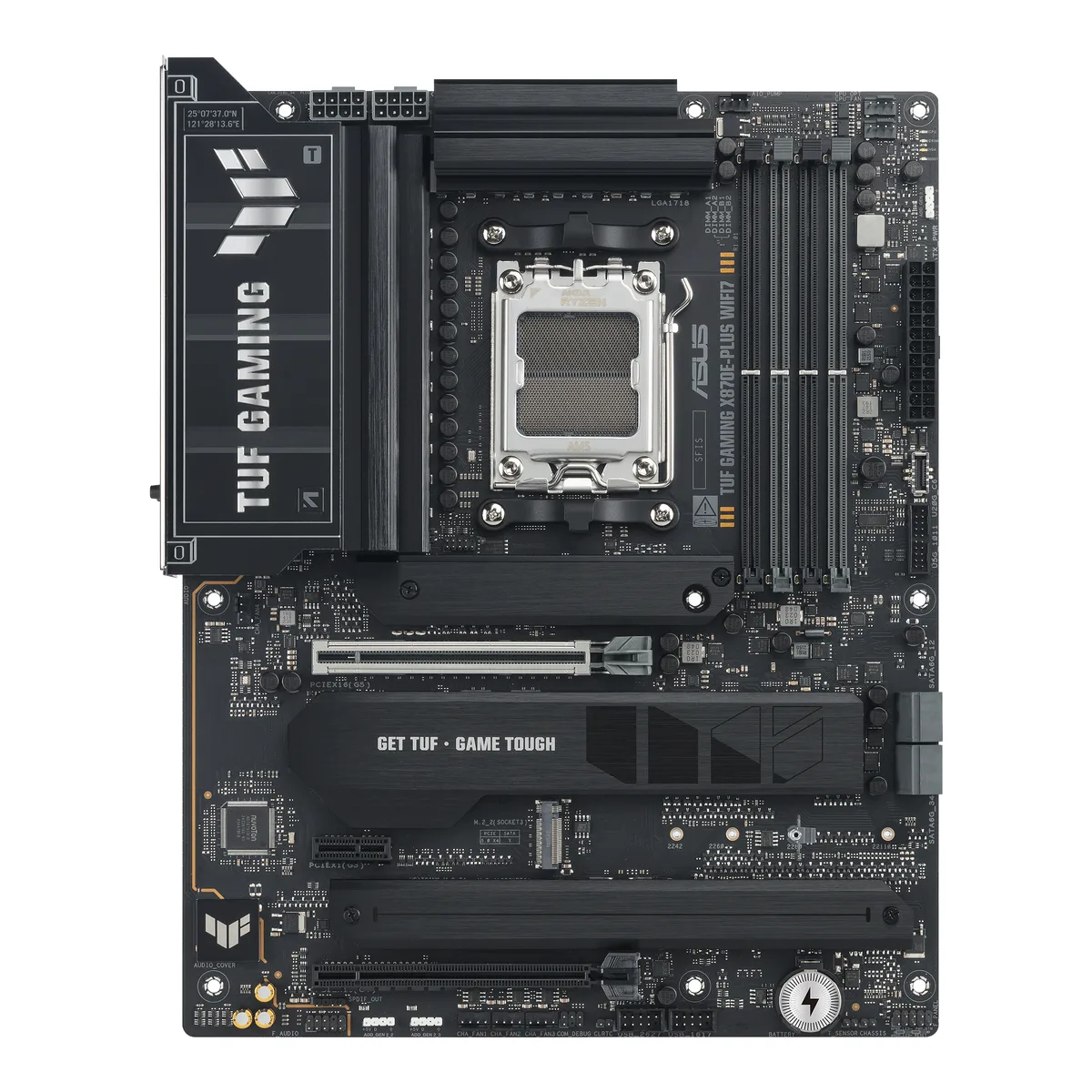

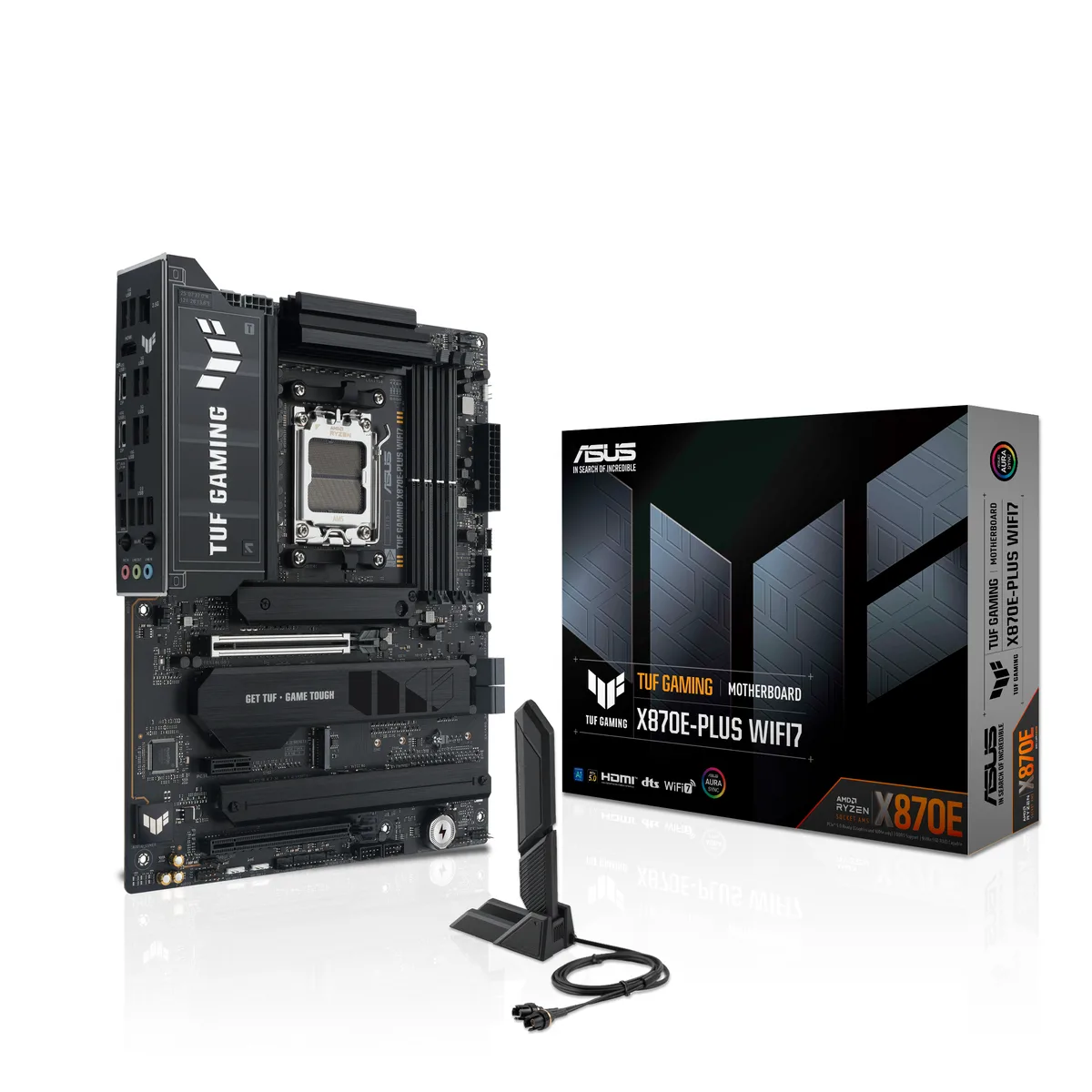

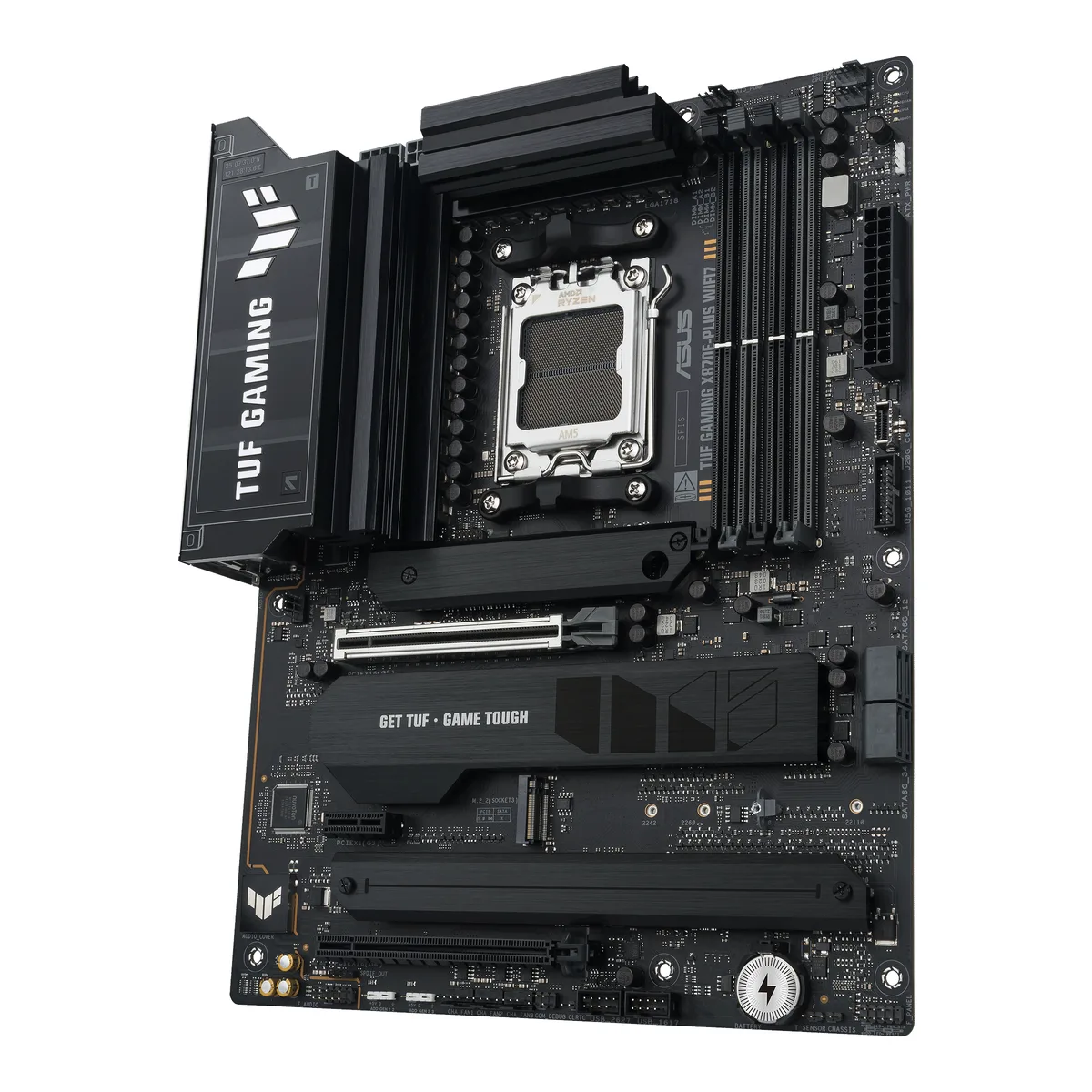

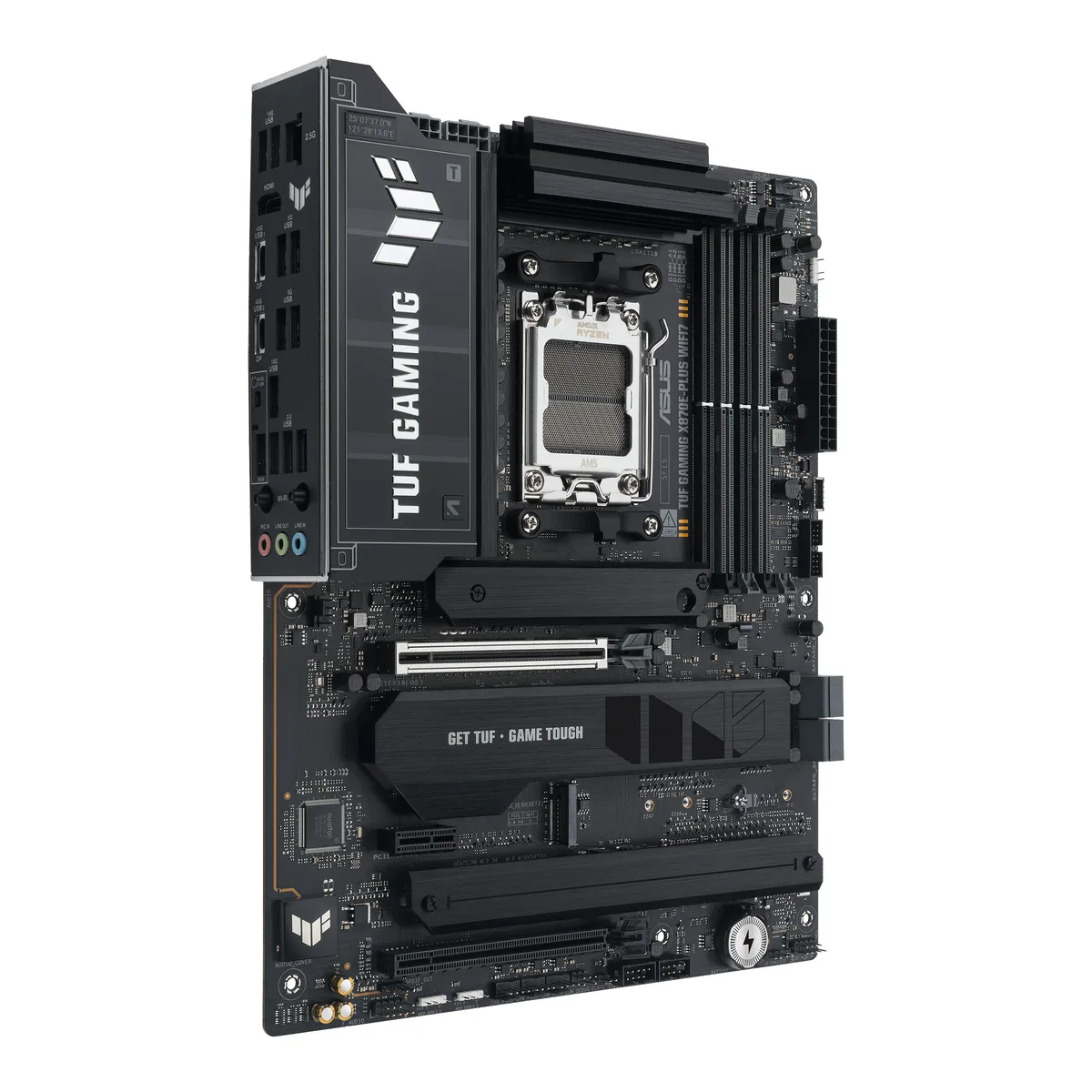

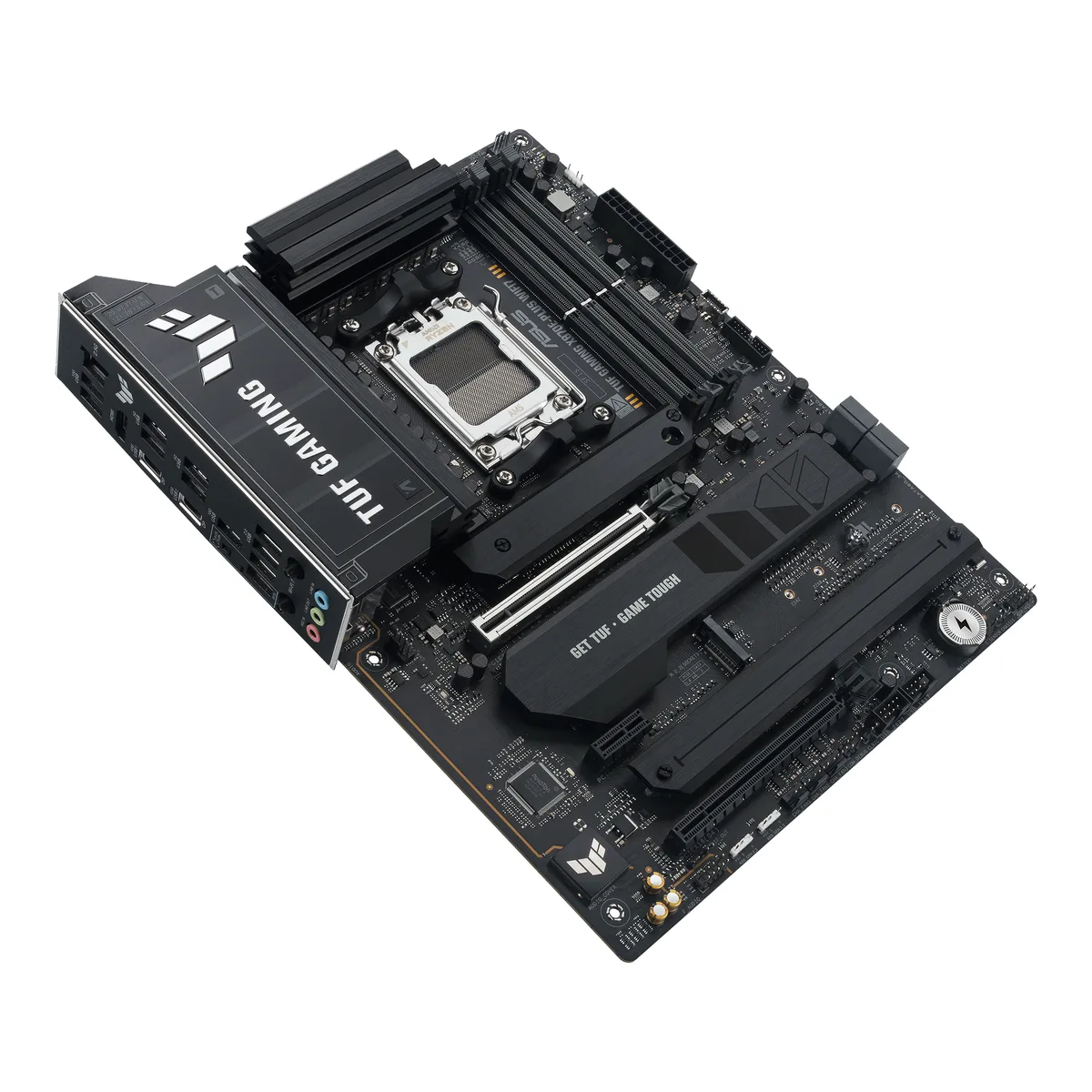

ASUS TUF GAMING X870E-PLUS WIFI7 AMD motherboard
ATX board for AM5 Ryzen 7000, 8000 and 9000 CPUs with 16+2+1 80A power stages, four DDR5 slots up to 256GB, two PCIe 5.0 M.2 slots, Wi-Fi 7.
- CPU Socket TypeAM5
- CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
- ChipsetAMD X870E
- Number of Memory Slots4x288pin (DDR5)
- Memory StandardSupports up to 8000+MT/s (OC)
- Maximum Memory Supported256GB
Option
- ASUS TUF GAMING X870E-PLUS WIFI7 AM5
- ASUS TUF GAMING X870E-PLUS WIFI7 AM5 + Sudokoo Proteus 360 AIO LCD Liquid CPU Cooler, Customizable Segment 3.4" LCD Screen, PWM Pump, TDP 320W, 30mm T
- AMD Ryzen 9 9950X3D2 Dual Edition 16-Core 4.3 GHz + ASUS TUF GAMING X870E-PLUS WIFI7 AM5
- AMD Ryzen 9 9950X3D 16-Core 4.3 GHz + ASUS TUF GAMING X870E-PLUS WIFI7 AM5
- AMD Ryzen 9 9950X Processor + ASUS TUF GAMING X870E-PLUS WIFI7 AM5
- AMD Ryzen 9 9950X Processor + ASUS TUF GAMING X870E-PLUS WIFI7 AM5 + CORSAIR Vengeance RGB Model CMH32GX5M2E6000C36
- AMD Ryzen 9 9900X Processor + ASUS TUF GAMING X870E-PLUS WIFI7 AM5
- AMD Ryzen 7 7800X3D + ASUS TUF GAMING X870E-PLUS WIFI7 AM5
Struck-through versions exist but are not stocked here.
- Stable power for heavy workloads with 16+2+1 80A power stages
- DDR5 speeds up to 8000+ MT/s via AMD EXPO and AEMP
- Two PCIe 5.0 M.2 slots plus two PCIe 4.0 M.2 slots
- Wi-Fi 7 and dual USB4 40Gbps Type-C for fast networking and I/O
- PCIe Slot Q-Release Slim and enlarged VRM heatsink simplify builds and cooling
AMD X870E ATX motherboard for Ryzen 7000 8000 9000
This ASUS TUF GAMING board uses the AMD X870E chipset and AM5 socket. It supports Ryzen 7000, 8000 and 9000 series processors with a 16+2+1 80A power stage design. Four DDR5 slots accept up to 256GB at 8000+ MT/s overclocked via AMD EXPO or ASUS AEMP. The board targets enthusiasts building high-performance AI-ready desktops.
Check CPU generation for PCIe 5.0 and M.2 speeds
With Ryzen 9000 or 7000 CPUs the primary PCIe x16 slot runs at 5.0 and two M.2 slots operate at PCIe 5.0 x4. With Ryzen 8000 CPUs the primary slot runs at 4.0 x8 or x4 and those M.2 slots drop to PCIe 4.0 x4. Verify your processor choice matches the bandwidth you need for graphics and storage. Rear USB4 40Gbps Type-C ports and front USB 20Gbps Type-C with 30W PD are available regardless of CPU.
Suits builders who want Wi-Fi 7 2.5GbE
Integrated Wi-Fi 7, Realtek 2.5Gb Ethernet and four M.2 slots (two 5.0, two 4.0) suit high-speed networking and storage-heavy builds. AI Overclocking AI Cooling II and AI Networking II simplify tuning. Builders needing more than four SATA ports or a second PCIe 5.0 x16 slot should consider alternative workstation boards.
Highlights
- Stable power for heavy workloads with 16+2+1 80A power stages
- DDR5 speeds up to 8000+ MT/s via AMD EXPO and AEMP
- Two PCIe 5.0 M.2 slots plus two PCIe 4.0 M.2 slots
- Wi-Fi 7 and dual USB4 40Gbps Type-C for fast networking and I/O
- PCIe Slot Q-Release Slim and enlarged VRM heatsink simplify builds and cooling
Specifications
| Brand | ASUS |
|---|---|
| Model | TUF GAMING X870E-PLUS WIFI7 |
| Part Number | 90MB1M70-MVAAY0 |
| CPU Socket Type | AM5 |
| CPU Type | Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series |
| Chipset | AMD X870E |
| Number of Memory Slots | 4x288pin (DDR5) |
| Memory Standard | Supports up to 8000+MT/s (OC) |
| Maximum Memory Supported | 256GB |
| Channel Supported | Dual Channel |
| Memory Performance Profile | AMD EXPO |
| ECC Supported | Yes |
| Buffer Supported | Un-buffered |
| Memory Feature | Supports up to 8000+MT/s (OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO) ASUS Enhanced Memory Profile (AEMP) |
| PCI Express 5.0 x16 | AMD Ryzen 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) |
| PCI Express 4.0 x16 | 1 x PCIe 4.0 x16 slot (supports x4 mode) |
| PCI Express x1 | 1 x PCIe 3.0 x1 Slot |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
| M.2 | AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)** AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot is not supported AMD X870 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) ** M.2_2 slot shares bandwidth with PCIex16(G5)_1 When M.2_2 runs at PCIe x4 mode, PCIex16(G5)_1 will run x8. |
| SATA RAID | AMD RAIDXpert2 Technology Ryzen 9000 Series Processors: RAID 0/1/5/10 Ryzen 8000 Series Processors: RAID 0/1 Ryzen 7000 Series Processors: RAID 0/1/10 |
| Audio Channels | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback*" Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers - Audio cover - Unique de-pop circuit * Due to limitations in HDA bandwidth, 32-Bit/19 |
| Max LAN Speed | 2.5Gbps |
| Wireless LAN | Wi-Fi 802.11 be |
| Bluetooth | Yes |

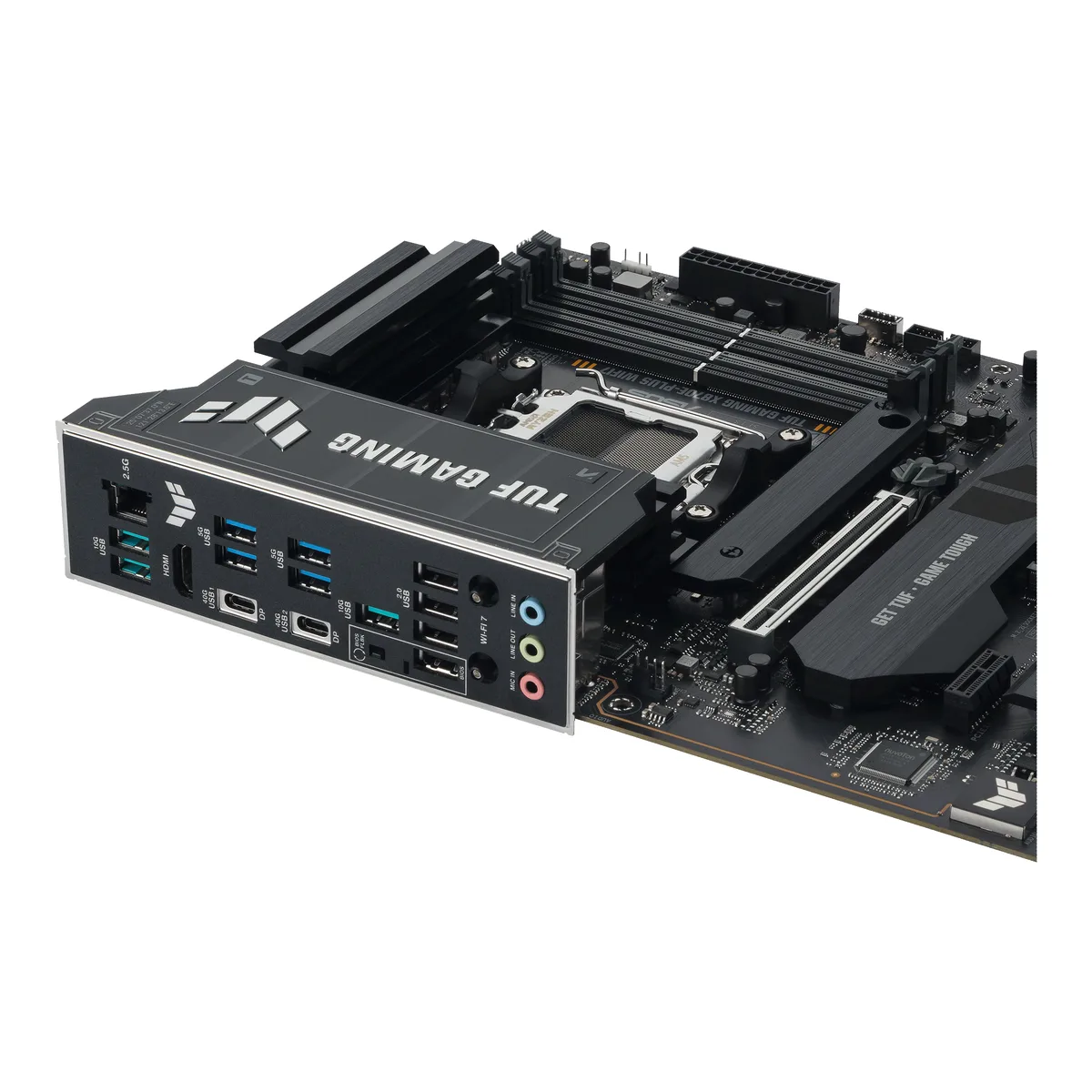

| Back I/O Ports | 2 x USB4 (40Gbps) ports (2 x USB Type-C) 3 x USB 10Gbps ports (3 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x HDMI port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack button |
| Onboard USB | 1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD Fast-charge) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Other Connectors | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header |
| Form Factor | ATX |
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors |
| BIOS Feature | 256 Mb Flash ROM, UEFI AMI BIOS |
| Software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) ASUS AI Advisor ASUS DriverHub ASUS GlideX USB Wattage Watcher TurboV Core TUF GAMING CPU-Z DTS Audio Processing Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey |
| Windows 11 | Supported |
| Features | ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with SPS) - ESD Guards - TUF LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - M.2 Q-Latch - Q-Release Slim (with PCIe SafeSlot) - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsinks - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - ProCool - Pre-mounted I/O shield - SafeDIMM Aura Sync - Addressable Gen 2 headers Front Panel USB 20Gbps with PD Fast Charge Sup |
| Package Contents | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS WiFi Q-Antenna 2 x M.2 rubber packages 1 x Screw package for M.2 SSD 1 x TUF GAMING sticker Documentation 1 x Quick start guide |
| Shipping weight | 2.25 kg |
| Package size | 356 × 267 × 76 mm |
Questions about this item
What comes in the box with the ASUS TUF GAMING X870E-PLUS WIFI7 and what must I buy separately?
The motherboard includes the ASUS Q-Antenna for Wi-Fi 7, SATA cables, M.2 screws and a user guide. You must purchase a compatible Ryzen 7000, 8000 or 9000 series CPU, DDR5 memory modules, storage drives, a graphics card and an ATX power supply separately.
Which M.2 slot version should I use for the fastest PCIe 5.0 x4 drive on this board?
Use the M.2_1 or M.2_2 slot; both support PCIe 5.0 x4 mode with Ryzen 9000 and 7000 series processors. With Ryzen 8000 series CPUs those slots operate at PCIe 4.0 x4 speeds instead.
What does the 16+2+1 80A power-stage design mean for daily use with a Ryzen 9000 processor?
The 16+2+1 80A power stages deliver stable current to the CPU cores, SoC and memory controller, helping maintain boost clocks during heavy workloads while the 8-layer PCB and alloy chokes keep temperatures lower.
