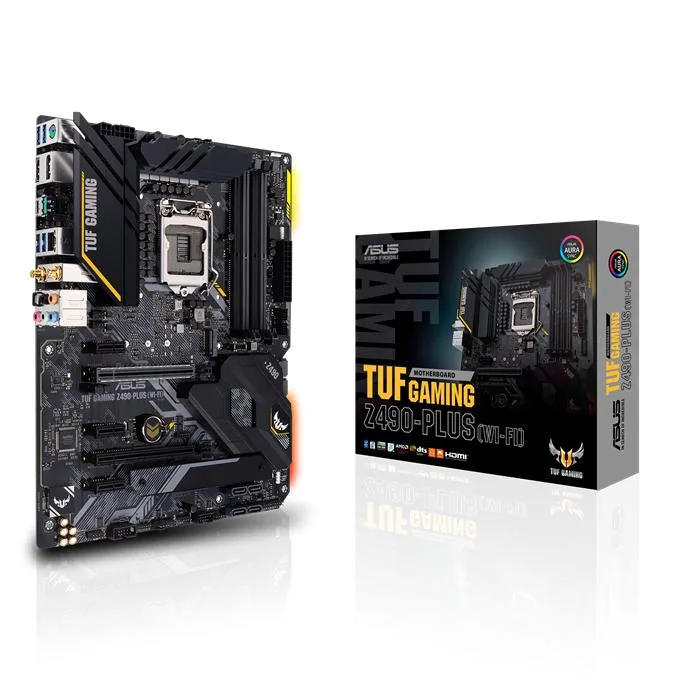

ATX motherboard with dark PCB, grey VRM heatsinks, M.2 shield and rear I/O cover

ASUS

ASUS TUF GAMING Z490-PLUS (WI-FI) LGA1200 Z490 DDR4 ATX Intel motherboard

SKU CH-6JT3-BPE24

ATX board for 10th Gen Intel Core with DDR4 to 4600 MHz, WiFi 6, dual M.2 and 1 Gb Ethernet

  • CPU Socket TypeLGA 1200
  • CPU TypeIntel Socket LGA1200 for 10th Gen Intel Core, Pentium Gold a
  • Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0** ** The support o
  • ChipsetIntel Z490
  • Number of Memory Slots4x288pin (DDR4)
  • Memory StandardDDR4 4600(O.C)/ 4500(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)
  • Supports 10th Gen Intel Core processors via LGA 1200 socket
  • 12+2 DrMOS power stages with 6-layer PCB for stable delivery
  • DDR4 memory overclocking up to 4600 MHz across four slots
  • Intel WiFi 6 plus Intel I219-V 1Gb Ethernet for dual connectivity
  • Two M.2 slots and six SATA 6Gb/s ports for storage flexibility

TUF GAMING Z490-PLUS (WI-FI) for 10th Gen Intel

The ASUS TUF GAMING Z490-PLUS (WI-FI) is an ATX motherboard built for 10th Gen Intel Core, Pentium Gold and Celeron processors using the LGA 1200 socket. It targets gamers and system builders who want a durable platform with military-grade TUF components and a 12+2 DrMOS power stage design. The board uses the Intel Z490 chipset and includes integrated Intel WiFi 6 and 1Gb Ethernet.

DDR4 4600 MHz overclocking support across four slots

Memory capacity scales to 128 GB over four 288-pin DDR4 slots running in dual-channel mode. The board validates a wide range of overclocked speeds up to 4600 MHz and native speeds down to 2133 MHz depending on the installed CPU. This single specification determines whether your chosen memory kit will run at its rated frequency without manual tuning.

Two M.2 slots, six SATA ports

The primary M.2 slot accepts 2242, 2260, 2280 and 22110 drives while the second takes 2242, 2260 and 2280 drives; both operate in PCIe 3.0 x4 or SATA modes. Six SATA 6Gb/s ports support RAID 0/1/5/10. Rear I/O supplies USB 3.2 Gen 2 Type-A and Type-C, and a front-panel USB 3.2 Gen 2 Type-C header is provided for case connectivity.

Highlights

  • Supports 10th Gen Intel Core processors via LGA 1200 socket
  • 12+2 DrMOS power stages with 6-layer PCB for stable delivery
  • DDR4 memory overclocking up to 4600 MHz across four slots
  • Intel WiFi 6 plus Intel I219-V 1Gb Ethernet for dual connectivity
  • Two M.2 slots and six SATA 6Gb/s ports for storage flexibility

Specifications

BrandASUS
ModelTUF GAMING Z490-PLUS (WI-FI)
CPU Socket TypeLGA 1200
CPU TypeIntel Socket LGA1200 for 10th Gen Intel Core, Pentium Gold and Celeron processors*
* Refer to www.asus.com for CPU support list.
Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0**
** The support of these features depends on the CPU types.
ChipsetIntel Z490
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 4600(O.C)/ 4500(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory*
* 10th Gen Intel Core i9/i7 CPUs support 2933/ 2800/ 2666/ 2400/ 2133 natively, refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported128GB
Channel SupportedDual Channel
PCI Express 3.0 x16Intel Socket 1200*
1 x PCIe 3.0 x16 slot (support x16 modes)
Intel Z490 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)
* Support PCIe bifurcation for RAID on CPU function.
PCI Express x13 x PCIe 3.0 x1 slots
Serial ATA (SATA)6 x SATA 6Gb/s
M.2M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)*
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)**
* M.2_1 shares bandwidth with SATA6G_2. When M.2_1 runs SATA mode, SATA6G_2 will be disabled.
** M.2_2 shares bandwidth with SATA6G_56. When M.2_2 is occupied, SATA6G_56 will be disabled.
Intel Optane ReadyYes
SATA RAID0/1/5/10
Audio ChipsetRealtek S1220A High Definition Audio CODEC
Audio Channels8 Channels
* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
LAN ChipsetIntel I219-V
Max LAN Speed1Gbps
Wireless LANIntel Wi-Fi 6 AX201
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) with MU-MIMO
Supports up to 2.4/5GHz transfer speed
Supports channel bandwidth: HT20/HT40/HT80/HT160
Supports CNVI interface
BluetoothBluetooth v5.1
* BT 5.1 function will be ready in Windows 10 build 19041 later.
Back I/O Ports2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x ASUS Wi-Fi Module
1 x Intel I219-V 1Gb Ethernet
5 x Audio jacks
1 x Optical S/PDIF out port
1 x PS/2 Keyboard/Mouse combo port
Onboard USB1 x USB 3.2 Gen 2 Front Panel connector (suppports USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports additional 2 USB 2.0 ports
1 x USB 2.0 header supports additional 1 USB 2.0 port (4-pin)
Other ConnectorsFan and cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Miscellaneous
1 x AURA Addressable Gen 2 header
2 x AURA RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x 20-3 System Panel header with Chassis intrude function
1 x Thunderbolt header
Form FactorATX
LED LightingRGB
Power Pin1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
FeaturesMulti-GPU Support:
Supports AMD 2-Way CrossFireX Technology
Special Features:
ASUS TUF PROTECTION
- ASUS DIGI+ VRM (- Digital power design with Dr. MOS)
- ASUS Enhanced DRAM Overcurrent Protection
- ASUS ESD Guards
- TUF LANGuard
- ASUS Overvoltage Protection
- ASUS SafeSlot
- ASUS Stainless-Steel Back I/O
ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- ASUS Q-Slot
ASUS Thermal Solution
- Stylish heatsink
ASUS EZ DIY
- Procool
AURA Sync
- Standard RGB headers
- Addressable Gen 2 RGB header
Software Features:
ASUS Exclusiv
Package ContentsAccessories:
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 Screw Package
1 x M.2 Rubber Package
1 x TUF GAMING sticker
1 x ASUS 2x2 dual band Wi-Fi moving antennas
Installation Media
1 x Support DVD
Documentation
1 x TUF Certification card
1 x User manual

Questions about this item

What does the DDR4 4600(O.C.) rating mean once the memory is installed?

The board can run DDR4 modules at up to 4600 MHz when overclocked; actual speed depends on the CPU and memory kit used.

What interface do the M.2 slots use and what throughput does it cap at?

Both M.2 slots run over PCIe 3.0 x4, limiting each drive to 32 Gbps maximum bandwidth.

What physical space and mounting points does the ATX board need in a case?

Standard ATX dimensions require a case with ATX motherboard standoffs and an I/O shield cut-out.
