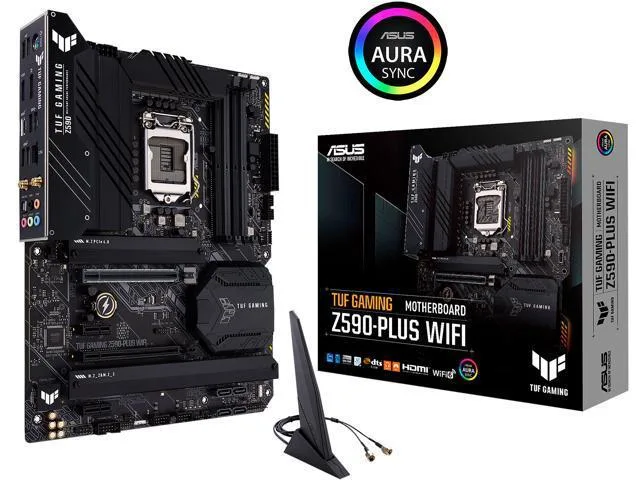

ATX motherboard with black and grey heatsinks, large VRM cooling, three M.2 covers, rear I/O shield, yellow TUF branding

ASUS

ASUS TUF Gaming Z590-Plus WiFi 6 Intel motherboard

SKU CH-X2X8-4KXXM

Supports 10th and 11th Gen Intel Core processors with 14+2 DrMOS power stages, triple M.2 slots, 2.5 Gb LAN and WiFi 6

  • CPU Socket TypeLGA 1200
  • CPU TypeCore i9 / i7 / i5 / i3 (11th / 10th Gen, LGA1200)
  • Supported CPU TechnologiesTurbo Boost Technology 3.0
  • ChipsetIntel Z590
  • Onboard Video ChipsetSupported only by CPU with integrated graphic
  • Number of Memory Slots4x288pin (DDR4)
  • Supports 11th and 10th Gen Intel Core processors via LGA 1200 socket
  • 14+2 DrMOS power stages with ProCool sockets and Digi+ VRM for stable delivery

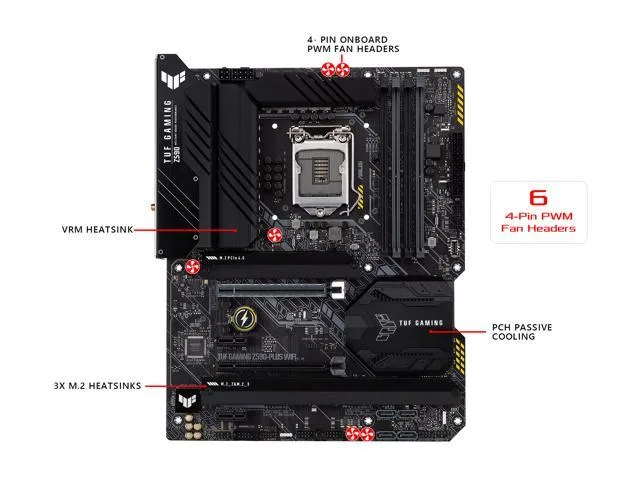

  • VRM heatsink, PCH fanless heatsink, M.2 heatsink and Fan Xpert 4 utility keep temperatures low
  • Intel WiFi 6 AX201 and 2.5Gb LAN with TUF LANGuard and TurboLAN technology
  • Three M.2 slots for NVMe SSDs plus front-panel USB 3.2 Gen 1 Type-C and Thunderbolt 4 header

LGA 1200 ATX board for 10th and 11th Gen Intel Core

The ASUS TUF Gaming Z590-Plus WiFi 6 fits the LGA 1200 socket and supports Core i9, i7, i5 and i3 processors from the 10th and 11th generations. It delivers a 14+2 DrMOS power stage design with ProCool sockets and military-grade TUF components. Builders get an ATX form factor with comprehensive cooling including VRM heatsink, PCH fanless heatsink and M.2 heatsink.

PCIe 4.0 and DDR4 3200 define the throughput ceiling

The Z590 chipset enables one PCI Express 4.0 x16 slot and one PCI Express 3.0 x16 slot alongside two PCI Express x1 slots. Memory tops out at DDR4 3200 across four 288-pin slots in dual-channel mode with a maximum capacity of 128 GB. Storage connectivity includes six SATA 6Gb/s ports and three M.2 sockets. Networking uses Intel WiFi 6 AX201 and Intel I225-V 2.5Gb LAN.

Three M.2 sockets set the storage limit

Three M.2 slots provide the primary pathway for high-speed NVMe SSDs on this board. The count directly determines how many fast drives can be installed without adding expansion cards. Rear I/O adds a USB 3.2 Gen 1 Type-C front-panel header and a Thunderbolt 4 header. Audio runs through Realtek ALC S1200A 7.1 channels.

Highlights

  • Supports 11th and 10th Gen Intel Core processors via LGA 1200 socket
  • 14+2 DrMOS power stages with ProCool sockets and Digi+ VRM for stable delivery
  • VRM heatsink, PCH fanless heatsink, M.2 heatsink and Fan Xpert 4 utility keep temperatures low
  • Intel WiFi 6 AX201 and 2.5Gb LAN with TUF LANGuard and TurboLAN technology
  • Three M.2 slots for NVMe SSDs plus front-panel USB 3.2 Gen 1 Type-C and Thunderbolt 4 header

Specifications

BrandASUS
ModelTUF GAMING Z590-PLUS WIFI
CPU Socket TypeLGA 1200
CPU TypeCore i9 / i7 / i5 / i3 (11th / 10th Gen, LGA1200)
Supported CPU TechnologiesTurbo Boost Technology 3.0
ChipsetIntel Z590
Onboard Video ChipsetSupported only by CPU with integrated graphic
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 3200
Maximum Memory Supported128GB
Channel SupportedDual Channel
PCI Express 4.0 x161 x PCI Express 4.0 x16
PCI Express 3.0 x161 x PCI Express 3.0 x16
PCI Express x12 x PCI Express x1
Serial ATA (SATA)6 x SATA 6Gb/s
M.23 x M.2
Intel Optane ReadyYes
Audio ChipsetRealtek ALC S1200A
Audio Channels7.1 Channels
LAN ChipsetIntel I225-V
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 ax
BluetoothYes

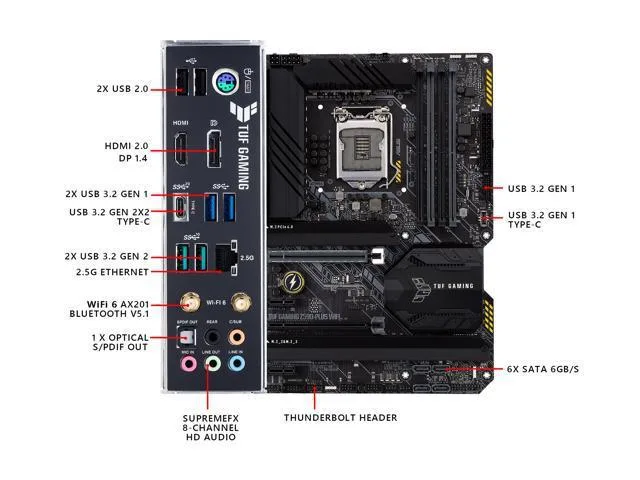

Back I/O Ports1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)2 x USB 3.2 Gen 2 ports (2 x Type-A)2 x USB 3.2 Gen 1 ports (2 x Type-A)2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort1 x HDMI port1 x ASUS Wi-Fi Module1 x Intel I225-V 2.5Gb Ethernet port5 x Audio jacks 1 x Optical S/PDIF out port1 x PS/2 Keyboard/Mouse combo port
Onboard USB3 x USB 3.2 + 4 x USB 2.0
Other ConnectorsFan and Cooling related 1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header3 x 4-pin Chassis Fan headersMiscellaneous2 x AURA Addressable Gen 2 headers2 x AURA RGB headers1 x Clear CMOS header1 x COM Port header1 x Front Panel Audio header (AAFP) 1 x 20-3-pin System Panel header with Chassis intrude function1 x Thunderbolt header
Windows 11Supported
Form FactorATX
LED LightingRGB
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector1 x 8-pin +12V Power connector1 x 4-pin +12V Power connector
FeaturesSpecial Features:ASUS TUF PROTECTION- DIGI+ VRM (- Digital power design with DrMOS)- Enhanced DRAM Overcurrent Protection- TUF LANGuard - Overvoltage ProtectionASUS Q-Design - M.2 Q-Latch- Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])- Q-SlotASUS Thermal Solution- M.2 heatsink- VRM heatsink designASUS EZ DIY- ProCool- Pre-mounted I/O shield- SafeSlotAURA Sync- AURA RGB headers- Addressable Gen 2 RGB headersSoftware Features:ASUS Exclusive SoftwareArmoury Crate- AURA Creator- AURA Sync- Two-Way AI Noise CancelationAI Suite 3- Performance And Power S
Package ContentsAccessories:Cables:2 x SATA 6Gb/s cables Miscellaneous:1 x ASUS Wi-Fi moving antennas 2 x M.2 Rubber Packages1 x M.2 SSD screw package1 x TUF Gaming stickerInstallation Media:1 x Support DVDDocumentation:1 x TUF Certification card1 x User manual

Questions about this item

Will an Intel Core i5 from the 11th generation fit this LGA 1200 socket?

Yes, the board uses the LGA 1200 socket which supports 11th and 10th generation Intel Core i9, i7, i5 and i3 processors.

Can I install three NVMe SSDs and still use the PCIe 4.0 graphics slot at full speed?

The board provides three M.2 slots and one PCI Express 4.0 x16 slot for a graphics card.

What memory speed and capacity can I use with four DDR4 slots?

Four 288-pin DDR4 slots support up to 128 GB total in dual-channel mode with a rated speed of 3200.
