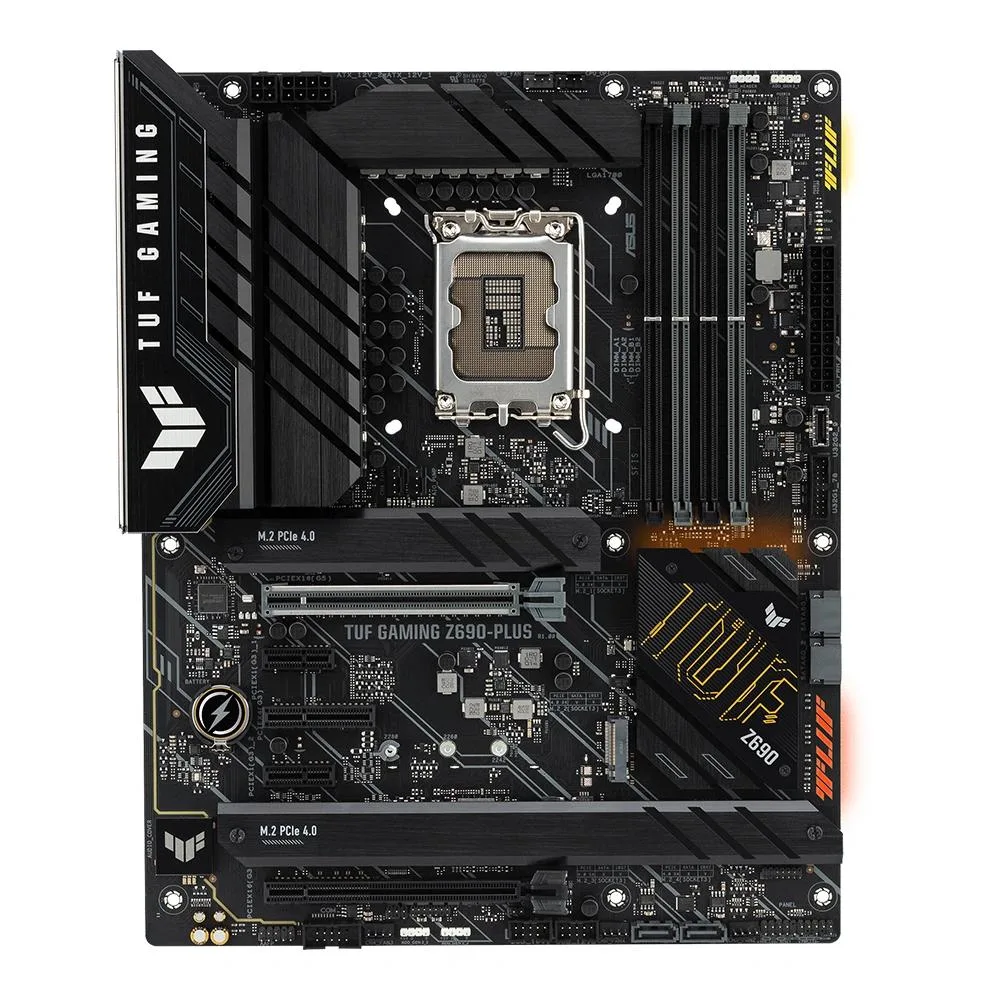

ATX motherboard dark PCB silver heatsinks four DDR5 slots LGA 1700 socket

ASUS

ASUS TUF GAMING Z690-PLUS Intel motherboard LGA 1700 DDR5 192GB ATX

SKU CH-5ZFS-6W1MF

ATX Intel Z690 board with LGA 1700 socket, DDR5 up to 192GB, PCIe 5.0 x16, 2.5Gb LAN and 7.1 audio

  • CPU Socket TypeLGA 1700
  • CPU TypeIntel LGA1700 slot, supports 13th generation Intel, Core, pr
  • ChipsetIntel Z690
  • Memory StandardSupport dual-channel DDR5 6000 (OC)/5800 (OC)/5600 (OC)/5400
  • Maximum Memory Supported192GB
  • PCI Slots13th/12th generation Intel, processor * 1 x PCIe 5.0 x16 slo
  • Supports 12th and 13th gen Intel Core processors with LGA 1700 socket
  • Dual-channel DDR5 memory up to 192 GB at speeds from 4800 to 6000 MHz
  • PCIe 5.0 x16 slot plus PCIe 3.0 x16, x4 and x1 slots for expansion
  • Realtek 7.1 surround audio and Intel 2.5 Gb LAN with TUF LANGuard
  • Rear USB includes one USB 3.2 Gen 2x2 Type-C, two Gen 2 Type-A and five Gen 1 ports

Socket LGA 1700 ATX motherboard

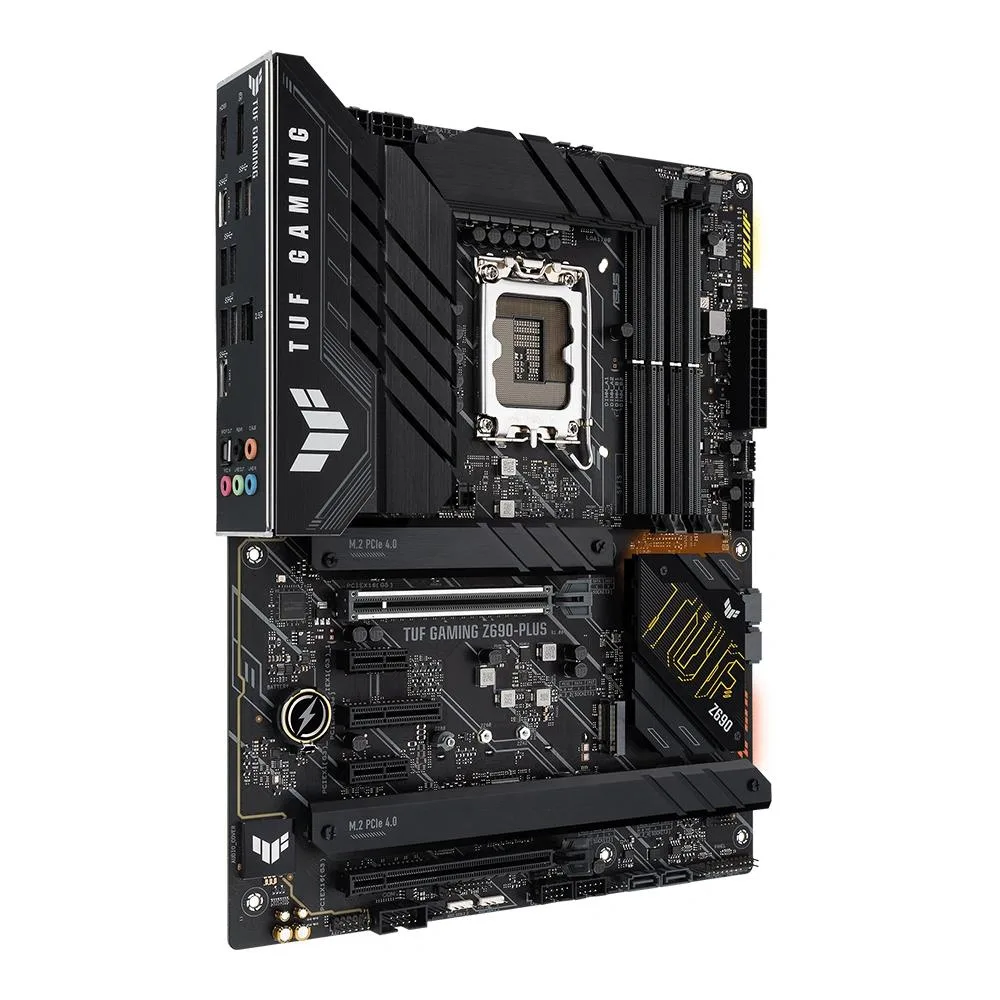

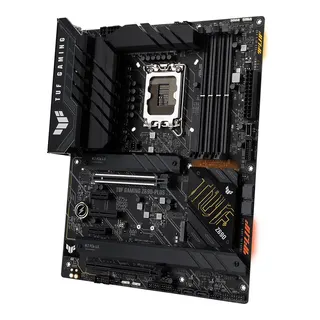

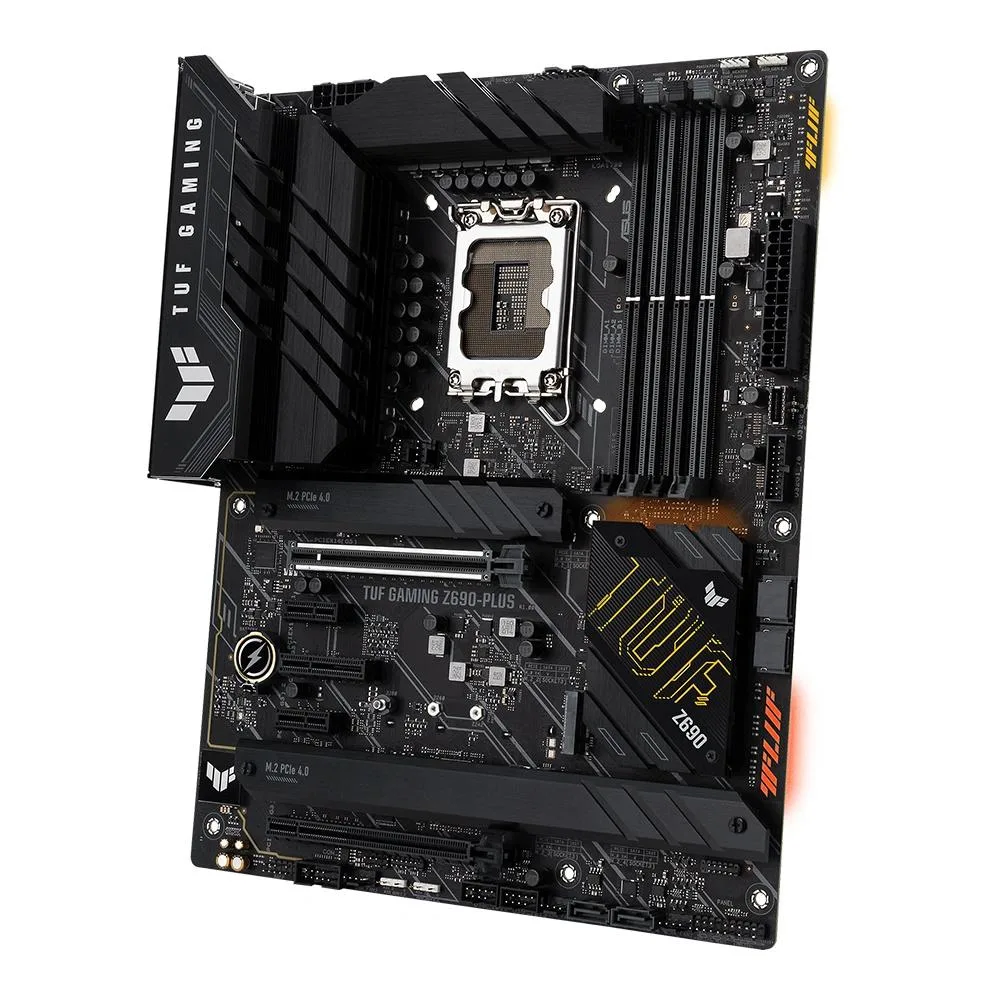

The ASUS TUF GAMING Z690-PLUS is an ATX motherboard built for Intel LGA 1700 processors. It supports 12th and 13th generation Intel Core, Pentium Gold and Celeron CPUs with Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0. The Intel Z690 chipset provides the platform foundation for high-performance desktop builds.

DDR5 memory support up to 192GB

Four DDR5 slots accept dual-channel memory kits at speeds from 4800 up to 6000 (OC) MHz, reaching a maximum capacity of 192GB. The board includes one SATA cable and a chassis I/O back panel as the only bundled accessories. No additional cables, driver media or software packages are supplied in the package.

PCIe 5.0 x16 and 2.5Gb LAN limits

A single PCIe 5.0 x16 slot connects directly to the CPU for graphics or high-speed add-in cards. The chipset contributes one PCIe 3.0 x16 slot running at x4 mode, one PCIe 3.0 x4 slot and two PCIe 3.0 x1 slots. Networking is handled by an Intel 2.5Gb Ethernet controller with TUF LANGuard protection.

Highlights

  • Supports 12th and 13th gen Intel Core processors with LGA 1700 socket
  • Dual-channel DDR5 memory up to 192 GB at speeds from 4800 to 6000 MHz
  • PCIe 5.0 x16 slot plus PCIe 3.0 x16, x4 and x1 slots for expansion
  • Realtek 7.1 surround audio and Intel 2.5 Gb LAN with TUF LANGuard
  • Rear USB includes one USB 3.2 Gen 2x2 Type-C, two Gen 2 Type-A and five Gen 1 ports

Specifications

BrandASUS
SeriesASUS TUF GAMING Z690-PLUS
ModelASUS TUF GAMING Z690-PLUS
CPU Socket TypeLGA 1700
CPU TypeIntel LGA1700 slot, supports 13th generation Intel, Core, processors and 12th generation Intel, Core, Pentium Gold and Celeron, processors support Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
ChipsetIntel Z690
Memory StandardSupport dual-channel DDR5 6000 (OC)/5800 (OC)/5600 (OC)/5400 (OC)/5200 (OC)/5000 (OC)/4800MHz memory
Maximum Memory Supported192GB
PCI Slots13th/12th generation Intel, processor * 1 x PCIe 5.0 x16 slot Intel Z690 chipset ** 1 x PCIe 3.0 x16 slot (supports x4 mode) 1 x PCIe 3.0 x4 slot 2 x PCIe 3.0 x1 slot * Please refer to the PCIe branch list on the official support website. ** Intel Optane memory H series is supported on PCH-attached PCIe slots.
SATA RAID4xM.2 interface, 4xSATA III interface
Audio ChipsetRealtek 7.1 surround sound high fidelity audio chip *
LAN Chipset1 x Intel 2.5Gb network interface card
TUF LANGuard cyber security
Onboard USBRear panel USB (8 connection ports in total)
1 x USB 3.2 Gen 2x2 connection port (1 x USB Type-C)
2 x USB 3.2 Gen 2 connection ports (2 x Type-A)
5 x USB 3.2 Gen 1 connection ports (4 x Type-A + 1 x USB Type-C)
Front panel USB (7 connection ports in total)
1 x USB 3.2 Gen 2 connection port (supports USB Type-C)
1 x USB 3.2 Gen 1 connection port expandable 2 USB 3.2 Gen 1 connection port
2 x USB 2.0 connection ports expandable 4 USB 2.0 connection ports

Questions about this item

What maintenance or replacement will the included metal battery need later?

The board ships with a metal battery and a SATA cable; no other accessories are included, so the battery is the only on-board component that may eventually need replacement.

Which limit appears first under sustained load — the VRM cooling or the PCIe 5.0 slot bandwidth?

The single PCIe 5.0 x16 slot runs at full 5.0 speed from the CPU, while the chipset-linked slots stop at PCIe 3.0 x4 or x1, so chipset lane bandwidth is the first ceiling in multi-device workloads.

How much noise, heat or power does the Intel 2.5Gb LAN and Realtek 7.1 audio add when the system runs all day?

The Intel 2.5Gb network controller and Realtek 7.1 audio codec are integrated on the board and draw minimal power; they do not add active cooling or audible noise during continuous operation.
