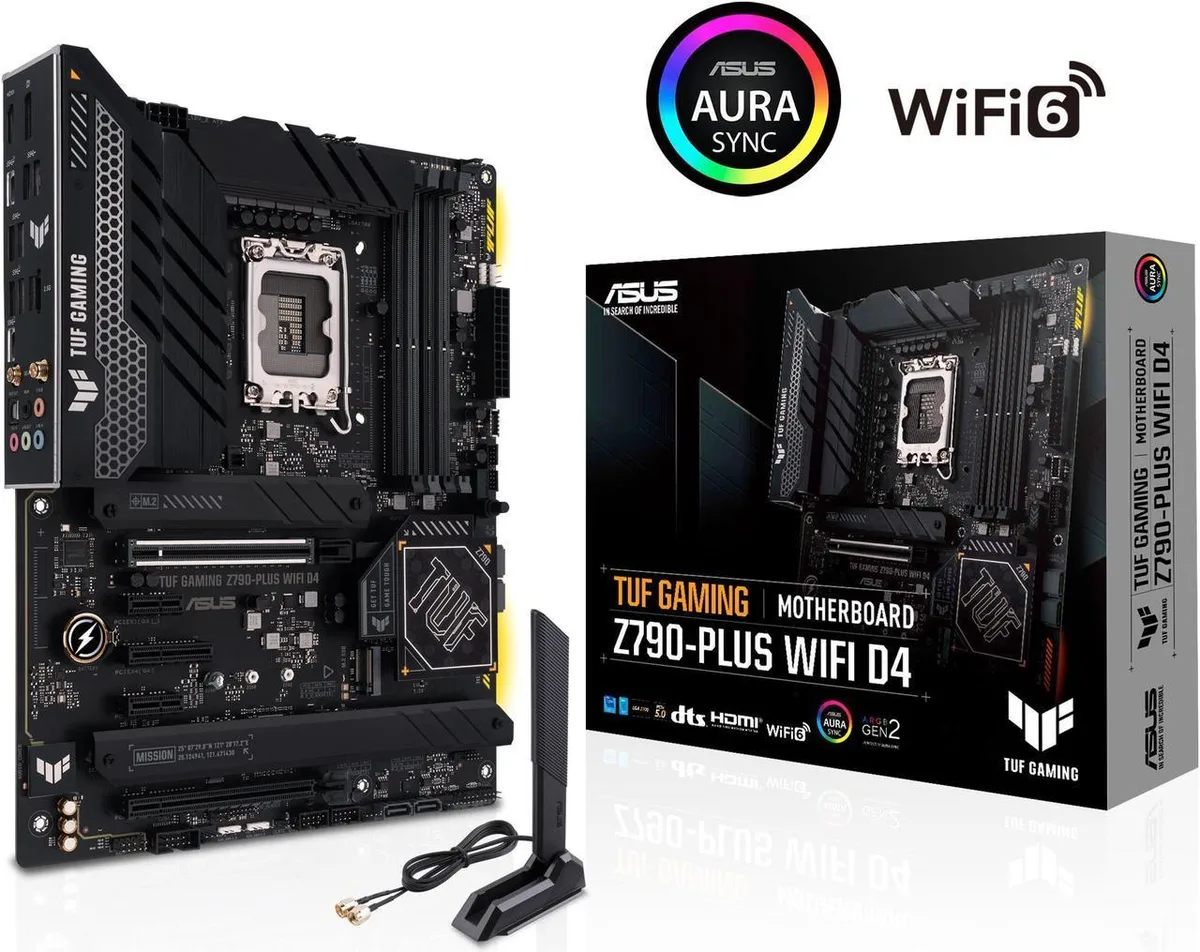

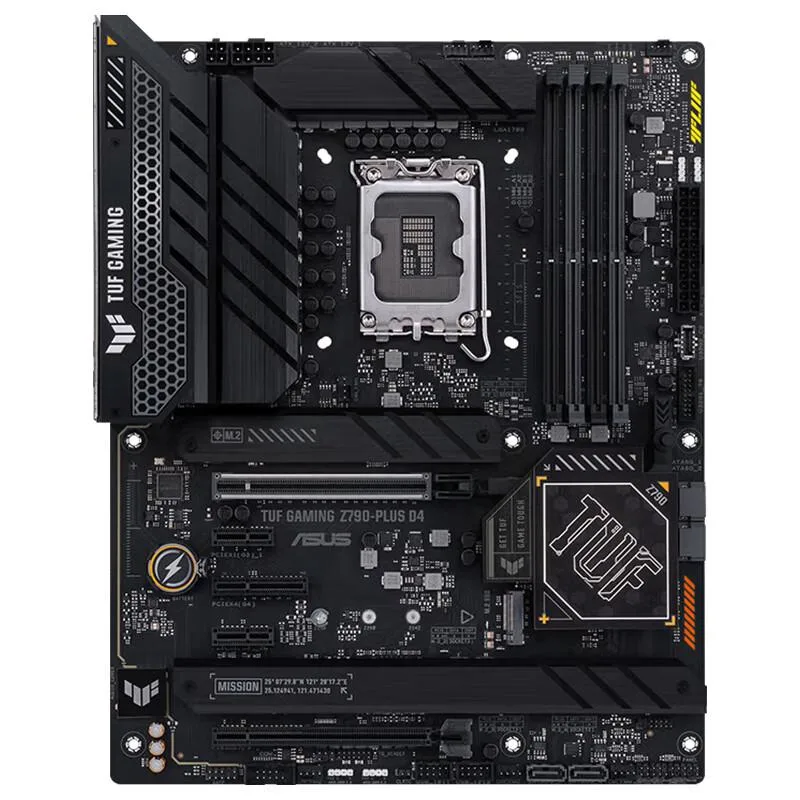

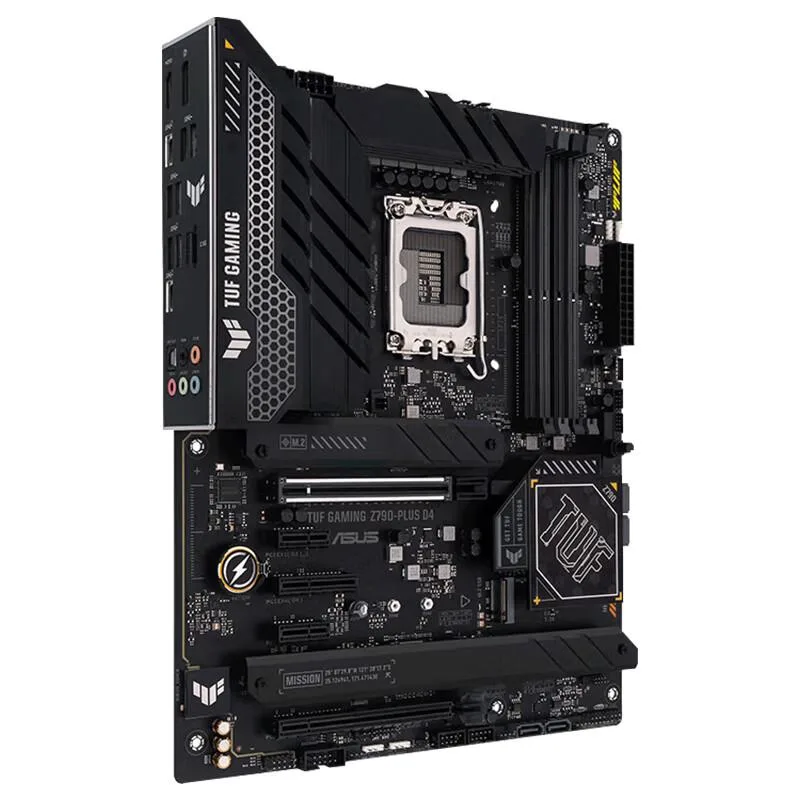

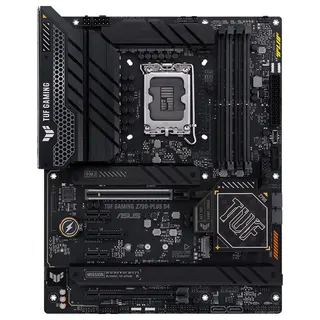

Rectangular ATX motherboard in dark grey with yellow accents, large CPU socket area, four DDR4 slots, multiple M.2 heatsinks

ASUS

ASUS TUF Gaming Z790-Plus WiFi D4 Intel motherboard

SKU CH-X8MW-X8870

ATX board for 12th to 14th Gen Intel Core CPUs with DDR4, PCIe 5.0, four M.2 slots, WiFi 6, 2.5 Gb LAN and Thunderbolt 4 header

  • CPU TypeIntel® Socket LGA1700 for 14th & 13th & 12th Gen Intel® Core
  • Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0 and Intel Turbo Bo
  • ChipsetIntel Z790
  • Number of Memory Slots4x288pin (DDR4)
  • Memory StandardDDR4:5333(OC)/5133(OC)/5066(OC)/5000(OC)/4800(OC)/4700(OC)/4
  • Maximum Memory Supported128GB
  • LGA 1700 socket supports 12th, 13th and 14th Gen Intel Core CPUs
  • 16+1 DrMOS power stages with ProCool sockets and military-grade TUF components
  • WiFi 6 AX201 and Intel I225-V 2.5Gb LAN for fast networking
  • Four M.2 slots plus front USB 3.2 Gen 2 Type-C and Thunderbolt 4 header
  • SafeDIMM, PCIe 5.0 Safeslot, Q-LED, M.2 Q-Latch and pre-mounted I/O shield

Ready for Intel 12th to 14th Gen

This ASUS TUF Gaming motherboard uses the Intel Z790 chipset and an LGA 1700 socket. It supports 12th, 13th and 14th generation Intel Core, Pentium Gold and Celeron processors. The board delivers a 16+1 DrMOS power stage design with ProCool sockets and military-grade TUF components. A BIOS update may be needed for certain 14th gen CPUs.

DDR4 memory and four M.2 slots

Four 288-pin slots accept DDR4 modules up to 128 GB total in dual-channel mode, with supported speeds from 2133 up to 5333 when overclocked. Expansion includes one PCIe 5.0 x16 slot, one PCIe 4.0 x16 slot running at x4, one PCIe 4.0 x4 slot and two PCIe 3.0 x1 slots. Storage connectivity covers four M.2 sockets (Key M, lengths 2242, 2260, 2280, 22110) plus four SATA 6Gb/s ports with RAID 0/1/5/10 support.

WiFi 6 and Thunderbolt 4 header

Networking is handled by WiFi 6 AX201 (802.11 ax) and an Intel I225-V 2.5Gb LAN controller with TUF LANGuard. Rear and front I/O include a USB 3.2 Gen 2 Type-C header, a USB 20Gbps Type-C port and a Thunderbolt 4 (USB4) header. Audio uses the Realtek S1220A codec for 7.1 surround with an integrated headphone amplifier. Build-friendly features include SafeDIMM, PCIe 5.0 SafeSlot, Q-LED, M.2 Q-Latch and a pre-mounted I/O shield.

Highlights

  • LGA 1700 socket supports 12th, 13th and 14th Gen Intel Core CPUs
  • 16+1 DrMOS power stages with ProCool sockets and military-grade TUF components
  • WiFi 6 AX201 and Intel I225-V 2.5Gb LAN for fast networking
  • Four M.2 slots plus front USB 3.2 Gen 2 Type-C and Thunderbolt 4 header
  • SafeDIMM, PCIe 5.0 Safeslot, Q-LED, M.2 Q-Latch and pre-mounted I/O shield

Specifications

BrandASUS
SeriesTUF
ModelTUF GAMING Z790-PLUS WIFI D4
Part Number90MB1CR0-M0AAY0
CPU TypeIntel® Socket LGA1700 for 14th & 13th & 12th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
ChipsetIntel Z790
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4:5333(OC)/5133(OC)/5066(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)
/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
Maximum Memory Supported128GB
Channel SupportedDual Channel
PCI Express 5.0 x16Intel® 14th & 13th & 12th Gen Processors*
1 x PCIe 5.0 x16 slot
* Please check the PCIe bifurcation table at the support site (https://www.asus.com/support/FAQ/1037507/).
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
PCI Express 4.0 x161 x PCIe 4.0 x16 slot (supports x4 mode)
PCI Express x41 x PCIe 4.0 x4 slot
PCI Express x12 x PCIe 3.0 x1 slots
* Please check the PCIe bifurcation table at the support site (https://www.asus.com/support/FAQ/1037507/).
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Serial ATA (SATA)4 x SATA 6Gb/s
M.2Intel® 14th & 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110
- Intel® 13th & 12th Gen processors support PCIe 4.0 x4 mode
Intel® Z790 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
SATA RAID0/1/5/10
Audio ChipsetRealtek S1220A 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- Audio Shielding
- Rear optical S/PDIF out port
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio Cover
* Due to limitations in HDA bandwidth, 32-B
Audio ChannelsRealtek S1220A 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- Audio Shielding
- Rear optical S/PDIF out port
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio Cover
* Due to limitations in HDA bandwidth, 32-B
LAN Chipset1 x Intel 2.5Gb Ethernet
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 6
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
BluetoothBluetooth v5.2
Back I/O Ports1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi Module
1 x Intel 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
Onboard USB1 x USB 3.2 Gen 2 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Other ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt header
Windows 11Supported
Form FactorATX
LED LightingRGB
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
FeaturesASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- TUF LANGuard
- Overvoltage Protection
- Safeslot
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- CPU Socket lever protector
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
AURA Sync
- Aura RGB header
- Addressable Gen 2 headers
Package ContentsCables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antenna
1 x TUF GAMING sticker
2 x M.2 Rubber Packages
1 x Screw package for M.2 SSD
Documentation
1 x TUF Certification card
1 x User guide

Questions about this item

How much DDR4 memory can the four slots on this board hold in total?

The four DDR4 slots support up to 128 GB of memory in dual-channel mode.

What are the VRM components and cooling features on the TUF Gaming Z790-Plus WiFi D4?

It uses a 16+1 DrMOS power design with ProCool sockets, military-grade TUF components and Digi+ VRM for stable delivery under load.

Which CPU cooler mounting pattern does the LGA 1700 socket on this motherboard require?

The board uses the Intel LGA 1700 socket, so any cooler must include the LGA 1700 mounting hardware to fit.
