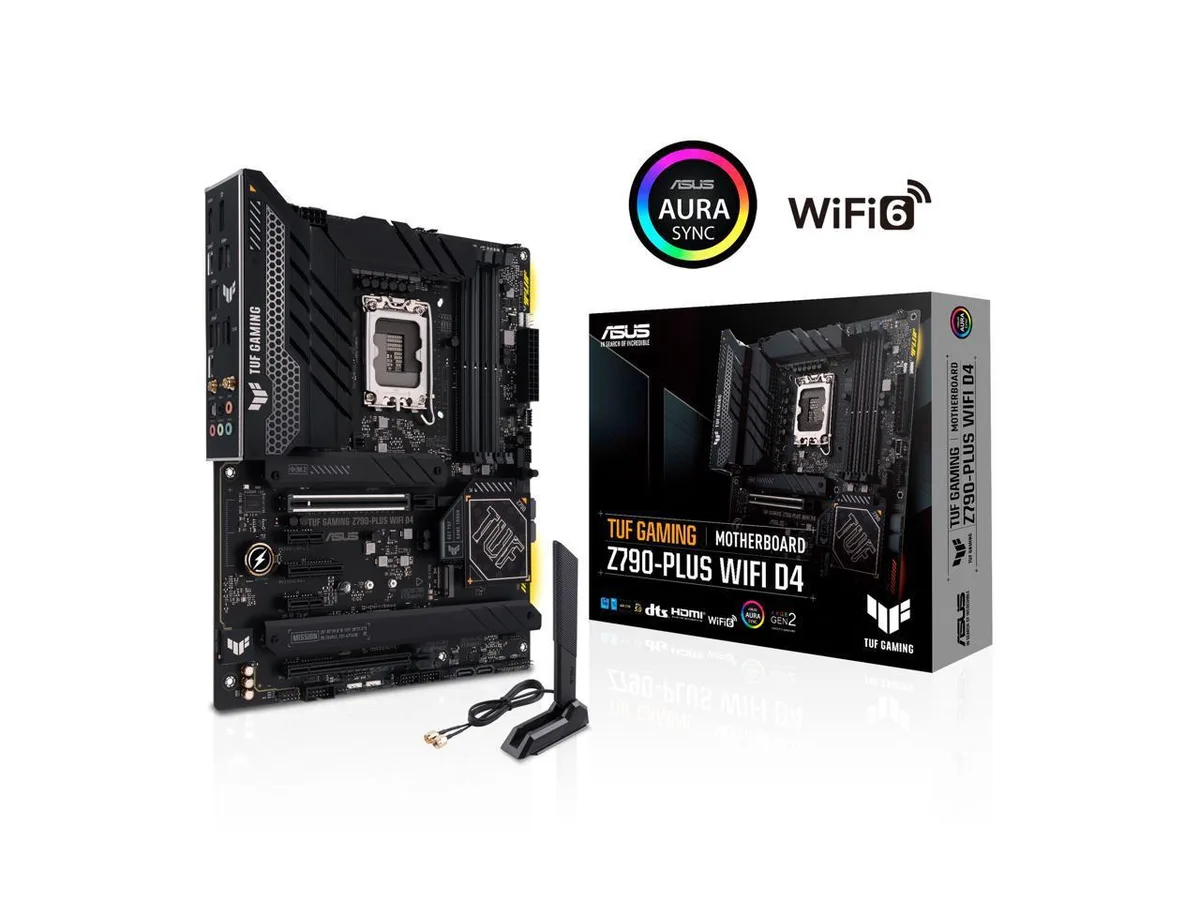

ATX motherboard dark finish silver heatsinks I/O shield boxed

ASUS

ASUS TUF Gaming Z790-Plus WiFi D4 Intel motherboard LGA 1700 ATX

SKU CH-DWYS-45B0N

ATX motherboard for Intel LGA 1700 CPUs with 16+1 DrMOS power, WiFi 6, 2.5G LAN, four M.2 slots, USB 3.2 Gen 2x2 Type-C and Thunderbolt 4 header

  • CPU Socket TypeLGA 1700
  • CPU TypeIntel Core 13th Gen (LGA 1700)
  • Supports 12th and 13th Gen Intel Core processors with LGA 1700 socket
  • 16+1 DrMOS power stages with ProCool sockets and military-grade TUF components

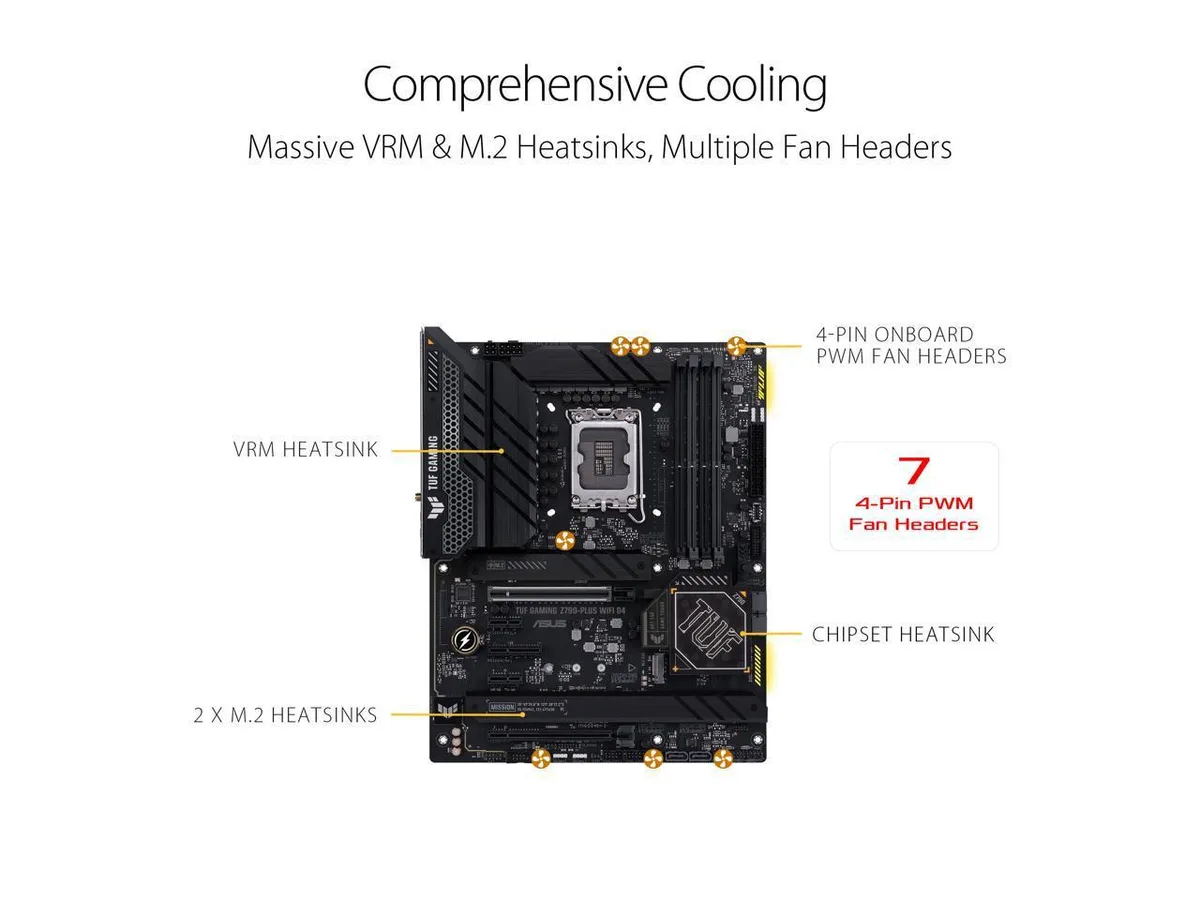

  • VRM heatsink, PCH fanless heatsink, M.2 heatsink and Fan Xpert 4 utility
  • WiFi 6 AX201, Intel I225-V 2.5G LAN with TUF LAN Guard

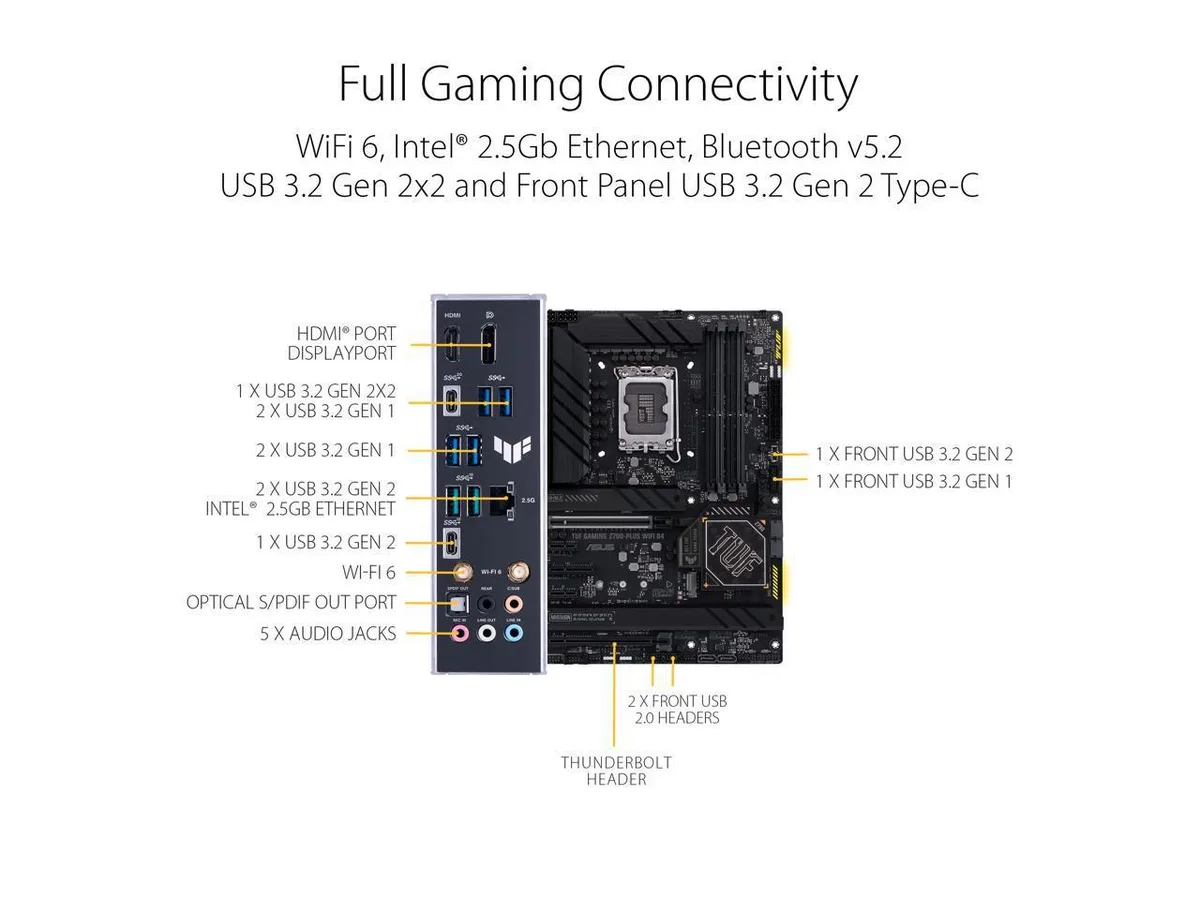

  • Four M.2 NVMe slots, USB 3.2 Gen 2x2 Type-C and Thunderbolt 4 header

ASUS TUF Gaming Z790-Plus WiFi D4

The ASUS TUF Gaming Z790-Plus WiFi D4 is an ATX motherboard built for Intel LGA 1700 socket processors. It supports 12th and 13th Gen Intel Core CPUs with PCIe 5.0 readiness and out-of-box Windows 11 compatibility. A 16+1 DrMOS power stage design with ProCool sockets, military-grade TUF components and Digi+ VRM control delivers stable power for gaming and productivity workloads.

Ideal users and limitations

This board suits builders who want a durable platform with integrated WiFi 6 AX201 and Intel I225-V 2.5G b LAN for fast wired and wireless networking. It also fits users needing four M.2 NVMe SSD slots, a front-panel USB 3.2 Gen 2 Type-C header, USB Gen 2x2 Type-C and a Thunderbolt 4 header for high-speed peripherals. Builders requiring more than four M.2 slots or lacking a case with front-panel USB Type-C support should consider other options.

Deciding specification: four M.2 NVMe slots

The four M.2 NVMe slots provide direct PCIe pathways for multiple high-speed SSDs without sharing bandwidth with other devices. This capacity determines whether the board can accommodate the storage layout a high-performance build demands.

Highlights

  • Supports 12th and 13th Gen Intel Core processors with LGA 1700 socket
  • 16+1 DrMOS power stages with ProCool sockets and military-grade TUF components
  • VRM heatsink, PCH fanless heatsink, M.2 heatsink and Fan Xpert 4 utility
  • WiFi 6 AX201, Intel I225-V 2.5G LAN with TUF LAN Guard
  • Four M.2 NVMe slots, USB 3.2 Gen 2x2 Type-C and Thunderbolt 4 header

Specifications

CPU Socket TypeLGA 1700
CPU TypeIntel Core 13th Gen (LGA 1700)

Questions about this item

What case clearance and mounting points does the ATX motherboard need?

The board follows standard ATX dimensions and uses the pre-mounted I/O shield that ships in the box, so it fits any ATX case with the usual nine standoffs and rear cut-out.

Which installation step do builders most often miss with the PCIe 5.0 SafeSlot and M.2 Q-Latch?

After seating the graphics card, the SafeSlot latch must click shut, and each M.2 drive needs the Q-Latch flipped down — no screw required — or the drive will not be detected.

What cooling parts should be checked or replaced over time on this motherboard?

The VRM heatsink, PCH fanless heatsink and M.2 heatsink rely on case airflow; clean dust from their fins periodically and replace thermal pads if temperatures rise after several years.
