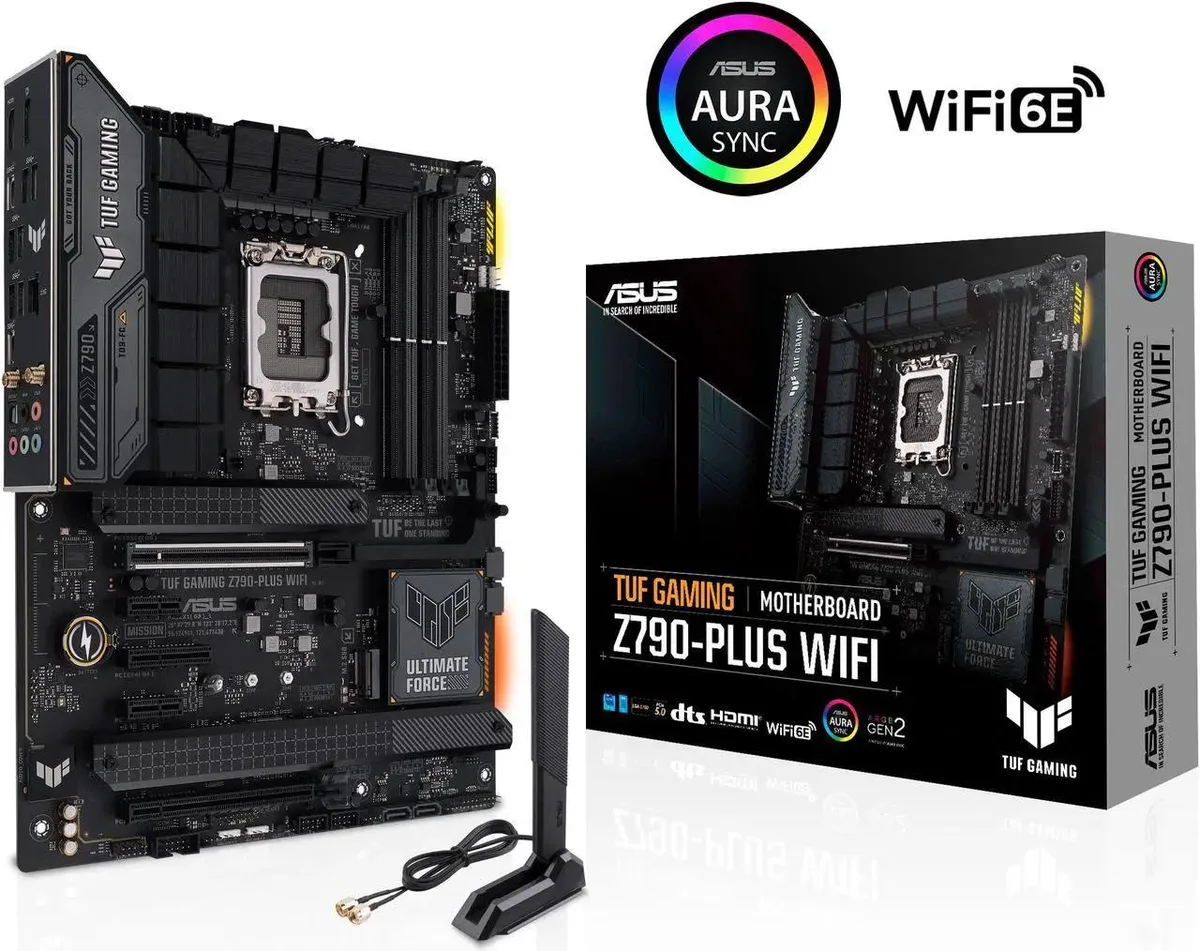

Black rectangular ATX motherboard with grey heatsinks and yellow accents

ASUS

ASUS TUF Gaming Z790-Plus WiFi D5 Intel motherboard

SKU CH-8936-9ZTN6

ATX board for 12th-14th Gen Intel CPUs with PCIe 5.0, DDR5 to 7200 MT/s, four M.2 slots, 2.5 Gb LAN, Wi-Fi 6E and Thunderbolt 4 header

  • CPU Socket TypeLGA 1700
  • CPU TypeIntel® Socket LGA1700 for 14th & 13th Gen Intel® Core™ & 12t
  • ChipsetIntel Z790
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/
  • Maximum Memory Supported192GB
  • Ready for 12th, 13th and 14th Gen Intel Core processors on LGA 1700 socket
  • 16+1 DrMOS power stages with ProCool sockets and military-grade TUF components
  • Wi-Fi 6E and Intel 2.5Gb LAN with TUF LANGuard for fast, reliable networking
  • Four M.2 slots plus front USB 3.2 Gen 2 Type-C and Thunderbolt 4 header
  • SafeDIMM, PCIe 5.0 SafeSlot, Q-LED, M.2 Q-Latch and pre-mounted I/O shield simplify the build

Socket and chipset

This motherboard uses the Intel LGA 1700 socket paired with the Z790 chipset. It supports 12th, 13th and 14th generation Intel Core, Pentium Gold and Celeron processors. The board is ATX form factor and comes ready for Windows 11 out of the box. A BIOS update may be required for some 14th generation CPUs.

Power delivery and thermals

The 16+1 DrMOS power stage design works with ProCool sockets and Digi+ VRM control to supply stable current during long gaming or rendering sessions. Military-grade TUF components are chosen for durability under continuous load. Heatsinks on the VRM and M.2 slots help dissipate heat without relying on extreme airflow.

Compatibility checklist

Verify that your case fits an ATX board and that the CPU cooler clears the VRM heatsink area. Confirm your DDR5 kit appears on the ASUS QVL for the speeds you intend to run. Ensure the power supply provides the 8-pin and 4-pin CPU connectors required by the ProCool headers. Check M.2 slot lengths against your SSD form factors before ordering.

Highlights

  • Ready for 12th, 13th and 14th Gen Intel Core processors on LGA 1700 socket
  • 16+1 DrMOS power stages with ProCool sockets and military-grade TUF components
  • Wi-Fi 6E and Intel 2.5Gb LAN with TUF LANGuard for fast, reliable networking
  • Four M.2 slots plus front USB 3.2 Gen 2 Type-C and Thunderbolt 4 header
  • SafeDIMM, PCIe 5.0 SafeSlot, Q-LED, M.2 Q-Latch and pre-mounted I/O shield simplify the build

Specifications

BrandASUS
SeriesTUF
ModelTUF Gaming Z790-Plus WiFi D5
CPU Socket TypeLGA 1700
CPU TypeIntel® Socket LGA1700 for 14th & 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
ChipsetIntel Z790
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Maximum Memory Supported192GB
Channel SupportedDual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
PCI Express 5.0 x16Intel® 14th, 13th & 12th Gen Processors*
1 x PCIe 5.0 x16 slot
PCI Express 4.0 x161 x PCIe 4.0 x16 slot (supports x4 mode)
PCI Express x11 x PCIe 4.0 x4 slot
2 x PCIe 3.0 x1 slots
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Serial ATA (SATA)4 x SATA 6Gb/s
M.2Intel® 14th, 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
Intel® Z790 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
SATA RAIDIntel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
Audio ChannelsRealtek S1220A 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- Audio Shielding
- Rear optical S/PDIF out port
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio Cover
* Due to limitations in HDA bandwidth, 32-B
Max LAN Speed1 x Intel® 2.5Gb Ethernet
TUF LANGuard
Wireless LANWi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth® v5.3**
* WiFi 6E 6GHz regulatory may vary between countries.
** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications
Back I/O Ports1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
Other ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1
Windows 11Windows® 11, Windows® 10 64-bit
Form FactorATX
Dimensions (W x L)12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
FeaturesASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- TUF LANGuard
- Overvoltage Protection
- Safeslot
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- CPU Socket lever protector
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
AURA Sync
- Aura RGB header
- Addressable Gen 2 headers

Questions about this item

How hot does the 16+1 DrMOS power stage get when the board runs all day?

The 16+1 DrMOS design with ProCool sockets and military-grade TUF components is built for sustained loads, and Digi+ VRM regulates delivery efficiently.

Which DDR5 memory kit do I need to have on hand before this motherboard will post?

You need a DDR5 kit up to 192 GB across the four 288-pin slots; supported speeds range from 4800 to 7200(OC) depending on the CPU and memory configuration.

Will my existing PCIe 4.0 M.2 SSD work in the M.2_2 or M.2_3 slots without an adapter?

Yes, the M.2_2 and M.2_3 slots accept 2242, 2260 and 2280 drives running at PCIe 4.0 x4 from the Z790 chipset.
