ASUS

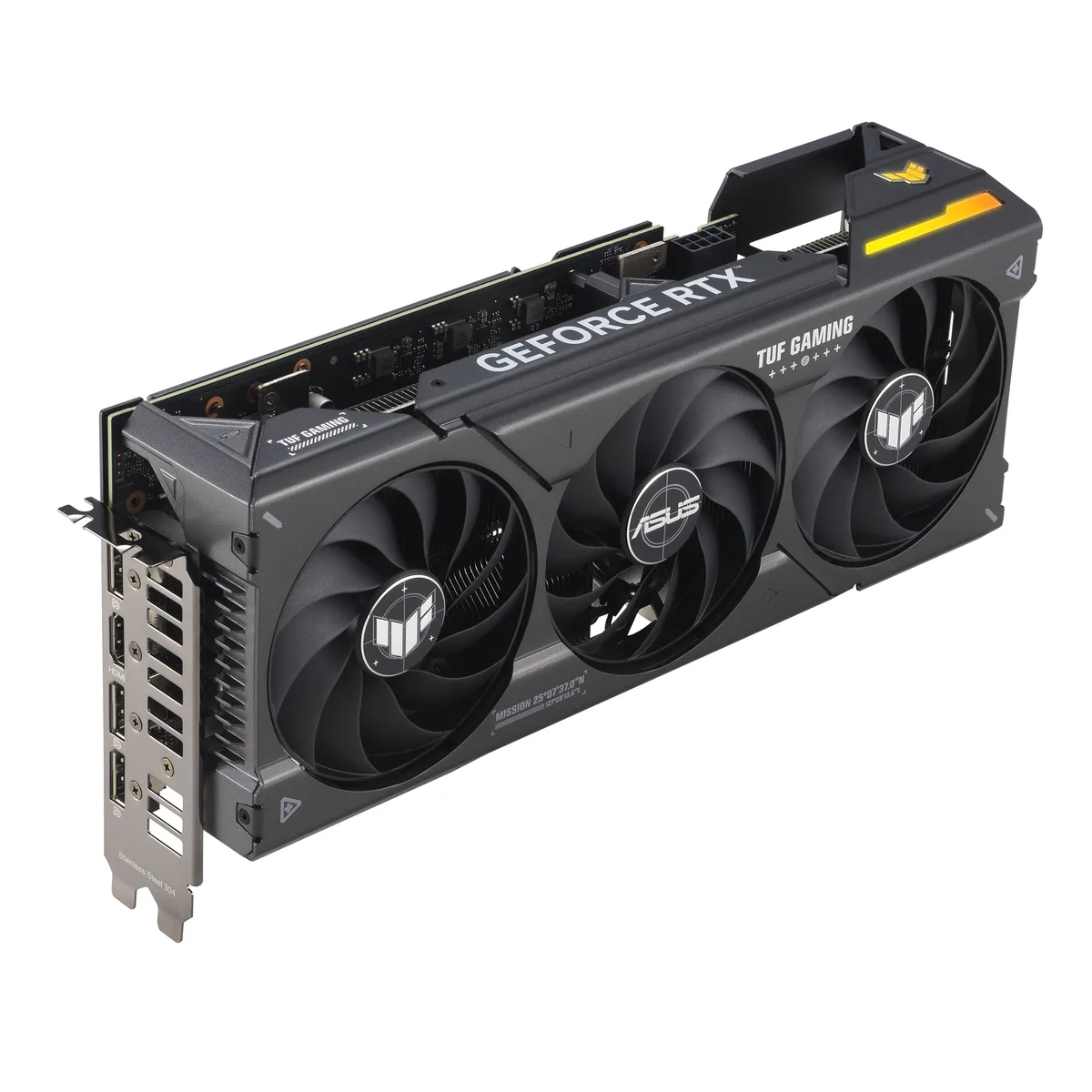

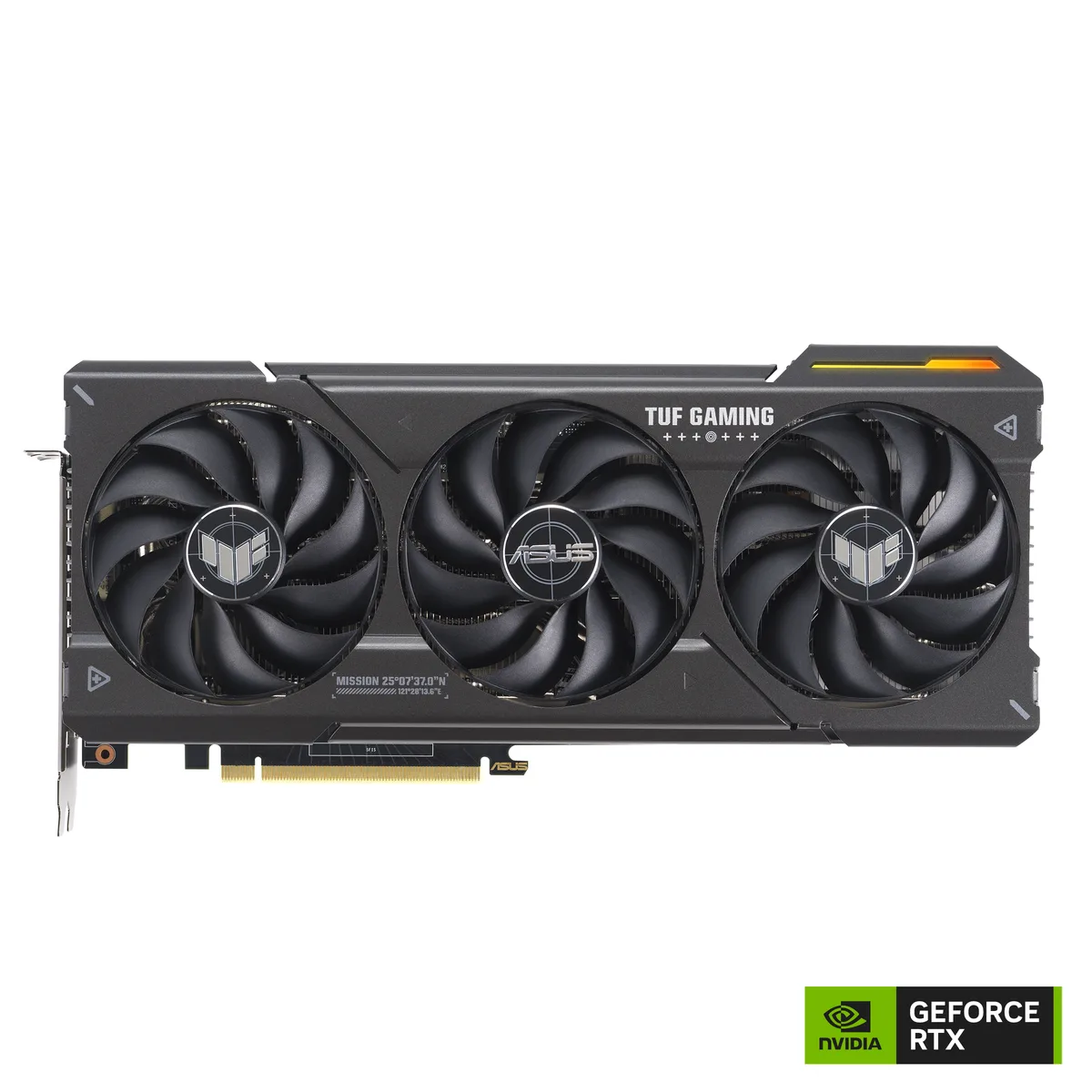

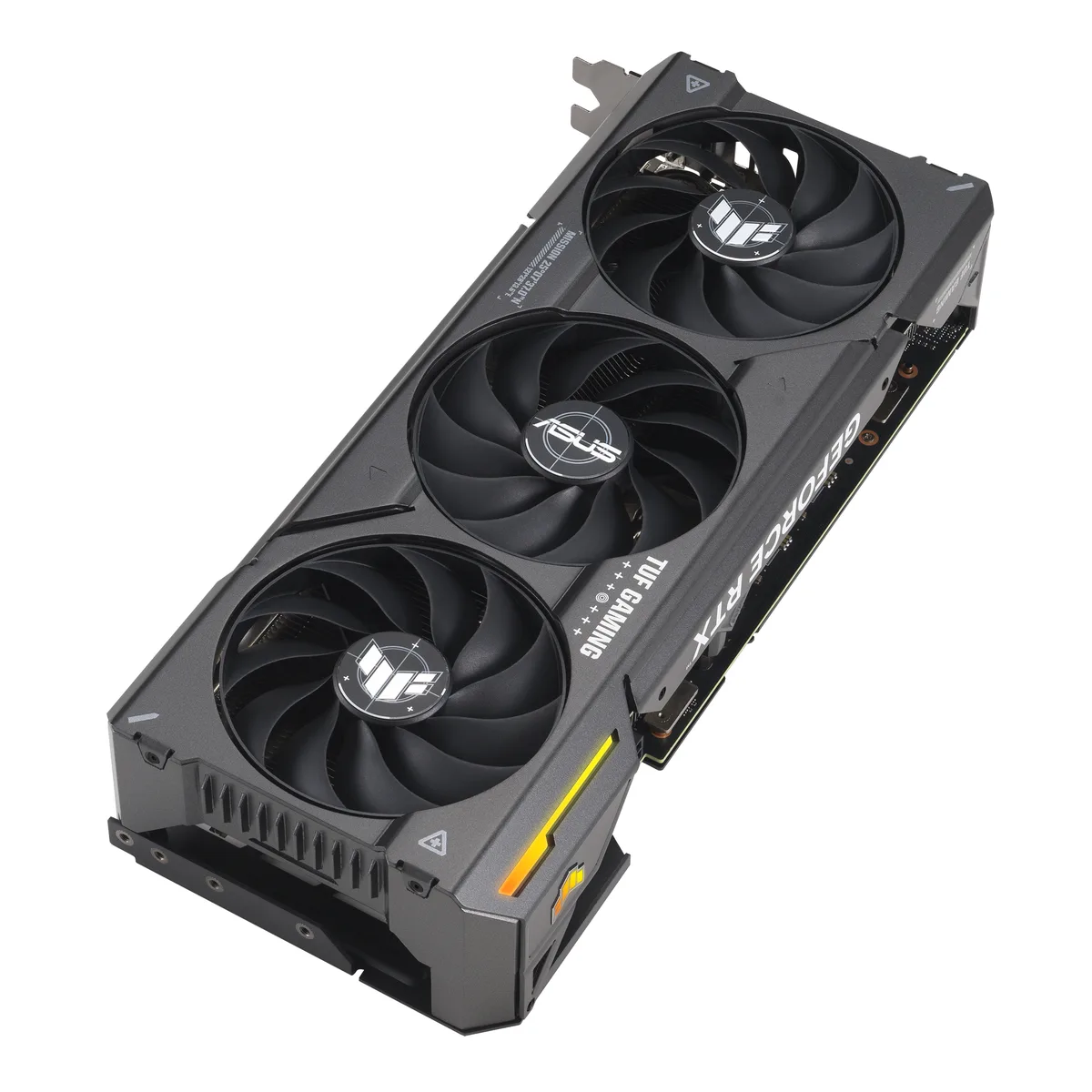

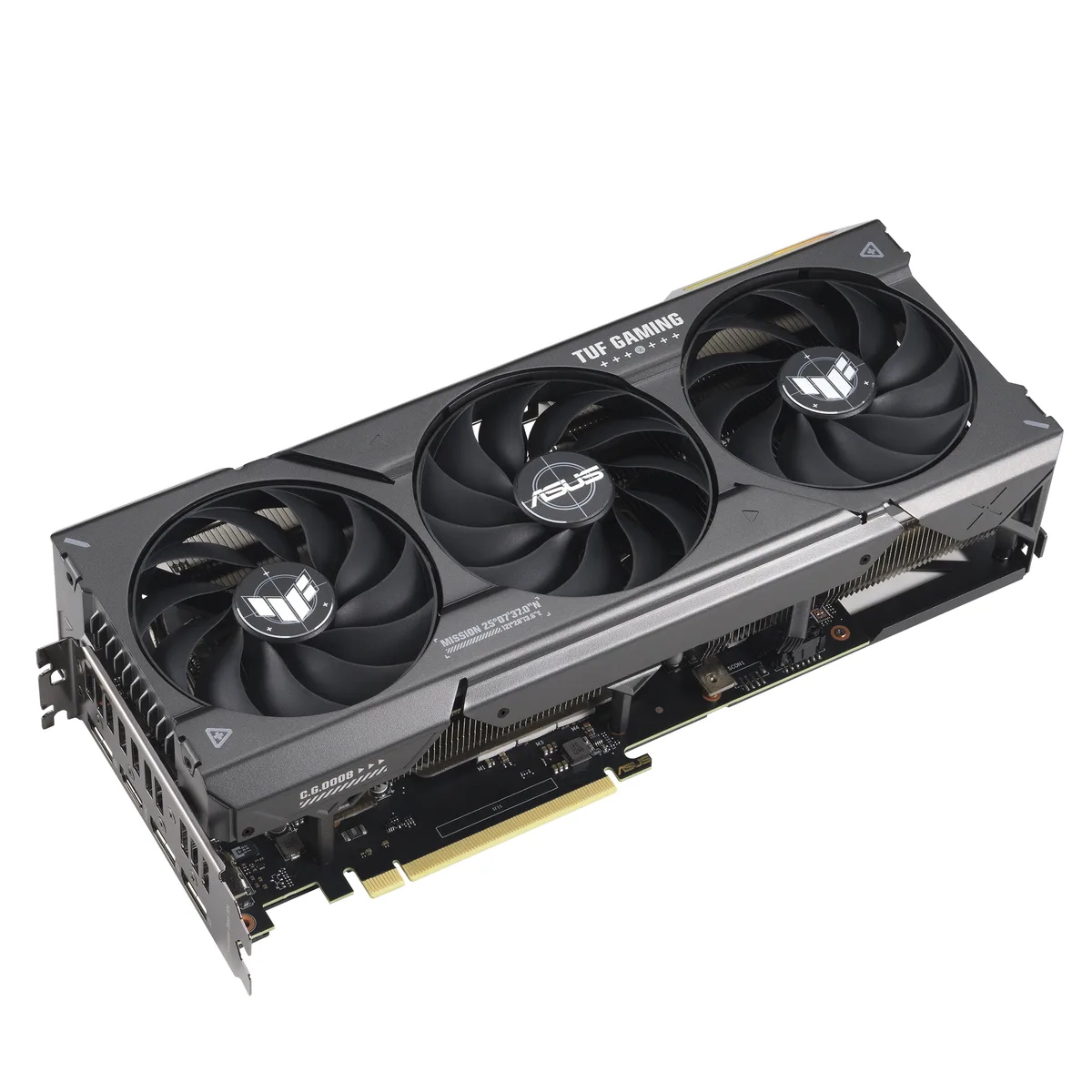

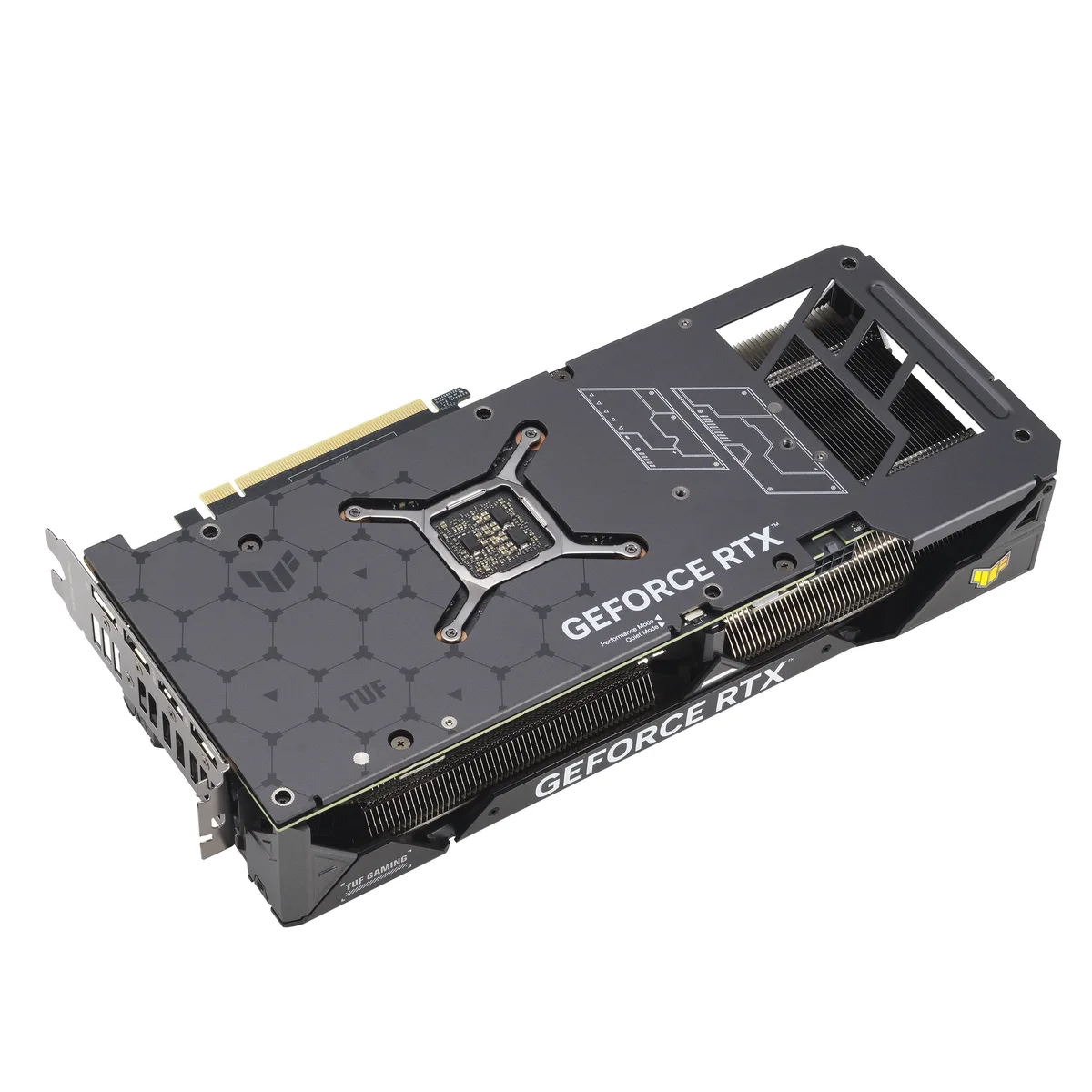

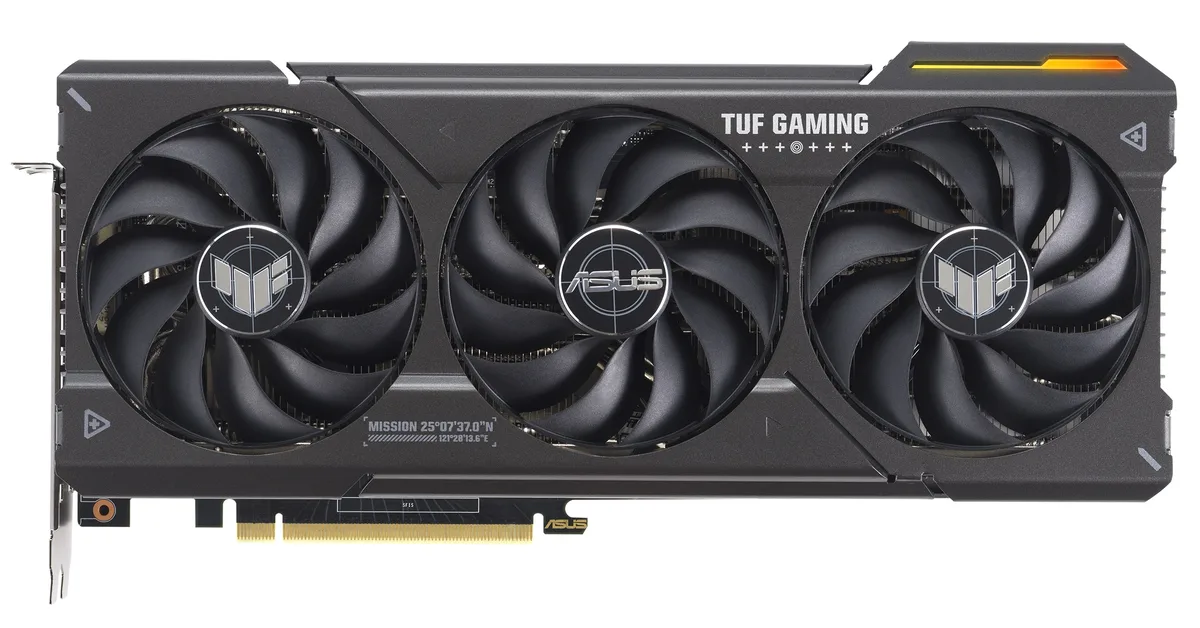

ASUS TUF-RTX4070-12G-GAMING graphics card
Refurbished GeForce RTX 4070 with 12 GB GDDR6X, 5888 CUDA cores and a triple-fan cooler rated for 200 W TDP
- InterfacePCI Express 4.0
- Chipset ManufacturerNVIDIA
- GPU SeriesNVIDIA GeForce RTX 40 Series
- GPUGeForce RTX 4070
- Core Clock2475
- Boost Clock2505
- Boost clock 2505 MHz delivers high frame rates
- 12 GB GDDR6X at 21 Gbps handles 4K textures
- Triple Axial-tech fans move 21% more air for cooler runs
- Dual ball bearings last twice as long as sleeve designs
- HDMI 2.1 plus three DisplayPort 1.4a drive four 8K displays
TUF Gaming RTX 4070 12 GB GDDR6X
The ASUS TUF-RTX4070-12G-GAMING is a PCI Express 4.0 graphics card built on the NVIDIA GeForce RTX 4070 GPU. It carries 5888 CUDA cores with a boost clock of 2505 MHz and 12 GB of GDDR6X memory across a 192-bit bus. The triple-fan cooler uses Axial-tech fans with dual ball bearings and a vented exoskeleton. It targets gamers and creators who need reliable 1440p to 4K performance in a 3.25-slot ATX form factor.
Upgrade from 10 GB or 8 GB cards
Moving up from a 10 GB or 8 GB board removes the texture budget ceiling that forces quality drops in modern titles. The 12 GB frame buffer and 21 Gbps effective memory clock keep high-resolution assets resident without swapping. The jump is worth it when your current card hits 100 percent VRAM utilisation at 1440p ultra or 4K high settings, especially in ray-traced workloads that lean on the 3rd generation RT cores.
12 GB frame buffer headroom
The 12 GB GDDR6X pool comfortably handles 1440p ultra and 4K high presets in current releases, including titles with heavy ray tracing and DLSS 3 frame generation. At 7680 x 4320 the 192-bit interface and 200 W TDP become the limiting factors before memory capacity does. A 650 W power supply and single 8-pin connector keep the power requirement modest for the performance tier.
Highlights
- Boost clock 2505 MHz delivers high frame rates
- 12 GB GDDR6X at 21 Gbps handles 4K textures
- Triple Axial-tech fans move 21% more air for cooler runs
- Dual ball bearings last twice as long as sleeve designs
- HDMI 2.1 plus three DisplayPort 1.4a drive four 8K displays
Specifications
| Brand | ASUS |
|---|---|
| Series | TUF Gaming |
| Model | TUF-RTX4070-12G-GAMING |
| Part Number | 90YV0IZ1-M0AA00 |
| Interface | PCI Express 4.0 |
| Chipset Manufacturer | NVIDIA |
| GPU Series | NVIDIA GeForce RTX 40 Series |
| GPU | GeForce RTX 4070 |
| Core Clock | 2475 |
| Boost Clock | 2505 |
| CUDA Cores | 5888 |
| Effective Memory Clock | 21000 MHz (21 Gbps) |
| Memory Size | 12GB |
| Memory Interface | 192-Bit |
| Memory Type | GDDR6X |
| DirectX | DirectX 12 |
| OpenGL | OpenGL 4.6 |
| Multi-Monitor Support | 4 |
| HDMI | 1 x HDMI 2.1 |
| DisplayPort | 3 x DisplayPort 1.4a |
| Max Resolution | 7680 x 4320 |
| Cooler | Triple Fans |
| Thermal Design Power | 200W |
| Recommended PSU Wattage | 650W |
| Power Connector | 8-Pin |
| HDCP Ready | Yes |
| Form Factor | ATX |
| Max GPU Length | 303 mm |
| Slot Width | 3.25 Slots |
| Shipping weight | 1.91 kg |
| Package size | 420 × 226 × 89 mm |
Questions about this item
Will the 303 mm long, 3.25-slot TUF RTX 4070 fit inside a mid-tower case and clear my motherboard headers?
The card measures 303 mm in length and occupies 3.25 expansion slots, so verify your case GPU clearance and that adjacent PCIe slots remain free before ordering.
What power connector does the RTX 4070 need and which step do builders often miss?
It requires a single 8-pin PCIe power connector; the step many miss is ensuring the 650 W PSU cable is fully seated and not daisy-chained from another component.
How long are the dual ball-bearing fans rated to last and when should I plan replacement?
The axial-tech fans use dual ball bearings rated for up to twice the lifespan of sleeve designs, so plan inspection after several years of heavy use rather than on a fixed schedule.
