ASUS TUF-RTX4080-16G-GAMING graphics card
Refurbished GeForce RTX 4080 graphics card with 16GB GDDR6X memory, PCIe 4.0 interface, triple-fan cooling, and 2535 MHz boost clock
- InterfacePCI Express 4.0
- Chipset ManufacturerNVIDIA
- GPU SeriesNVIDIA GeForce RTX 40 Series
- GPUGeForce RTX 4080
- Game Clock2505
- Boost Clock2535
- 16 GB GDDR6X memory handles 4K textures smoothly
- Boost clock reaches 2535 MHz for high frame rates
- Triple axial-tech fans deliver 23 % more airflow
- Military-grade capacitors rated 20K hours at 105 °C
- HDMI 2.1 and DisplayPort 1.4a drive 7680 x 4320 displays

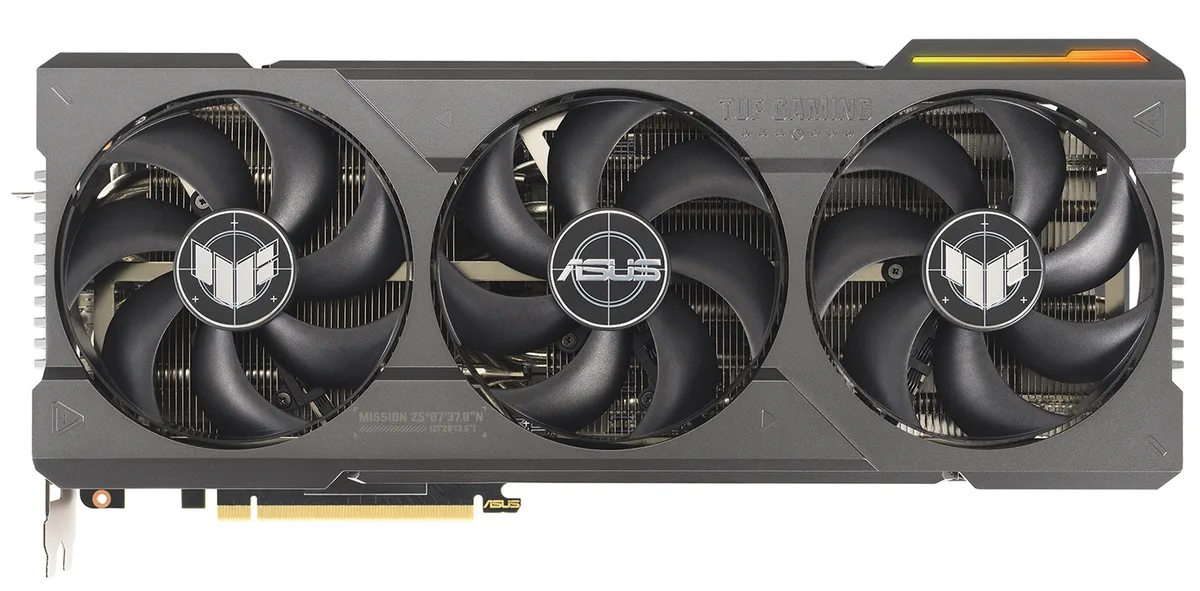

TUF Gaming GeForce RTX 4080 16GB
The ASUS TUF Gaming GeForce RTX 4080 is a graphics card built on the NVIDIA Ada Lovelace architecture with 16GB of GDDR6X memory on a 256-bit interface. It connects via PCI Express 4.0 and delivers a boost clock of 2535 MHz. The card targets enthusiasts who need high frame rates at 4K resolution across up to four displays.
Upgrade from 10GB or 12GB VRAM cards
Moving to 16GB GDDR6X removes the texture capacity ceiling that limits current 10GB and 12GB models in modern 4K titles with high-resolution asset packs. The jump is worth it when your workload consistently exceeds 12GB VRAM usage or when you require the 320W TDP headroom for sustained compute tasks. A 750W power supply and a single 16-pin connector are required.
Suits 4K gaming and creative workloads
This card suits builders who need 7680 x 4320 output over HDMI 2.1 or DisplayPort 1.4a and prefer the structural rigidity of a metal exoskeleton with triple axial-tech fans. The 3.65-slot width and 348mm length demand a spacious ATX case. Buyers targeting compact ITX builds or lower-wattage power budgets should look at smaller models.
Highlights
- 16 GB GDDR6X memory handles 4K textures smoothly
- Boost clock reaches 2535 MHz for high frame rates
- Triple axial-tech fans deliver 23 % more airflow
- Military-grade capacitors rated 20K hours at 105 °C
- HDMI 2.1 and DisplayPort 1.4a drive 7680 x 4320 displays
Specifications
| Brand | ASUS |
|---|---|
| Series | TUF Gaming |
| Model | TUF-RTX4080-16G-GAMING |
| Part Number | 90YV0IB1-M0AA00 |
| Interface | PCI Express 4.0 |
| Chipset Manufacturer | NVIDIA |
| GPU Series | NVIDIA GeForce RTX 40 Series |
| GPU | GeForce RTX 4080 |
| Game Clock | 2505 |
| Boost Clock | 2535 |
| Memory Size | 16GB |
| Memory Interface | 256-Bit |
| Memory Type | GDDR6X |
| DirectX | DirectX 12 Ultimate |
| OpenGL | OpenGL 4.6 |
| Multi-Monitor Support | 4 |
| HDMI | 2 x HDMI 2.1 |
| DisplayPort | 3 x DisplayPort 1.4a |
| Max Resolution | 7680 x 4320 |
| Cooler | Triple Fans |
| Thermal Design Power | 320W |
| Recommended PSU Wattage | 750W |
| Power Connector | 1 x 16-Pin |
| Form Factor | ATX |
| Max GPU Length | 348 mm |
| Card Dimensions (L x H) | 348.2 x 72.6mm |
| Slot Width | 3.65 Slot |
| Shipping weight | 2.99 kg |
| Package size | 427 × 267 × 99 mm |
Questions about this item
How much case clearance is needed for the 348.2 mm length and 3.65-slot width?
The card measures 348.2 mm long and occupies 3.65 slots, so your chassis must provide at least that length and three full expansion slots plus breathing room for the triple-fan cooler.
Which power connector does the 320 W board require and how should it be seated?
A single 16-pin connector supplies the 320 W TDP; push it in until the latch clicks and verify no cables strain the socket.
When should the dual ball-bearing fans be cleaned or replaced?
The dual ball bearings are rated for 20K hours at 105°C; clean dust from the axial-tech fans every 6–12 months and replace them only if noise or rpm becomes abnormal.
