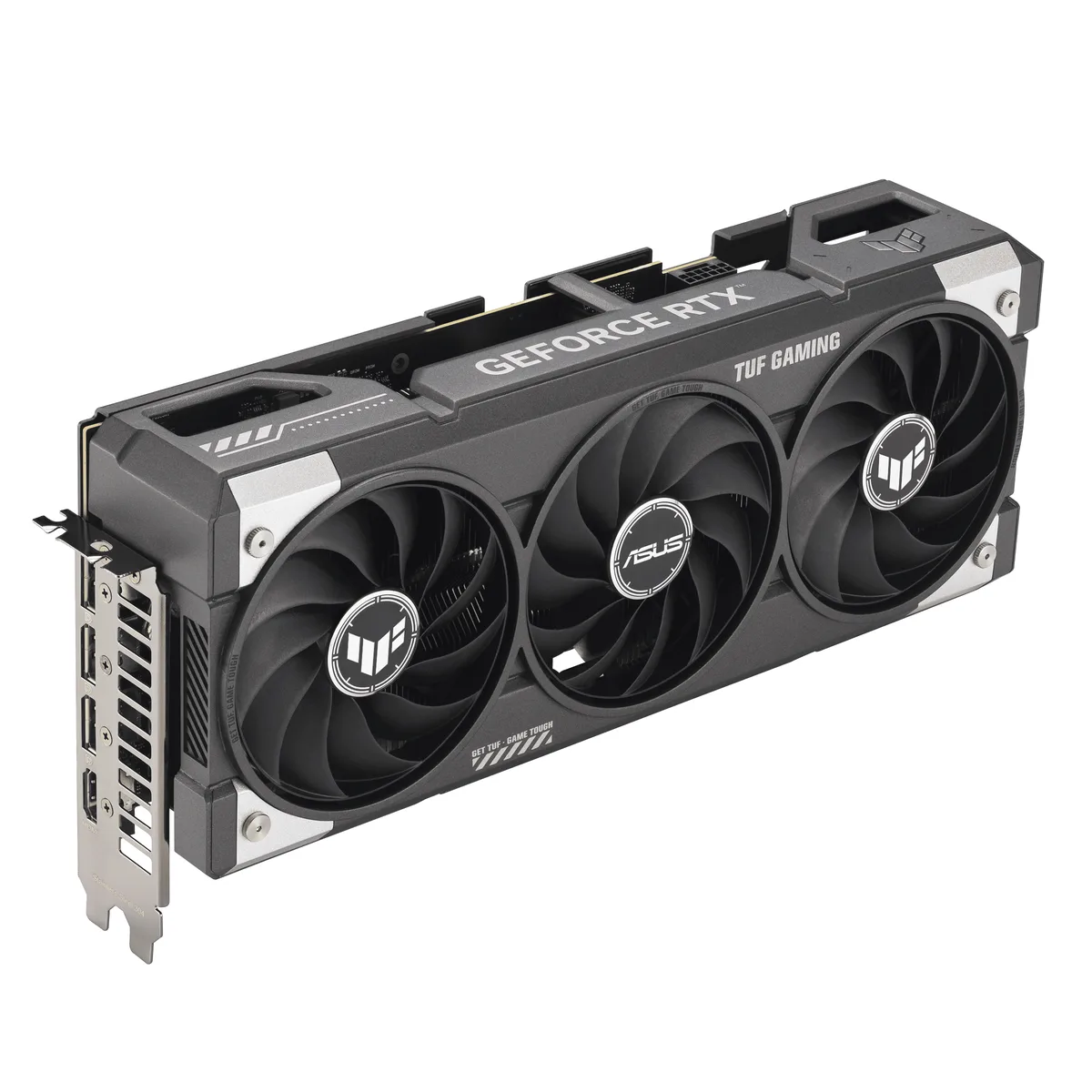

ASUS TUF Gaming GeForce RTX 5060 Ti 16GB graphics card in grey with triple-fan cooler

ASUS

ASUS TUF-RTX5060TI-O16G-GAMING GeForce RTX 5060 Ti 16GB graphics card

SKU CH-1RMN-DH2M4 MPN TUF-RTX5060TI-O16G-GAMING

16 GB GDDR7 graphics card with 4608 CUDA cores, PCIe 5.0 x8 and HDMI 2.1b plus three DisplayPort 2.1b outputs

  • InterfacePCI Express 5.0 x8
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce RTX 50 Series
  • GPUGeForce RTX 5060 Ti
  • ArchitectureBlackwell
  • CUDA Cores4608

Option RTX 5060 Ti 16GB

Edition TUF OC

  • 16GB GDDR7 memory delivers 28 Gbps bandwidth for high-resolution textures
  • 4608 CUDA cores on Blackwell architecture accelerate ray tracing and AI workloads
  • PCI Express 5.0 x8 interface provides high-speed data transfer to the platform
  • HDMI 2.1b plus three DisplayPort 2.1b outputs drive up to four displays
  • DLSS 4.0 upscaling boosts frame rates while preserving image quality

ASUS TUF GeForce RTX 5060 Ti 16GB GDDR7

This graphics card uses the NVIDIA Blackwell architecture with 4608 CUDA cores and 16GB of GDDR7 memory on a 128-bit bus. It connects through a PCI Express 5.0 x8 interface and supports DirectX 12 Ultimate and OpenGL 4.6. The board provides one HDMI 2.1b and three DisplayPort 2.1b outputs for up to four displays.

Built for 1440p gaming with DLSS 4.0

The 16GB frame buffer suits players who want higher texture settings at 1440p and creators who need extra VRAM for local workloads. DLSS 4.0 and the 28 Gbps effective memory clock help sustain frame rates in modern titles. Users targeting 4K high-refresh gaming or compute tasks that demand a wider memory bus should consider a different tier.

128-bit memory interface defines bandwidth ceiling

The 128-bit bus paired with 28 Gbps GDDR7 sets the maximum memory bandwidth available to the GPU. This specification determines whether the card can feed the 4608 cores fast enough for your target resolution and quality preset. Check your workload’s bandwidth sensitivity against this limit before buying.

Highlights

  • 16GB GDDR7 memory delivers 28 Gbps bandwidth for high-resolution textures
  • 4608 CUDA cores on Blackwell architecture accelerate ray tracing and AI workloads
  • PCI Express 5.0 x8 interface provides high-speed data transfer to the platform
  • HDMI 2.1b plus three DisplayPort 2.1b outputs drive up to four displays
  • DLSS 4.0 upscaling boosts frame rates while preserving image quality

Specifications

BrandASUS
SeriesTUF Gaming
ModelTUF-RTX5060TI-O16G-GAMING
Part Number90YV0MG0-M0AA00
InterfacePCI Express 5.0 x8
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce RTX 50 Series
GPUGeForce RTX 5060 Ti
ArchitectureBlackwell
CUDA Cores4608
Effective Memory Clock28 Gbps
Memory Size16GB
Memory Interface128-Bit
Memory TypeGDDR7
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.1b
DisplayPort3 x DisplayPort 2.1b
ColorGray
Max Resolution7680 x 4320
CrossFireX SupportNo
SLI SupportNo
Virtual Reality ReadyYes
CoolerTriple Fans
Recommended PSU Wattage550W
Power Connector1 x 16-Pin
HDCP ReadyYes
Features• AI Performance: 785 AI TOPS
• OC mode boosts clock 2692 MHz (OC mode)/ 2662 MHz (Default mode)
• Powered by the NVIDIA Blackwell architecture and DLSS 4
• Military-grade components deliver rock-solid power and longer lifespan for ultimate durability
• Protective PCB coating helps protect against short circuits caused by moisture, dust, or debris
• 3.1-slot design with massive fin array optimized for airflow from three Axial-tech fans
• ASUS GPU Guard secure the GPU, reducing the risk of cracks
• Auto-Extreme precision automated manufacturing helps ensure higher reliability
• GPU Tw
Form FactorATX
Max GPU Length302 mm
Card Dimensions (L x H)302 x 133 x 62 mm
11.89 x 5.26 x 2.44 inch
Slot Width3.1 Slots
Shipping weight1.91 kg
Package size419 × 229 × 89 mm

Other versions of this model

4 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the PCI Express 5.0 x8 interface fit my motherboard's slot?

The card uses a PCI Express 5.0 x8 edge connector that seats in any standard x16 slot; the shorter electrical width does not change the physical length required.

What is the step people get wrong when installing the 16GB GDDR7 model?

Insert the card fully until the retention clip clicks, then attach both 8-pin power cables from the PSU; skipping either connector causes a no-post condition.

When should I replace the thermal paste on the 4608 CUDA core GPU?

Re-paste only if temperatures rise unexpectedly after years of use; the factory compound is rated for the card's normal service life.
