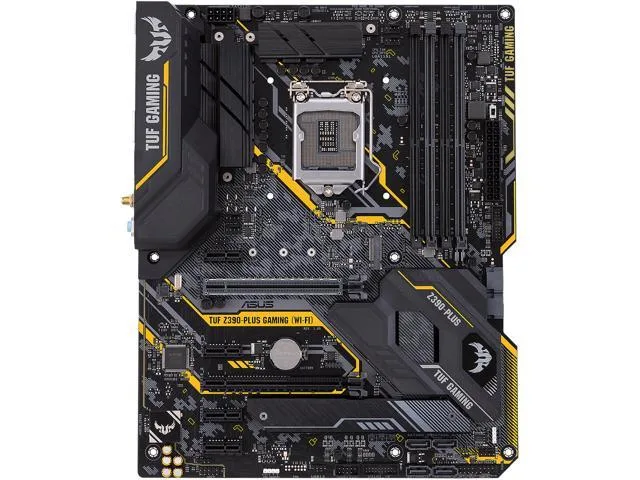

ATX motherboard with black PCB, grey heatsinks and metal-reinforced PCIe slots

ASUS

ASUS TUF Z390-Plus Gaming (Wi-Fi) Intel motherboard

SKU CH-ET58-3KP59

An ATX motherboard for 9th and 8th generation Intel Core processors with dual M.2 slots, Gigabit LAN and USB 3.2 Gen2

  • CPU Socket TypeLGA 1151 (300 Series)
  • CPU TypeSupports 9th / 8th Gen Intel Core Processors*Supports Intel
  • Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0** The Intel Turbo
  • ChipsetIntel Z390
  • Onboard Video ChipsetSupported only by CPU with integrated graphic
  • Number of Memory Slots4x288pin (DDR4)
  • Supports 9th and 8th Gen Intel Core processors on LGA 1151 socket
  • Dual M.2 slots accept 2242, 2260, 2280 and 22110 drives with PCIe 3.0 x4 and SATA modes
  • 128 GB maximum DDR4 memory across four 288-pin slots with OptiMem II trace isolation
  • Realtek S1200A 8-channel audio driven by Japanese capacitors for immersive sound
  • Military-grade TUF components with LANGuard, SafeSlot and FanXpert 4 for durability and cooling

TUF Z390-Plus Gaming (Wi-Fi) Intel Motherboard

The ASUS TUF Z390-Plus Gaming (Wi-Fi) is an ATX motherboard built around the Intel Z390 chipset for LGA 1151 (300 Series) processors. It supports 9th and 8th generation Intel Core, Pentium Gold and Celeron CPUs. The board delivers dual-channel DDR4 memory across four slots with a maximum capacity of 128 GB. Military-grade TUF components and integrated Wi-Fi complete the core package for gaming and enthusiast builds.

Who This Board Suits

This motherboard fits builders planning a 9th or 8th generation Intel Core system who want dual M.2 slots, Intel Gigabit LAN and USB 3.2 Gen 2 connectivity. The reinforced SafeSlot and FanXpert 4 cooling controls appeal to gamers running high-end graphics cards. Users needing support for older LGA 1151 CPUs, more than two full-speed PCIe x16 slots, or newer processor generations must choose a different platform.

LGA 1151 (300 Series) Socket Constraint

The CPU socket is LGA 1151 (300 Series) and is not backward compatible with 6th or 7th generation Intel processors. This single specification determines whether your existing or planned processor will fit. Verify the exact CPU model against the ASUS support list before purchase.

Highlights

  • Supports 9th and 8th Gen Intel Core processors on LGA 1151 socket
  • Dual M.2 slots accept 2242, 2260, 2280 and 22110 drives with PCIe 3.0 x4 and SATA modes
  • 128 GB maximum DDR4 memory across four 288-pin slots with OptiMem II trace isolation
  • Realtek S1200A 8-channel audio driven by Japanese capacitors for immersive sound
  • Military-grade TUF components with LANGuard, SafeSlot and FanXpert 4 for durability and cooling

Specifications

BrandASUS
SeriesROG
ModelZ390-Plus Gaming (Wi-Fi)
CPU Socket TypeLGA 1151 (300 Series)
CPU TypeSupports 9th / 8th Gen Intel Core Processors*Supports Intel Pentium Gold and Celeron Processors ** Not backward compatible with older generation of LGA 1151 CPUs.* Refer to www.asus.com for Intel CPU support list.
Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0** The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
ChipsetIntel Z390
Onboard Video ChipsetSupported only by CPU with integrated graphic
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3300(OC) / 3200(OC) / 3000(OC) / 2800(OC) / 2666 / 2400 / 2133** Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).* The maximum memory frequency supported varies by processor.
Maximum Memory Supported128GB
Channel SupportedDual Channel
PCI Express 3.0 x162 x PCI Express 3.0 x16** For 3 SSD on CPU support, install a Hyper M.2 X16 card (sold separately) into the PCIeX16_1 slot, enable this card under BIOS settings.
PCI Express x14 x PCIe 3.0 x1** The PCIe x1_3, PCIe x1_4 slots share bandwidth with PCIe x16_2. The PCIe x16_2 slot runs at x2 mode as default. Please check BIOS for more configuration.
Serial ATA (SATA)6 x SATA 6Gb/s
M.21 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x4 mode)*1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x4 mode)*** When a device in SATA mode is installed on the M.2_1 socket, SATA_2 port cannot be used.** When a device is installed on the M.2_2 socket, SATA_5/6 port cannot be used.
Intel Optane ReadyYes
SATA RAID0/1/5/10
Audio ChipsetRealtek ALC S1200A High Definition Audio CODEC
Audio Channels8 Channels** Choose the chassis with HD audio module in front panel to support 8-channel audio output.
LAN ChipsetIntel I219-V
Max LAN Speed1Gbps
Wireless LANIntel Wireless-AC 9560Wi-Fi802.11a/b/g/n/ac
BluetoothBluetooth 5.0
Back I/O Ports1 x PS/2 keyboard (purple)1 x PS/2 mouse (green)1 x DisplayPort1 x HDMI1 x LAN (RJ45) port(s)2 x USB 3.2 Gen 2 Type-A4 x USB 3.2 Gen 1 Type-A2 x Wi-Fi antenna port(s)3 x 8-channel Audio I/O
Onboard USB2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)1 x USB 2.0 1-port connector(s) support(s) additional 1 USB 2.0 port(s)1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
Other Connectors2 x Aura RGB Strip Header(s)1 x CPU Fan connector(s) (4-pin)1 x CPU OPT Fan connector(s) (4-pin)2 x Chassis Fan connector(s) (4-pin)1 x AIO_PUMP connector 1 x S/PDIF out header(s)1 x Front panel audio connector(s) (AAFP)1 x MemOK! II switch(es)1 x Clear CMOS jumper(s)1 x System panel connector
Form FactorATX
LED LightingRGB
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin EATX Power connector1 x 8-pin EATX 12V Power connector
FeaturesMulti-GPU Support:Supports AMD CrossFireX Technology Special Features:Fan Xpert4- Advanced fan and liquid controls for ultimate cooling and quietnessASUS TUF PROTECTION- ASUS DIGI+ VRM: Precision control for stable power- ASUS SafeSlot: Protect your graphics card Investment- ASUS ESD Guard: Enhanced ESD protection- ASUS Overvoltage Protection: World-class circuit-protecting power design- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!ASUS Optimem II:- Optim
Package ContentsAccessories:User's manualI/O Shield2 x SATA 6Gb/s cable(s)1 x M.2 Screw Package1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11 a/b/g/n/ac compliant)1 x TUF Gaming Sticker1 x TUF Certification card(s)1 x SCD (by region)

Questions about this item

Will the TUF Chokes or TUF Capacitors need scheduled replacement?

The military-grade TUF Chokes and TUF Capacitors are designed for long-term durability and do not have a scheduled replacement interval under normal use.

What thermal limit appears first when the VRM runs under sustained load?

The TUF MOSFETs and TUF Chokes are rated for high current; the FanXpert 4 headers let you tune chassis fans to keep VRM temperatures in check before any component hits its thermal ceiling.

How loud are the chassis fans when FanXpert 4 runs them at full speed all day?

FanXpert 4 adjusts each header based on temperature curves; noise level depends on the specific fans you install and the curve you select in BIOS.
