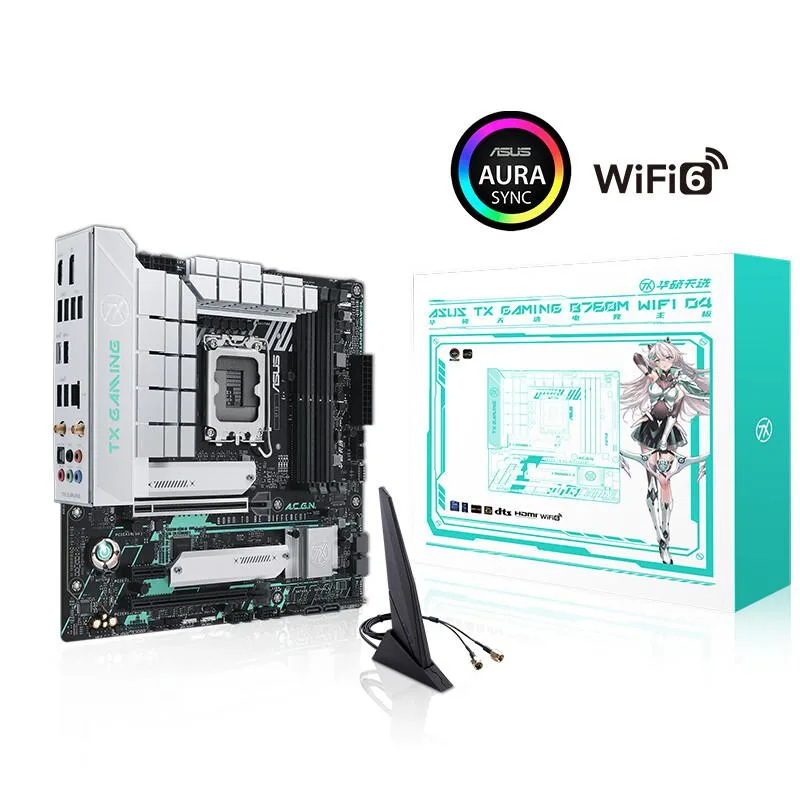

Square green micro ATX board with silver heatsinks and rear I/O shield

ASUS

ASUS TX GAMING B760M WIFI D4 THE 7X ONE Edition Intel Motherboard

SKU CH-H2YE-9R5ZG

Micro-ATX LGA 1700 board with DDR4 memory, PCIe 5.0 graphics slot, Wi-Fi 6, 2.5Gb Ethernet and 128GB capacity

  • CPU Socket TypeLGA 1700
  • CPU TypeIntel Core 13th Gen (LGA 1700)
  • ChipsetIntel B760
  • PCI Express 5.0 x16Intel ® 13th & 12 th Gen Processors 1 x PCIe 5.0 x16 slot
  • PCI Express 4.0 x16Intel ® B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode
  • M.2Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel
  • Supports 12th and 13th Gen Intel Core processors on LGA 1700 socket
  • PCIe 5.0 x16 slot enables high-bandwidth graphics cards
  • DDR4 memory up to 5333 MHz OC with 128 GB capacity
  • Wi-Fi 6 and 2.5 Gb Ethernet for fast networking
  • 1 surround audio with shielding and premium capacitors

Intel LGA 1700 mATX board for 12th and 13th Gen Core

This micro-ATX motherboard uses the Intel B760 chipset and an LGA 1700 socket to support 12th and 13th generation Intel Core processors. Four DDR4 DIMM slots accept up to 128 GB of memory with a long list of overclocked speeds. The board includes Wi-Fi 6 and 2.5 Gb Ethernet for networking.

PCIe 5.0 x16 slot and dual M.2 with PCIe 4.0 x4

The primary graphics slot runs at PCIe 5.0 x16 directly from the CPU. A second x16 slot and an x1 slot operate through the chipset at PCIe 4.0 speeds. Two M.2 Key M slots each support PCIe 4.0 x4 mode for fast storage alongside four SATA 6 Gb/s ports.

Four DDR4 slots with speeds up to 5333 MT/s OC

Memory capacity tops out at 128 GB across four slots. Supported data rates range from 2133 MT/s up to 5333 MT/s when overclocked, giving builders a wide choice of DDR4 kits. This single specification decides whether the board matches the intended memory configuration.

Highlights

  • Supports 12th and 13th Gen Intel Core processors on LGA 1700 socket
  • PCIe 5.0 x16 slot enables high-bandwidth graphics cards
  • DDR4 memory up to 5333 MHz OC with 128 GB capacity
  • Wi-Fi 6 and 2.5 Gb Ethernet for fast networking
  • 1 surround audio with shielding and premium capacitors

Specifications

CPU Socket TypeLGA 1700
CPU TypeIntel Core 13th Gen (LGA 1700)
ChipsetIntel B760
PCI Express 5.0 x16Intel ® 13th & 12 th Gen Processors
1 x PCIe 5.0 x16 slot
PCI Express 4.0 x16Intel ® B760 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x1 slot
M.2Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel ® 13th & 12 th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel ® B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel ® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Max LAN Speed1 x Realtek 2.5Gb Ethernet
Wireless LANWi-Fi 6
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
BluetoothBluetooth ® v5.2*
*The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
Back I/O Ports1 x USB 3.2 Gen 2x2 port (1 x USB Type-C ®)
4 x USB 3.2 Gen 2 ports (4 x Type-A)
1 x USB 3.2 Gen 1 port (1 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI ® port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
Onboard USB1 x USB 3.2 Gen 1 connector (supports USB Type-C ®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Other ConnectorsStorage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
I/O Connectors Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt™ (USB4 ®) header
Form FactorMicro ATX
Dimensions (W x L)9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Power Pin1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Package ContentsCables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x M.2 Rubber Package
1 x Screw package for M.2 SSD
1 x TX Gaming sticker
Documentation
1 x User guide

Questions about this item

Should I pick the 13th Gen or 12th Gen Intel Core CPU for this LGA 1700 board?

Both 13th and 12th Gen Intel Core processors fit the LGA 1700 socket. The 13th Gen enables the top PCIe 5.0 x16 slot, while 12th Gen CPUs also work but limit that slot to PCIe 4.0 speeds.

What does the PCIe 5.0 x16 slot actually deliver when I install a graphics card?

With a 13th Gen CPU the slot runs at full PCIe 5.0 x16 bandwidth for a graphics card. A 12th Gen CPU drops the link to PCIe 4.0 x16, and the chipset-linked second x16 slot is electrically x4 only.

Which Wi-Fi standard is onboard and what throughput ceiling should I expect?

The board includes Wi-Fi 6 (802.11ax) 2x2 on 2.4 and 5 GHz bands. Real-world throughput tops out at the Wi-Fi 6 PHY limit, and the 2.5 Gb Ethernet port caps wired traffic at 2.5 Gbps.
