ASUS
ASUS WS X299 SAGE Intel motherboard LGA 2066
LGA 2066 workstation board with quad-GPU support, DDR4 up to 4200 MHz, dual M.2 and U.2 storage, and dual Intel 1 Gbps LAN
- CPU Socket TypeLGA 2066
- CPU TypeCore X series (LGA2066)
- Supported CPU Technologies* The Intel Turbo Boost Max Technology 3.0 support depends o
- ChipsetIntel X299
- Onboard Video ChipsetNone
- Number of Memory SlotsIntel Core X-series Processors (6-core above): 8 x DIMM Inte
- Supports four dual-slot GPUs for multi-GPU compute workloads
- Up to 128 GB DDR4 memory with eight DIMM slots
- Dual M.2 and U.2 sockets enable 32 Gbps storage throughput
- Two Intel Gigabit LAN ports provide redundant wired connectivity
- 5-Way Optimization delivers one-click overclocking and fan tuning
Workstation CEB board for Core X-series

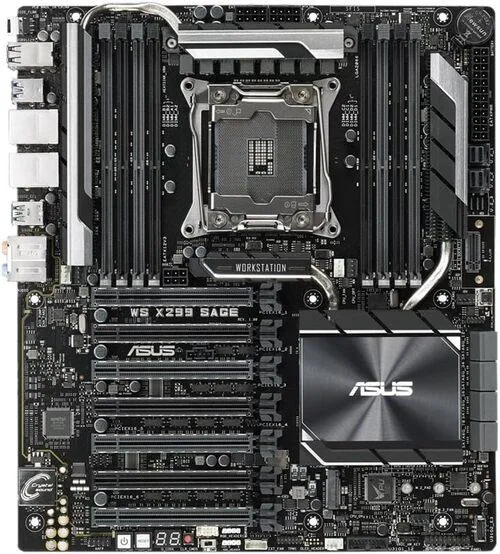

The ASUS WS X299 SAGE is an Intel X299 CEB motherboard built for LGA 2066 Core X-series processors. It targets content-creation and compute workloads that benefit from up to four dual-slot graphics cards in 4-way SLI or CrossFireX configurations. Dual Intel gigabit LAN and ASUS Control Center software support managed deployments in small- and medium-business environments.
Verify CPU core count and cooler clearance
Memory capacity depends on the installed CPU: six-core and above models enable all eight DDR4 DIMM slots for up to 128 GB, while four-core models activate only four slots with a 64 GB ceiling. Confirm your chassis can accommodate the CEB form factor and that the chosen cooler clears the metal-fin-array VRM heatsink. The package contains only the motherboard and I/O shield.
Replaces standard X299 ATX boards for multi-GPU
This board upgrades from typical ATX X299 designs when a build requires seven PCIe 3.0 x16 slots wired for quad-GPU operation, dual M.2 sockets plus two U.2 connectors, and 10 Gbps USB 3.1 Gen 2 Type-A and Type-C ports with a front-panel header. The jump is worth it when rendering, simulation or virtualization workloads demand that slot density and storage bandwidth in a single managed platform.
Highlights
- Supports four dual-slot GPUs for multi-GPU compute workloads
- Up to 128 GB DDR4 memory with eight DIMM slots
- Dual M.2 and U.2 sockets enable 32 Gbps storage throughput
- Two Intel Gigabit LAN ports provide redundant wired connectivity
- 5-Way Optimization delivers one-click overclocking and fan tuning
Specifications
| Brand | ASUS |
|---|---|
| Model | WS X299 SAGE |
| CPU Socket Type | LGA 2066 |
| CPU Type | Core X series (LGA2066) |
| Supported CPU Technologies | * The Intel Turbo Boost Max Technology 3.0 support depends on the CPU types |
| Chipset | Intel X299 |
| Onboard Video Chipset | None |
| Number of Memory Slots | Intel Core X-series Processors (6-core above): 8 x DIMM Intel Core X-series Processors (4-core): 4 x DIMM |
| Memory Standard | DDR4 4200(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3600(O.C.)/ 2666/ 2400/ 2133 * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU. |
| Maximum Memory Supported | Intel Core X-series Processors (6-core above): 8 x DIMM, Max. 128GB Intel Core X-series Processors (4-core): 4 x DIMM, Max. 64GB |
| PCI Express 3.0 x16 | 7 x PCIe 3.0/2.0 x16 (single x16 or dual x16/x16 or triple x16/x16/x16 or quad x16/x16/x16/x16 or seven x16/x8/x8/x8/x8/x8/x8) |
| Serial ATA (SATA) | 8 x SATA 6Gb/s |
| M.2 | 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x4 mode) 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x4 mode) 2 x U.2 connector* * The U.2 connectors are only supported on 44-Lane CPUs. |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC S1220A High Definition Audio CODEC |
| Audio Channels | 7.1 Channels |
| LAN Chipset | Intel I210-AT |
| Second LAN Chipset | Intel I219-LM |
| Max LAN Speed | 2 x 1Gbps |
| RJ45 | 2 x RJ45 |
| USB 3.1 | 1 x USB 3.1 Gen 2 (teal blue) Type-A 6 x USB 3.1 Gen 1 (blue) |
| USB 1.1/2.0 | 4 x USB 2.0 (one port can be switched to USB BIOS Flashback) |
| USB Type-C | 1 x USB 3.1 Gen 2 (black) USB Type-C |
| S/PDIF Out | 1 x Optical |
| Audio Ports | 1 x 8-channel Audio I/O |
| Onboard USB | 1 x USB 3.1 Gen 2 front panel connector 1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) |
| Other Connectors | 1 x Aura Addressable Strip Header(s) 1 x AAFP connector 1 x Aura RGB Strip Header 1 x TPM header 1 x COM port(s) connector(s) 1 x VROC_HW_Key 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x Thunderbolt header(s) 1 x EZ XMP switch 1 x 5-pin EXT_FAN (Extension Fan) connector 1 x Power-on button(s) 1 x Reset button(s) 1 x Clear CMOS button(s) 1 x Water Pump header (4-pin) 1 x System panel connector 1 x Thermal sensor connector 1 x CPU_OV jumper 1 x MemOK! Button 1 x M.2 Fan Header |
| Form Factor | CEB |
| LED Lighting | RGB |
| Dimensions (W x L) | 12.0" x 10.5" |
| Power Pin | 1 x 24-pin EATX Power connector(s) 1 x 6-pin ATX Power connector 2 x 8-pin ATX 12V Power connector(s) |
| Features | Multi-GPU Support: Supports NVIDIA 4-Way SLI Technology Supports AMD 4-Way CrossFireX Technology Special Features: OC Design - ASUS PRO Clock II Technology 5-Way Optimization by Dual Intelligent Processors 5 - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo Core App TPU Fan Xpert4 - Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control ASUS 5X Protection III: - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS Overvoltage Protection: World-class circuit-prote |
| Package Contents | Motherboard with an IO-Shield Only |
Questions about this item
Which Core X-series CPUs let me use all eight DIMM slots and reach 128 GB?
Six-core and higher Core X-series processors enable all eight slots for a maximum of 128 GB; four-core models are limited to four slots and 64 GB.
Can I run four dual-slot graphics cards on this board?
Yes, the CEB layout provides seven PCIe 3.0 x16 slots that support quad x16/x16/x16/x16 or seven x16/x8/x8/x8/x8/x8/x8 configurations for 4-way SLI or CrossFireX.
What M.2 and U.2 drives fit the onboard connectors?
Two M.2 sockets accept 2242, 2260, 2280 and 22110 lengths, plus two U.2 connectors for 2.5-inch PCIe storage devices.
