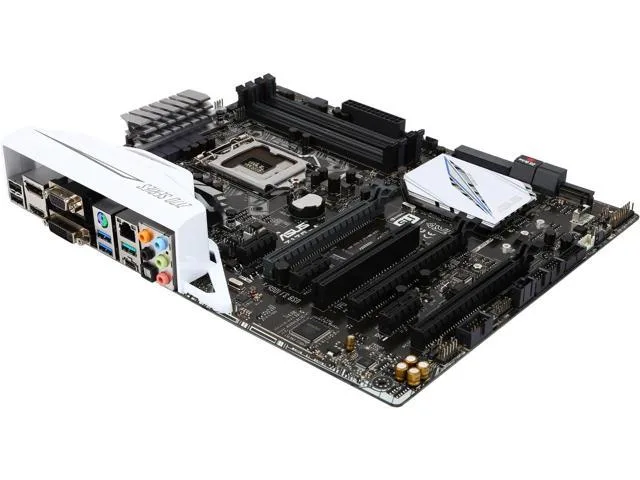

ASUS Z170-A ATX motherboard, black PCB with silver heatsinks and blue accents, LGA 1151 socket, four DDR4 slots, multiple PCIe slots

ASUS

ASUS Z170-A LGA 1151 Intel Z170 ATX Motherboard

SKU CH-136F-4EWGC

ATX motherboard for LGA 1151 CPUs with DDR4 memory up to 3400 MHz, USB 3.1 Type-C, M.2 storage and Intel LAN

  • CPU Socket TypeLGA 1151
  • CPU TypeCore i7 / i5 / i3 / Pentium / Celeron (LGA1151)
  • ChipsetIntel Z170
  • Onboard Video ChipsetIntegrated Graphics Processor - Intel HD Graphics supportMul
  • Number of Memory Slots4x288pin (DDR4)
  • Memory StandardDDR4 3400*(*O.C.)/ 3333*/ 3200*/ 3100*/ 3000*/ 2933*/ 2800*/
  • Supports 6th and 7th generation Intel Core processors via LGA 1151 socket
  • Four DDR4 slots accept up to 64GB of memory running at 2133 to 3400 MHz
  • Two PCI Express 3.0 x16 slots run at x16 or x8/x8 for multi-GPU configurations
  • M.2 Socket 3 with M Key fits 2242 to 22110 drives in both SATA and PCIe modes
  • Realtek ALC892 8-channel audio with Intel I219-V LAN and Turbo LAN software

Z170-A LGA 1151 ATX motherboard

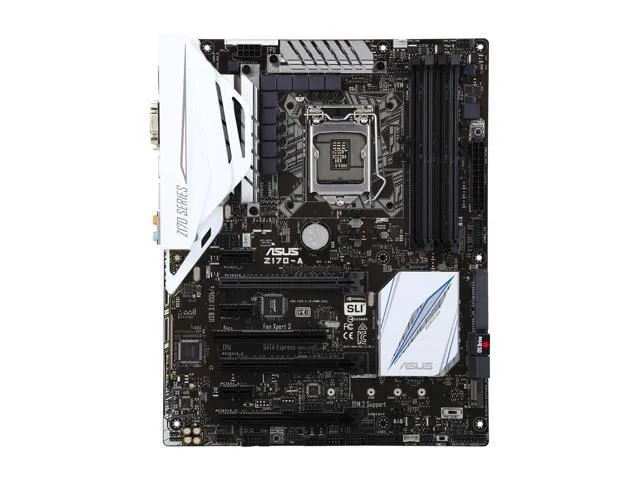

The ASUS Z170-A is an ATX board built around the Intel Z170 chipset for LGA 1151 processors including Core i7, i5, i3, Pentium and Celeron. It provides four DDR4 slots supporting speeds up to 3400 MHz and a maximum of 64 GB in dual-channel mode. Integrated graphics are routed through DisplayPort 1.2, HDMI 1.4b, DVI-D and VGA outputs.

Build integration and expansion

Two PCI Express 3.0 x16 slots run at x16 or x8/x8, a third x16 slot operates at x4 and shares bandwidth with SATA ports, while three x1 slots and one legacy PCI slot handle add-in cards. Six SATA 6.0 Gb/s ports and one SATA Express connector provide drive connectivity, and a single M.2 Socket 3 with M key accepts 2242, 2260, 2280 or 22110 modules in SATA or PCIe mode.

Bundled features and protection

5-Way Optimization automates system tuning, while Pro Clock Technology isolates the base clock for finer overclocking control. Crystal Sound 2 uses the Realtek ALC892 codec for 8-channel audio, and Intel I219-V LAN with Turbo LAN software prioritises network traffic. A reversible USB 3.1 Type-C port and 5X Protection II hardware safeguards complete the package.

Highlights

  • Supports 6th and 7th generation Intel Core processors via LGA 1151 socket
  • Four DDR4 slots accept up to 64GB of memory running at 2133 to 3400 MHz
  • Two PCI Express 3.0 x16 slots run at x16 or x8/x8 for multi-GPU configurations
  • M.2 Socket 3 with M Key fits 2242 to 22110 drives in both SATA and PCIe modes
  • Realtek ALC892 8-channel audio with Intel I219-V LAN and Turbo LAN software

Specifications

BrandASUS
ModelZ170-A
CPU Socket TypeLGA 1151
CPU TypeCore i7 / i5 / i3 / Pentium / Celeron (LGA1151)
ChipsetIntel Z170
Onboard Video ChipsetIntegrated Graphics Processor - Intel HD Graphics supportMulti-VGA output support: DisplayPort/HDMI/DVI-D/VGA portsSupports DisplayPort 1.2* with max. resolution 4096 x 2304@60HZ/24HZSupports HDMI 1.4b with max. resolution 4096 x 2160@24Hz / 2560 x 1600@60HzSupports DVI-D with max. resolution 1920 x 1200@60Hz Supports RGB with max. resolution 1920 x 1200@60Hz Supports Intel InTru 3D/Quick Sync Video/Clear Video HD Technology/InsiderSupports up to 3 displays simultaneouslyMaximum shared memory of 512MB*DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 3400*(*O.C.)/ 3333*/ 3200*/ 3100*/ 3000*/ 2933*/ 2800*/ 2666*/ 2600*/ 2400*/ 2133
Maximum Memory Supported64GB
Channel SupportedDual Channel
PCI Express 3.0 x162 x PCI Express 3.0/2.0 x16 slots (single at x16 or dual at x8/x8 mode)1 x PCI Express 3.0/2.0 x16 slot* (max. at x4 mode, compatible with PCIe x1 and x4 devices)* The PCIe x16_3 slot shares bandwidth with SATA6G_56. The PCIe x16_3 is default set at x2 mode.
PCI Express x13 x PCI Express 3.0/2.0 x1 slots
PCI Slots1 x PCI Slot
Serial ATA (SATA)6 x SATA 6.0 Gb/s ports (gray, 2 from SATA Express)
SATA Express1 x SATA Express port (compatible with 2 x SATA 6.0 Gb/s ports)
M.21 x M.2 Socket 3 with M Key**, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode)***** Supports PCIE RAID configurations via onboard M.2 and PCIex16_3. *** M.2 shares SATA mode with SATA Express. Change this item before installing M.2 SATA devices.
SATA RAID0/1/5/10
Audio ChipsetRealtek ALC892
Audio Channels8 Channels
LAN ChipsetIntel I219-V
Max LAN Speed1Gbps

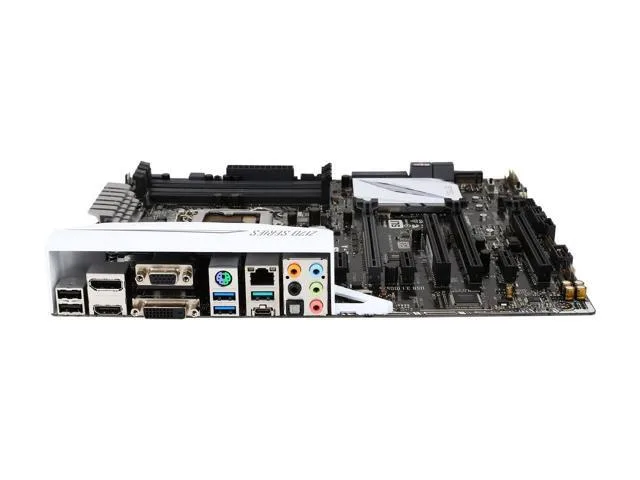

PS/21 x PS/2 keyboard/mouse port
Video Ports1 x DVI-D
HDMI1 x HDMI
RJ451 x RJ45
DisplayPort1 x DisplayPort
USB 3.11 x USB 3.1/3.0/2.0 ports (teal blue, Type A)1 x USB 3.1/3.0/2.0 ports (Type C)
USB 3.02 x USB 3.0/2.0 ports (blue)
USB 1.1/2.02 x USB 2.0 ports
S/PDIF Out1 x Optical
Audio Ports8-channel Audio I/O ports
Onboard USB2 x USB 3.0/2.0 connectors support additional 4 USB ports (19-pin)2 x USB 2.0/1/1 connectors support additional 4 USB ports
Other Connectors1 x CPU Fan connector (4-pin) for both 3-pin(DC mode) and 4-pin (PWM mode) CPU coolers control with auto detection support1 x CPU OPT Fan connector (4-pin)1 x Water Pump header (4-pin)4 x Chassis Fan connectors (4-pin) for both 3-pin(DC mode) and 4-pin (PWM mode) coolers control1 x Front panel audio connector (AAFP)1 x BIOS Flashback connector1 x S/PDIF out header1 x Thunderbolt header (5-pin) for ASUS ThunderboltEX series support1 x TPM connector1 x COM port1 x 24-pin EATX Power connector1 x 8-pin EATX 12V Power connector1 x System Panel (Q-Connector)1 x MemOK! button1 x Clear CMOS
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin24 Pin
Features5-Way Optimization ASUS PRO Clock TechnologyCrystal Sound 3Native M/2/NVMe PCIe RAID Support for Lightning Fast Storage Speeds!USB 3.1 Boost with USB 3.1 Type-A and Type-C Ports5X Protection IIASUS Special Features:ASUS 5X Protection- ASUS DIGI+ VRM - 8 Phase digital power design- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention - ASUS ESD Guards - Enhanced ESD protection - ASUS High-Quality 5K-Hour Solid Capacitors - 2.5x long lifespan with excellent durability - ASUS Stainless Steel Back I/O - 3x more durable corrosion-resistant coating - Mobo Connect- LA
Package ContentsAccessories:3 x Serial ATA 6.0Gb/s cables1 x ASUS SLI bridge connector1 x Q-connector1 x M.2 screw package1 x CPU installation tool1 x User's manual1 x Z170 Series Exclusive Feature manual

Questions about this item

How much DDR4 memory can the board address before the limit is reached?

The board supports up to 64 GB of DDR4 across its four 288-pin slots, so the memory ceiling is 64 GB.

What thermal or acoustic load appears when the system runs continuously?

The board uses passive heatsinks and no onboard fans, so sustained operation adds no extra noise; heat output follows the installed CPU and VRM load.

Which CPU cooler mounting pattern must the cooler already match?

The socket is LGA 1151, so the cooler must use the standard LGA 1151 mounting pattern.
