Green Micro ATX motherboard with silver CPU socket, four black DDR4 slots, and blue USB 3.0 ports

ASUS

ASUS Z170M-PLUS Intel motherboard LGA 1151 DDR4 64GB Micro ATX

SKU CH-3JA3-HBCPE

Micro-ATX Intel Z170 board with LGA 1151 socket, dual-channel DDR4 up to 64 GB, six SATA III ports, one M.2 slot, 7.1-channel Realtek ALC887 audio and Intel 1219-V Gigabit LAN

  • CPU Socket TypeLGA 1151
  • CPU TypeSupport LGA1151 slot Intel 6th generation Core i7/Core i5/Co
  • ChipsetIntel Z170
  • Memory StandardSupports dual-channel DDR4 3466 (overclocking)/3400 (overclo
  • Maximum Memory Supported64GB
  • PCI Slots1 xPC Express 3.0/2 x16 expansion card slot (x16 mode operat
  • Supports 6th generation Intel Core processors with LGA 1151 socket
  • Up to 64GB dual-channel DDR4 memory at speeds up to 3466MHz
  • Intel Z170 chipset with SATA Express and M.2 storage interfaces
  • Realtek ALC887 7.1 channel audio with dedicated audio area separation
  • Intel 1219-V Gigabit LAN with MAC and PHY dual interconnection

Micro ATX LGA 1151 DDR4 Platform

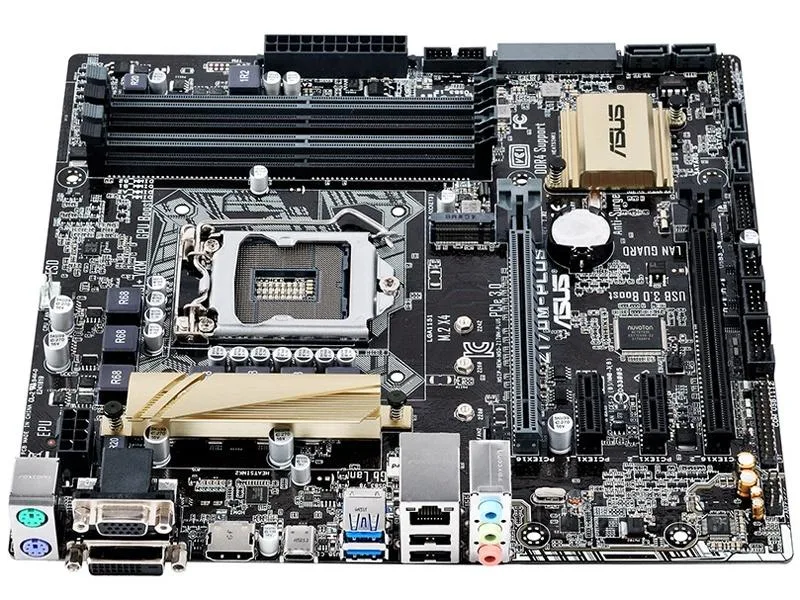

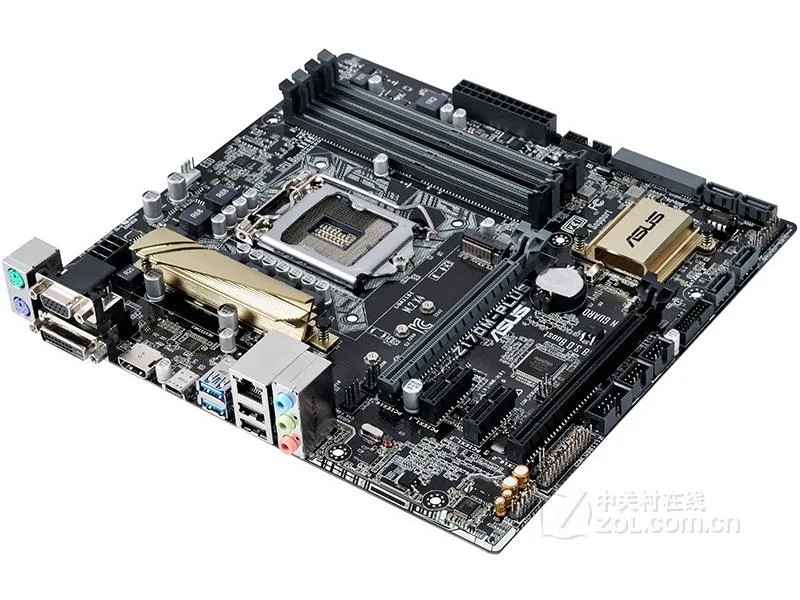

The ASUS Z170M-PLUS is a Micro ATX motherboard built on the Intel Z170 chipset for LGA 1151 processors. It supports 6th generation Core i7, i5, i3, Pentium and Celeron CPUs with native DDR4 memory control. The board measures 24.4 by 22.7 centimetres and fits compact chassis designs.

Builders Needing Z170 Features In Small Form Factor

This board suits enthusiasts who want Z170 overclocking headroom and dual-channel DDR4 speeds up to 3466 MT/s in a Micro ATX layout. It provides one full-length PCIe 3.0 x16 slot, a second x16 slot wired for x4 operation and two x1 slots for add-in cards. Buyers who require multiple full-bandwidth graphics slots or legacy PCI slots should look elsewhere.

64 GB Maximum DDR4 Capacity

Four DDR4 DIMM slots accept up to 64 GB of system memory across a wide range of overclocked frequencies from 2133 to 3466 MT/s. This ceiling determines whether the platform can handle large datasets or heavy multitasking workloads. Verify your module density and kit configuration against this limit before purchase.

Highlights

  • Supports 6th generation Intel Core processors with LGA 1151 socket
  • Up to 64GB dual-channel DDR4 memory at speeds up to 3466MHz
  • Intel Z170 chipset with SATA Express and M.2 storage interfaces
  • Realtek ALC887 7.1 channel audio with dedicated audio area separation
  • Intel 1219-V Gigabit LAN with MAC and PHY dual interconnection

Specifications

BrandASUS
SeriesASUS Z170M-PLUS
ModelASUS Z170M-PLUS
CPU Socket TypeLGA 1151
CPU TypeSupport LGA1151 slot Intel 6th generation Core i7/Core i5/Core i3Pentium/Celeron processor support Intel 14nm processor support Intel Turbo Boost 2.0 technology
ChipsetIntel Z170
Memory StandardSupports dual-channel DDR4 3466 (overclocking)/3400 (overclocking)/3333 (overclocking)/3300 (overclocking)/3200 (overclocking)/3000 (overclocking)/2800 (overclocking)/2666 (overclocking)/2400 (overclocking)/2133MHz memory
Maximum Memory Supported64GB
PCI Slots1 xPC Express 3.0/2 x16 expansion card slot (x16 mode operation) 1 xPCI Express 3.0/2 x16 expansion card slot (up to x4 mode operation) 2 xPCI Express 3.0/2 x1 expansion card slot
SATA RAID1XM.2 interface, 1xSATA Express interface, 6xSATA III interface
Audio ChipsetRealtek ALC887 high fidelity 7.1 channel audio codec chip audio functions:
Audio Area Wire - Accurately separates audio processing related areas from other areas on the main board, greatly reducing surrounding interference with audio area signals
Channel-exclusive PCB layer - the lines of the left and right channels are routed in different PCB layers, greatly reducing interference between signals and ensuring that sensitive audio signals remain of high quality during transmission. Japanese audio capacitors bring warm and natural sound quality performance, allowing you to get a cleare
LAN ChipsetIntel 1219-V Gigabit Network
MAC and physical layer (PHY) dual interconnection
Onboard USBIntel Z170 Express Chipset - Supports ASUS USB 3.0 Boost
6 x USB 3.0/2 (4 on main board, 2 on rear panel, blue, Type A)
1 xUSB 5Gb/sC interface, supports 3A power output
6X USB 2.0 /1.1 (4 on main board, 2 on rear panel)

Questions about this item

How much DDR4 memory can the board handle before it hits its ceiling?

The maximum supported capacity is 64 GB across four DDR4 slots.

What does the Realtek ALC887 audio chipset deliver during long sessions?

It provides 7.1 channel high fidelity audio with separated analog areas to reduce interference.

Which CPU cooler mounting holes match this micro ATX board?

The LGA 1151 socket uses the standard Intel square pattern compatible with existing LGA 115x coolers.
