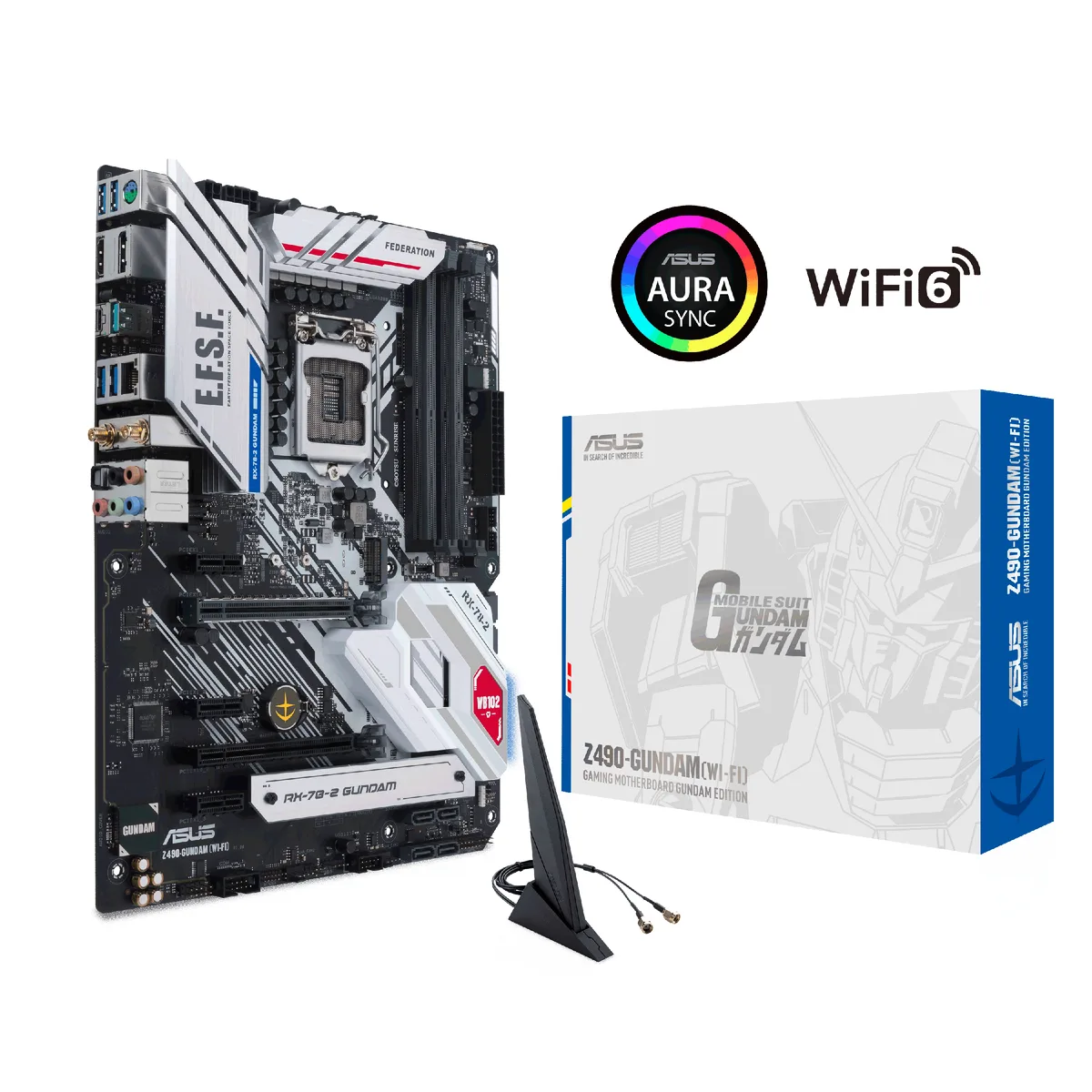

ATX motherboard white grey Gundam RX-78-2 themed heatsinks RGB lighting

ASUS

ASUS Z490-GUNDAM (WI-FI) Intel motherboard

SKU CH-QBD6-K7HB3

ATX board for 10th and 11th Gen Intel Core CPUs with 12+2 DrMOS power stages, WiFi 6, Thunderbolt, SATA 6 Gbps, USB 3.2 Gen 2 Type-C, 108 dB audio and Aura Sync RGB

  • ChipsetZ490
  • Ready for 10th and 11th Gen Intel Core processors via LGA 1200 socket
  • Stable power delivery with 12+2 DrMOS stages, 6-layer PCB and ProCool sockets
  • VRM, PCH and M.2 heatsinks plus Fan Xpert 4 keep temperatures low
  • Front USB 3.2 Gen 2 Type-C header with Thunderbolt 3 support for fast peripherals
  • Intel WiFi 6 and I219-V Ethernet with TUF LANGuard for reliable online gaming

GUNDAM RX-78-2 Z490 ATX Motherboard

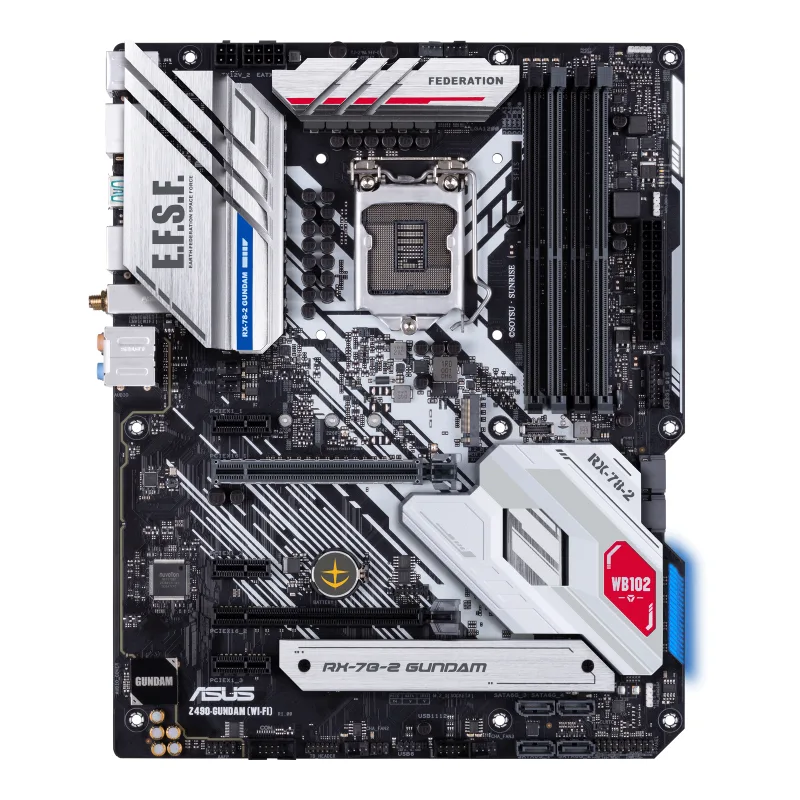

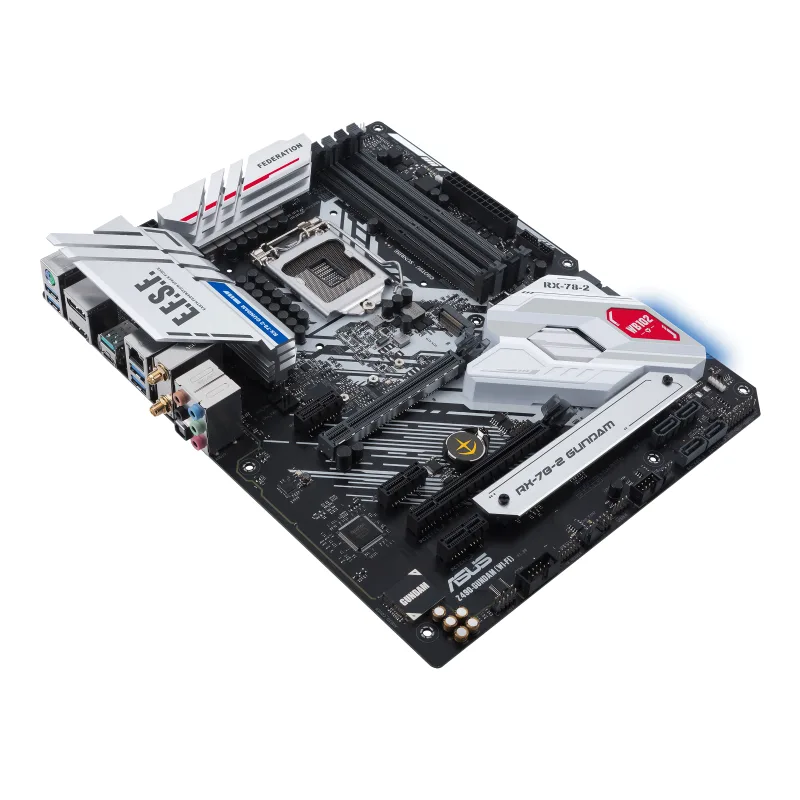

The ASUS Z490-GUNDAM (WI-FI) is an ATX motherboard built around the Intel Z490 chipset and LGA 1200 socket. It supports 10th and 11th Gen Intel Core processors and features a themed design from the GUNDAM RX-78-2 series. The board delivers a 12+2 DrMOS power stage layout on a 6-layer PCB with ProCool sockets and TUF components.

Target Audience and Alternatives

This board suits builders who want a Z490 platform with integrated Intel WiFi 6, Intel I219-V Ethernet, Thunderbolt 3 header support, and Aura Sync RGB lighting. Users needing a different chipset, a smaller form factor, or a non-themed aesthetic should consider other models.

Deciding Specification

The LGA 1200 socket paired with the Z490 chipset defines compatibility for 10th and 11th Gen Intel Core CPUs. This combination determines whether the motherboard fits the intended processor and feature set.

Highlights

  • Ready for 10th and 11th Gen Intel Core processors via LGA 1200 socket
  • Stable power delivery with 12+2 DrMOS stages, 6-layer PCB and ProCool sockets
  • VRM, PCH and M.2 heatsinks plus Fan Xpert 4 keep temperatures low
  • Front USB 3.2 Gen 2 Type-C header with Thunderbolt 3 support for fast peripherals
  • Intel WiFi 6 and I219-V Ethernet with TUF LANGuard for reliable online gaming

Specifications

BrandASUS
SeriesGUNDAM RX-78-2
ModelZ490-GUNDAM (WI-FI)
ChipsetZ490

Questions about this item

What case form factor fits the ATX dimensions of the Z490-GUNDAM (WI-FI) board?

The board follows the ATX form factor, so it requires a case with ATX mounting holes and an I/O shield cut-out that matches the rear-panel layout.

Which CPU power connectors must be seated for the 12+2 DrMOS power stages to function?

Both the 8-pin and 4-pin ProCool sockets at the top edge of the board need to be fully inserted; the 4-pin is often missed but is required for full current delivery.

How is the M.2 heatsink removed when adding a second drive later?

Unscrew the single captive screw on the M.2 heatsink, lift the plate away, install the drive, then replace the heatsink and re-tighten the screw.
