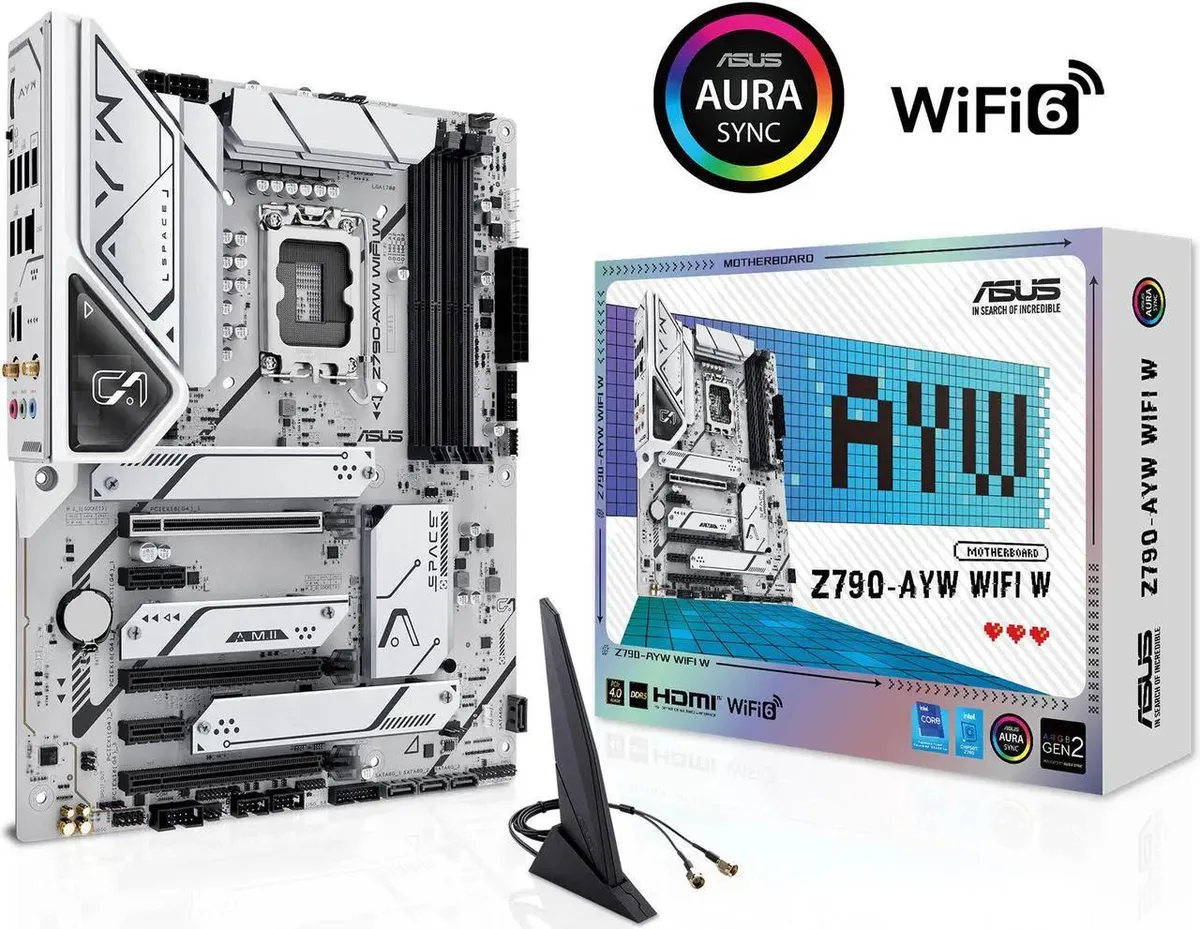

White ATX motherboard with large silver VRM heatsinks, four DDR5 slots, three covered M.2 slots, rear I/O shield and antenna connectors

ASUS

ASUS Z790-AYW WIFI W Intel motherboard

SKU CH-Y8YB-0K44E

ATX motherboard for Intel LGA 1700 CPUs with DDR5 support up to 192GB, three PCIe 4.0 M.2 slots, 2.5Gb LAN, WIFI 6 and USB 10Gbps Type-C

  • CPU Socket TypeLGA 1700
  • ChipsetIntel Z790
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 5600
  • Maximum Memory Supported192GB
  • Memory FeatureDDR5 8000+(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/
  • Supports Intel Core 14th, 13th and 12th Gen CPUs via LGA 1700 socket
  • Stable power delivery from 12+1 DrMOS phases on a 6-layer PCB
  • DDR5 memory up to 192 GB with speeds to 8000+(OC) and ASUS OptiMem II
  • Three PCIe 4.0 M.2 slots plus four SATA 6Gb/s ports for flexible storage
  • Wi-Fi 6, Bluetooth 5.3 and 2.5Gb LAN with rear and front USB 10Gbps Type-C

LGA 1700 Intel Z790 ATX motherboard

The ASUS Z790-AYW WIFI W is an ATX motherboard built on the Intel Z790 chipset for LGA 1700 processors. It supports 12th, 13th and 14th generation Intel Core CPUs with a 12+1 DrMOS power design. The board provides DDR5 memory slots, PCIe 4.0 expansion and integrated WIFI 6 plus 2.5Gb LAN.

Builders needing three PCIe 4.0 M.2 slots

This board suits builders who want three M.2 slots with PCIe 4.0 x4 wiring, rear USB 10Gbps Type-C and a Thunderbolt (USB4) header for add-in cards. It also fits users who value 7.1 audio shielding and AI Cooling II fan control. Users requiring PCIe 5.0 graphics or storage support should consider a different chipset platform.

DDR5 memory support up to 192GB capacity

Four 288-pin DDR5 slots accept up to 192GB of non-ECC unbuffered memory. The board validates speeds from 4800 up to 8000+(OC) with ASUS Enhanced Memory Profile II and OptiMem II layout. This capacity ceiling determines whether the platform fits heavy multitasking or content creation workloads.

Highlights

  • Supports Intel Core 14th, 13th and 12th Gen CPUs via LGA 1700 socket
  • Stable power delivery from 12+1 DrMOS phases on a 6-layer PCB
  • DDR5 memory up to 192 GB with speeds to 8000+(OC) and ASUS OptiMem II
  • Three PCIe 4.0 M.2 slots plus four SATA 6Gb/s ports for flexible storage
  • Wi-Fi 6, Bluetooth 5.3 and 2.5Gb LAN with rear and front USB 10Gbps Type-C

Specifications

BrandASUS
ModelZ790-AYW WIFI W
Part Number90MB1HT0-M0AAY0
CPU Socket TypeLGA 1700
ChipsetIntel Z790
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 5600
Maximum Memory Supported192GB
Memory FeatureDDR5 8000+(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*
PCI Express 4.0 x16Intel Core Processors (14th & 13th & 12th Gen):
1 x PCIe 4.0 x16 slot
Intel Z790 Chipset:
2 x PCIe 4.0 x16 slots (support x4 mode)
PCI Express x12 x PCIe 4.0 x1 slots
Serial ATA (SATA)4 x SATA 6Gb/s
M.2Intel Core Processors (14th & 13th & 12th Gen):
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
Intel Z790 Chipset:
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
SATA RAIDIntel Rapid Storage Technology supports SATA RAID 0/1/5/10
Additional RAID ControllerIntel Rapid Storage Technology supports PCIe RAID 0/1/5/10
Audio ChannelsRealtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
LAN Chipset1 x Realtek 2.5Gb Ethernet
ASUS LANGuard
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 ax
BluetoothBluetooth 5.3
Back I/O Ports2 x USB 10Gbps ports (1 x Type-A+1 x Type-C)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x HDMI port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack button
Onboard USB1 x USB 10Gbps connector (supports USB Type-C)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-5pin System Panel header
1 x Thunderbolt (USB4) Header
Windows 11Supported
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
FeaturesASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-Slot
- Q-LED Core
ASUS Thermal Solution
- M.2 heatsinks
- VRM heatsinks design
ASUS EZ DIY
- BIOS FlashBack button
- ProCool
- Pre-mounted I/O shield
Aura Sync
- Addressable Gen 2 headers
Software Features
ASUS Exclusive Software:
Armoury Crate
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- Power Saving
- Two- Way AI Noise Cancelation
AI Suite 3
- TurboV EVO
- PC Cleaner
- DIGI+ VRM
ASUS CPU-
Package ContentsCables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antenna
2 x M.2 rubber packages
2 x Screw packages for M.2 SSD
Documentation
1 x Quick start guide

Questions about this item

Will the Z790-AYW WIFI W fit in a standard ATX case?

Yes, the board follows the ATX form factor and uses standard mounting holes, so any ATX-compatible chassis will accept it.

What is the most common installation mistake with the 12+1 DrMOS power phase layout?

Builders often forget to connect both the 24-pin ATX and the 8-pin ProCool CPU power cables, leaving the VRM phases without power.

Which M.2 slots on the Z790-AYW WIFI W support 22110-length drives?

M.2_1 and M.2_3 both accept 22110 modules, while M.2_2 is limited to 2280.
