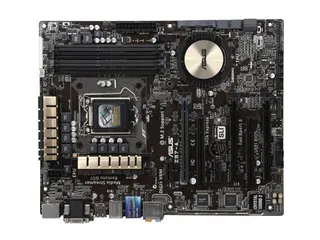

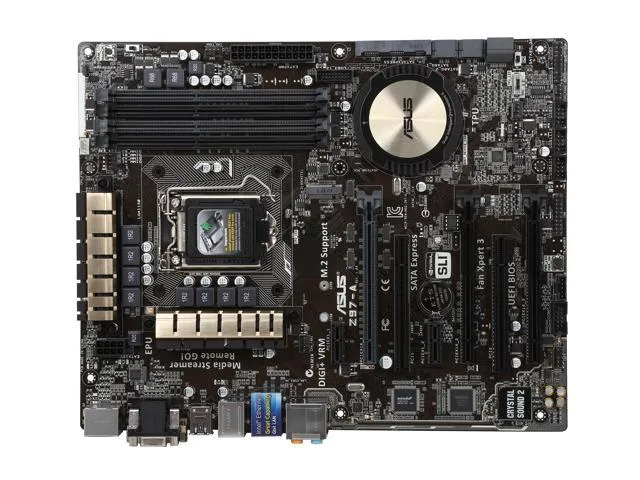

ATX motherboard with black PCB and silver heatsinks

ASUS

ASUS Z97-A LGA 1150 Intel Z97 ATX Intel Motherboard

SKU CH-2WAJ-WCWXR

ATX board for LGA 1150 CPUs with Intel Z97 chipset, four DDR3 slots up to 32 GB, dual PCIe 3.0 x16, SATA 6Gb/s and M.2 Socket 3 storage, plus 8-channel Realtek ALC892 audio

  • CPU Socket TypeLGA 1150
  • CPU TypeCore i7 / i5 / i3 / Pentium / Celeron (LGA1150)
  • Supported CPU TechnologiesTurbo Boost Technology 2.0
  • ChipsetIntel Z97
  • Onboard Video ChipsetIntegrated Graphics Processor - Intel HD Graphics supportMul
  • Number of Memory Slots4x240pin
  • Supports 4th and 5th gen Intel Core processors with LGA 1150 socket
  • Four DDR3 slots handle up to 32 GB at speeds up to 3200 MHz overclocked
  • Two PCIe 3.0 x16 slots run at x16 or dual x8 for multi-GPU builds
  • M.2 Socket 3 plus SATA Express give fast storage options alongside four SATA 6 Gb/s ports
  • Realtek ALC892 codec delivers 8-channel high-definition audio for immersive sound

Z97-A LGA 1150 Intel Z97 ATX Motherboard

This ASUS board fits the LGA 1150 socket and supports Core i7, i5, i3, Pentium and Celeron processors. Four DDR3 slots accept up to 32 GB of memory with speeds ranging from 1333 to 3200 MT/s when overclocked. The ATX layout provides two PCIe 3.0 x16 slots that run at x16 or dual x8, plus additional PCIe 2.0 x16 and x1 slots and two legacy PCI slots.

Who this suits and who should look elsewhere

Enthusiasts upgrading an existing LGA 1150 system or building a cost-focused rig with DDR3 will find the chipset feature set complete. Builders starting a new platform should consider a current socket and memory standard. The board also lacks onboard Wi-Fi, so a separate adapter is required for wireless networking.

Deciding specification: LGA 1150 socket

The LGA 1150 socket determines every other compatibility choice, locking the build to 4th and 5th generation Intel Core processors and DDR3 memory only. If the planned CPU uses a different socket, this motherboard cannot be used.

Highlights

  • Supports 4th and 5th gen Intel Core processors with LGA 1150 socket
  • Four DDR3 slots handle up to 32 GB at speeds up to 3200 MHz overclocked
  • Two PCIe 3.0 x16 slots run at x16 or dual x8 for multi-GPU builds
  • M.2 Socket 3 plus SATA Express give fast storage options alongside four SATA 6 Gb/s ports
  • Realtek ALC892 codec delivers 8-channel high-definition audio for immersive sound

Specifications

BrandASUS
ModelZ97-A
CPU Socket TypeLGA 1150
CPU TypeCore i7 / i5 / i3 / Pentium / Celeron (LGA1150)
Supported CPU TechnologiesTurbo Boost Technology 2.0
ChipsetIntel Z97
Onboard Video ChipsetIntegrated Graphics Processor - Intel HD Graphics supportMulti-VGA output support: HDMI/DVI-D/RGB/DisplayPort ports- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz- Supports DisplayPort with max. resolution 4096 x 2160 @ 24 Hz / 3840 x 2160 @ 60 HzMaximum shared memory of 512MBSupports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, InsiderSupports up to 3 displays simultaneouslyDP 1.2 Multi-Stream Transport compliant, supports DP
Number of Memory Slots4x240pin
Memory StandardDDR3 3200*(*O.C.)/ 3100*/ 3000*/ 2933*/ 2800*/ 2666*/ 2600*/ 2400*/ 2200*/ 2133*/ 2000*/ 1866*/ 1600/ 1333
Maximum Memory Supported32GB
PCI Express 3.0 x162 x PCIe 3.0/2.0 x16 (x16 or dual x8)
PCI Express 2.0 x161 x PCIe 2.0 x16 (x2 mode)
PCI Express x12 x PCIe 2.0 x1 *1*1: The PCIe x1_1/2 slots share bandwidth with M.2 Socket 3. The M.2 Socket 3 is default disabled.
PCI Slots2 x PCI Slots
Serial ATA (SATA)4 x SATA 6Gb/s port(s), gray
SATA Express1 x SATA Express port, compatible with 2 x SATA 6.0Gb/s ports
M.21 x M.2 Socket 3, with M Key, type 2260/2280 storage devices support (PCIE mode)
SATA RAID0/1/5/10
Audio ChipsetRealtek ALC892
Audio Channels8 Channels
LAN ChipsetIntel I218V
Max LAN Speed1Gbps

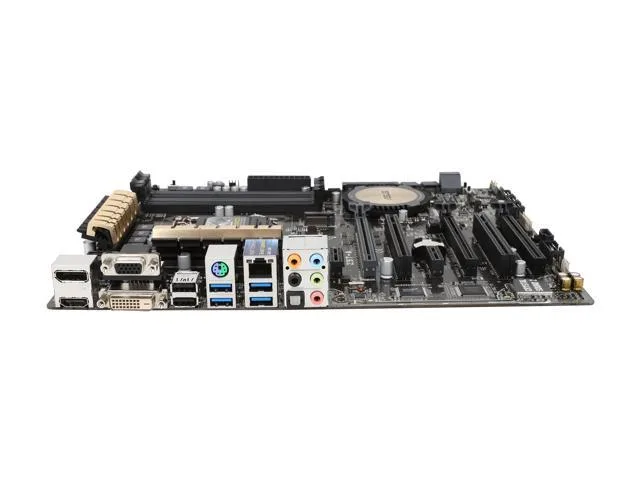

Back I/O Ports1 x HDMI / 1 x Optical S/PDIF Out / 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 2.0/1.1 / 4 x USB 3.0
PS/21 x PS/2 keyboard/mouse port
Video Ports1 x DVI-D1 x D-Sub
HDMI1 x HDMI
RJ451 x LAN (RJ45) port(s)
USB 3.04 x USB 3.0 (blue)
USB 1.1/2.02 x USB 2.0
S/PDIF Out1 x Optical
Onboard USB1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
Other Connectors1 x TPM header1 x CPU Fan connector(s) (1 x 4-pin)1 x CPU OPT Fan connector(s) (1 x 4-pin)4 x Chassis Fan connector(s) (4 x 4-pin)1 x S/PDIF out header(s)1 x Thunderbolt header(s)1 x 24-pin EATX Power connector(s)1 x 8-pin ATX 12V Power connector(s)1 x EZ XMP switch1 x Front panel audio connector(s) (AAFP)1 x System panel(s) (Q-Connector)1 x DRCT header(s)1 x MemOK! button(s)1 x TPU switch(es)1 x EPU switch(es)1 x Power-on button(s)1 x Clear CMOS jumper(s)
Form FactorATX
Power Pin24 Pin

Questions about this item

What size ATX case and CPU cooler clearance do I need for the ASUS Z97-A LGA 1150 motherboard?

The board uses the standard ATX form factor, so any ATX-compatible case will fit; ensure your CPU cooler does not overhang the four DDR3 slots or the two PCIe 3.0 x16 slots.

How do I install an M.2 2260 or 2280 drive on the Z97-A, and what BIOS step is often missed?

Insert the drive into the M.2 Socket 3 with M Key at a 30-degree angle, secure it with the screw, then enable the M.2 socket in UEFI because it is disabled by default and shares bandwidth with the PCIe x1 slots.

Which memory kit should I buy for the four DDR3 slots, and what is the maximum supported capacity?

Purchase DDR3 DIMMs up to 3200 (O.C.) speed; the four 240-pin slots support a total of 32 GB.
