Silver six-bay desktop NAS with front drive trays and ventilation grilles

ASUSTOR

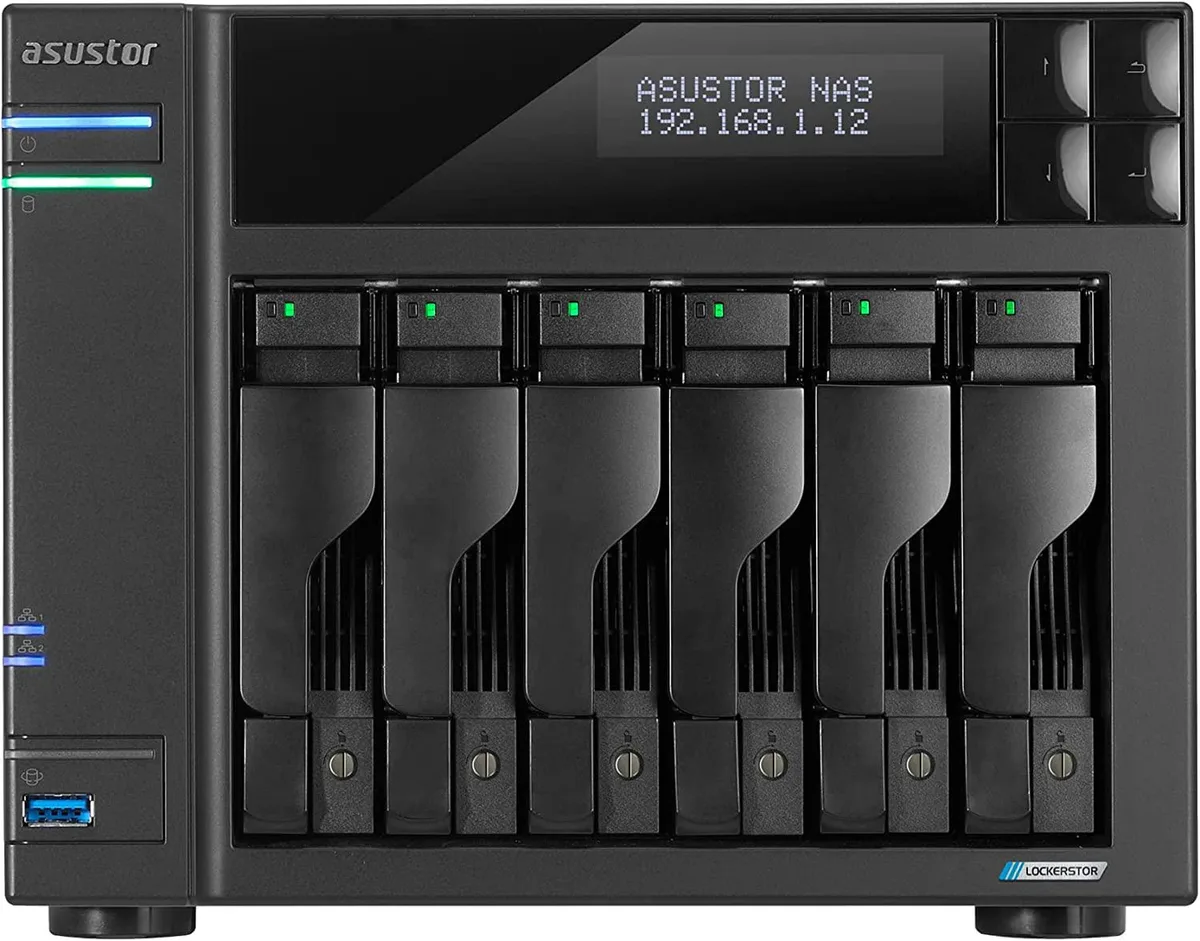

ASUSTOR AS6706T 6-Bay NAS Intel Celeron N5105 8GB DDR4

SKU CH-RX94-0WP4R MPN AS6706T

Six-bay desktop NAS with Intel Celeron N5105 quad-core processor, 8 GB DDR4, dual 2.5 GbE ports and four M.2 slots for NVMe caching

  • TypeDesktop NAS
  • HDD Interface6 x SATA (6 x Bay)
  • Form Factor6-Bay
  • ProcessorIntel Celeron N5105 Quad-Core 2.0 GHz (burst up 2.90 GHz)
  • Installed Memory8GB DDR4
  • Max Memory Capacity16GB

Form Factor 6-Bay

  • 4-Bay
  • 6-Bay
  • 8-Bay
  • 10-Bay

Struck-through versions exist but are not stocked here.

Processor Intel Celeron

  • Intel Atom
  • Intel Celeron
  • Intel Xeon

Struck-through versions exist but are not stocked here.

Option AS6706T

  • AS6704T
  • AS6508T
  • AS6510T
  • AS6706T
  • AS7110T

Struck-through versions exist but are not stocked here.

  • Quad-core Intel Celeron N5105 at 2.0 GHz with 2.9 GHz burst for responsive NAS performance
  • Dual 2.5-Gigabit Ethernet ports enable fast wired network transfers
  • Four M.2 2280 slots accept NVMe SSDs for caching or storage expansion
  • 8 GB DDR4-2933 memory installed, expandable to 16 GB via two SODIMM slots
  • Diskless six-bay chassis supports up to 132 TB with 3.5" or 2.5" SATA drives

6-Bay Desktop NAS with Intel Celeron N5105

The ASUSTOR AS6706T is a diskless 6-bay desktop NAS powered by a quad-core Intel Celeron N5105 processor running at 2.0 GHz with burst up to 2.9 GHz. It ships with 8 GB of DDR4 memory, expandable to 16 GB via two SODIMM slots. The unit targets home and small-office users who want a personal cloud for backup, media streaming and 4K transcoding without pre-installed drives.

Dual 2.5GbE ports and four M.2 2280 slots

Two 2.5-Gigabit Ethernet ports provide high-speed wired connectivity for multi-user access. Four M.2 slots accept NVMe SSDs for caching or storage, installed tool-free using latches. A PCIe 3.0 slot allows adding a 10GbE network card or additional M.2 drives. Extra ventilation keeps M.2 drives cool during sustained workloads. The chassis measures 185.5 x 233 x 230 mm and weighs 4.4 kg.

USB 3.2 Gen 2 and flexible drive support

Front and rear USB 3.2 Gen 2 ports at 10 Gbps enable fast external storage or peripheral connections. The six drive bays accept 3.5-inch SATA HDDs, 2.5-inch SATA HDDs and 2.5-inch SATA SSDs, while the M.2 slots support NVMe drives. Maximum raw capacity reaches 132 TB. Power consumption is 48.5 W in operation, 27.7 W in disk hibernation and 0.81 W in sleep mode. The 250 W power supply operates on 100 V to 240 V AC.

Highlights

  • Quad-core Intel Celeron N5105 at 2.0 GHz with 2.9 GHz burst for responsive NAS performance
  • Dual 2.5-Gigabit Ethernet ports enable fast wired network transfers
  • Four M.2 2280 slots accept NVMe SSDs for caching or storage expansion
  • 8 GB DDR4-2933 memory installed, expandable to 16 GB via two SODIMM slots
  • Diskless six-bay chassis supports up to 132 TB with 3.5" or 2.5" SATA drives

Specifications

BrandAsustor
SeriesLOCKERSTOR 2 GEN 2
ModelAS6706T
TypeDesktop NAS
HDD Interface6 x SATA (6 x Bay)
Form Factor6-Bay
ProcessorIntel Celeron N5105 Quad-Core 2.0 GHz (burst up 2.90 GHz)
Installed Memory8GB DDR4
Max Memory Capacity16GB
Memory Slot2 x DDR4 SODIMM
Included HDD CapacityDiskless System
Max Capacity132TB
Drive Compatibility3.5" SATA HDD
2.5" SATA HDD
2.5" SATA SSD
M.2 2280 NVMe
Power250W x1,100V to 240V AC
Power Consumption48.5 W (Operation);
27.7 W (Disk Hibernation);
0.81 W (Sleep Mode)
Temperature0°C~40°C (32°F~104°F)
Humidity5% to 95% RH
UsageBackup & stream media through personal cloud
Dimensions185.5 (H) x 233 (W) x 230 (D) mm
Weight4.4 kg / 9.7 lb
Shipping weight5.47 kg
Package size316 × 311 × 295 mm

Questions about this item

What does the 2.5-Gigabit Ethernet interface cap real-world transfer speeds at?

Each of the two 2.5-Gigabit Ethernet ports is limited by the 2.5 Gbps line rate, so sustained throughput cannot exceed that bandwidth in practice.

What drive sizes and form factors fit the six drive bays and four M.2 slots?

The six front bays accept 3.5-inch or 2.5-inch SATA hard drives and SSDs, while the four internal M.2 slots take 2280-length NVMe modules.

How are the M.2 SSDs installed, and what step is often missed?

M.2 modules slot into the four tool-free latches and click into place; the step people forget is engaging the latch fully until it locks, otherwise the drive will not be detected.
