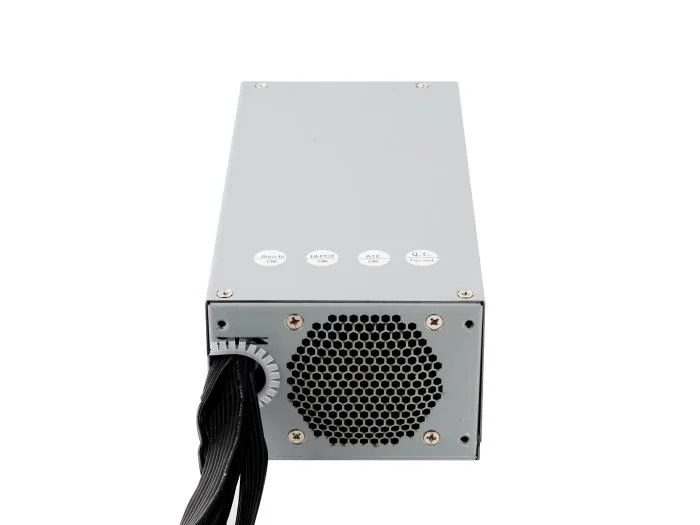

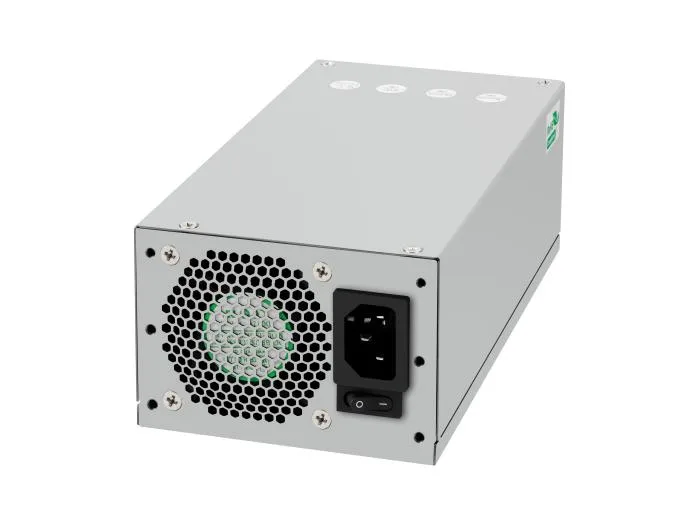

Silver rectangular 2U server power supply with front and rear fans

Athena Power

Athena Power AP-2U60P868 600W 2U server power supply

SKU CH-VMJ6-AV538

600 W 2U single server PSU with dual 60 mm fans, active PFC, >80 % efficiency, and full EPS, PCIe, SATA and Molex connectors for dual-CPU racks

  • Type2U EPS
  • Single/RedundantSingle
  • Maximum Power600W
  • Main Connector20+4Pin
  • Output Current+3.3V@18A, +5V@20A,12V1/V2@24/24A, [email protected] , [emai
  • Output+3.3V, +5V,12V1/V2, -12V, +5Vsb
  • 600W output powers dense 2U server builds
  • >80% efficiency at full load cuts energy waste
  • Dual 60mm fans with auto speed control exhaust system heat
  • Certified to UL/TUV 62368-1 and FCC Part 15 for safety and EMI compliance
  • EPS 8-pin plus 4+4-pin connectors support dual Xeon CPUs

2U 600W server power supply

The Athena Power AP-2U60P868 is a single 600W unit built for 2U rackmount servers and industrial PCs that run continuous workloads. It accepts 90-264V input and meets UL/TUV 62368-1 safety requirements for deployment in the United States, Canada and Europe.

Dual 60mm ball-bearing fans with smart speed control

Front and rear fans move heat from the chassis through the supply and out the front panel, while the controller adjusts speed automatically to match thermal load. The design targets 100% heat removal from the system interior without manual intervention.

Standard ATX and EPS connectors simplify integration

A 20+4 pin main connector, one 8-pin EPS and one 8-pin (4+4) EPS support dual-processor boards, while two PCIe 6+2 pin, three SATA and two Molex connectors cover storage and add-in cards. Remote on/off and active PFC are included; the 200mm depth requires a compatible 2U rail kit.

Highlights

  • 600W output powers dense 2U server builds
  • >80% efficiency at full load cuts energy waste
  • Dual 60mm fans with auto speed control exhaust system heat
  • Certified to UL/TUV 62368-1 and FCC Part 15 for safety and EMI compliance
  • EPS 8-pin plus 4+4-pin connectors support dual Xeon CPUs

Specifications

BrandAthena Power
ModelAP-2U60P868
Type2U EPS
Single/RedundantSingle
Maximum Power600W
Main Connector20+4Pin
Output Current+3.3V@18A, +5V@20A,12V1/V2@24/24A, [email protected] , [email protected]
Output+3.3V, +5V,12V1/V2, -12V, +5Vsb
Input Voltage90 - 264 V
Input Frequency Range47 - 63 Hz
Input Current9.0A@110V, 4.5A@ 240V
MTBF250,000 Hours on Maximum Load at +25 degree C
Efficiency> 80%
Hold-up Time11 ms Minimum at Nominal Input Voltage
ProtectionOCP, OVP,
FeaturesRise time: Less than 70 ms
Dimensions(L x W x H) 200 x 100 x 69.7 mm/ 7.87 x 3.93 x 2.74 in
Weight5 lbs
Humidity20%-90%
TemperatureOperating: 0°C ~ +55°C on Full Load; Storage & Shipping: -40°C ~ +70°C

Questions about this item

How often will the 60mm ball-bearing fans need replacement under continuous operation?

The fans are rated within the 250,000-hour MTBF at 25 °C full load, so replacement is unlikely for several years of 24/7 use.

Which protection circuit trips first when the 12 V rails approach their 24 A limits during sustained load?

Over-current protection on each 12 V rail activates at its 24 A rating before the total 600 W limit is reached.

How loud and hot does the dual-fan assembly get when the unit runs at full 600 W output all day?

Smart auto fan control adjusts the front and rear 60 mm fans to exhaust 100 % of system heat, keeping internal temperatures within the 0–55 °C operating range.
