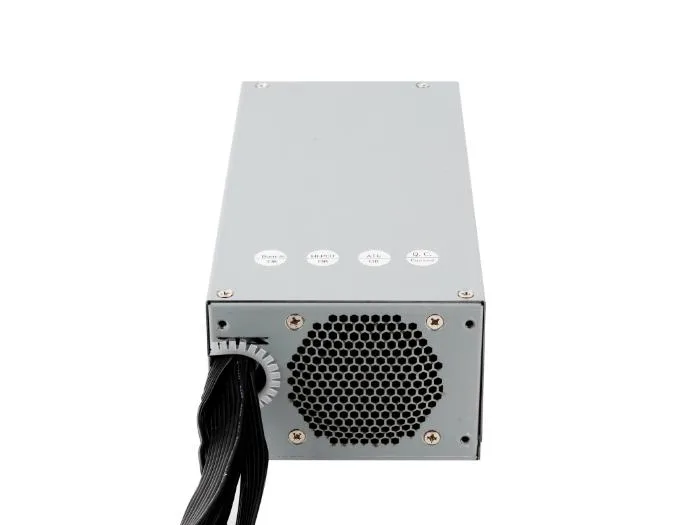

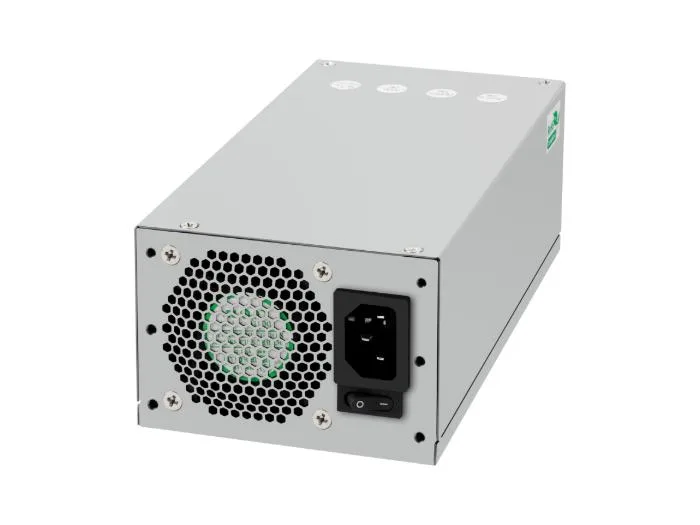

Silver metal 2U server power supply with dual 60mm fans and rear IEC socket

Athena Power

Athena Power AP-2U80P868 800W 2U server power supply

SKU CH-VYR2-3V1B1

800W 2U single EPS server power supply with 80 PLUS Platinum efficiency and dual 60mm ball-bearing fans

  • TypeEPS
  • Single/RedundantSingle
  • Maximum Power800W
  • Fans2
  • Output Current+3.3V 18A, +5V 18A, +12V1/V2 64A, -12V 0.5A, +5VSB 2.5A
  • Output800W
  • 800W continuous power for demanding server workloads
  • 80 PLUS Platinum efficiency above 92% cuts energy waste
  • 2U rackmount form factor fits dense chassis
  • Dual 60mm ball-bearing fans with smart thermal control
  • 250000-hour MTBF at 25°C ensures 24/7 reliability

800W 2U EPS Power Supply

The Athena Power AP-2U80P868 delivers 800W continuous output in a 2U rackmount form factor. It carries 80 PLUS Platinum certification with efficiency above 92%. Active PFC accepts 90 to 264V AC input across 47 to 63 Hz. Dual 60mm ball-bearing fans provide smart thermal speed control for 24/7 server and industrial PC operation.

Suited for dual-CPU EPS platforms needing

This unit fits rackmount servers and industrial chassis that require EPS-12V dual CPU support and IEC/UL/EN 62368-1 safety certification. It is not for builds that need redundant power modules or a smaller 1U footprint. Buyers who want modular cabling or a different form factor should look elsewhere.

Standard 2U screw-mount installation

The supply measures 200 x 100 x 69.7 mm and weighs 5.0 lbs, fitting typical 2U server bays. Fixed output cables mean cable routing must be planned before mounting. Dual fans draw air through the chassis; restricted airflow can raise noise and temperature. Remote on/off control requires a compatible motherboard header.

Highlights

  • 800W continuous power for demanding server workloads
  • 80 PLUS Platinum efficiency above 92% cuts energy waste
  • 2U rackmount form factor fits dense chassis
  • Dual 60mm ball-bearing fans with smart thermal control
  • 250000-hour MTBF at 25°C ensures 24/7 reliability

Specifications

BrandAthena Power
Series2U
ModelAP-2U80P868
TypeEPS
Single/RedundantSingle
Maximum Power800W
Fans2
Output Current+3.3V 18A, +5V 18A, +12V1/V2 64A, -12V 0.5A, +5VSB 2.5A
Output800W
Input Voltage90 - 264V AC
Input Frequency Range47 - 63 Hz
MTBF250,000 Hours @ 25°C
Efficiency> 92%
Hold-up Time11 ms Minimum at Nominal Input
Features800W output, 80 PLUS Platinum efficiency, 2U rackmount form factor, dual 60mm cooling fans, EPS-12V dual CPU support, Active PFC, IEC/UL/EN 62368-1 certified, 5-Year Limited Warranty
Dimensions200 x 100 x 69.7 mm / 7.87 x 3.93 x 2.75 in
Weight5.0 lbs
TemperatureOperating: 0°C to +50°C (Full Load); Storage: -20°C to +80°C
Package Contents1 x Power Supply

Questions about this item

Which motherboard power connectors must my chassis provide for this EPS-12V dual CPU supply?

The unit follows the EPS-12V standard, so your chassis needs a 24-pin main connector plus two 8-pin CPU power plugs for dual processor support.

Will the 90–264 V AC input range let me keep my existing PDU when I install this 2U unit?

Yes, the wide 90 to 264 V AC range works with standard rack PDUs worldwide, so no PDU change is required.

How can I verify the 80 PLUS Platinum efficiency is active after powering on the server?

Monitor the +12 V rail under load; it should deliver up to 64 A while the unit maintains greater than 92 percent efficiency.
