Compact silver Micro SFX power supply unit with dual fans and modular cable connectors visible

Athena Power

Athena Power AP-MP4ATX80FEP8 Apollo 800W Micro SFX power supply

SKU CH-ZANV-E9RBE MPN AP-MP4ATX80FEP8

Micro SFX unit delivers 800 W with dual +12 V rails, eight SATA connectors and four PCIe plugs for compact servers and custom builds

  • TypeMicro SFX
  • Maximum Power800 W
  • Main Connector20+4Pin
  • +12V Rails2
  • PCI-Express Connector2 x 6-Pin, 2 x 6+2-Pin
  • SATA Power Connector8
  • 800 W maximum power drives demanding server builds
  • Micro SFX form factor fits 2.5" x 4.9" x 5.2" mini-ATX chassis
  • Dual +12 V rails each rated at 32 A for stable multi-GPU loads
  • Active PFC with 88–264 V full-range input handles global mains automatically
  • MTBF exceeds 100000 hours for long-term reliability

Compact 800 W Micro SFX for custom builds

This Athena Power Apollo Series unit delivers 800 W in a Micro SFX form factor measuring 2.5" x 4.9" x 5.2". It targets builders of mini-ATX cases, HTPCs and mini-servers who need high output from a small chassis. The 88–264 V full-range input with Active PFC handles worldwide mains without a voltage switch. It is not for buyers who need ATX or SFX-L dimensions or redundant server supplies.

Straightforward cable routing with fixed leads

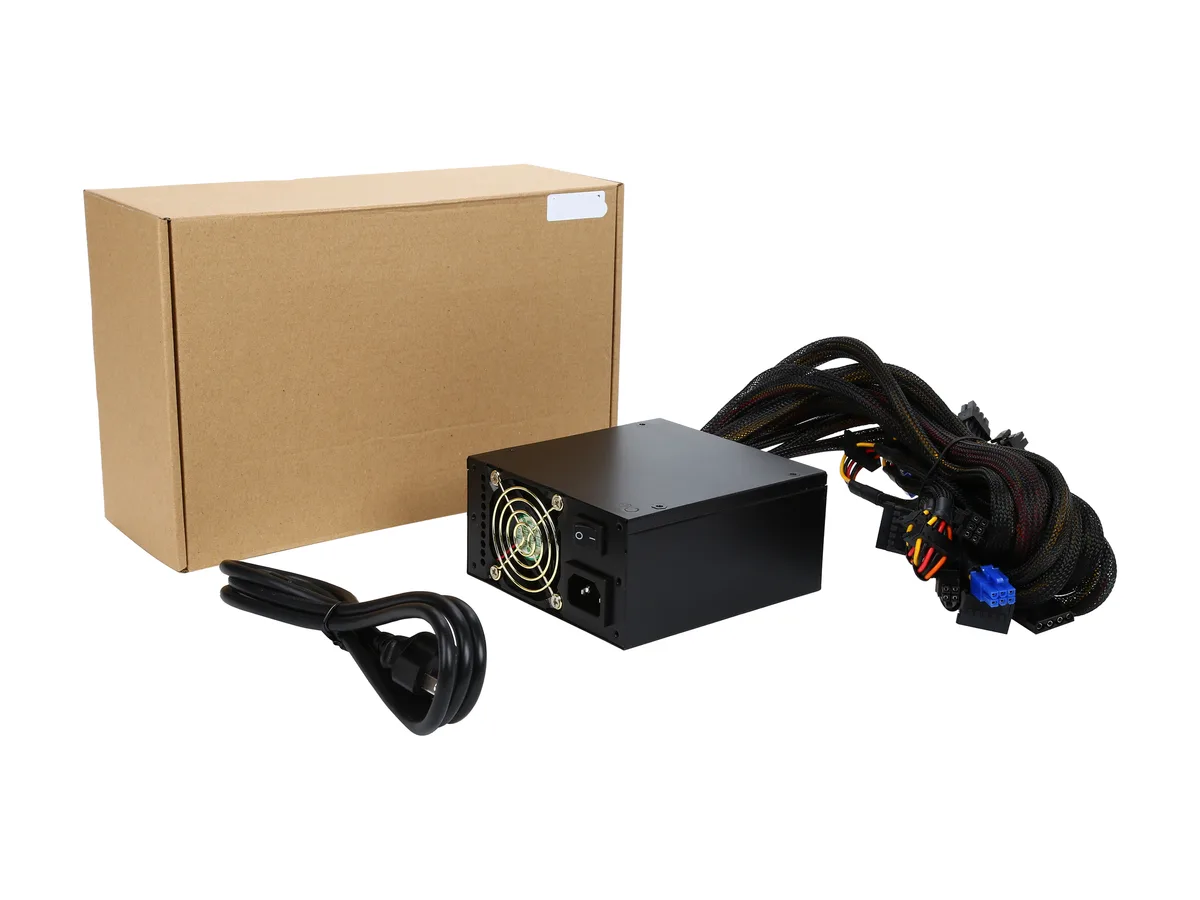

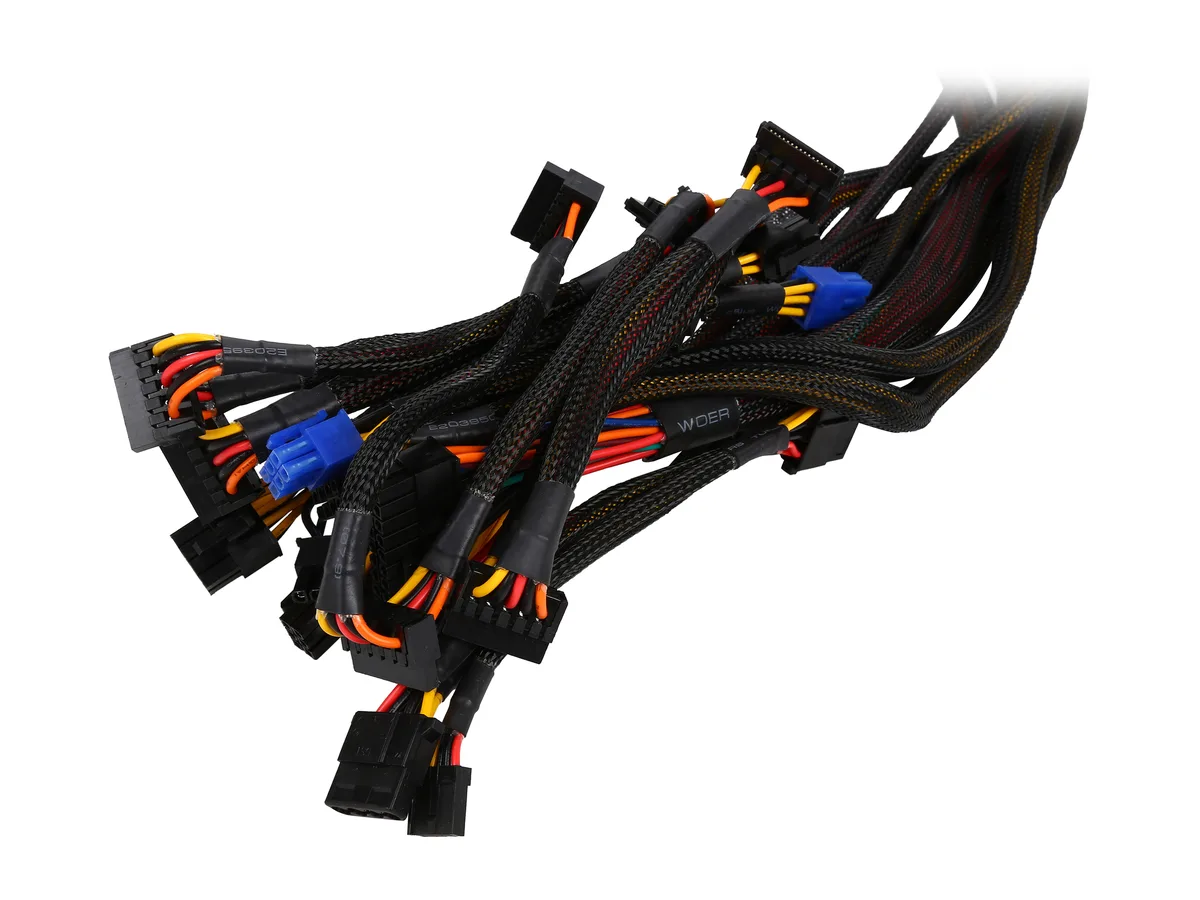

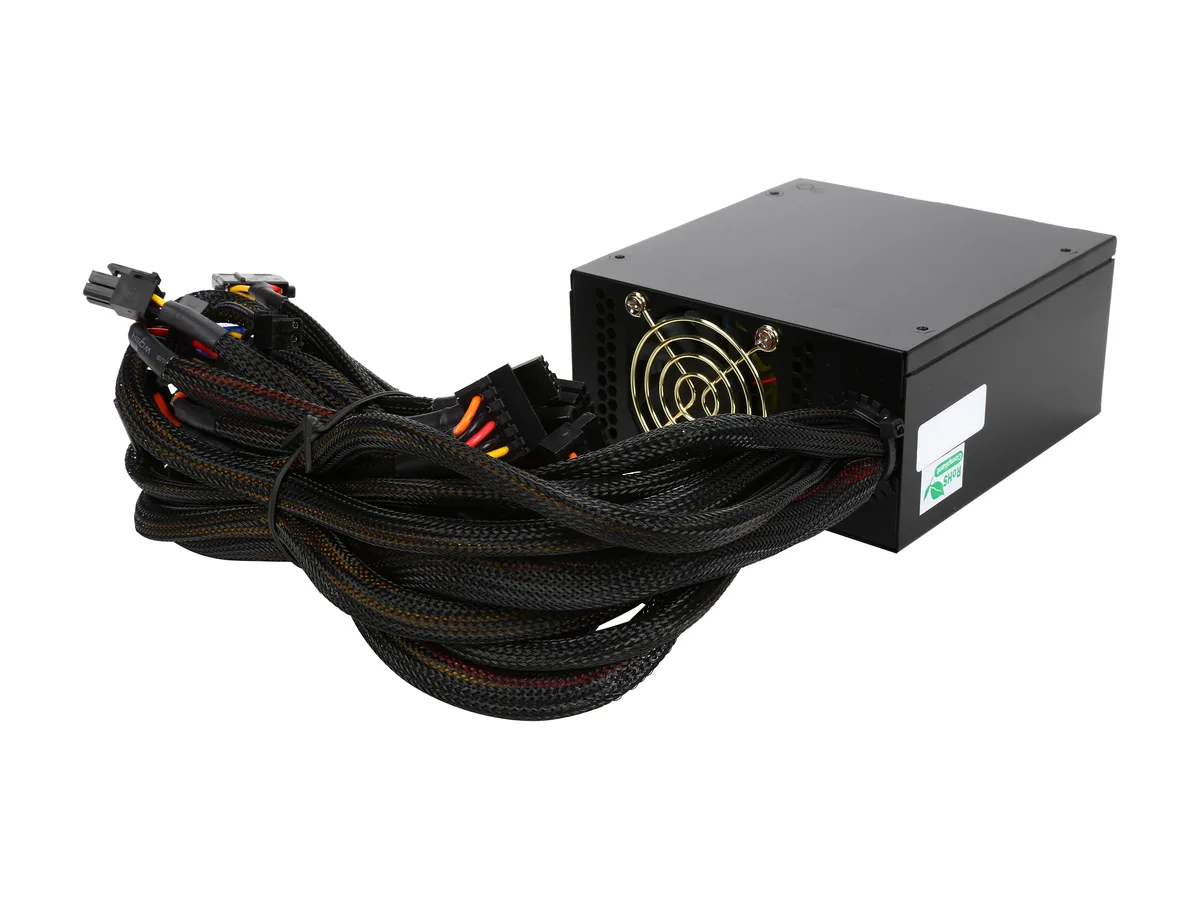

All connectors are native to the unit: 20+4-pin ATX, one 4-pin and two 8-pin EPS, two 6-pin and two 6+2-pin PCIe, eight SATA, two Molex and one floppy. The fixed cables simplify inventory but cannot be removed for custom sleeving. Builders must verify that the supplied EPS and PCIe counts match their motherboard and GPU requirements before ordering. No modular cables or adapter kit is included.

Dual +12 V rails rated for sustained 800 W

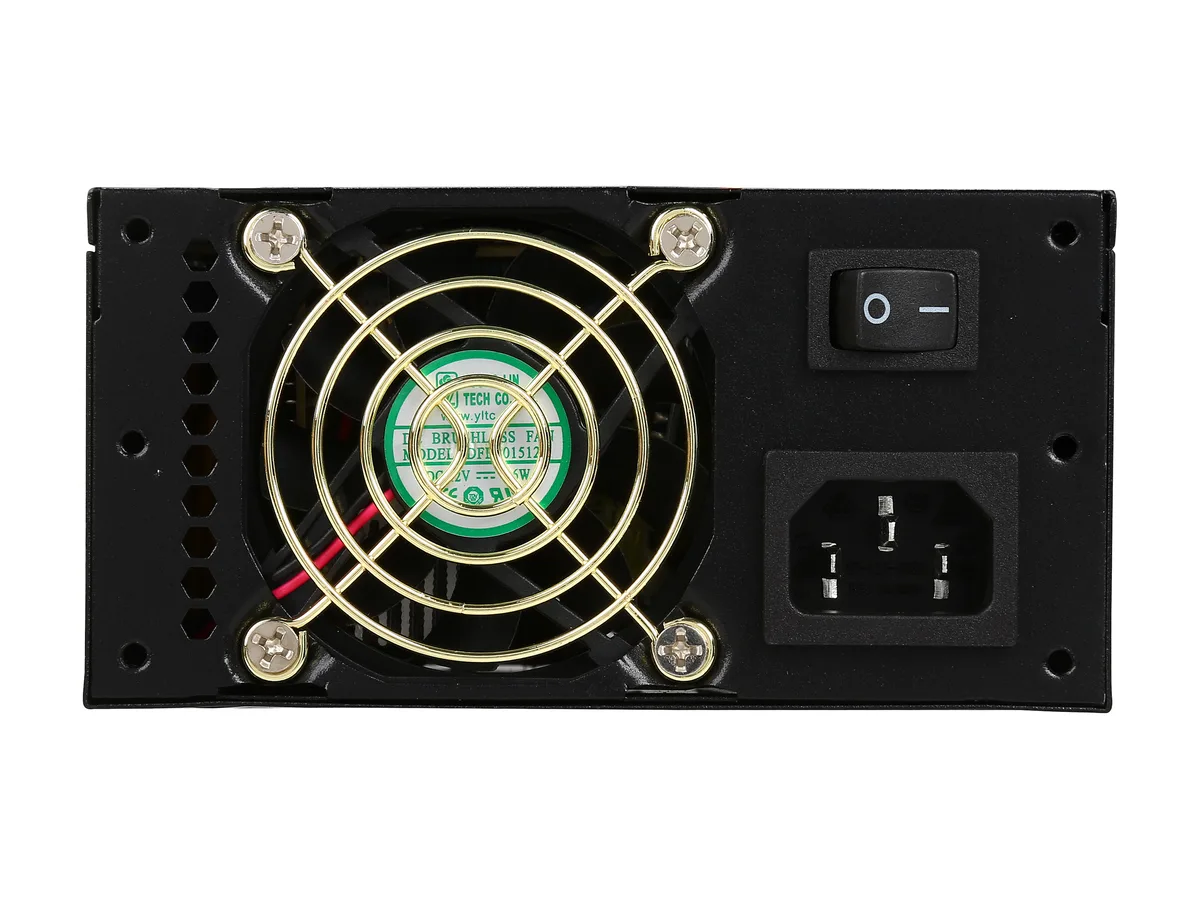

The two +12 V rails each supply 32 A, with +3.3 V at 20 A and +5 V at 22 A, allowing continuous 800 W delivery. Hold-up time is 17 ms at nominal input, and MTBF exceeds 100,000 hours. Dual fans cool the unit under prolonged load. It is not for systems that draw more than 800 W continuously or require single-rail +12 V designs.

Highlights

  • 800 W maximum power drives demanding server builds
  • Micro SFX form factor fits 2.5" x 4.9" x 5.2" mini-ATX chassis
  • Dual +12 V rails each rated at 32 A for stable multi-GPU loads
  • Active PFC with 88–264 V full-range input handles global mains automatically
  • MTBF exceeds 100000 hours for long-term reliability

Specifications

BrandAthena Power
SeriesApollo Series
ModelAP-MP4ATX80FEP8
TypeMicro SFX
Maximum Power800 W
Main Connector20+4Pin
+12V Rails2
PCI-Express Connector2 x 6-Pin, 2 x 6+2-Pin
SATA Power Connector8
Hold-up Time17 ms Minimum at Nominal Input Voltage
Input Voltage88 - 264 V
Input Frequency Range47 - 63 Hz

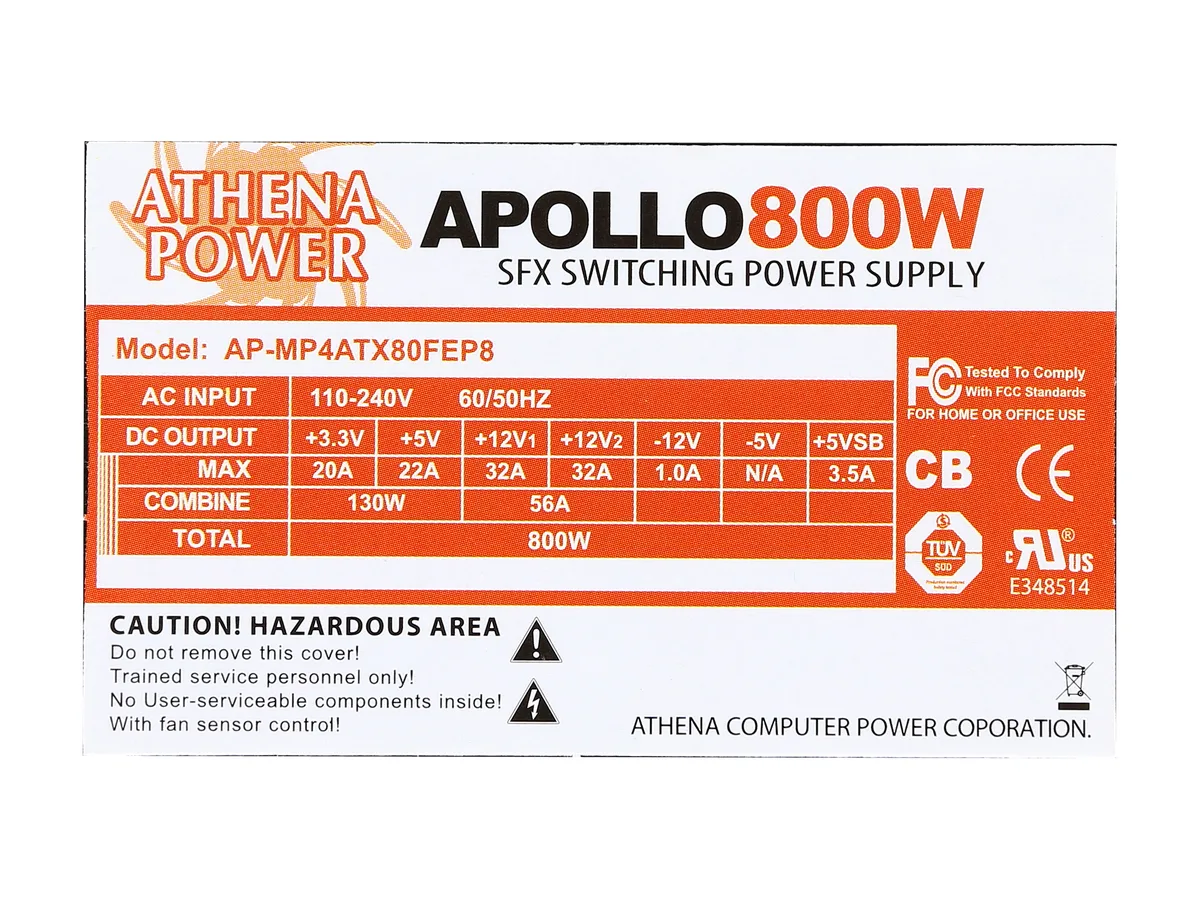

Output+3.3V@20A, +5V@22A, +12V1@32A, +12V2@32A, [email protected] , [email protected]
MTBF>100,000 Hours
Connectors1 x ATX 24(20+4) Pin
1 x P4-12V 4 Pin
2 x EPS 12V 8 Pin
2 x PCIE 6 Pin
2 x PCIE 6+2 Pin
8 x SATA 15 Pin
2 x Molex 4 Pin
1 x Floppy 4 Pin
Dimensions2.5" x 4.9" x 5.2"
FeaturesAthena Power has raised the bar in Micro SFX Power supplies. With higher demand for a stronger and reliable PSU, Athena Computer Power has released the SFX 800Watt Power Supply. The latest power supply in the SFX series, follows the same blueprints that made its predecessors so popular. Integrated with the Active PFC function, this compact power supply brings micro SFX PSUs into the next level.
The Micro SFX Design
Micro SFX power supplies are known mostly as a replacement power supply, but it has now evolved and can be used for mini-ATX cases, custom built computers, mini-servers, a
Shipping weight1.97 kg
Package size282 × 183 × 99 mm

Questions about this item

How can I confirm the 800 W Apollo unit is operating correctly once installed?

The PSU delivers 800 W with dual +12 V rails rated at 32 A each and a 17 ms minimum hold-up time at nominal input voltage.

Which cables and connectors ship with the AP-MP4ATX80FEP8 and what must I source separately?

The box includes 1 x ATX 24(20+4) Pin, 1 x P4-12V 4 Pin, 2 x EPS 12V 8 Pin, 2 x PCIE 6 Pin, 2 x PCIE 6+2 Pin, 8 x SATA 15 Pin, 2 x Molex 4 Pin and 1 x Floppy 4 Pin; no extra cables are required for standard builds.

Which version of the Apollo Micro SFX line should I choose for a compact server needing 800 W?

The AP-MP4ATX80FEP8 is the 800 W Micro SFX model with dual +12 V rails at 32 A, Active PFC and full-range 88-264 V input for mini-server and custom PC use.
