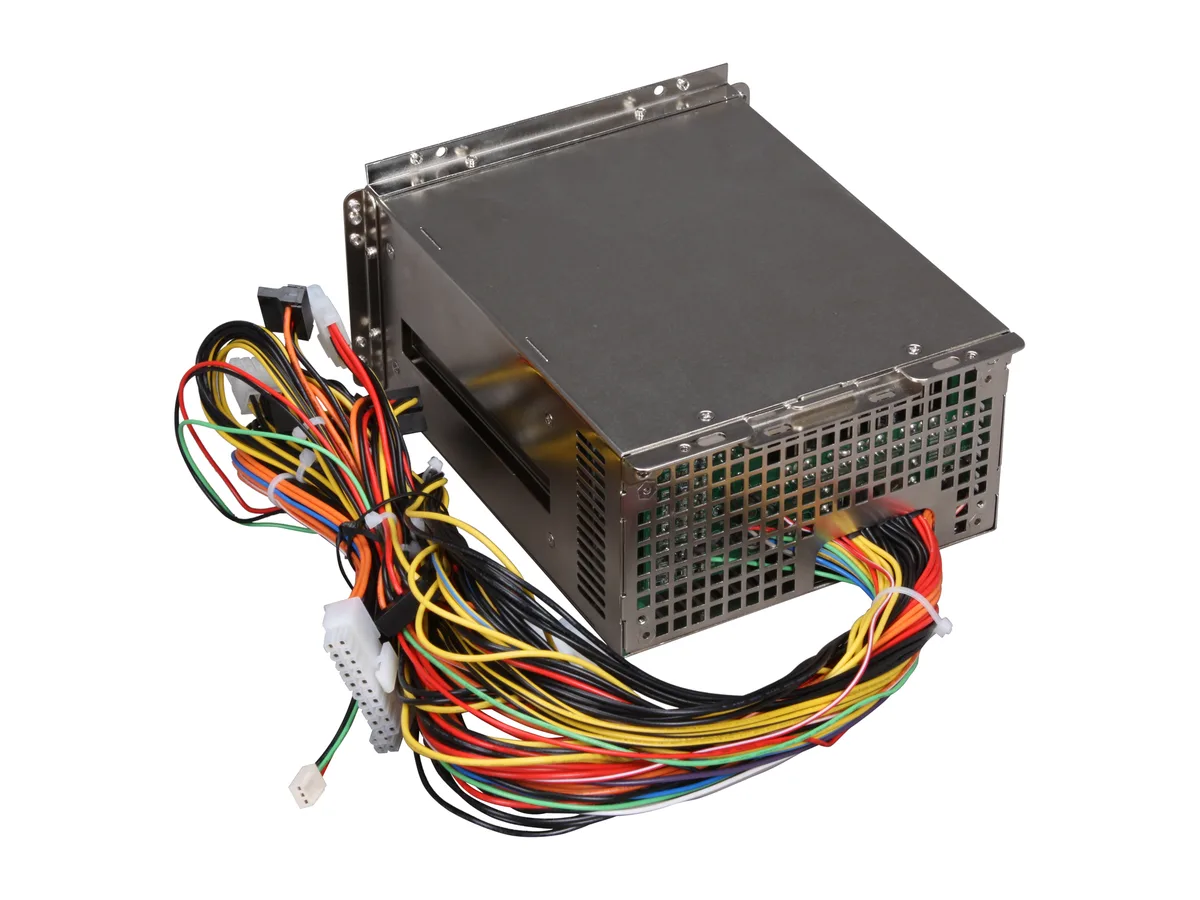

Silver rectangular redundant server power supply unit with dual 500W modules, 20+4 pin connectors

Athena Power

Athena Power AP-RRP4ATX6508 2 x 500W redundant server power supply

SKU CH-BV9T-0TJ18 MPN AP-RRP4ATX6508

Dual 500W redundant EPS12V supply with 20+4 pin connector and hot-swap capability for continuous server uptime

  • TypeEPS12V
  • Single/RedundantRedundant
  • Maximum Power500W
  • Main Connector20+4Pin
  • Output Current+5V@11A, +12V x 3@11A, [email protected] , +3.3V@11A, [email
  • Input Voltage88 -264 Volts AC

Maximum Power 500W

  • Redundant dual 500W modules keep servers running if one fails
  • 80 PLUS certification reduces wasted energy and heat
  • Wide 88-264V AC input suits global rack deployments
  • 100,000-hour MTBF at 25°C signals long-term reliability
  • Hot-swap capability allows replacement without system downtime

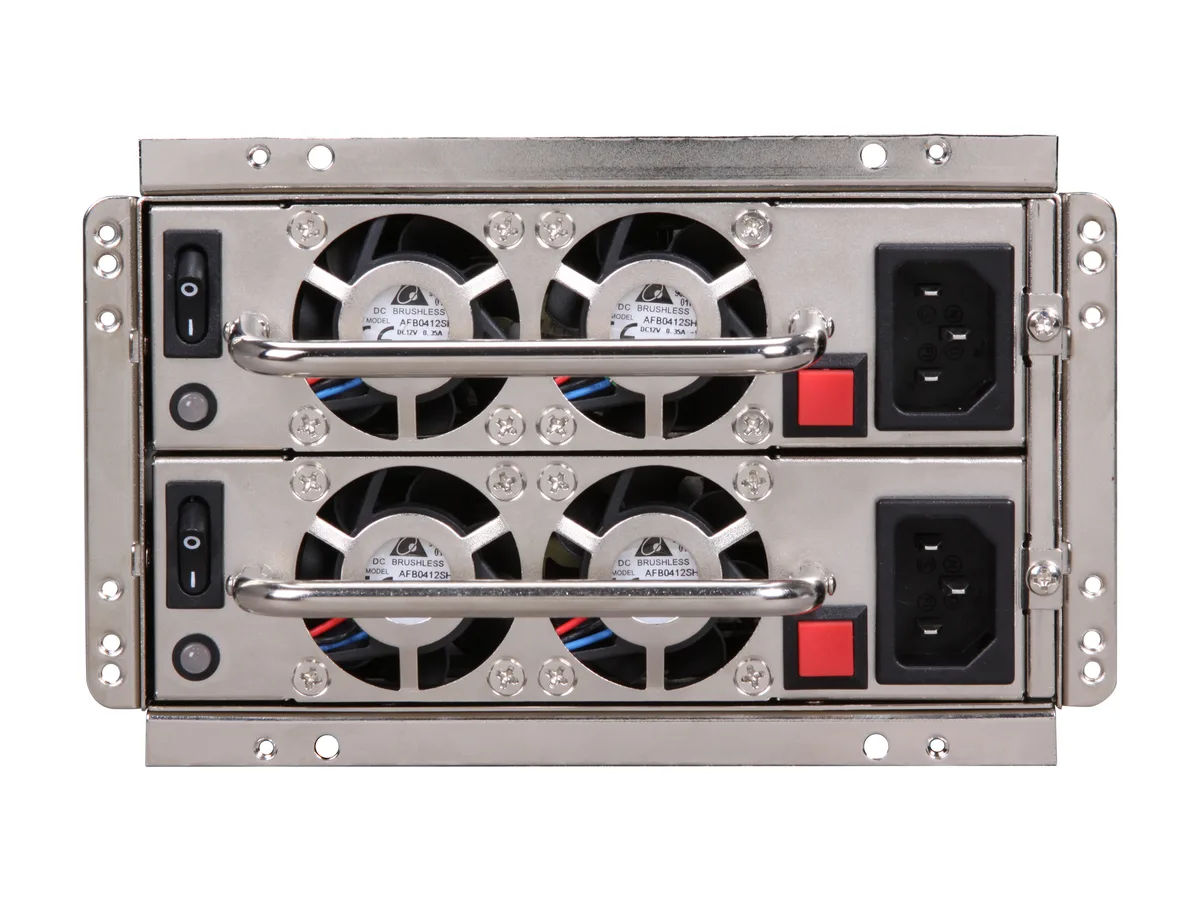

Redundant 2 x 500W Server PSU

This Athena Power AP-RRP4ATX6508 is a redundant EPS12V power supply delivering two 500W modules in a mini-redundant form factor. It targets server builders and operators who require continuous uptime and hot-swap capability for critical workloads. The unit provides N+1 redundancy so a single module failure does not interrupt operation. It suits environments where power reliability is a primary design requirement.

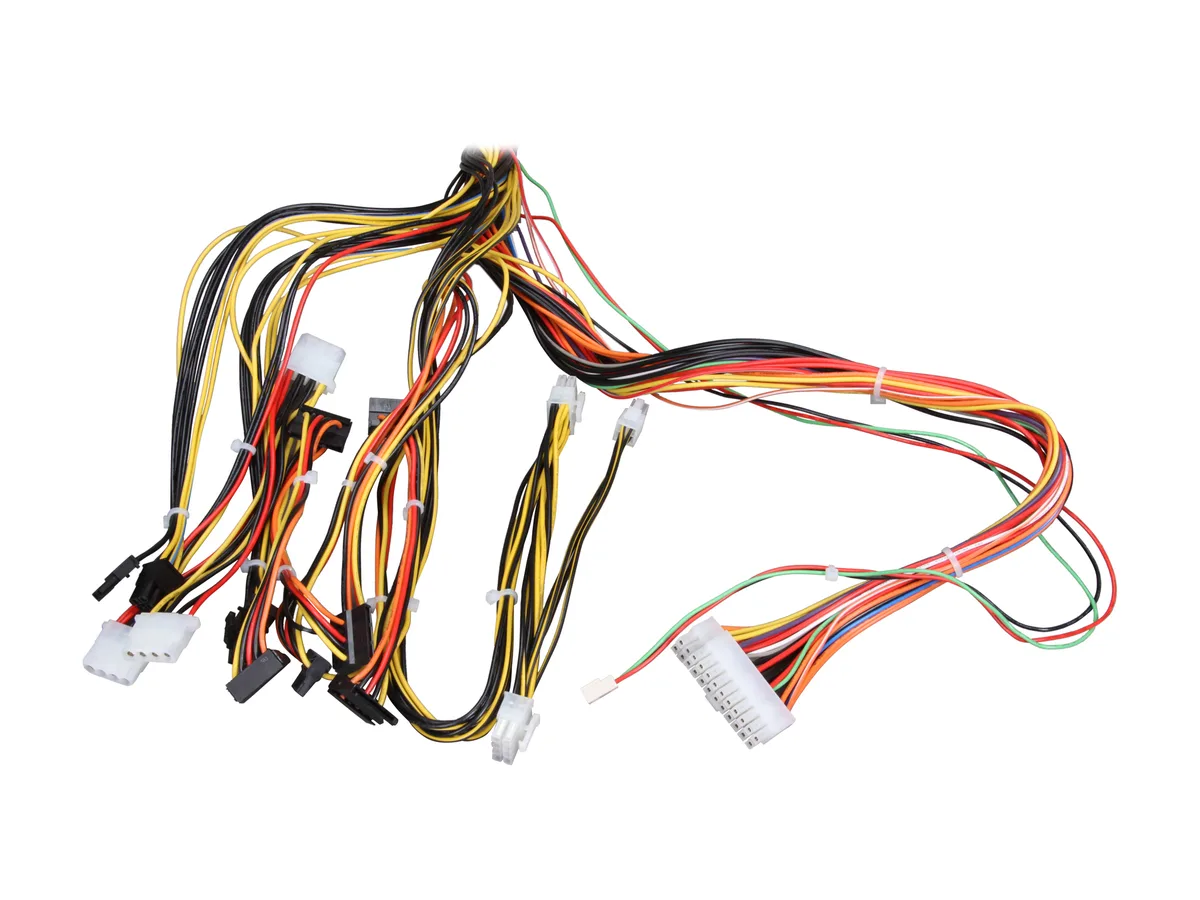

Hot-swap EPS12V with 20+4Pin main connector

The supply accepts 88 to 264 Volts AC at 47 to 63 Hz and fits standard redundant bays measuring 5.9 x 3.4 x 8.9 inches. Each module shares the load equally during normal operation and the surviving module instantly assumes the full load if its partner fails. Active PFC and a remote ON/OFF function simplify integration. The 20+4Pin main connector mates directly with compatible server mainboards without adapters.

500W per module with 80 PLUS efficiency

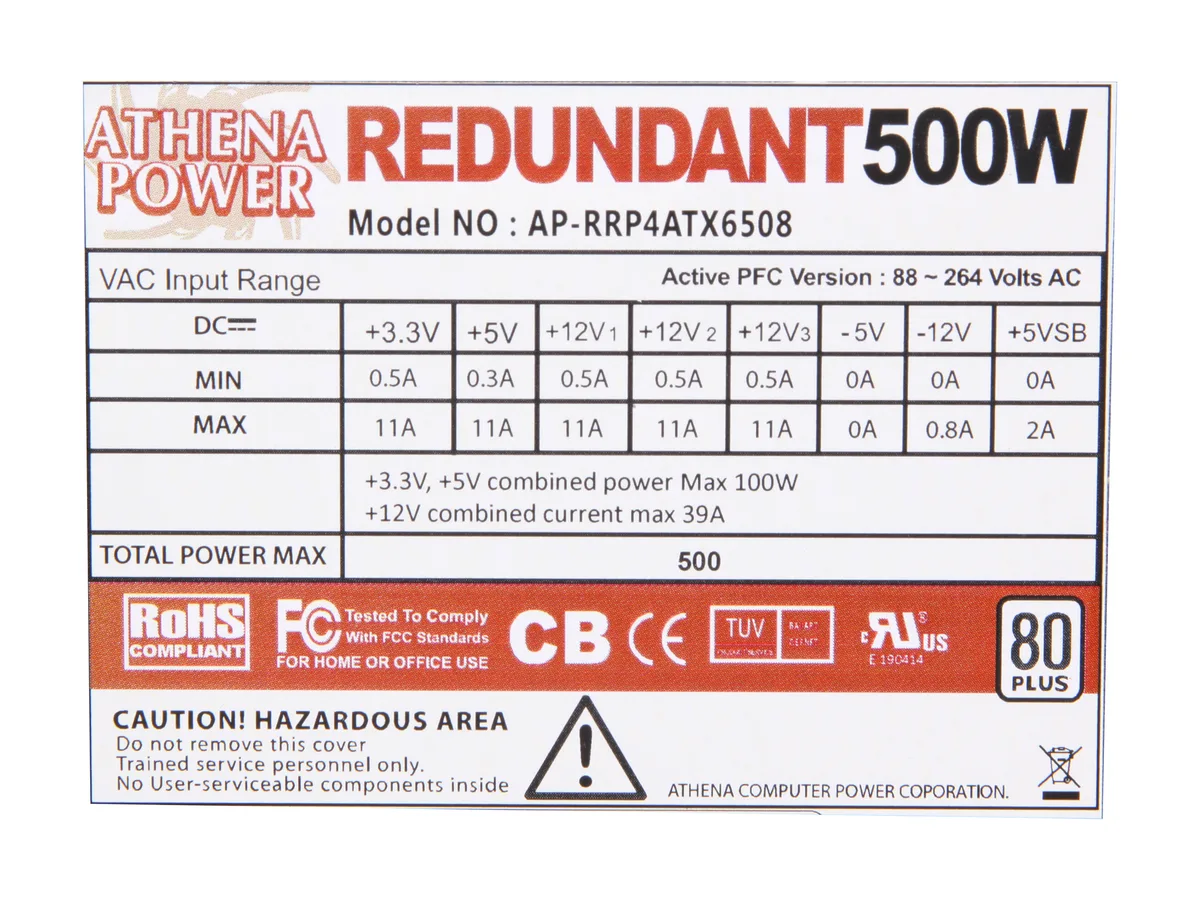

Each module delivers up to 500W maximum power with combined rails rated at +12V x 3@11A, +5V@11A, +3.3V@11A and auxiliary outputs at lower currents. The 80 PLUS certification reduces waste heat, supporting the rated MTBF of 100,000 hours at +25°C on maximum load. Headroom covers typical dual-socket server configurations; loads exceeding 500W per module or sustained operation above 40°C at full output exceed the design envelope.

Highlights

  • Redundant dual 500W modules keep servers running if one fails
  • 80 PLUS certification reduces wasted energy and heat
  • Wide 88-264V AC input suits global rack deployments
  • 100,000-hour MTBF at 25°C signals long-term reliability
  • Hot-swap capability allows replacement without system downtime

Specifications

BrandAthena Power
ModelAP-RRP4ATX6508
TypeEPS12V
Single/RedundantRedundant
Maximum Power500W
Main Connector20+4Pin
Output Current+5V@11A, +12V x 3@11A, [email protected] , +3.3V@11A, [email protected]
Input Voltage88 -264 Volts AC
Input Frequency Range47 - 63 Hz
MTBF100,000 Hours on Maximum Load at +25°C
Hold-up Time20ms Minimum at Nominal Input Voltage
FeaturesDielectric Withstand: Primary Frame Ground 1800V AC for 1 Second
Rise time: 50ms maximum

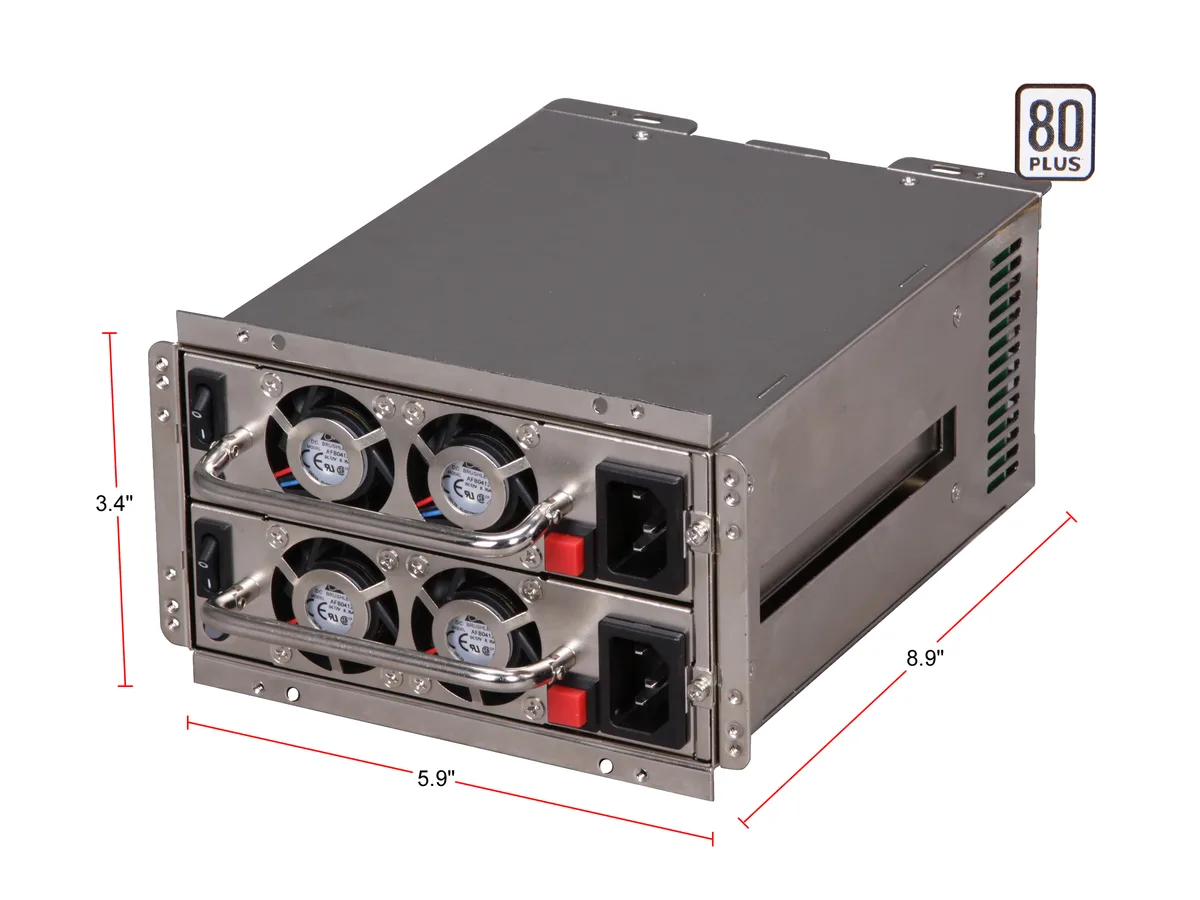

Dimensions5.9" x 3.4" x 8.9"
Weight9.0 lbs.
Humidity90% on Operating, 95% on Storage
TemperatureOperating: +5° C ~ +40° C on 250W Output Load or -10° C ~ +50° C on 220W Output Load
Shipping weight4.69 kg
Package size409 × 203 × 175 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much load can the unit sustain at 40 °C without throttling?

The supply is rated for 250 W continuous output at up to 40 °C operating temperature.

What is the typical power draw from the wall when the system idles all day?

With 80 PLUS certification and active PFC the unit draws only the power the components need plus normal efficiency losses.

Which motherboard power connector must be present for the supply to start?

A 20+4 pin ATX main connector is required on the motherboard.
